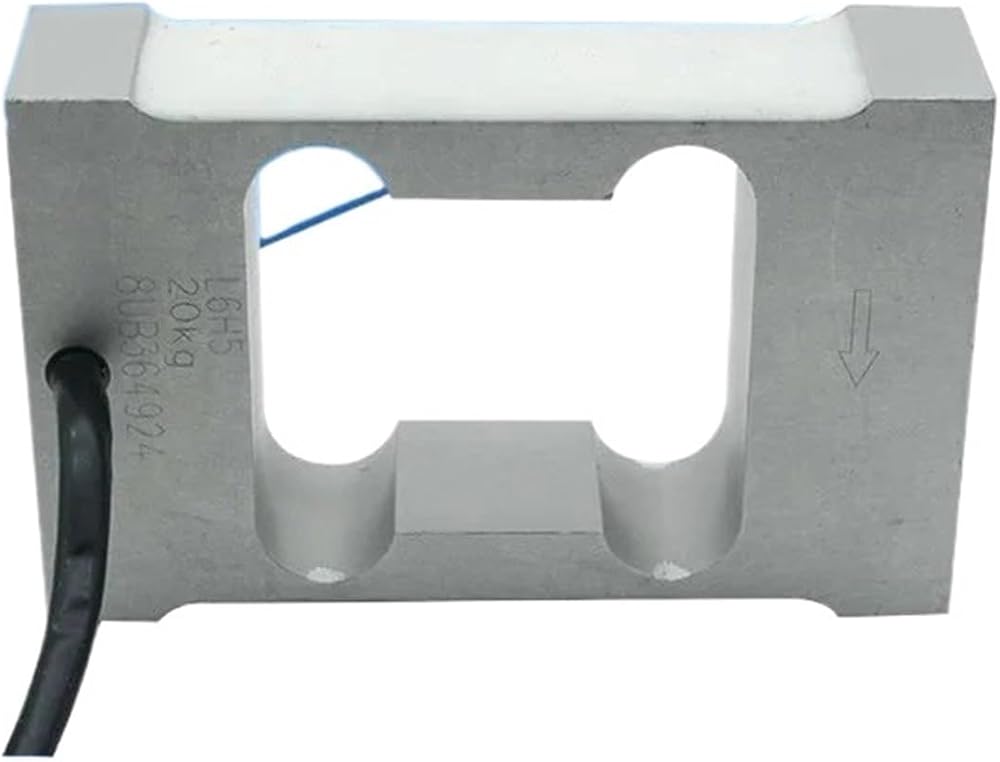

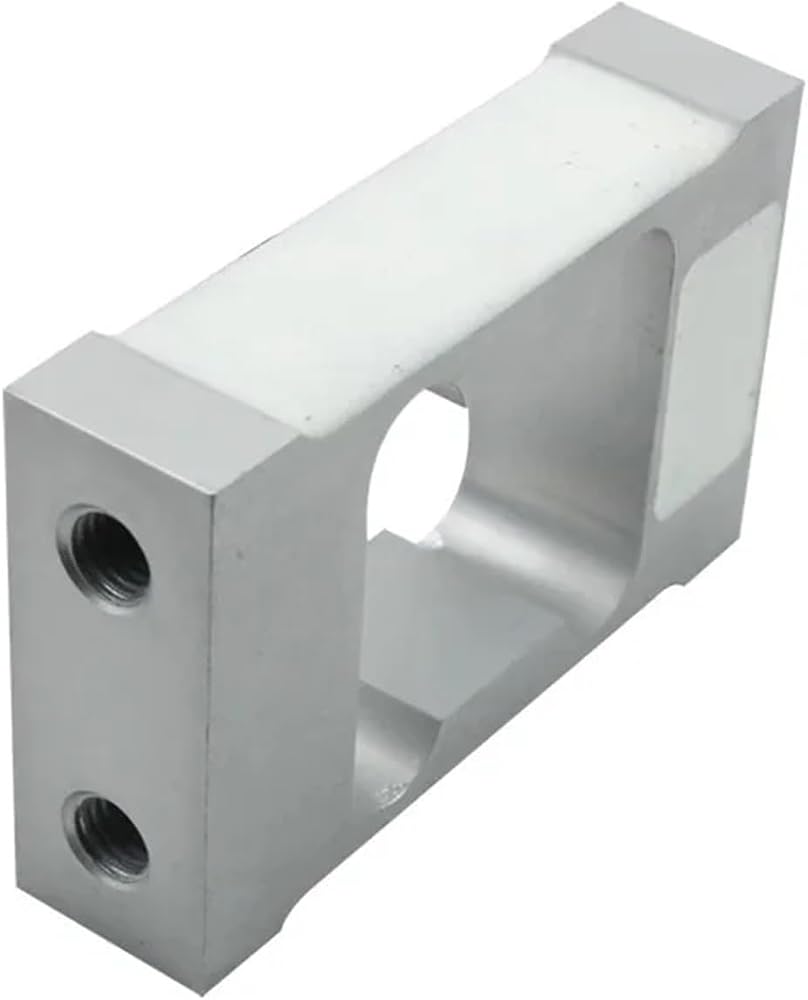

Pressure Sensors
Theory : Resistance Sensor
Material : Metal
Type : Gas Sensor
Output : Analog Sensor
Use : Pressure Sensor
Rated load : 4kg/5kg/6kg/8kg/10kg/15kg/20kg/30kg
Output sensitivity : 2.0±0.2mV/V
Composite error : ±0.02%F.S
Creep : ±0.0167%F.S/30min
Temperature effect on output sensitivity : ±0.0175%F.S/10
Temperature effect on zero output : ±0.02%F.S/10
Zero output : 2%2F.S
Temperature compensation range : -10~+40
Allowable use temperature range : -35~+65
Input impedance : 406±6
Output impedance : 350±3
Insulation impedance : 5000(50VDC)M
Recommended excitation voltage : 5~12(DC)V
Maximum excitation voltage : 18(DC)V
Safe overload range : 120%F.S
Limit overload range : 150%F.S
Protection level : IP65
Cable specification : D 3.8mm
Cable length : 0.17m
Recommended scale size : 200mm*200mm
Quadrangular error : 0.02%F.S/100mm
Recommended installation torque : 10N.m
