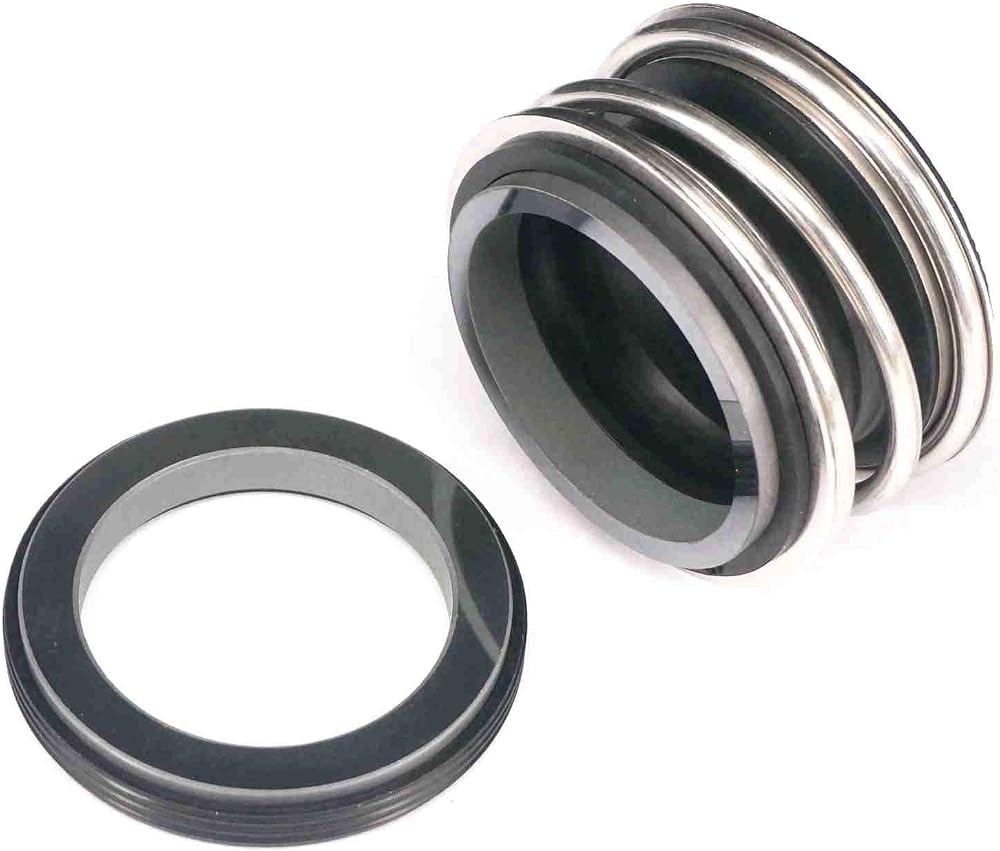

Fit Shaft Dia 50/53/55/60/65/70/75mm SiC/SiC Ring Mechanical Seal Shaft Seal MG1/109 Water Pump

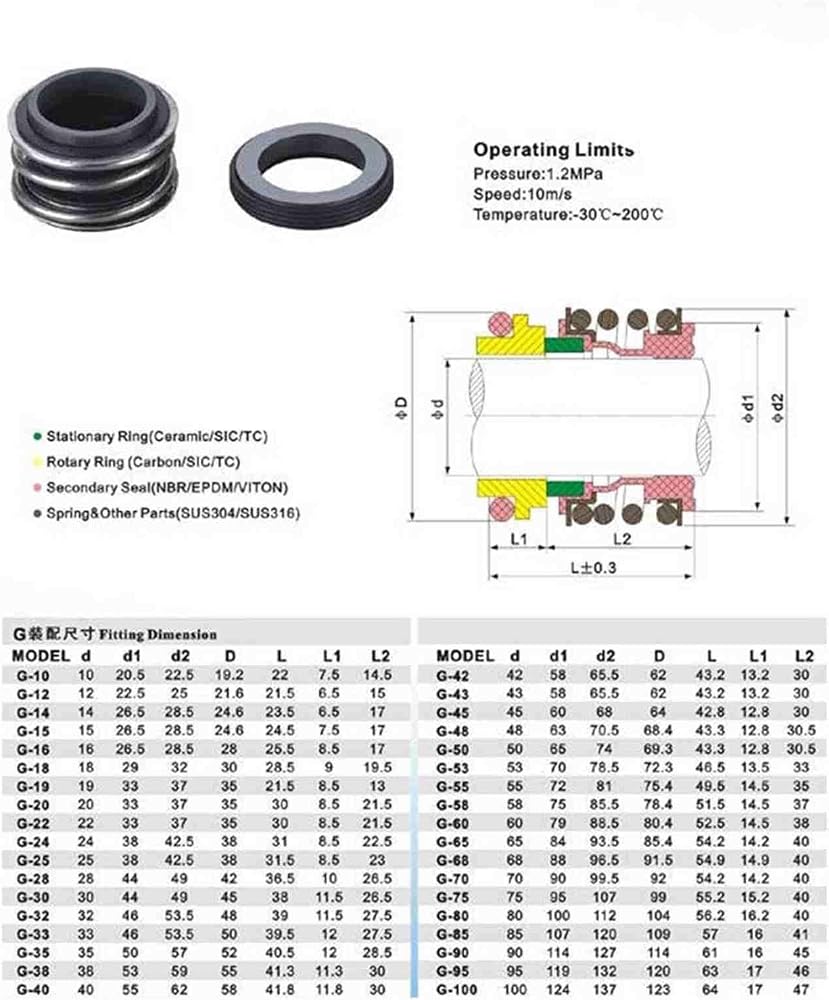

Materials:
Stationary Ring:Silicon Carbide(SiC)
Rotary Ring:Silicon Carbide(SiC)
Secondary Seal:nitrile rubber(NBR)
Spring:Steel
Fit for Shaft Diameter:50/53/55/60/65/70/75mm
Opreating Temperature: -20°C~+120°C
Opreating Pressure: 1.2MPa
Speed: 10m/s
Introduction:
Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any
torsional stress and its ingenious design incorporates several functions as seal face carrier secondary sealing
element and drive collar. The seal face is driven through the spring and ''L''-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any
dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications.
Each bid for 1 pc.
