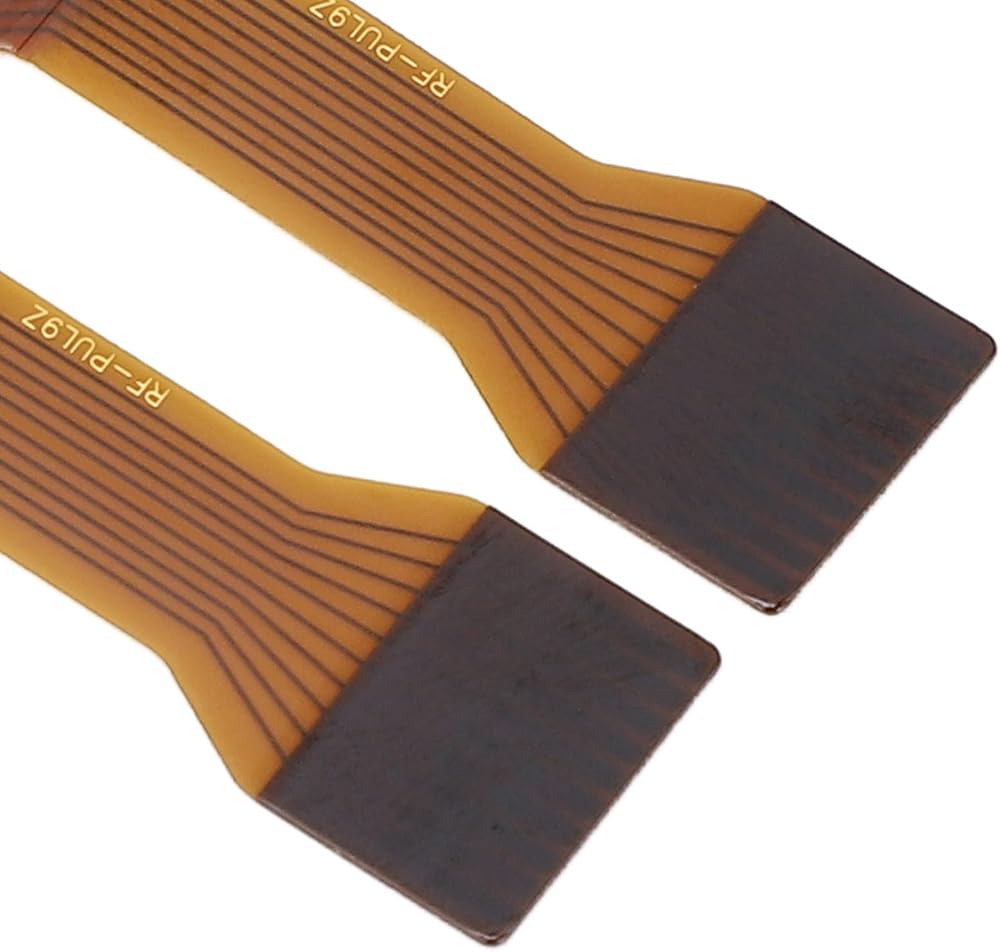

[Easy Connectivity] The thin film pressure sensor features a 1.0mm pitch with a 10 pin FPC connector and plug and play interface, providing easy and convenient connectivity for various applications.

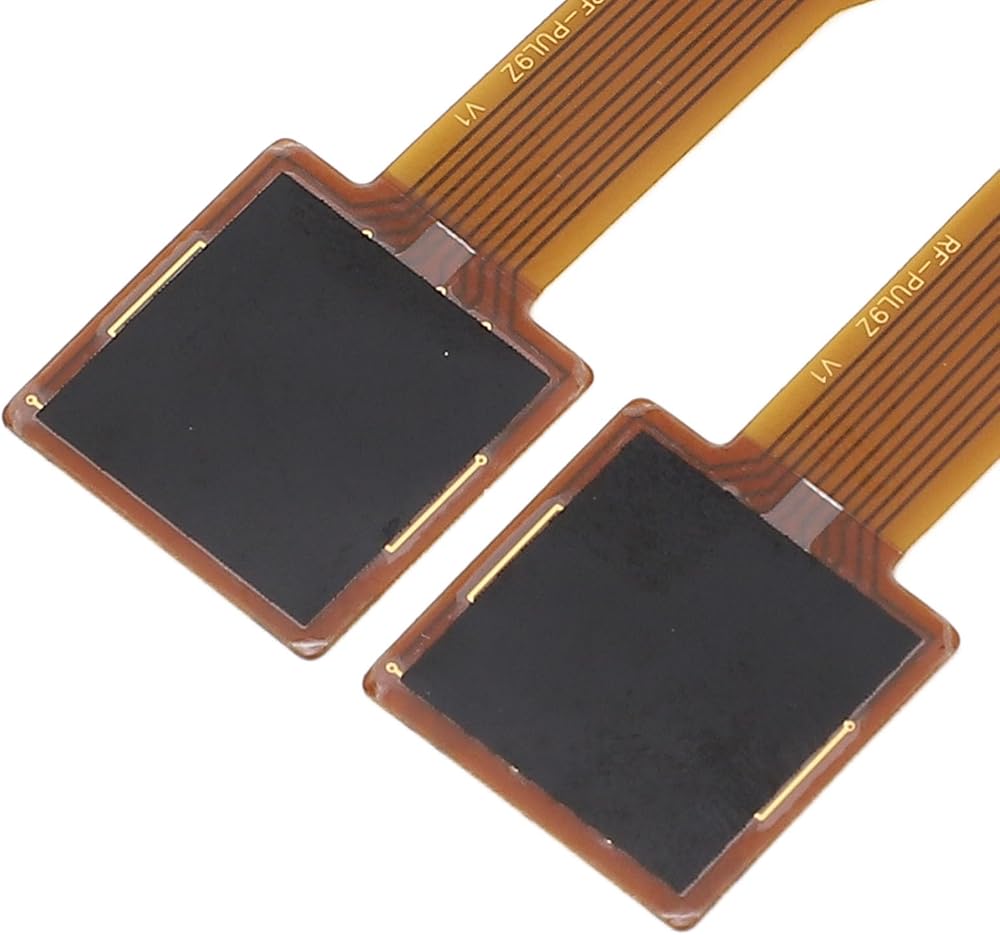

[Nine Different Sensitive Areas] The thin film touch sensor has 9 different sensor units that respond to external pressure variations and have changes in output . At a pressure of about 1g, the sensor with a value below 200 kω is triggered.
[Interference proof and precise] The force sensitive resistor is immune to electromagnetic interference (EMI) and electrostatic discharge (EDS), ensuring accurate measurements without interruptions. It shows a hysteresis within +/-10% deviation and minimal distortions under a static load of 1kg for 24 hours.
[Flexible membrane for precise measurements] The flexible membrane of the thin film pressure sensor allows underlying circuits to be activated when pressure is applied the sensor area can be separated. This results in a corresponding change in output based on the pressure strength.
[Versatile Applications] The flexible pressure sensor is suitable for a variety of electronic assemblies, including pressure sensitive buttons, counters, anti misoperation switches and force sensors. Its versatility makes it ideal for applications that require precise pressure measurement and input control.

Specification:

Item Type: Thin Film Pressure Sensor
Material: Polyester film, highly conductive Materials and nanoscale pressure sensitive materials
Thickness: approx. 0.3 mm / 0.012 inch

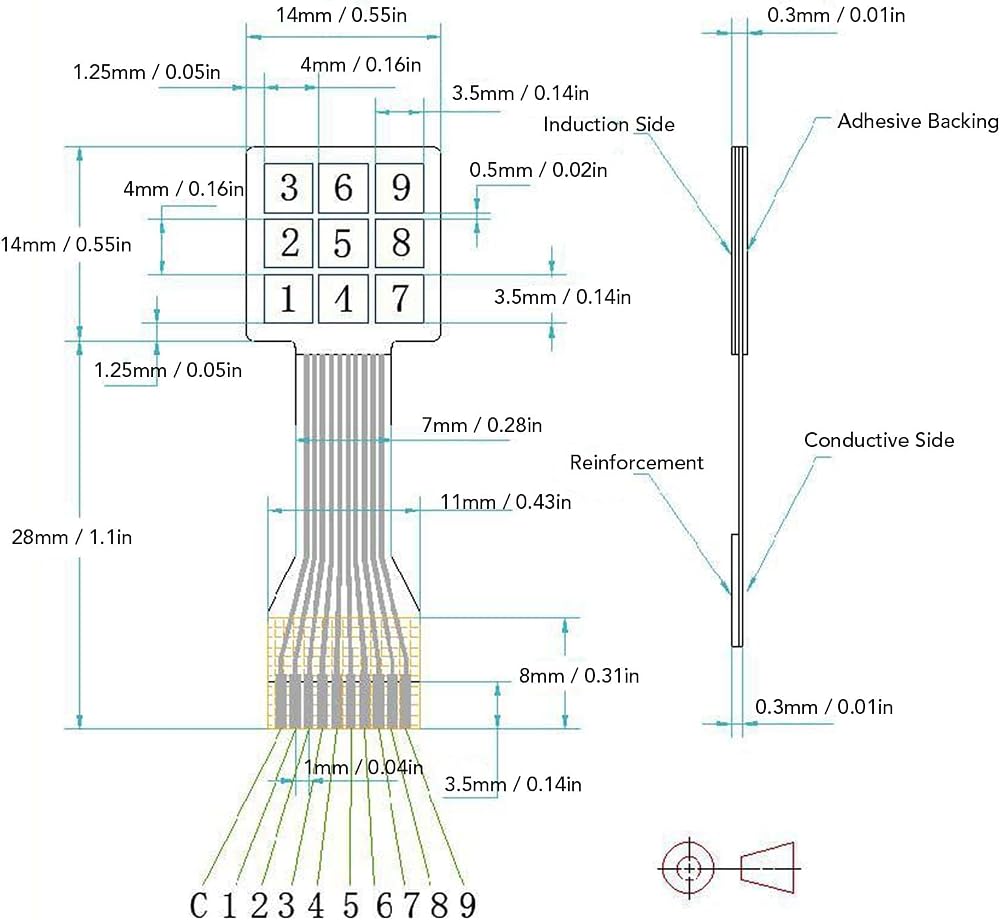

Sensor unit: approx. 4 x 4 mm / 0.16 x 0.16 inch, 9 units
Triggering force: 1g
Pressure range: 1g 2kg
Pressure action method: 7mm diameter rubber hemispherical head
Initial : >2MΩ
Response time: Temperature range: -20℃-+65℃
Durability: More than 1 million times (1kg flexible Pressing)
range: 1K 200KΩ
Maximum allowable current: 10 mA
