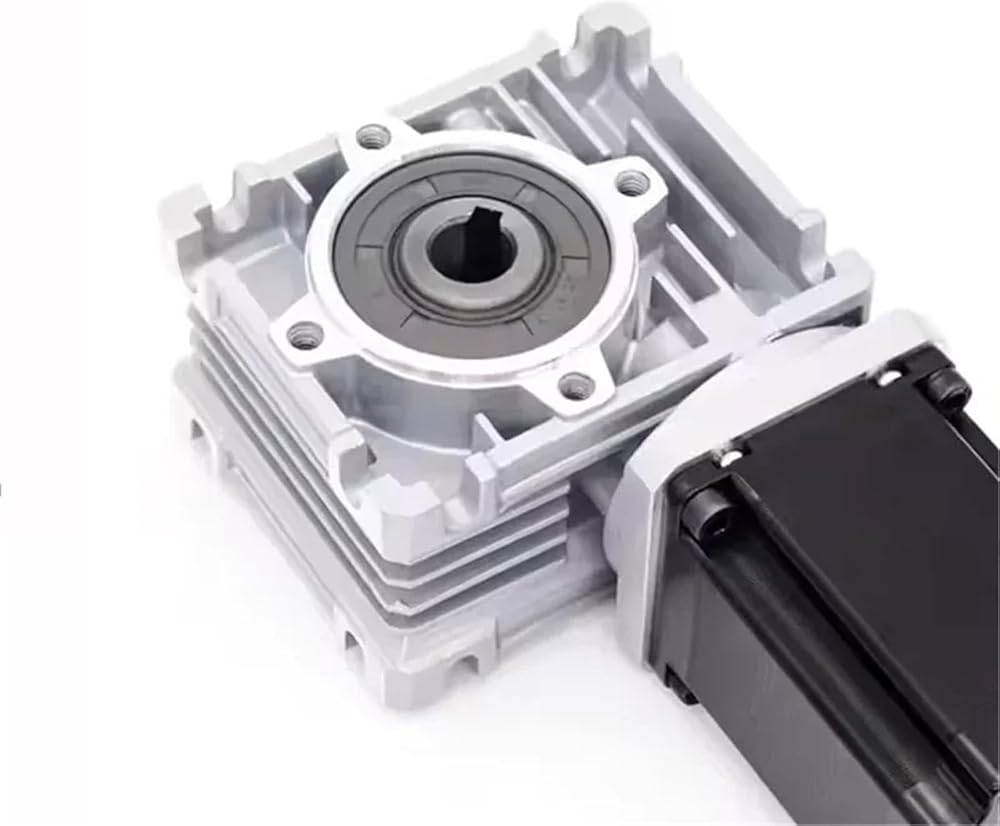

Big Torque 4.1-15Nm 57 * 55mm Nema 23 Worm Gearbox Reducer Stepper Motor with Worm Gearbox Backlash 15' Ratio 1:50/1:60/1:80(30,57X55mm Single Shaft) in Saudi Arabia Big Torque 4.1-15Nm 57 * 55mm Nema 23 Worm Gearbox Reducer Stepper Motor with Worm Gearbox Backlash 15' Ratio 1:50/1:60/1:80(30,57X55mm Single Shaft) in Saudi Arabia Big Torque 4.1-15Nm 57 * 55mm Nema 23 Worm Gearbox Reducer Stepper Motor with Worm Gearbox Backlash 15' Ratio 1:50/1:60/1:80(30,57X55mm Single Shaft) in Saudi Arabia

40 57X55mm Single Shaft

SAR 5,389
Brand
LEWMRSKXK
Weight
50 g
Color40
Size57X55mm Single Shaft
– 1 +

Special Features

  • Pulse Generators
  • Stepper Motor

Description

Pulse Generators
Cable Length : 5m
Current / Phase : 2A
Holding Torque : 950mN.m
Step Angle(degrees) : 1.8 Degree
Phase : 2
Model Number : Nema 23 Worm Geared Stepper Motor
Type : HYBRID
Model Number : 57mm Nema17 High accuracy Worm Gear Motor
Motor Size : 57*55mm
Reduction Ratio : 1:5/1:7.5/1:10/1:15/1:20/1:25/1:30/1:40/1:50/1:60/1:80
Rated Voltage : 1.7V

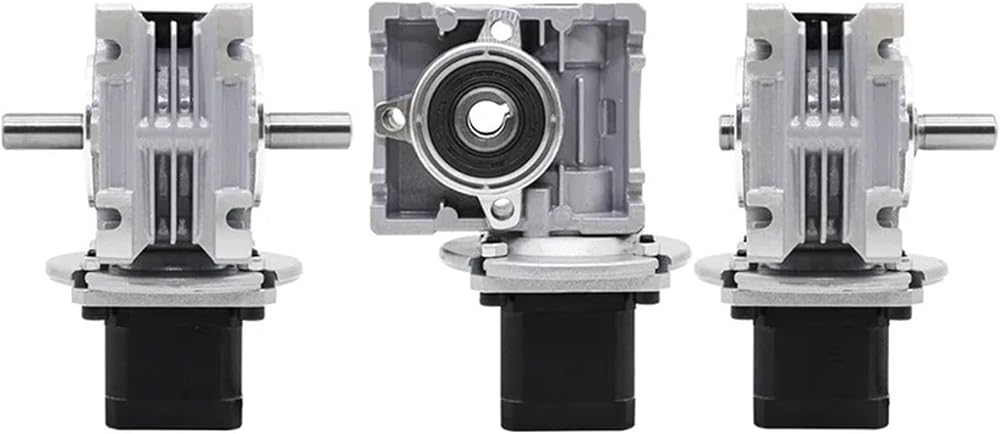

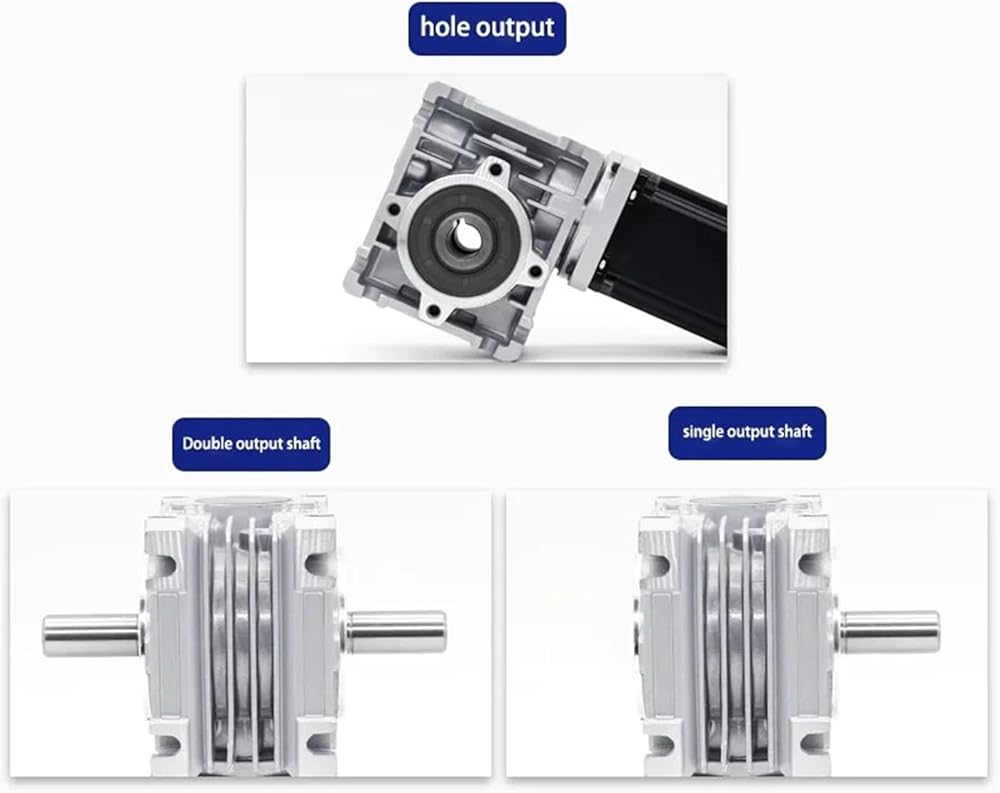

Optional shaft : Hollow/Single/Double Shaft
Output Torque : 4.1Nm-15Nm
Backlash : 15 arcmin
Input Speed : 900rpm/min
Max output Speed : 180rpm/min
Accessories : Encoder/Controller/Brake
