Spec:

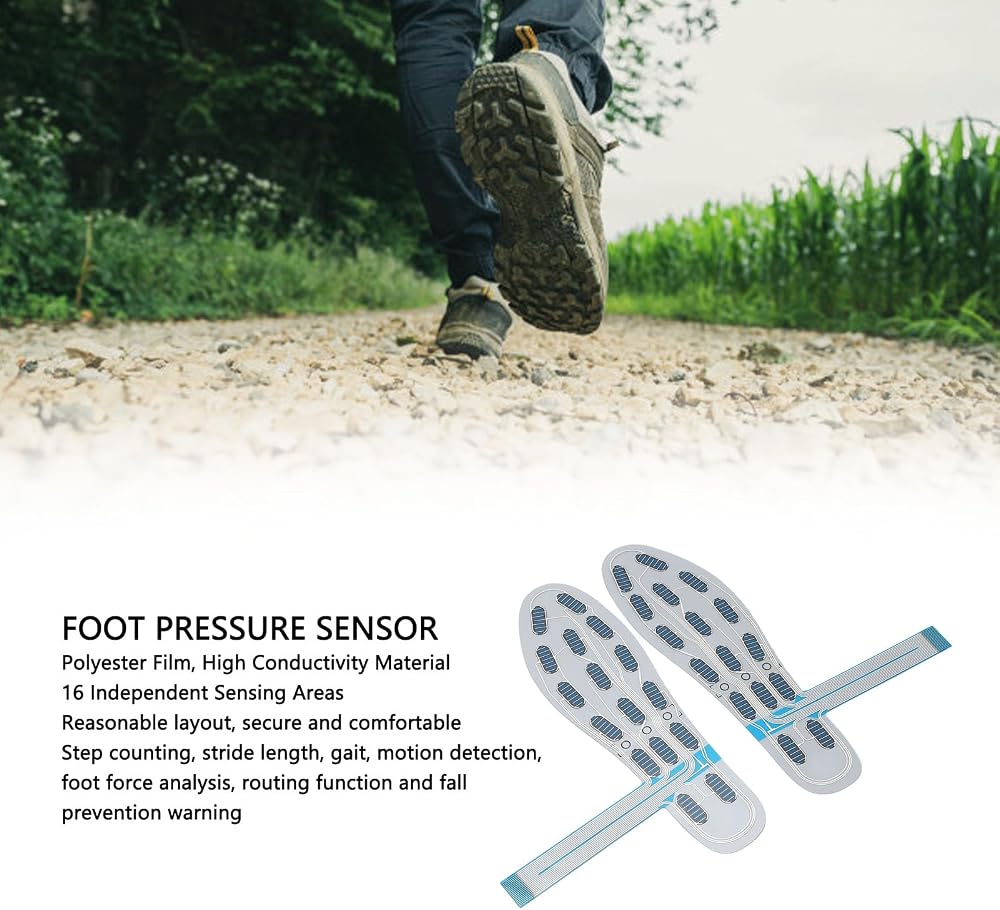

Item Type: Foot Pressure Sensor
Sensing Points: 16

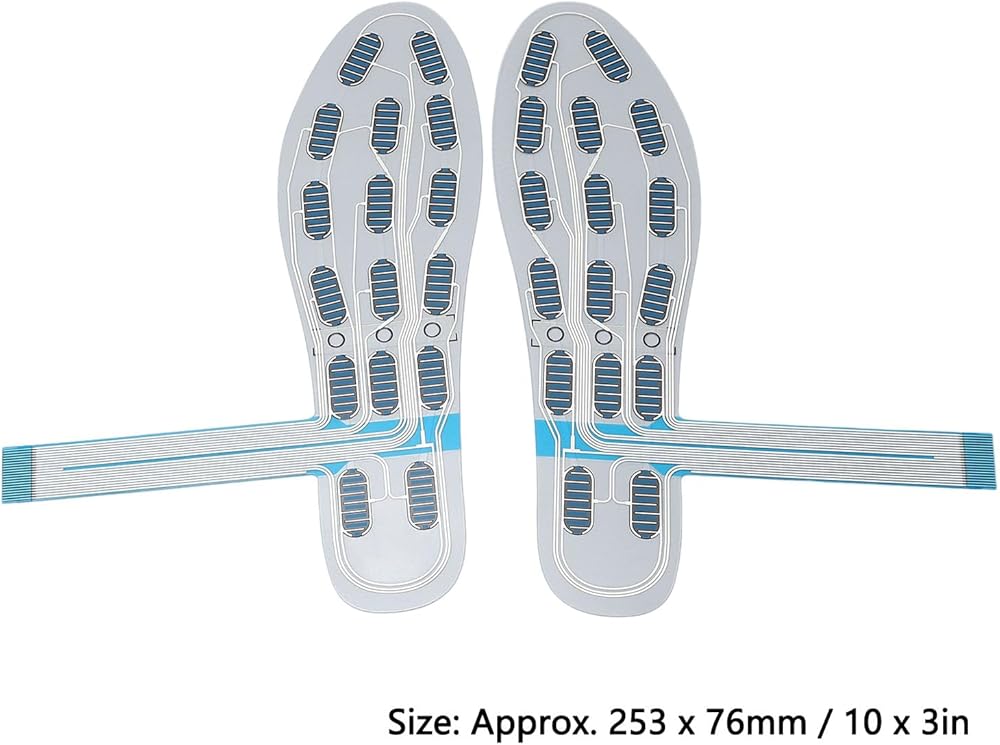

Size: Approx. 253 x 76mm / 10 x 3in
Applicable Sizes: 36, 38, 40, 41, 42, 44
Thickness: 0.4mm
Type: Thin Sheet, Flexible
Trigger Force: Approx. 500g /1.1lb
Pressure Range: Approx. 0.5-10kg / 1.1-22lb, Soft Pressure Head
Pressure Action Method: Soft Touch Press
Not Activated Resistive Value: Greater than 10MΩ
Activation Time: Less than 10mS
Using Temperature: -20℃-65℃
Durability: Over 1 million times (normal walking, regular use)
Resistive Range: About 50K-150KΩ
Response Time: Water Proof: IP67
Dust Proof: IP67
Electromagnetic Interference EMI: None
Electrostatic Discharge EDS: None
Product Description:

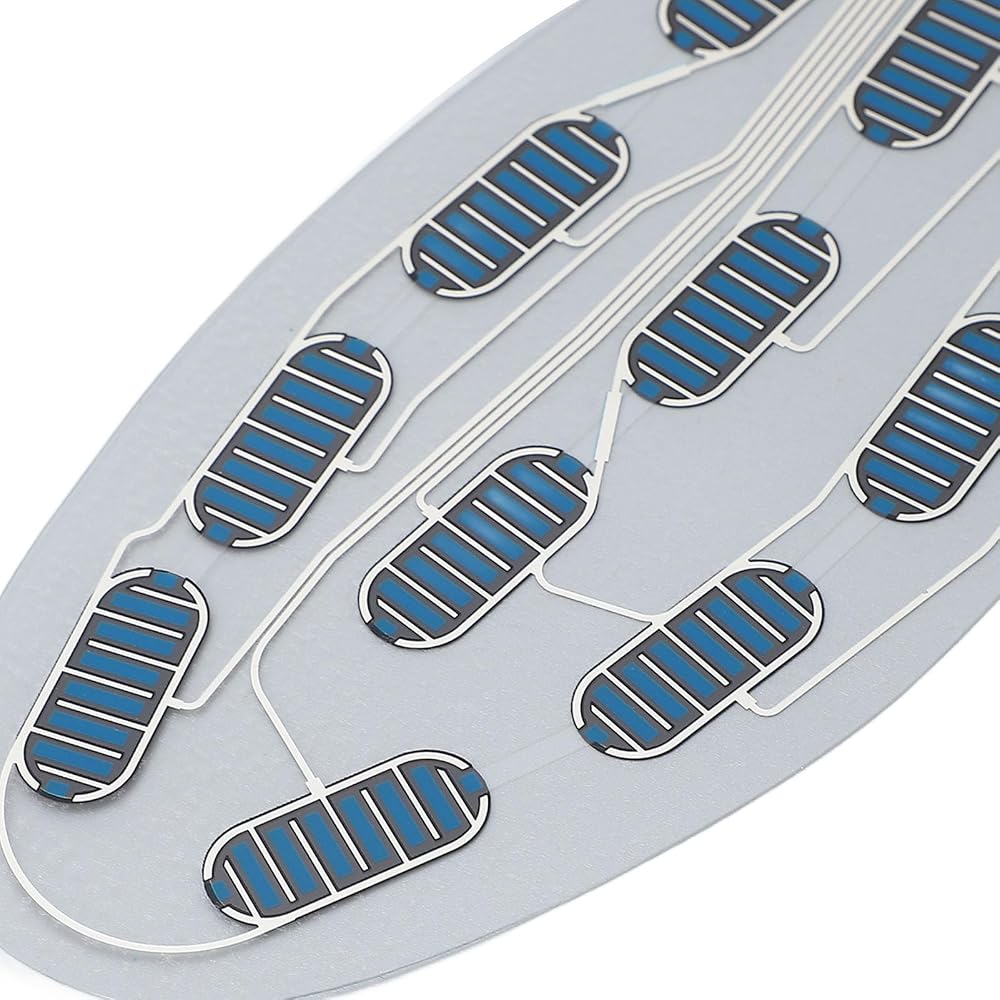

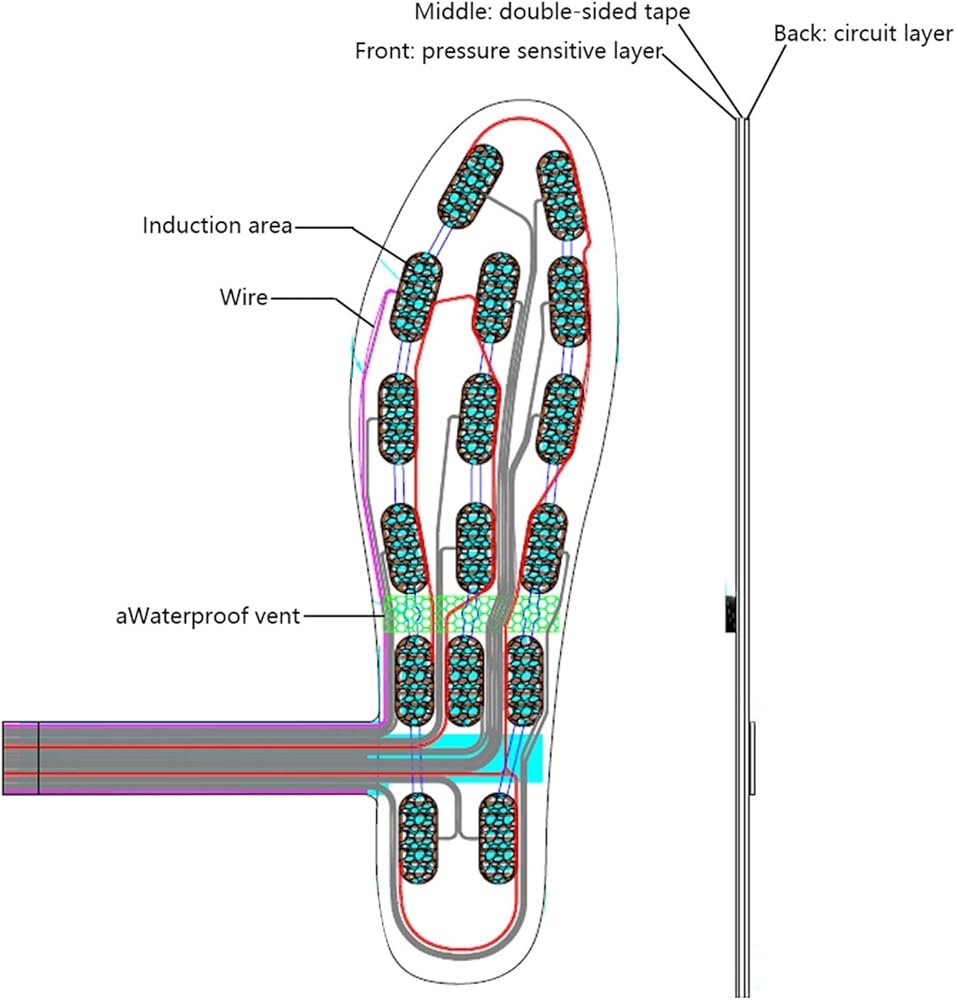

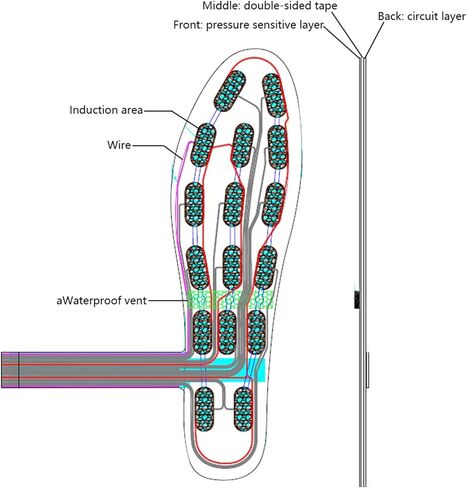

The flexible film foot pressure sensor has 16 independent sensing zones, and the output resistive value of the sensing zone changes with the change of external pressure.

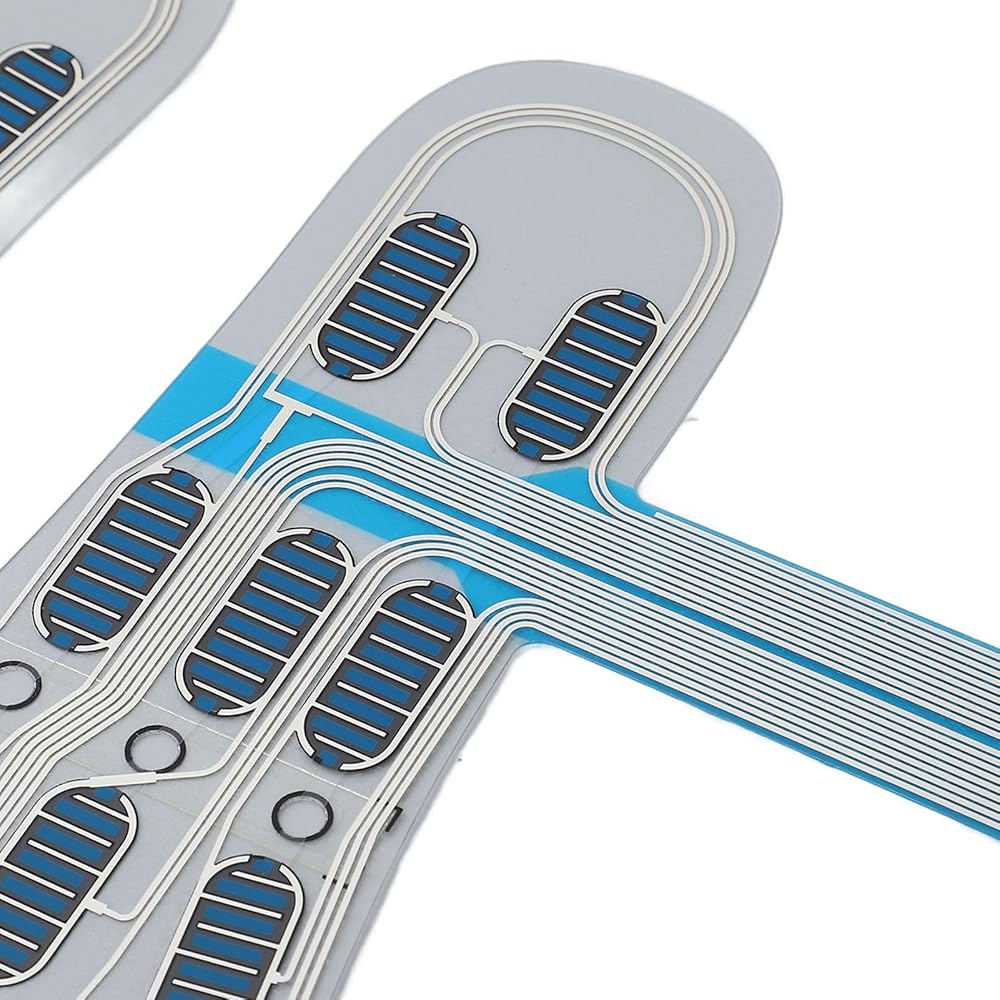

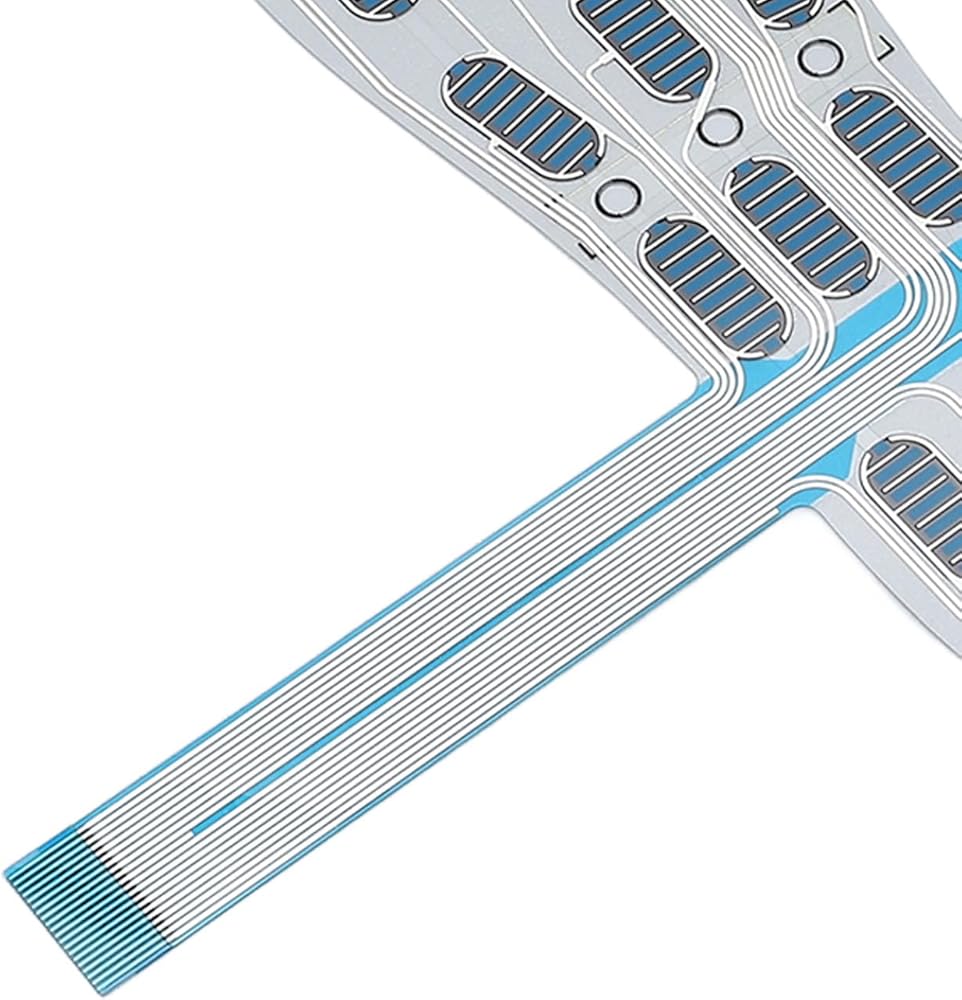

Reasonable sensing area layout, a total of 20 interface leads, using 1mm spacing, 10Pin, 0.3mm thickness plug interface. Among them, 2 are public lines, 16 are independent leads in the sensing area, and 2 are vacant lines.

How to Use:
Direct installation and use

Package List:

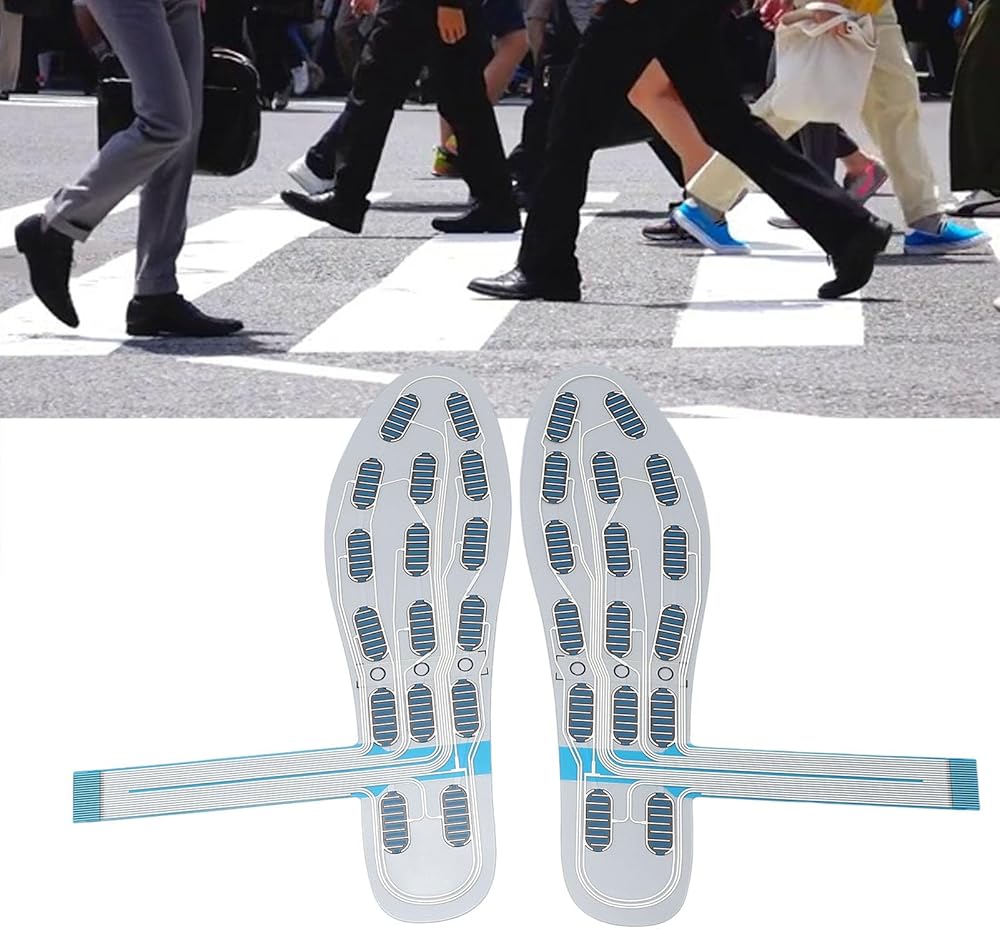

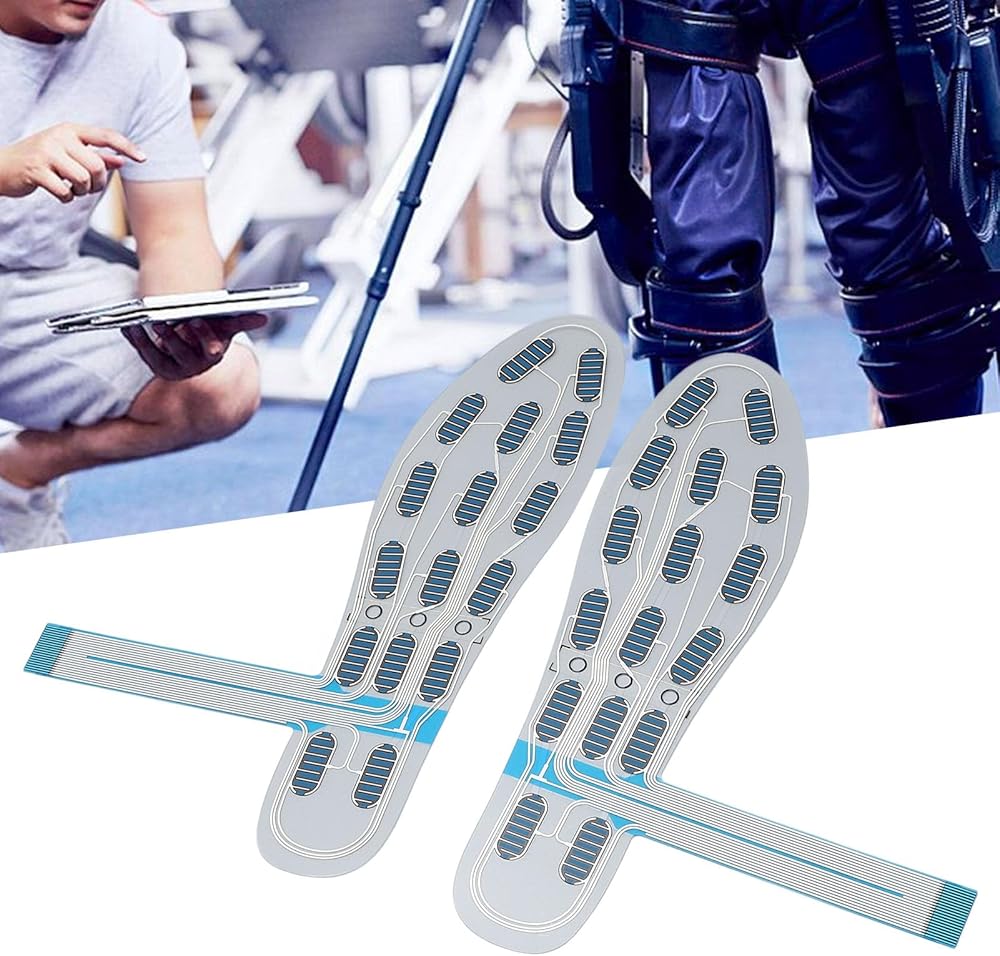

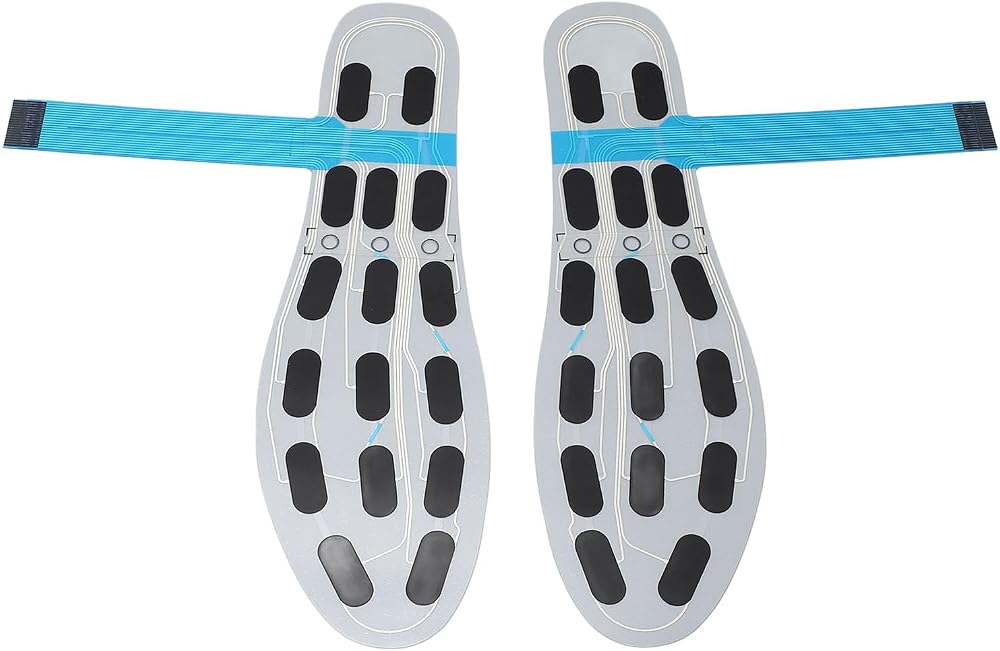

1 Pair Pressure Sensor (Left and Right Foot)
