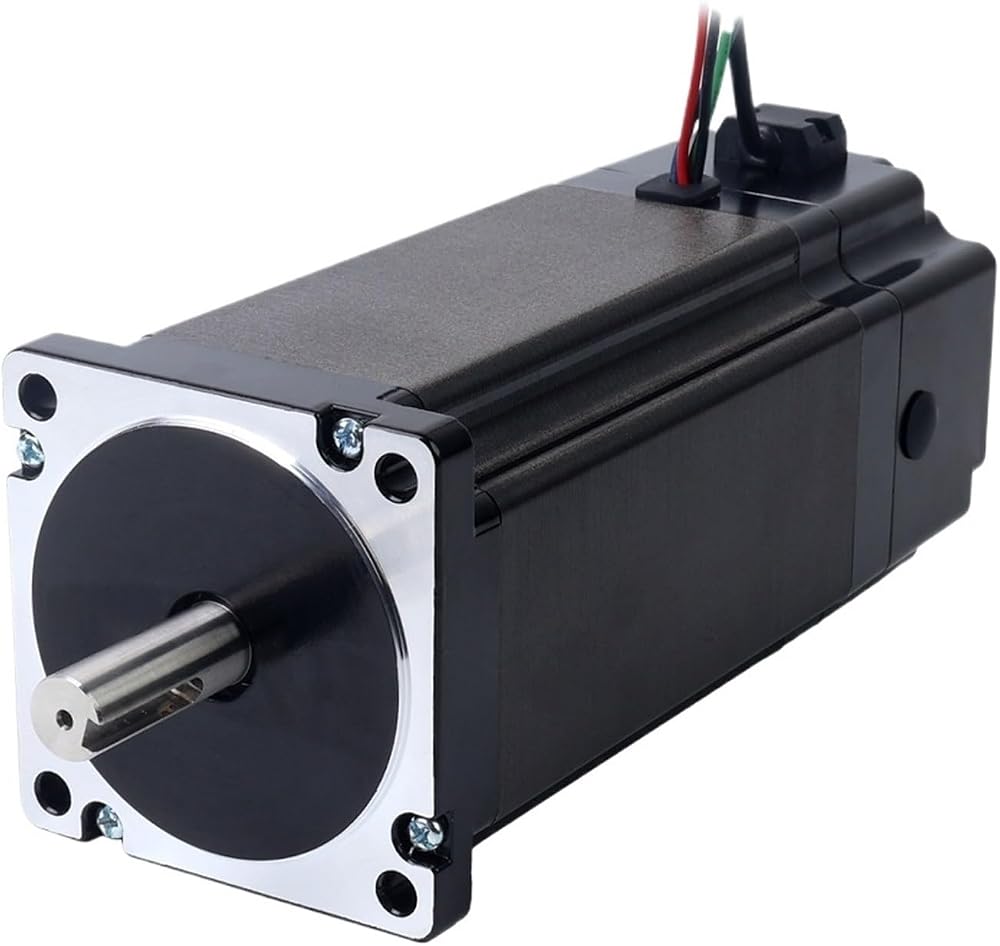

NEMA 34 Stepper Motor 13.0nm 6.0a 24V مع الفرامل الكهرومغناطيسية لأدوات آلة CNC in Saudi Arabia

NEMA 34 Stepper Motor 13.0nm 6.0a 24V مع الفرامل الكهرومغناطيسية لأدوات آلة CNC

SAR 5,670
ماركة
UUDPYZRXG
وزن
50 g
مقاس14 ملم
– 1 +

مميزات خاصة

  • Pulse Generators
  • Holding Torque: 13.0Nm(1840.95oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.80ohms±10%
  • Inductance: 9.00mH±20%(1KHz)

وصف

Pulse Generators
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 13.0Nm(1840.95oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.80ohms±10%
Inductance: 9.00mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Brake Rated Voltage: 24V
Brake Torque: 7.0Nm(991.28oz.in)
Brake Power: 6.8W
Frame Size: 86 x 86mm
Body Length: 199mm
Shaft Diameter: 14mm
Shaft Length: 37mm
Keyway Length: 25mm
Motor Cable Length: 500mm
Brake Cable Length: 180mm
Model Number : 1.8deg
Brake Rated Voltage : 24V
Brake Torque : 7.0Nm
Brake Power : 6.8W
Brake Cable Length : 180mm
