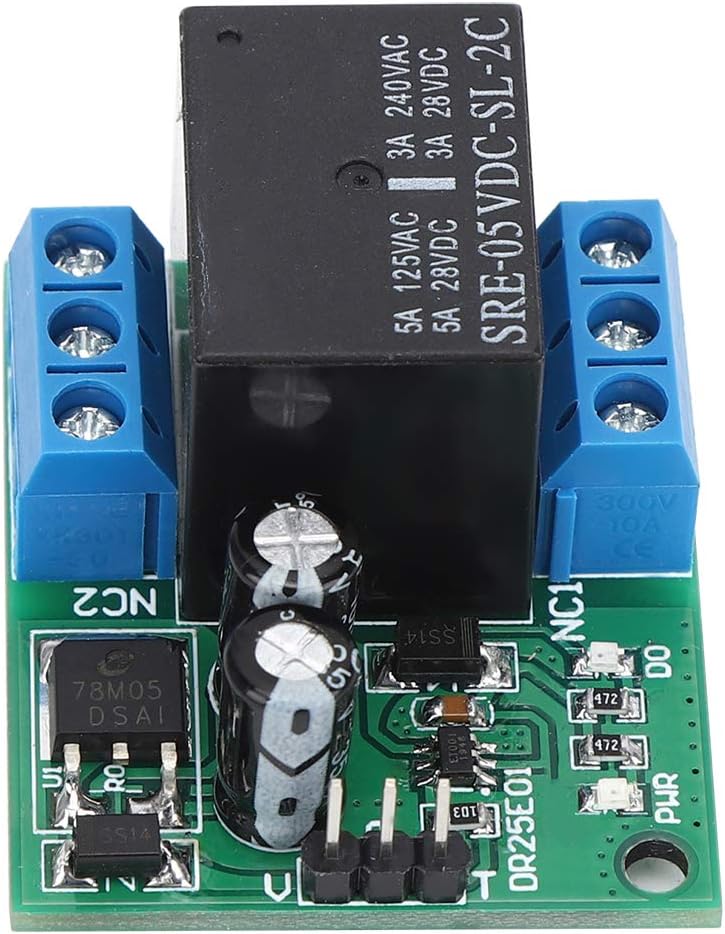

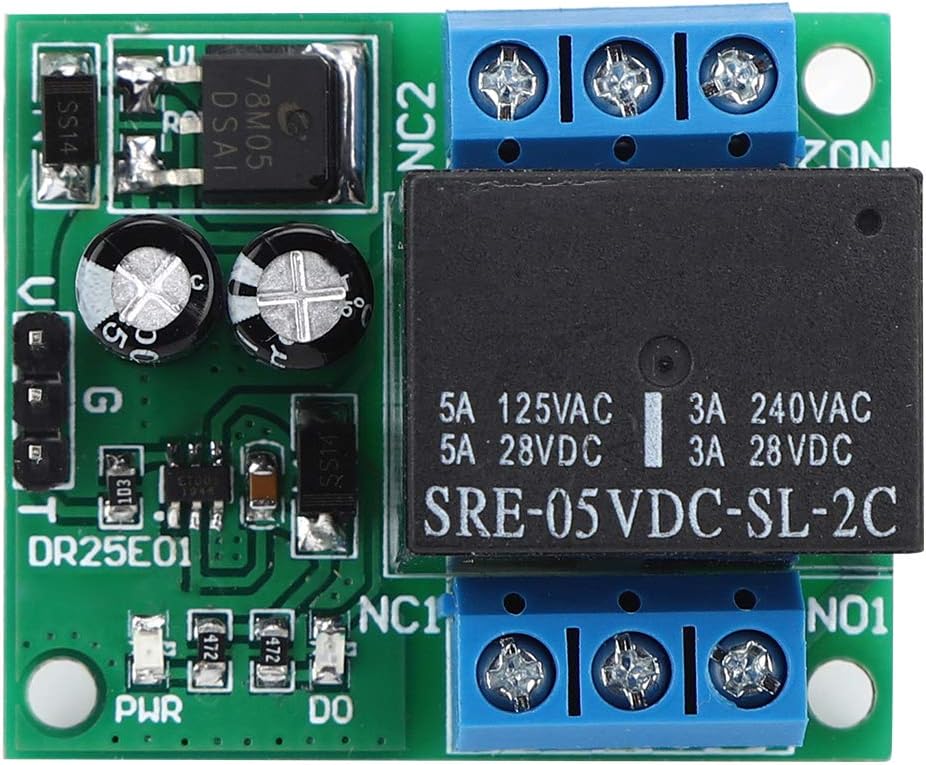

DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia DPDT Relay Module, Module Board with Power Indicator, Double Pole Double Throw Self Locking Bistable Relay Board(DC6-24V) in Saudi Arabia

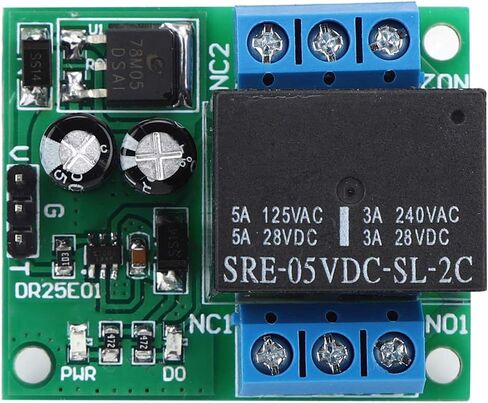

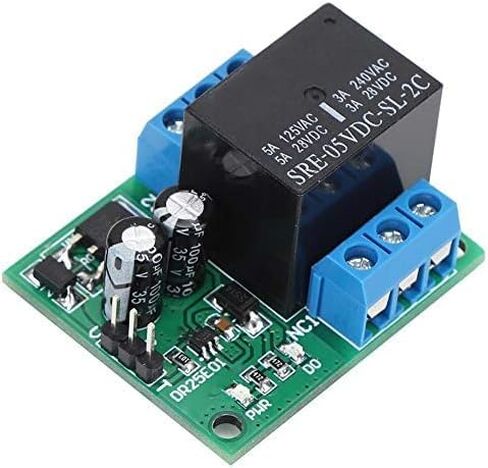

وحدة ترحيل DPDT ، لوحة الوحدة النمطية مع مؤشر الطاقة ، القطب المزدوج رمي مزدوج قفل القفل الذاتي Bistable Board (DC6-24V)

SAR 61
– 1 +

مميزات خاصة

  • RELAY BOARD SPECIFICATION: Module Working Current: Forward 2MA, reverse 60-70MA; Load Current: 5A maximum (motor <= 3A)
  • EASY TO INSTALL: The double pole double throw self locking bistable relay board requires no specialized tools for installation, allowing direct integration into existing control panels without modification

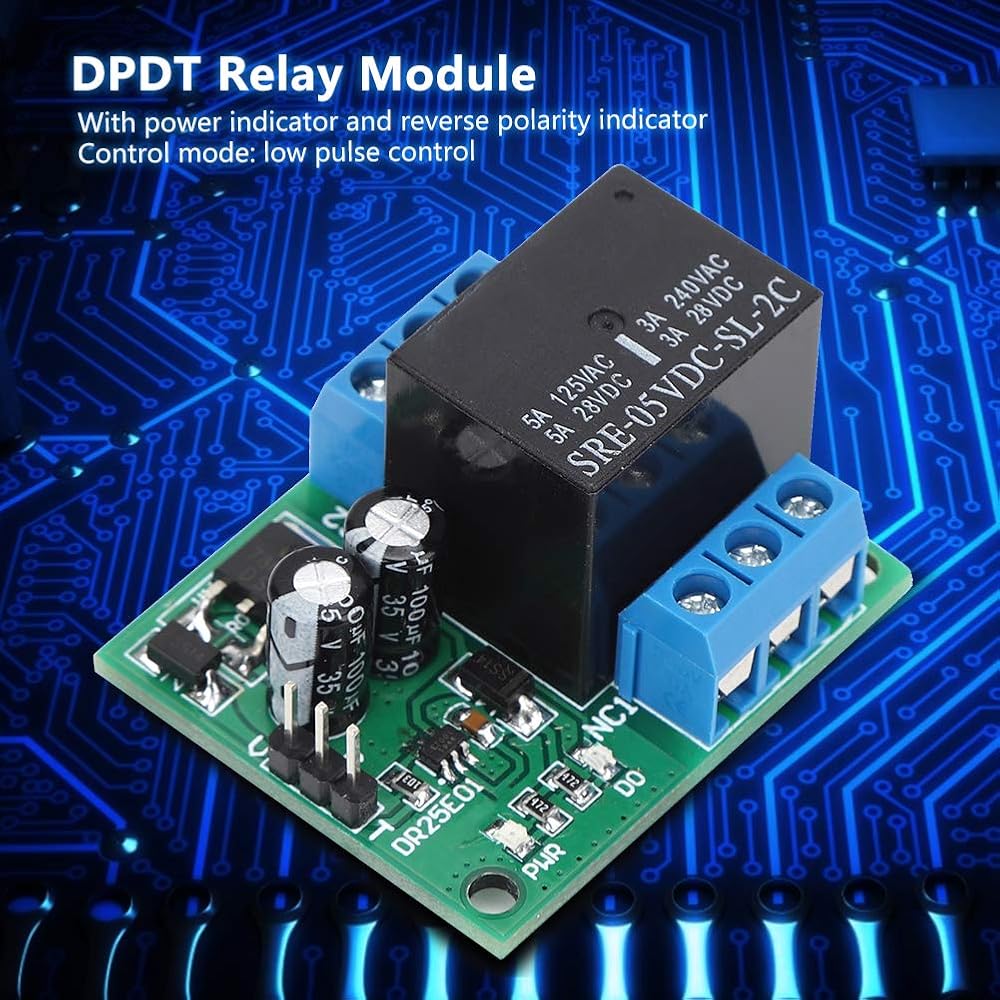

  • INDICATOR DESIGN: This 6-24v latching relay with power indicator and reverse polarity indicator provides real-time electrical feedback for simplified troubleshooting and connection verification
  • SELF-LOCKING RELAY MODULE: This relay module board is a self-locking (bistable) double-pole double-throw relay. Once triggered, the relay pulls in, again, and the relay is disconnected
  • SECURE PULSE ACTIVATION: Our self-locking relay module has a low pulse control mode, enabling safe control interface functionality while preventing accidental activation

وصف

Item Type: DPDT Relay Module
Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional)
Module Working Current: Forward 2MA, reverse 60-70MA
Load Current: 5A maximum (motor Control Mode: Low pulse control

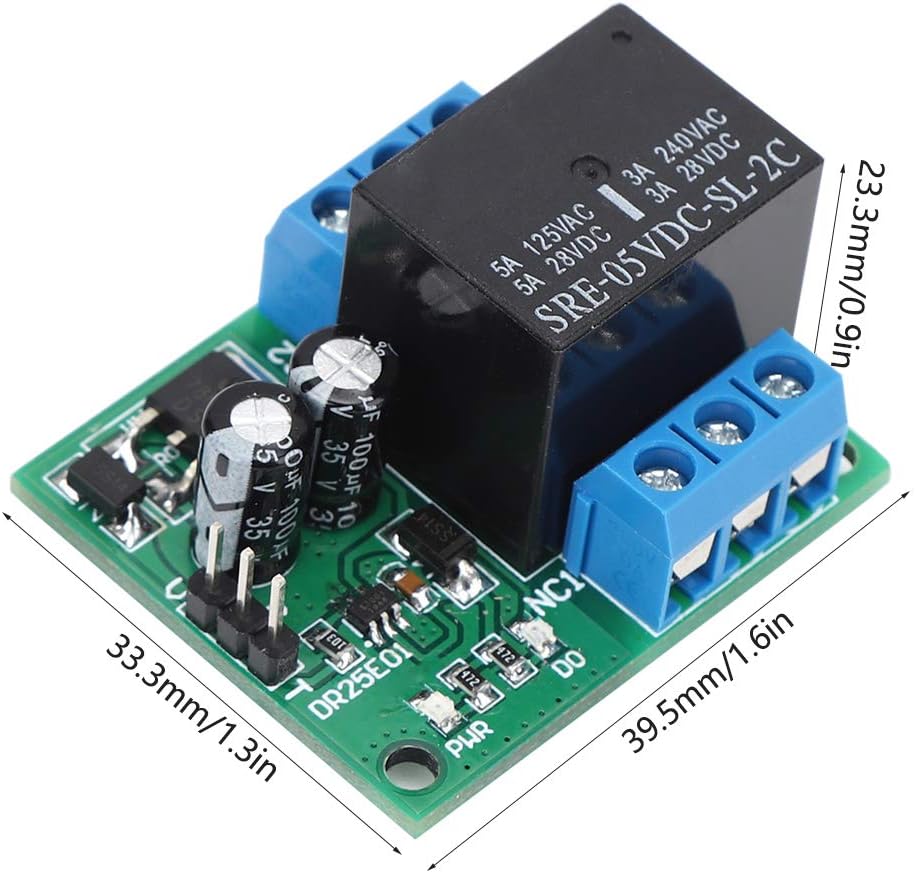

Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9in

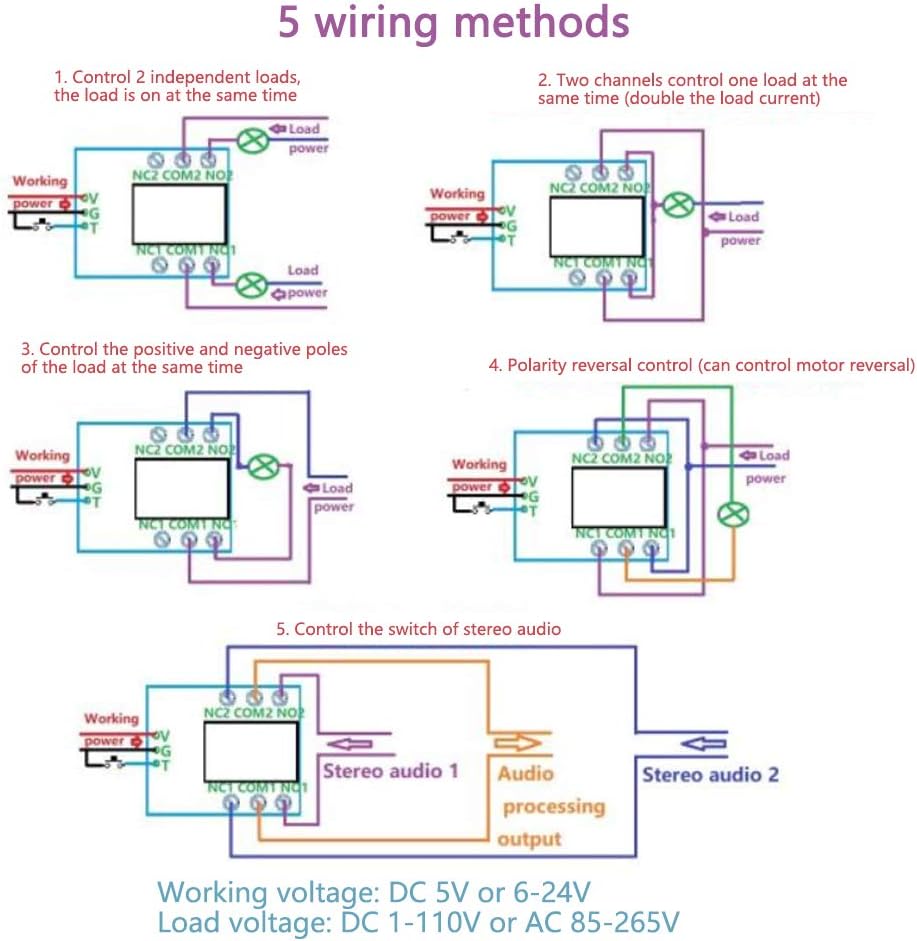

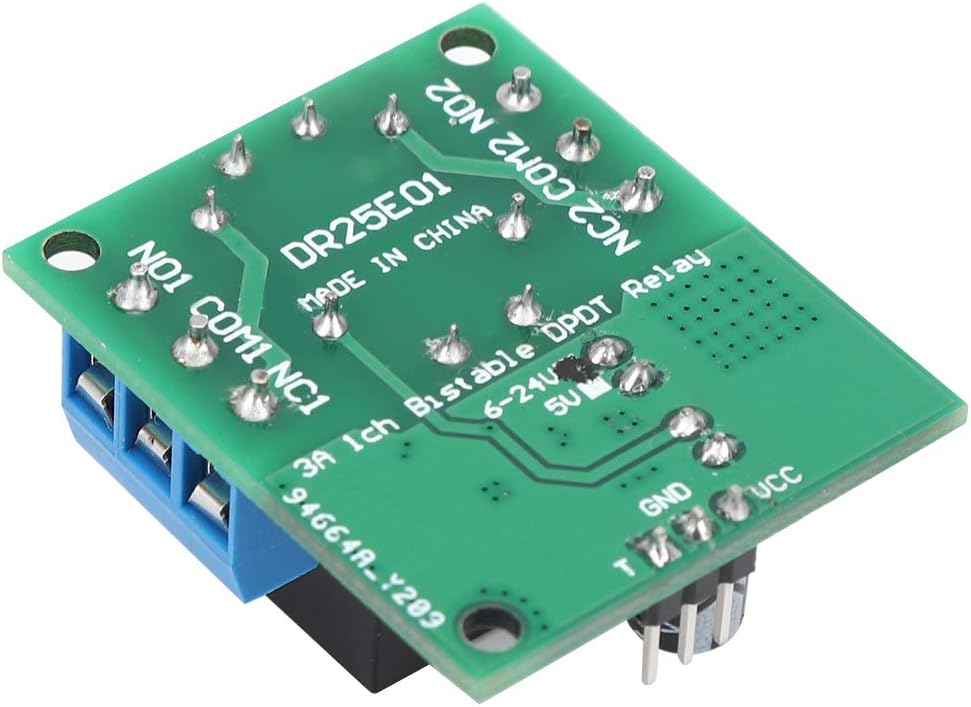

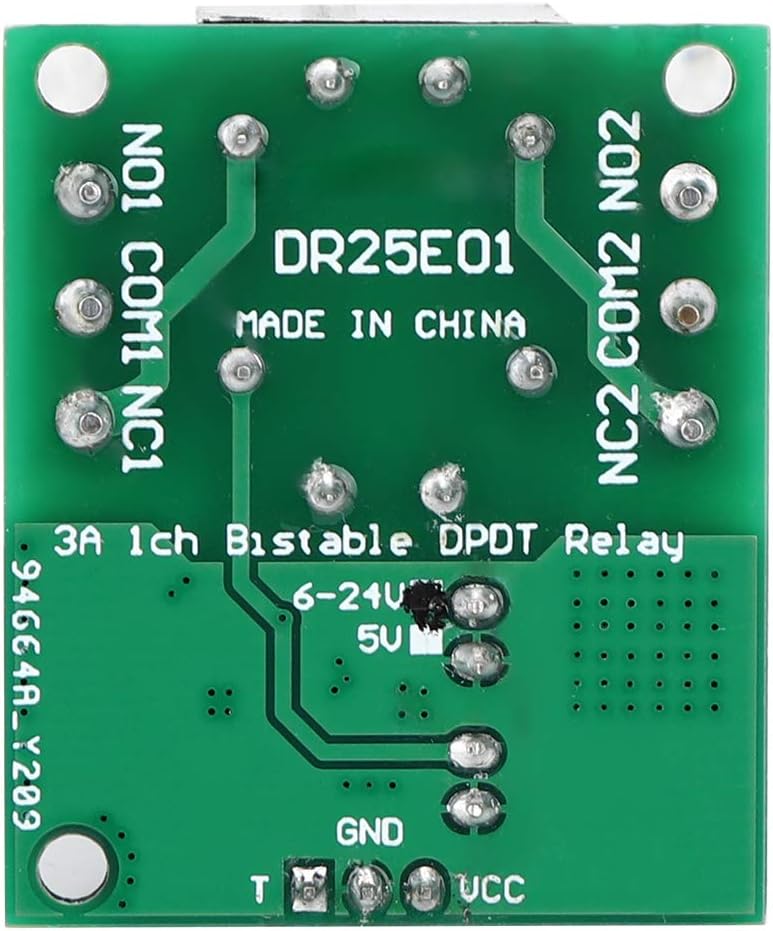

Pin Description:
V: Power positive
G: Power negative terminal and trigger signal ground terminal;
T: Trigger signal input (0.2-2 seconds low pulse).
NO1: Relay normally open port
COM1: Relay common port
NC1: Relay normally closed port
NO2: Relay normally open port
COM2: Relay common port
NC2: Relay normally closed port

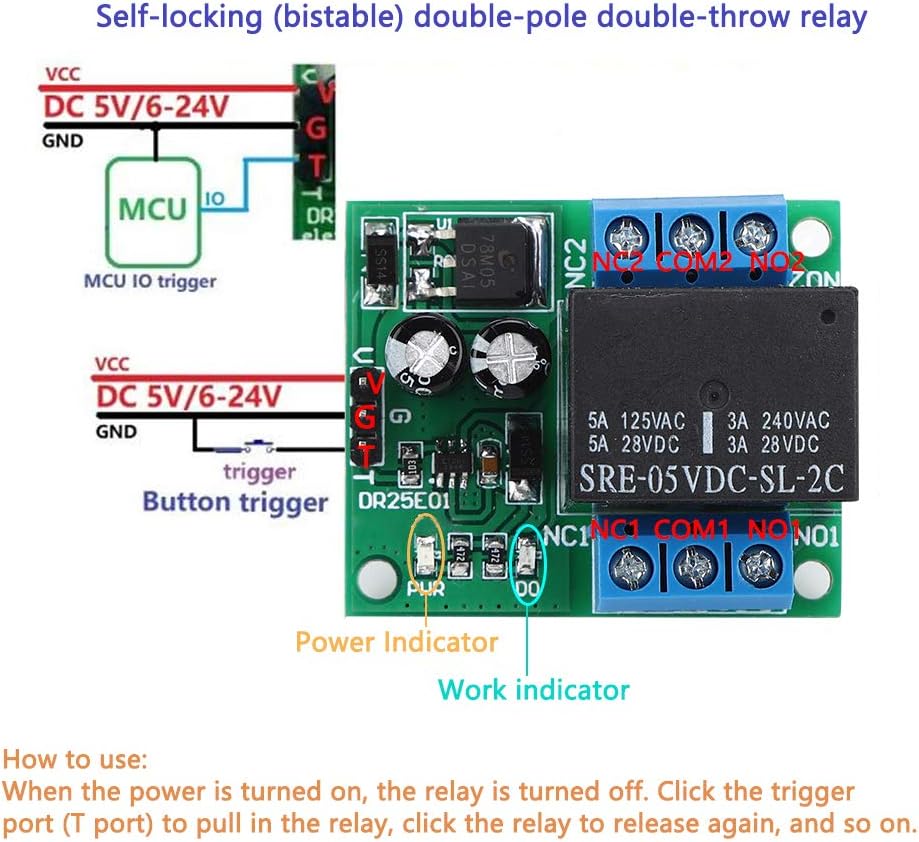

How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on.

Package List：
1 x DPDT Relay Module
