مميزات خاصة

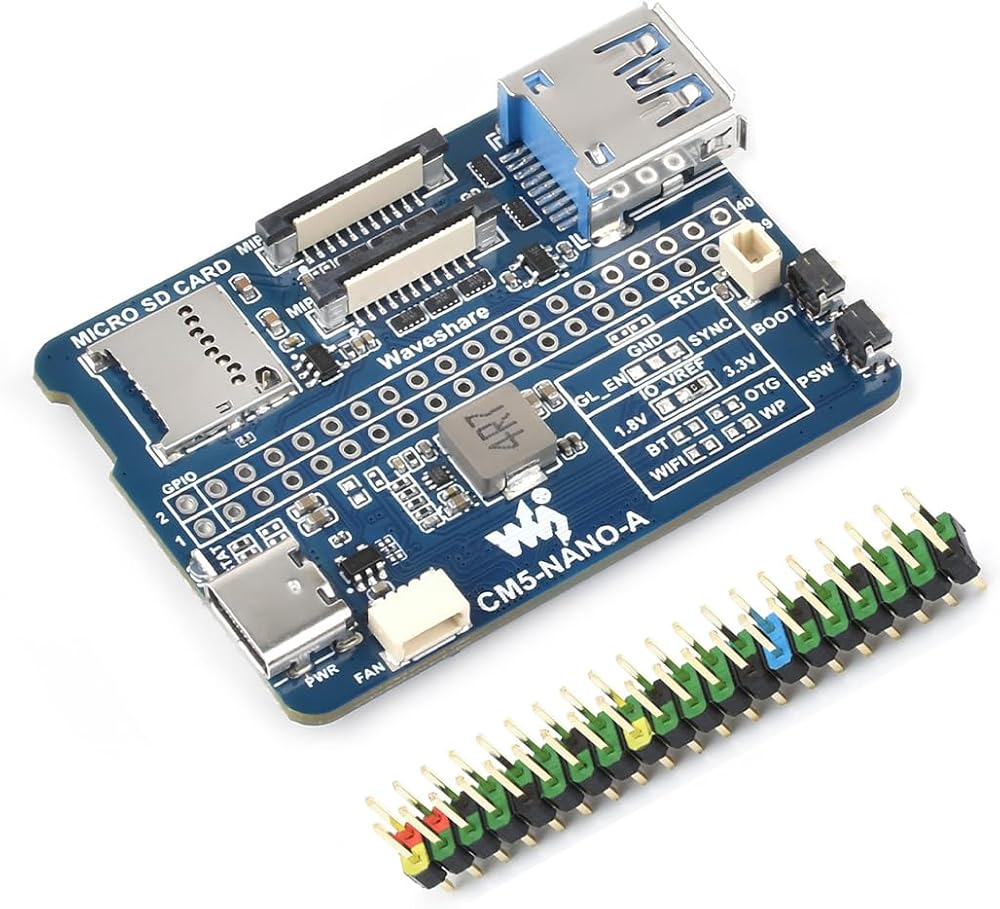

Nano Base Board for Raspberry Pi Compute Module 5 Lite / eMMC, same size as the CM5, suitable for evaluating the Rasp Pi CM5 or being integrated into end products

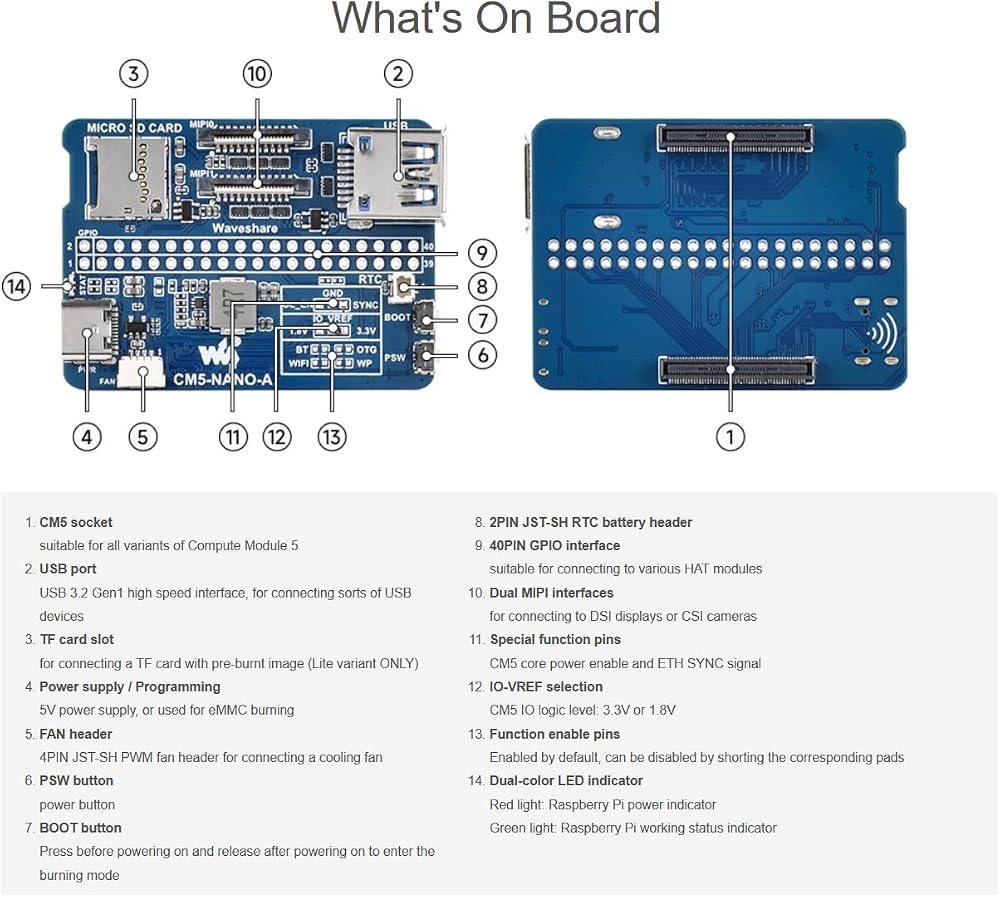

CM5 Nano Base Board with CM5 socket, suitable for all variants of Compute Module 5, onboard 40PIN GPIO interface, suitable for connecting to various HAT modules
Onboard USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
Onboard Dual MIPI interfaces, for connecting to DSI displays or CSI cameras

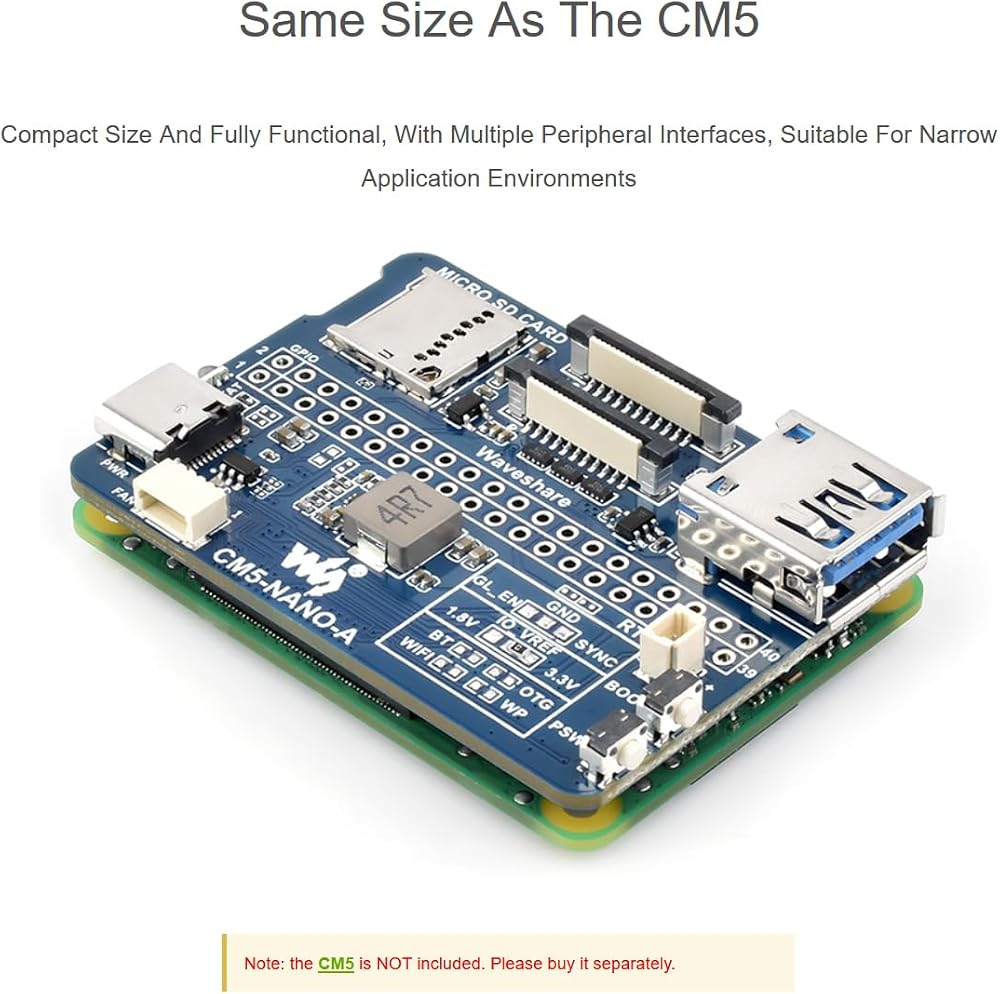

Compact size and fully functional, with multiple peripheral interfaces, suitable for narrow application environments

وصف

Overview

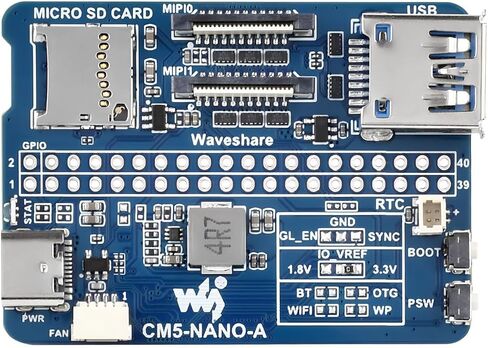

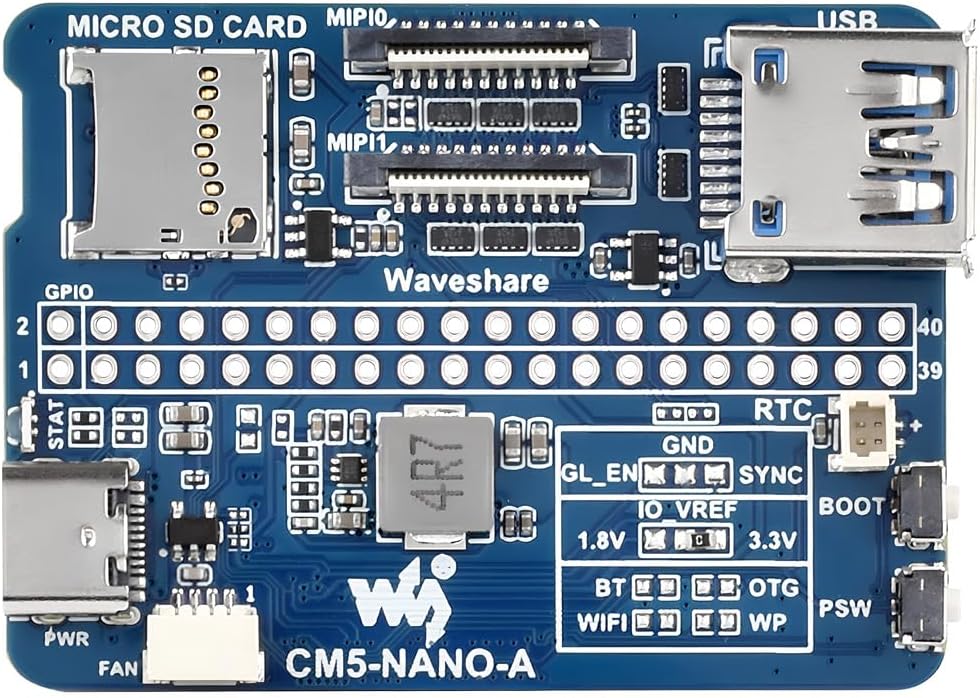

Nano Base Board (A) for Raspberry Pi Compute Module 5 Lite / eMMC Series Module, Same Size As The CM5, Suitable For Evaluating CM5 Or Being Integrated Into End Products

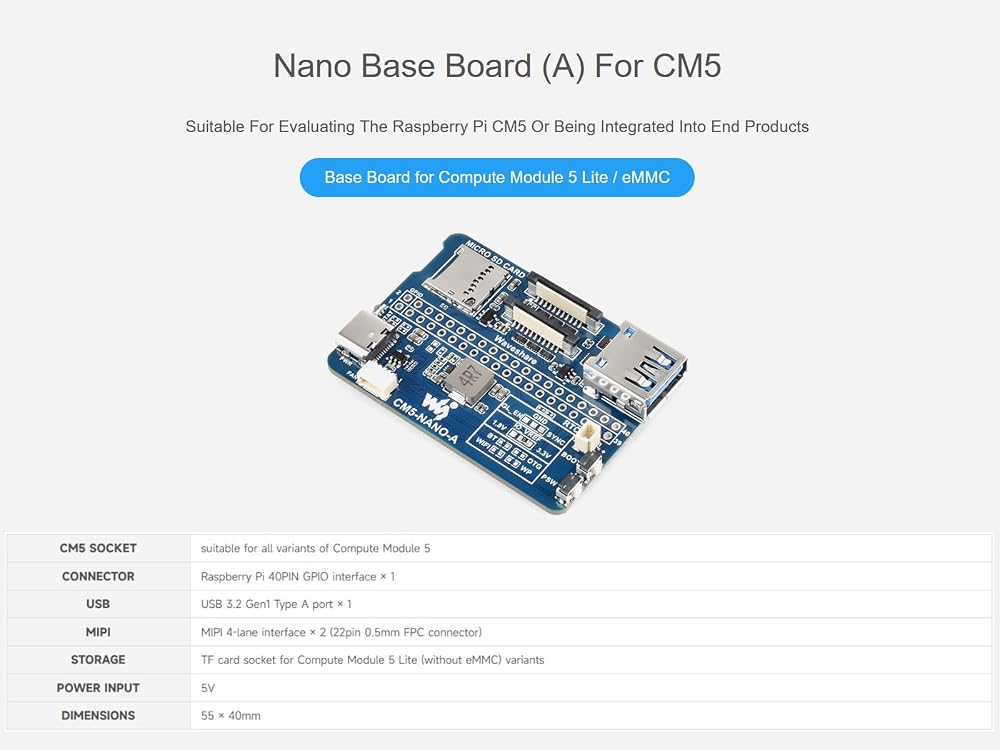

Specifications
CM5 socket-- suitable for all variants of Compute Module 5
Connector-- 40PIN GPIO interface × 1
USB-- USB 3.2 Gen1 Type A port × 1
MIPI-- MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Storage-- TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input-- 5V

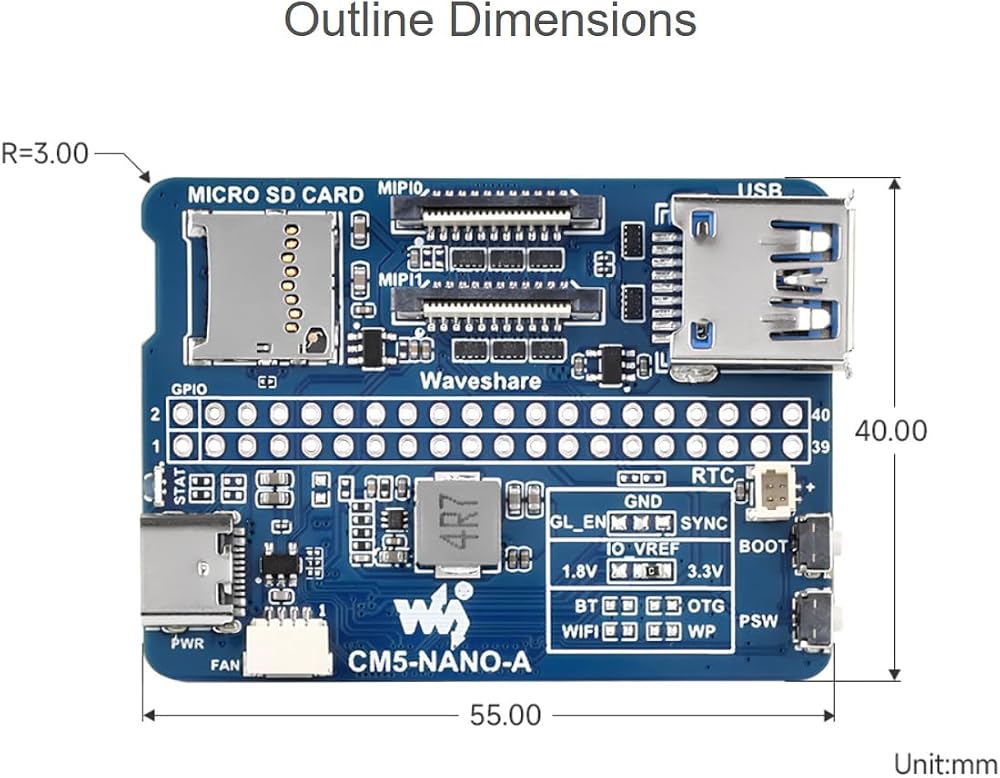

Dimensions-- 55 × 40mm

Package Content
CM5-NANO-A x1
2*20PIN color-coded straight pinheader x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
