Description:
Material - Push to connect plug fittings are made of plastic, and have the characteristics of flexibility, wear resistance, light weight, crack resistance, compression and corrosion resistance, good sealing performance, and long service life.

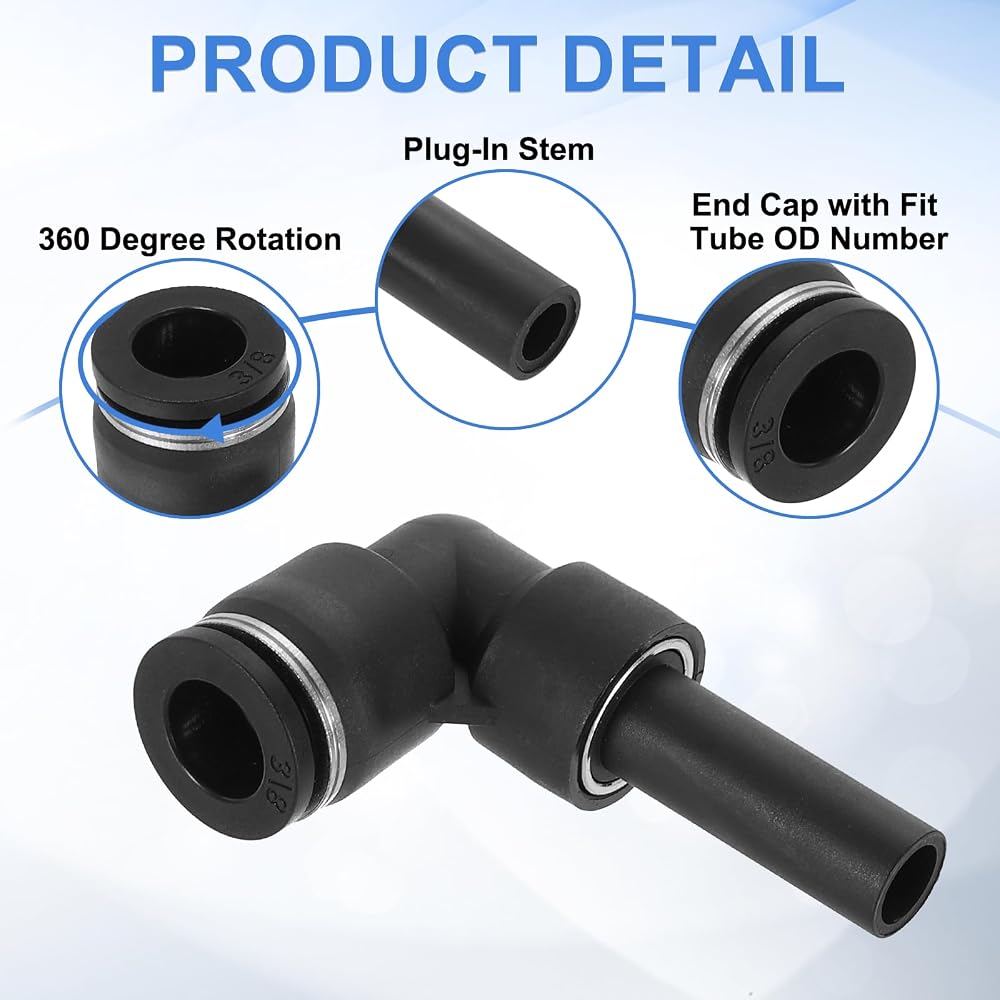

Design - Plug-In elbow has a push-in fitting on one end and a plug-in stem on the other end. The fitting cap can rotate freely 360 degrees, and the angle can be adjusted during installation.

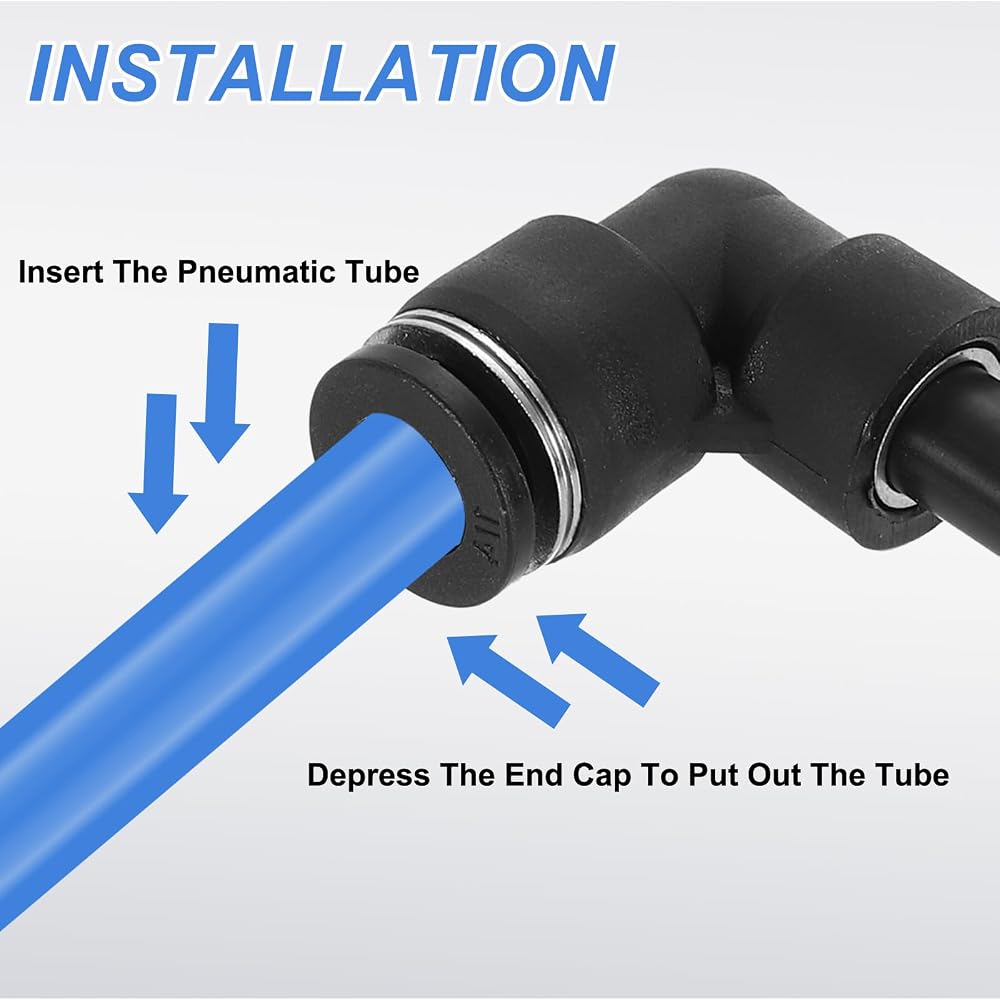

Installation - The push to connect fitting with plug-in stem is easy to install. First, cut the pipe flat, then put the pipe into the end of the fitting to prevent leakage. After inserting the pipe, try to pull the pipe. If the pipe cannot be pulled, it means it is connected. When loosening the pipe, make sure there is no pressure in the pipe, and then press the end cap evenly to the bottom.

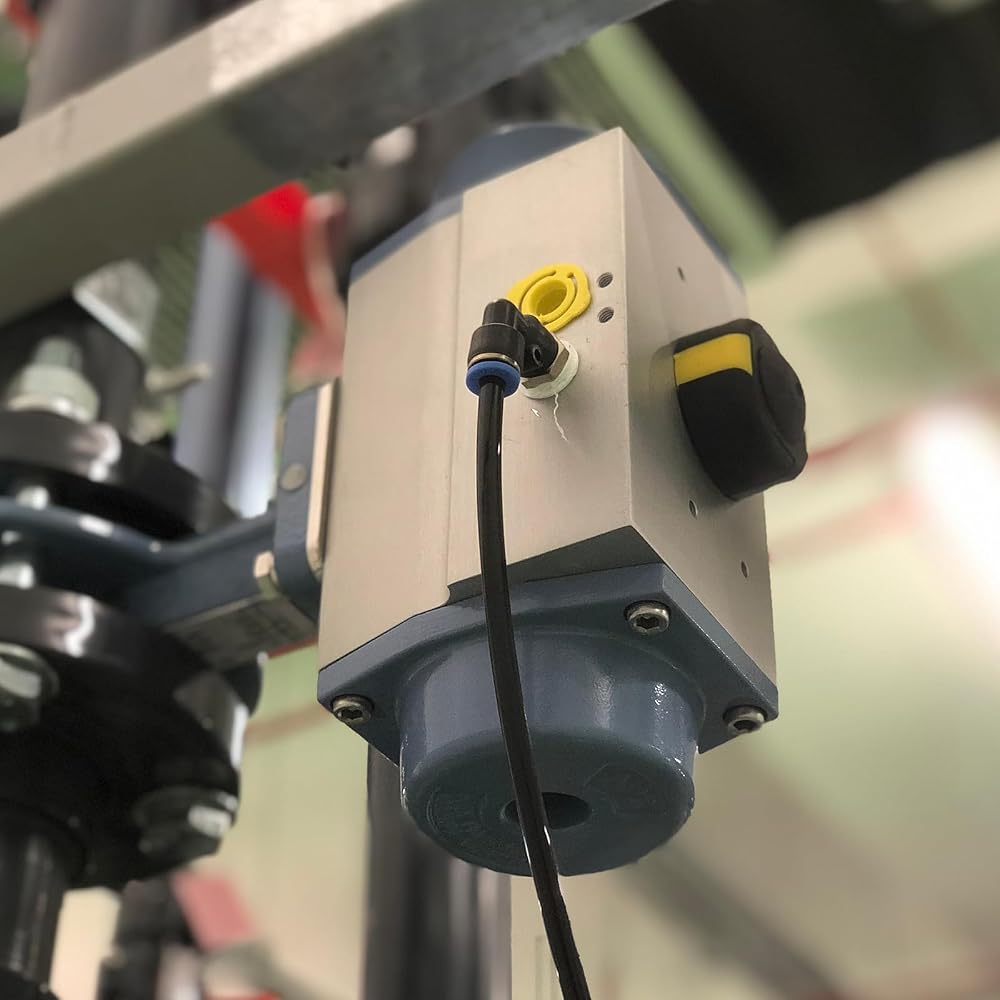

Wide Application - Push to connect tube fitting can be used to connect polyethylene, nylon, and PU pipes. Commonly used in low-pressure hydraulic and pneumatic systems, such as aircraft control, air horns, automotive assembly, and maintenance, etc.

Specification:
Material: Plastic
Color: Black
Operating Pressure: 0-1.2 MPa
Operating Temperature: 0-70 Degree Celsius

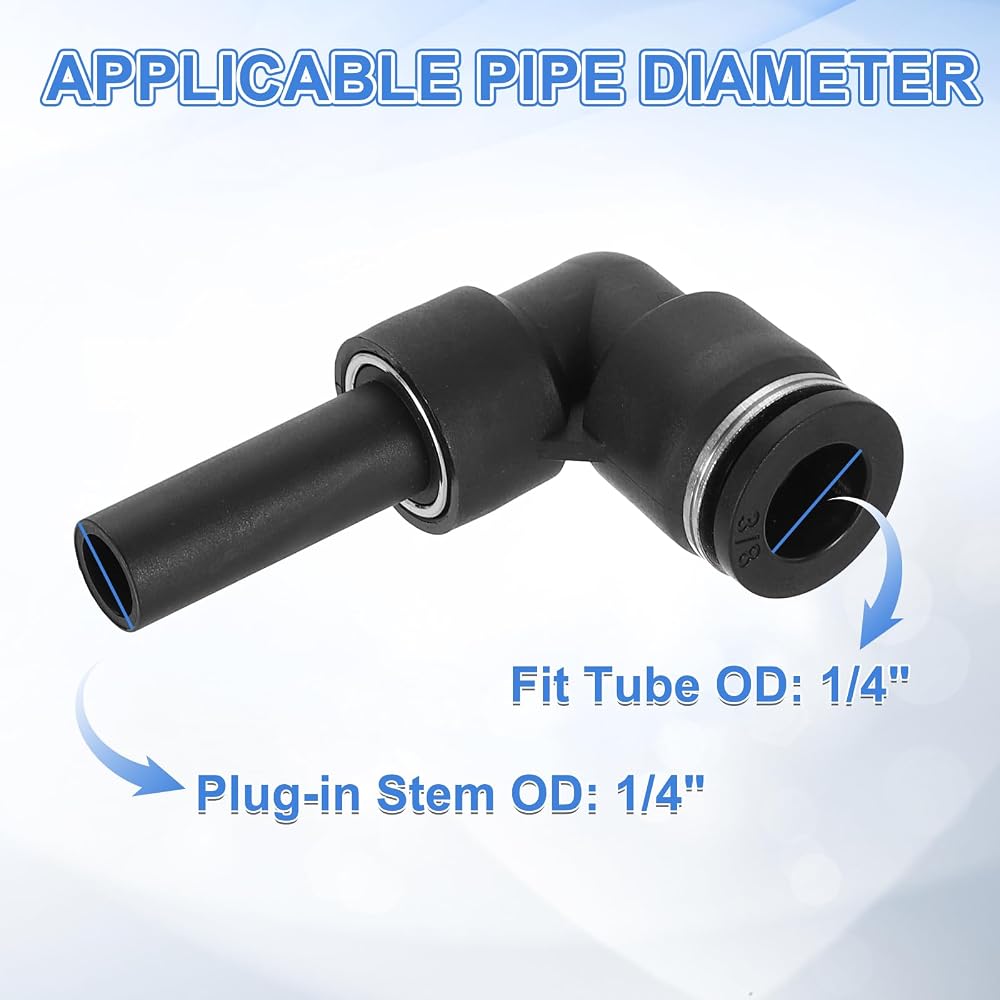

Fit Tube OD: 1/4"
Plug-in Stem OD: 1/4"
Push to Connect Tube Fitting Size: 43 x 25 x 13mm/1.69" x 0.98" x 0.51"(L*W*H)

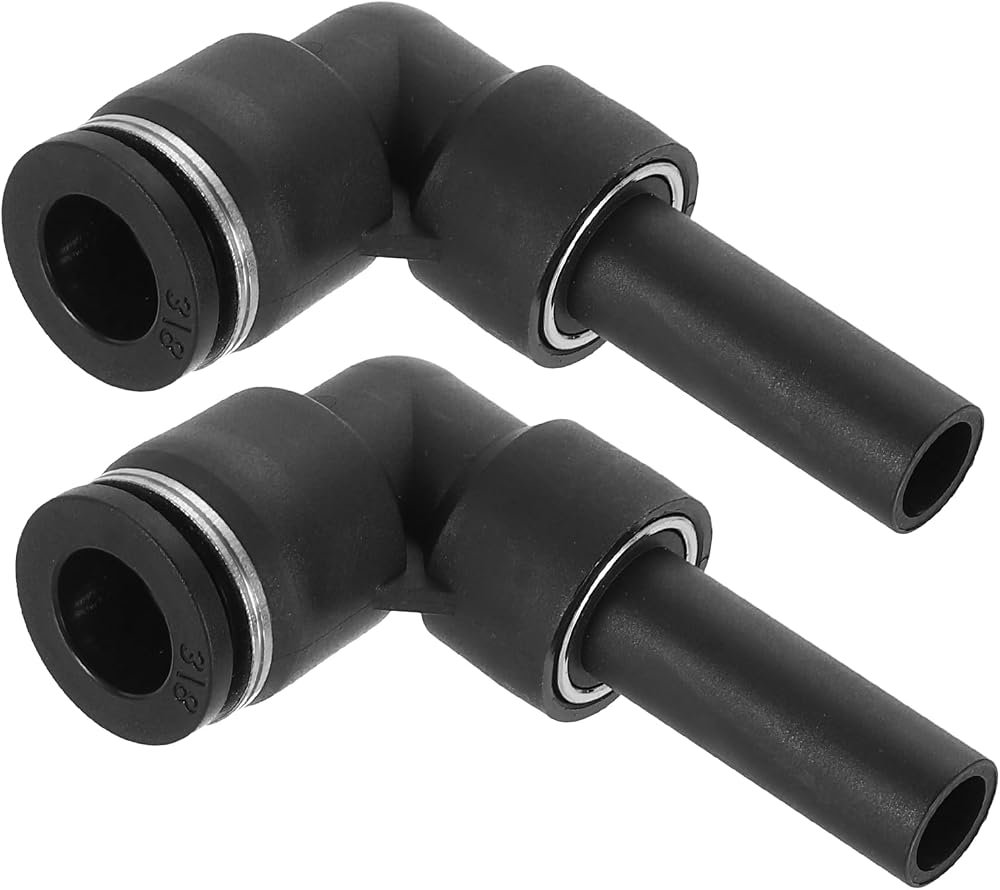

Package: 2Pcs x Elbow Fitting with Plug-In Stem
