Current Sense
Voltmeter
Direct connection: 50, 100, 150, 250, 300, 450, 500, 600, 750, 1000V
Required voltage transformer: 12K/100

Accuracy level
Level 1.5 and Level 2.5
Dimensions
96x96 mm
Perforation size
91 1/0x91 1/0 mm
Matching current transformer
BH-0.66-30
Mechanical resistance
Can withstand 30m/s2 wind speed; impact frequency 80-120 times/minute, 2h transportation bumpy
Dielectric strength
2KV 50Hz 1 minute
Voltage influence
When the measured value changes by 15%, the measurement tolerance does not exceed the reference tolerance

Operating temperature
-20 to 40 °C (-4 to 104 °F)
Operating humidity
Maximum relative humidity 85%, non-condensing

Size: 96*96mm
Working temperature: -20 to 40℃
Accuracy level: 1.5

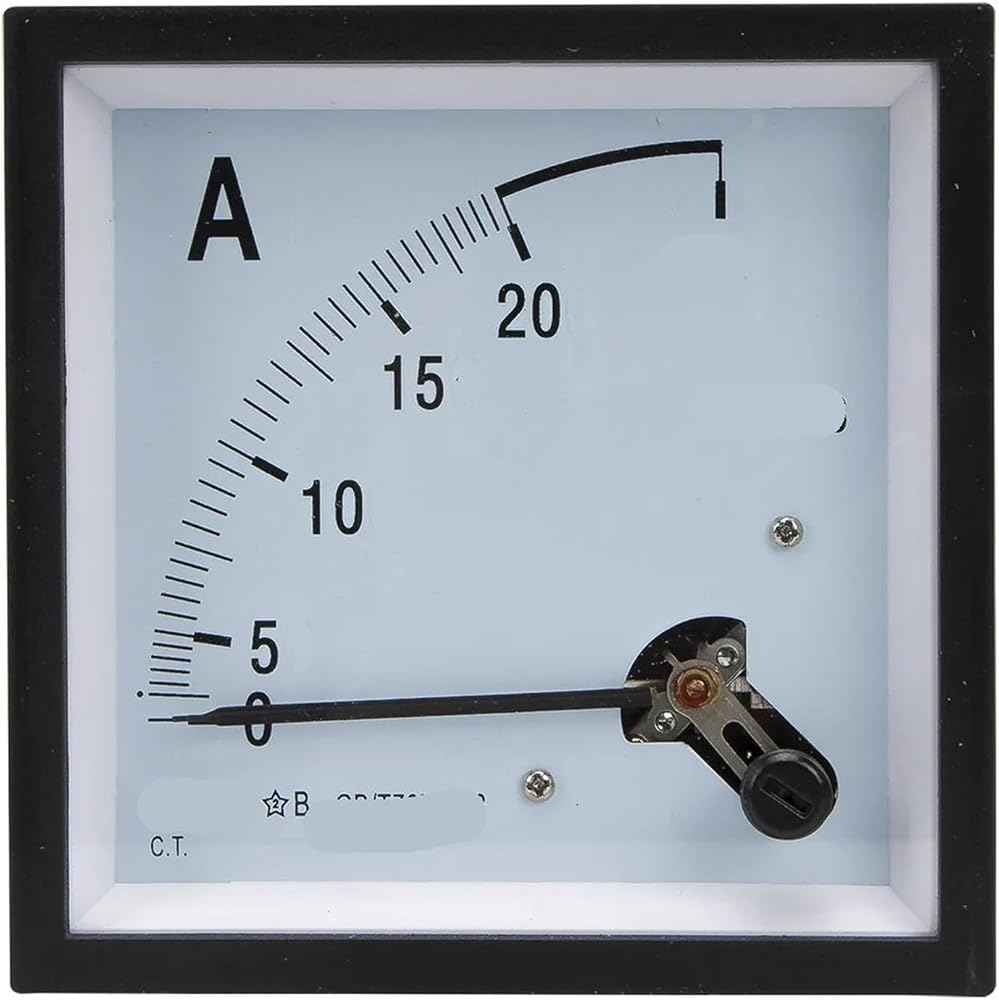

Model: SQ-96-A15 - SQ-96-A30
Display Type: Analog only
