packing list
1 spindle, 1 ER chuck
ATT: AC220, but needs to use inverter output, can not use electricity directly

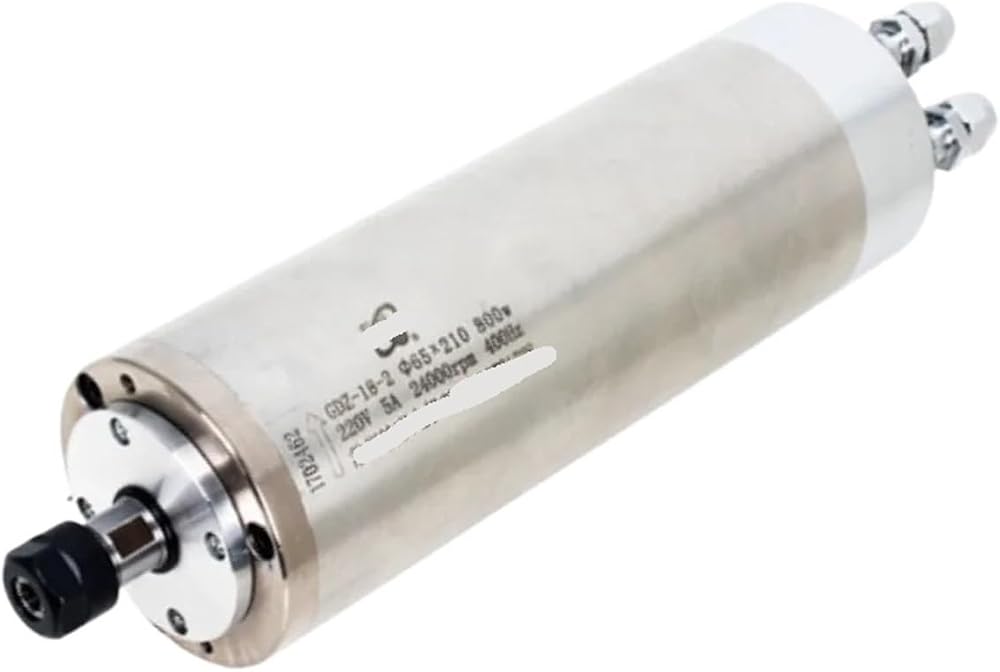

Material: Spindle cover is 304 stainless steel, water jet is high pressure cast aluminum tube, copper coil
Power Connection

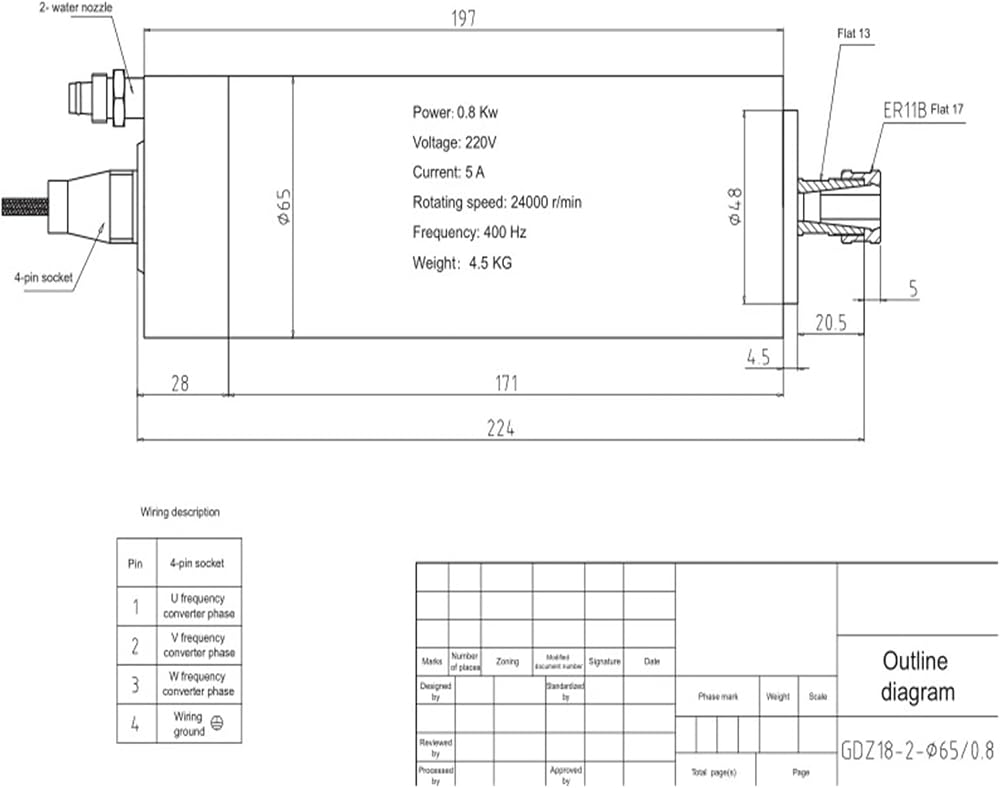

GX16 waterproof aviation plug, (1/2/3) are connected to the inverter (U/V/W) in sequence, 4 is connected to the inverter ground wire
Specification:
Dimensions: 65*210mm
Speed: 24000RPM
Rated power: 0.8KW
Voltage: 220V
Current: 5A
Frequency: 400HZ
Bearing: 7002C/P4*2, 7000C/P4*2
Chuck: ER11
Cooling method: self cooling
Lubrication method: Grease
Number of phases: 3
