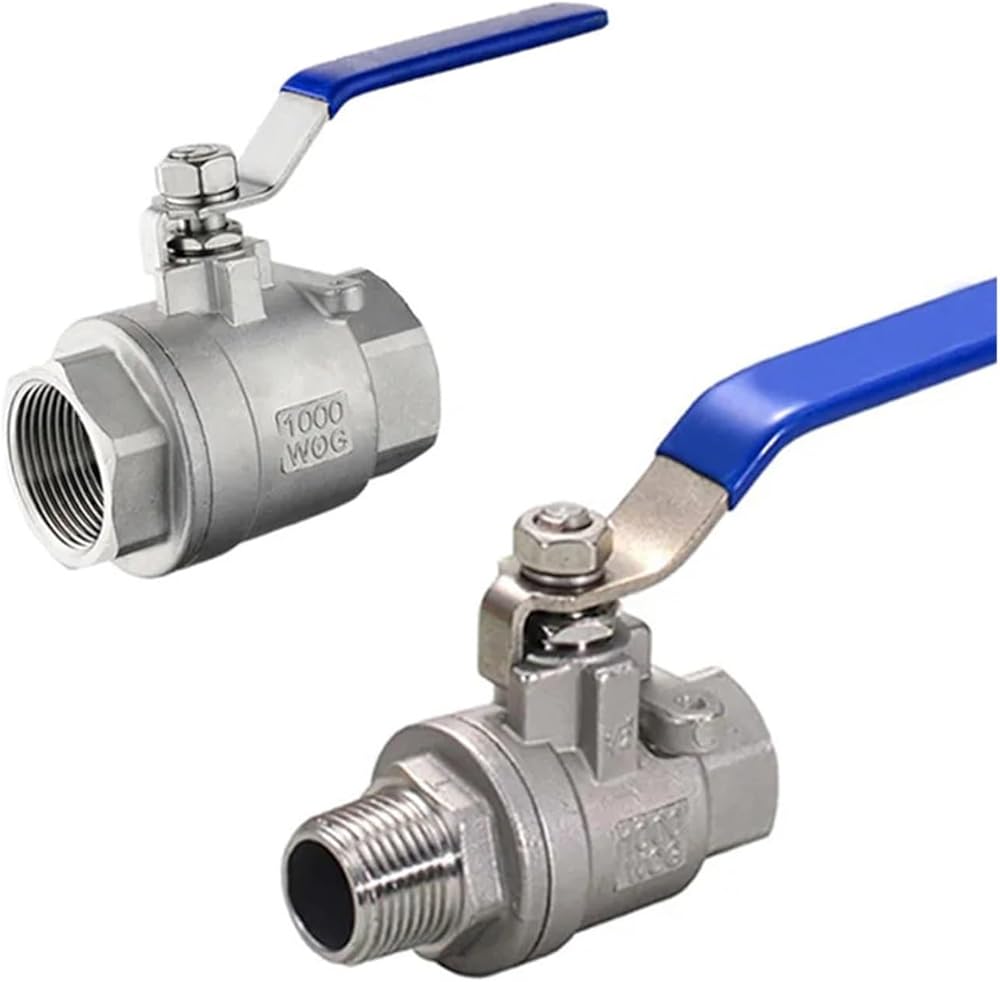

Product name: 304 stainless steel ball valve
Main material: 304 stainless steel
Thread type: male x female, female x female
Thread standard: (standard pipe)
Thread size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", (optional)
Thread specifications
DN8=1/4"(female)11.5mm-(male)12.5mm
DN10=3/8"(female)15.3mm-(male)16.2mm
DN15=1/2"(female)19.5mm-(male)20.3mm
DN20=3/4"(female)24mm-(male)25.7mm
DN25=1"(female)30.5mm-(male)32.5.3mm
DN32=1-1/4"(female)39.5mm-(male)41.3mm
DN40=1-1/2"(female)46.6mm-(male)47.8mm
DN50=2"(female)56.6mm-(male)59.6mm
Pressure resistance: 1.6Mpa
Used for: water, gas, steam, corrosion, acid and alkali
Packaging: 1 piece
Part Name
1: Seal ring-PTFE
2: Ball - 304 Stainless Steel
3: Gasket-PTFE
4: Valve cover - stainless steel CF8M
5: Body-stainless steel CF8M
6: Valve stem - 304 stainless steel
7: Thrust Washer - PTFE
8: Filler-PTFE
9: Packing gland nut - 304 stainless steel
10: Washer - 304 stainless steel
11: Stem nut - 304 stainless steel
12: Handle cover - plastic plastic plastic
13: Handle - 201 stainless steel
