1. Product Overview

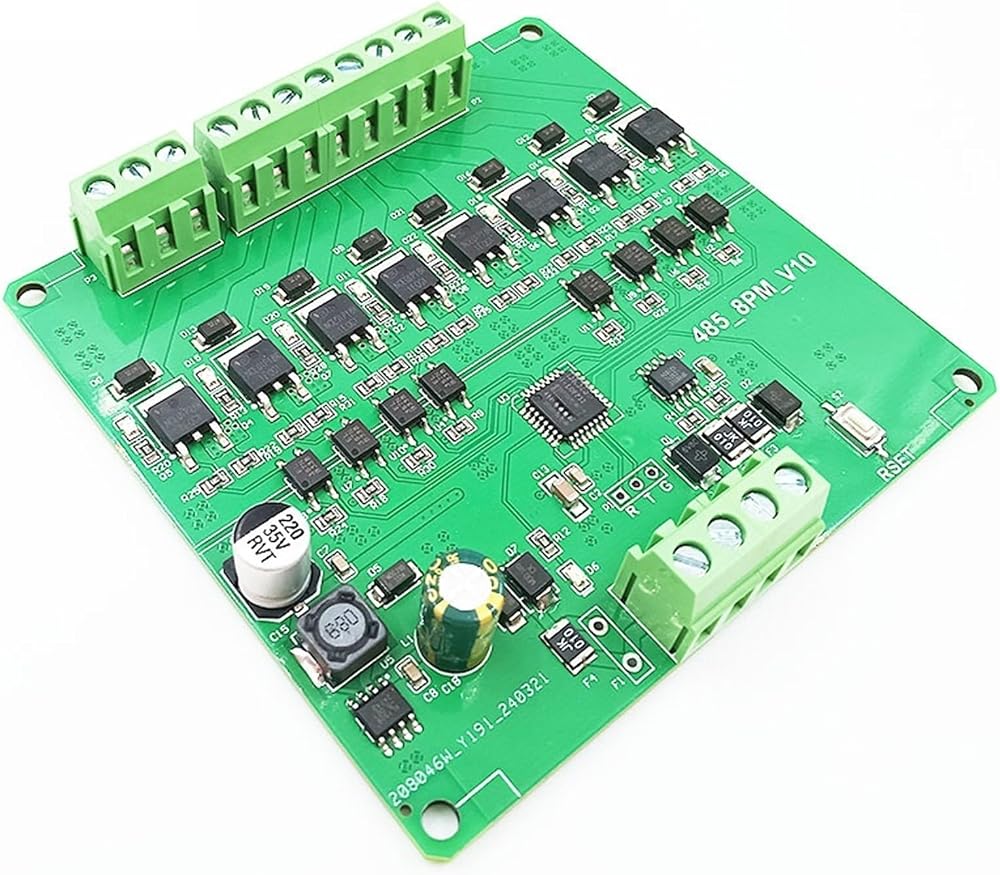

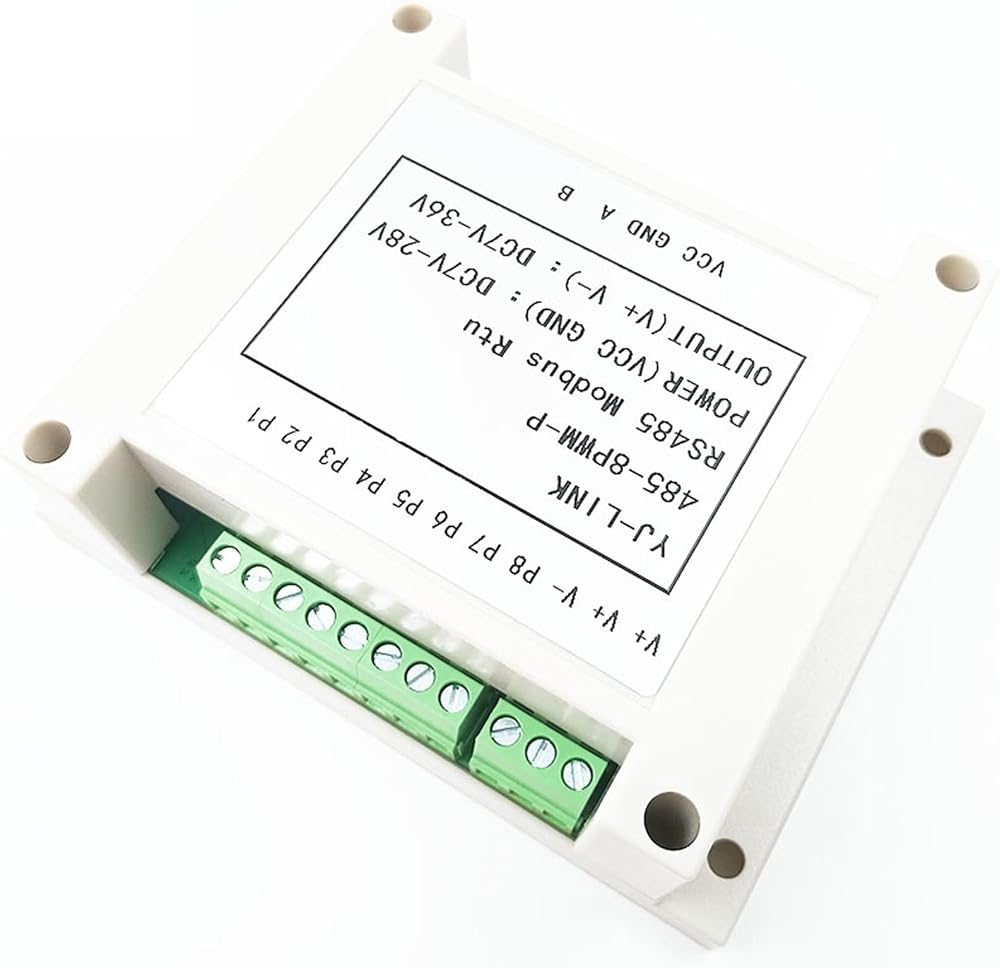

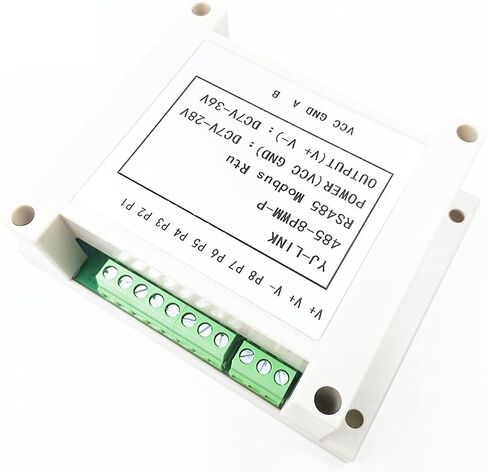

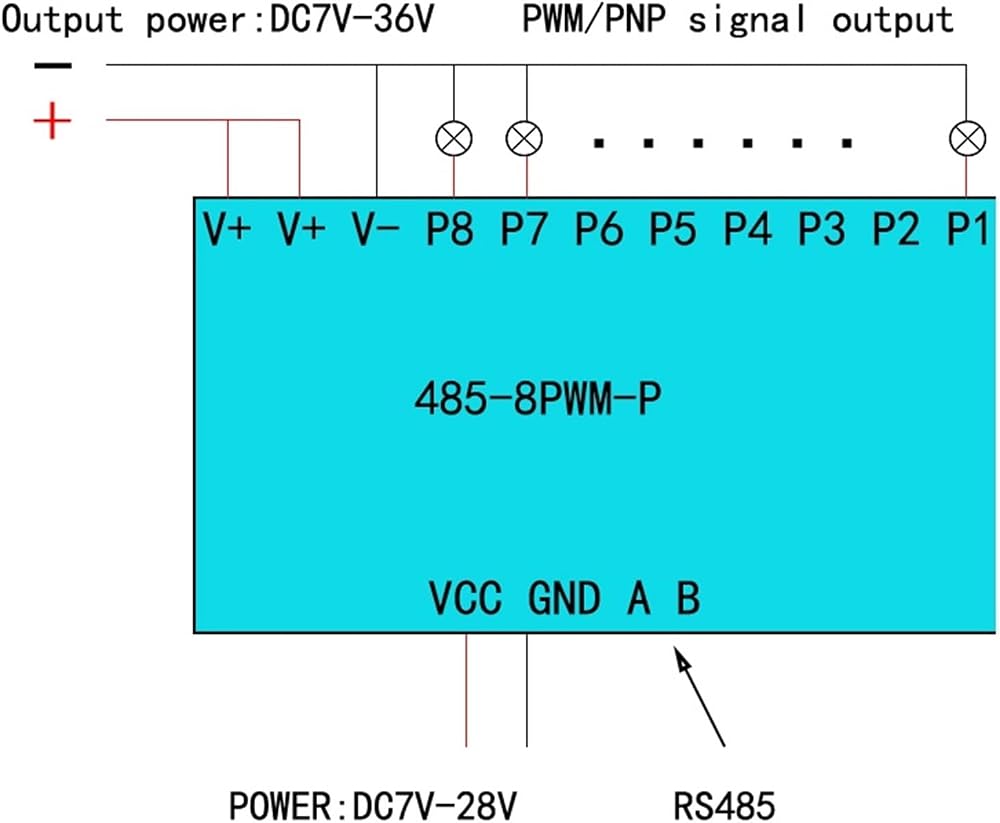

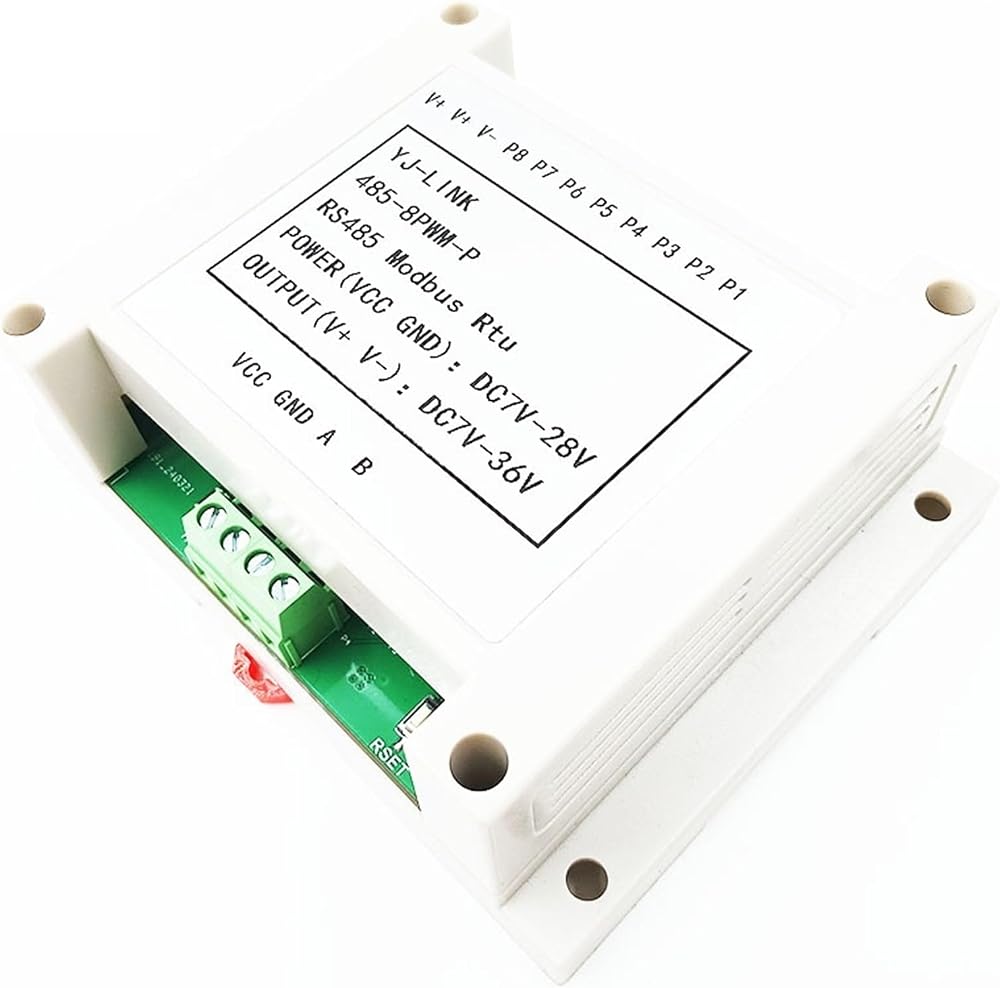

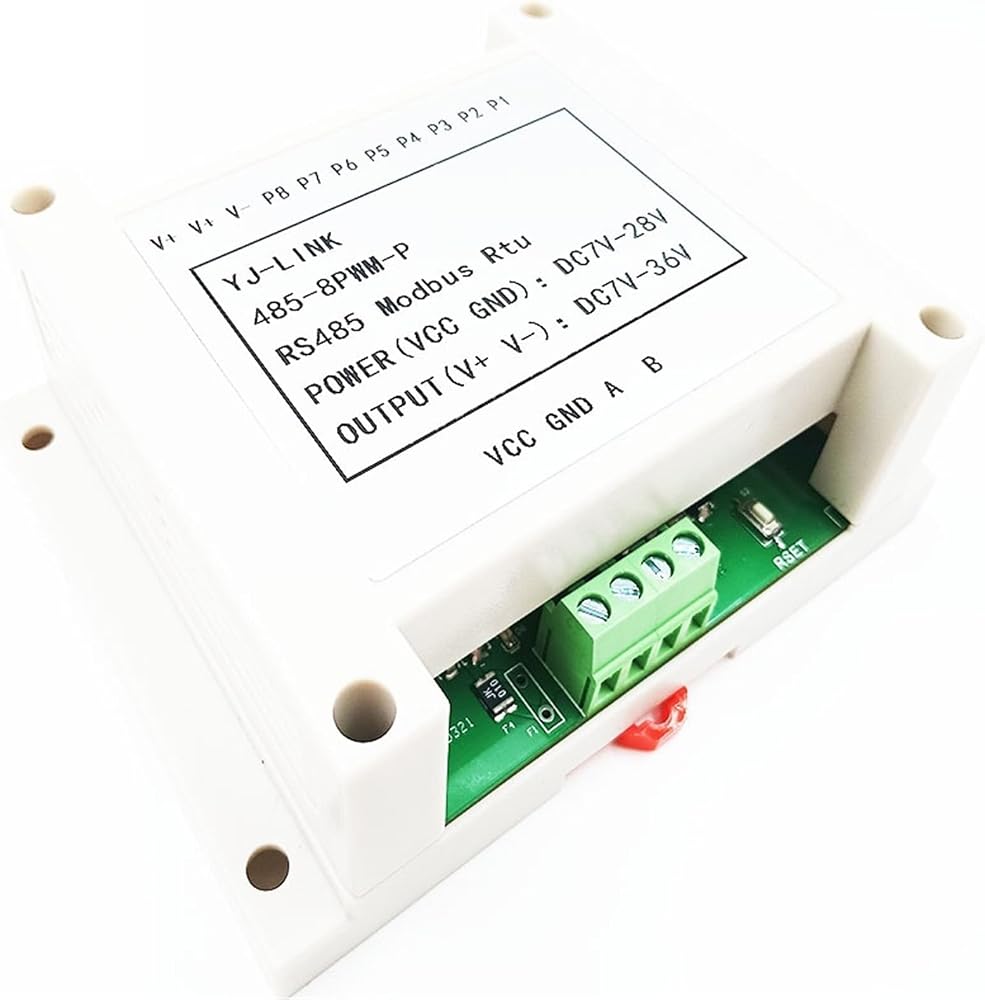

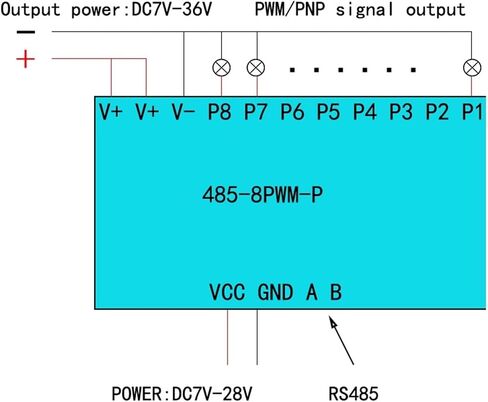

This product is an PWM/PNP(Transistor switch output) signal output module,which is output through an RS485 interface.
1)PWM and PNP signal output are selected through software selection.
2)8-channel PWM: frequency range 1HZ-100Hz, duty cycle 0-100%.
3)Power supply voltage: DC7V-28V
4)Output voltage range: DC7V-36V
5)Single channel maximum output current: 3A
6)Maximum output current of the entire board: 20A
7) The module adopts RS485 MODBUS RTU standard communication, it can be networked with the host computer software, PLC, industrial touch screen, etc.
8) RS485 communication signal output interface adopts over-voltage and over-current double protection.
6 Restore settings
Press the restore button for more than 5 seconds,The module will to settings;
The communication parameters : 9600, N, 8, 1,
The device address : 1
PNP output mode.
PWM parameters are not memorized after power failure
Restore the PWM parameter register to its default value;
PNP output delay recovery is 0
