Slotting Cutter Arbors
Size: JGF-F80A-1.5KW
Speed regulation mode: The spindle speed can be changed by a three-phase output inverter and the frequency of the inverter can be adjusted.
Cooling method: air cooling

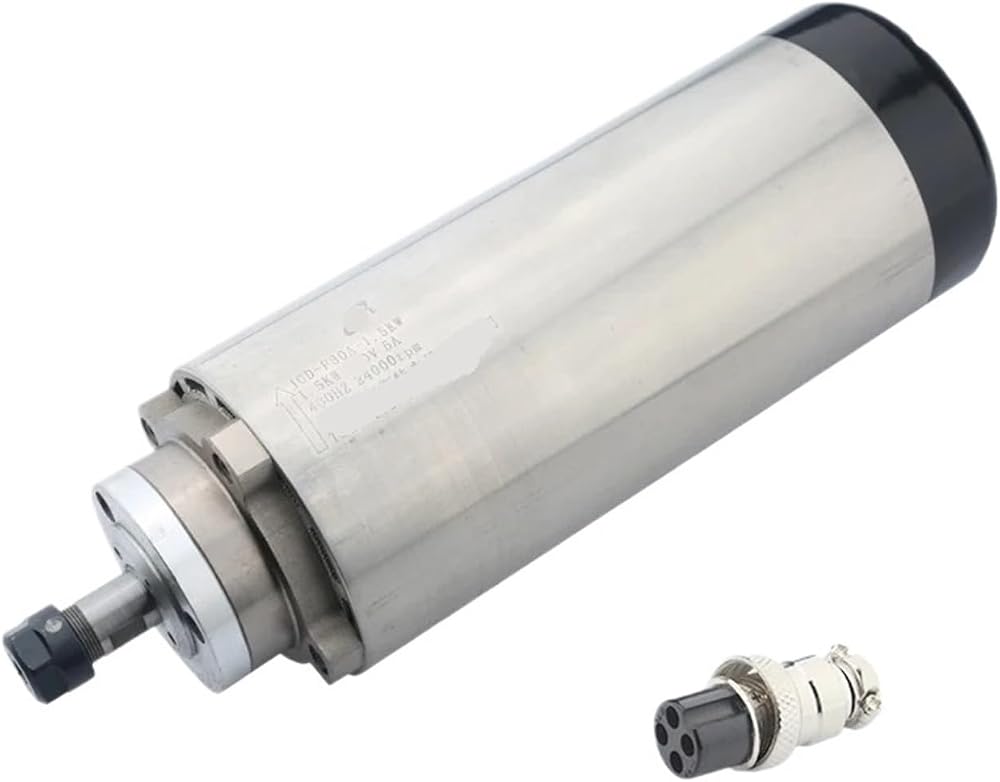

Power interface: Optional 4-pin aviation plug.

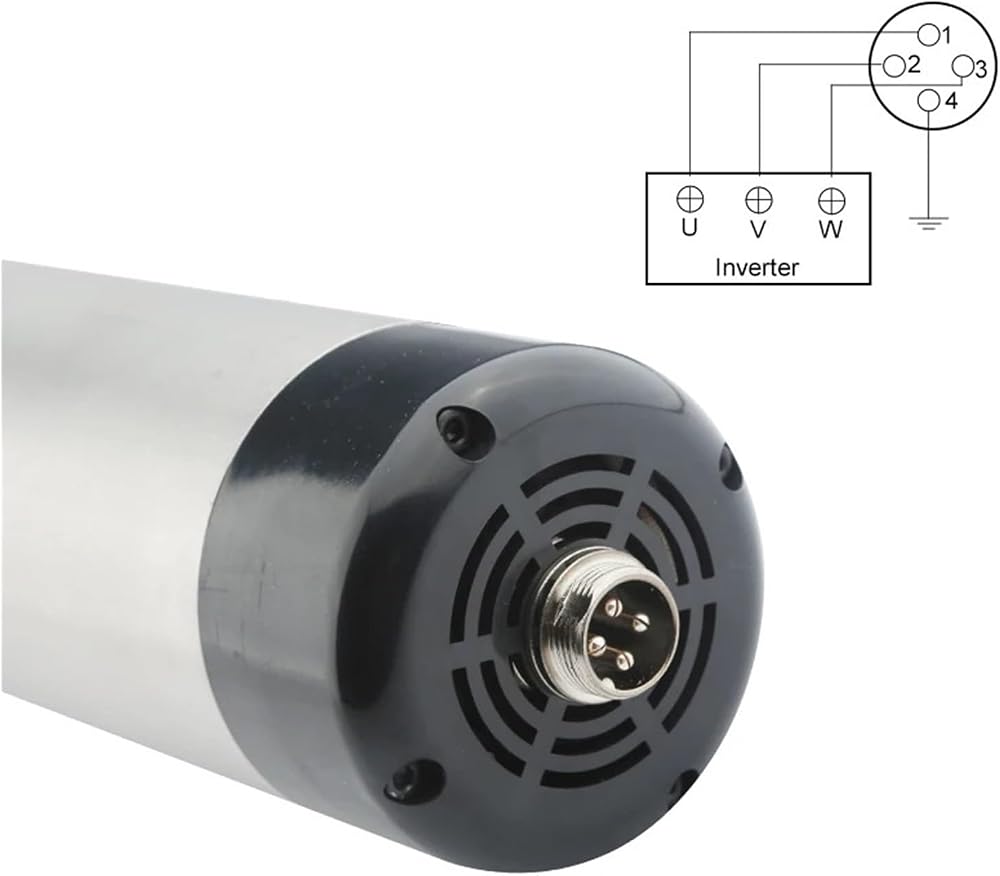

The air plugs are labeled "1", "2", "3", and "4". "1", "2", and "3" are connected to the inverter (U, V, W), and 4 is connected to the inverter.
Equipment grounding.
Power: 1.5kw
Voltage: 220V 380V
Current: 5.0A
Frequency: 0-400 Hz
Speed: 0-24000 RPM
Runout: less than 0.01mm

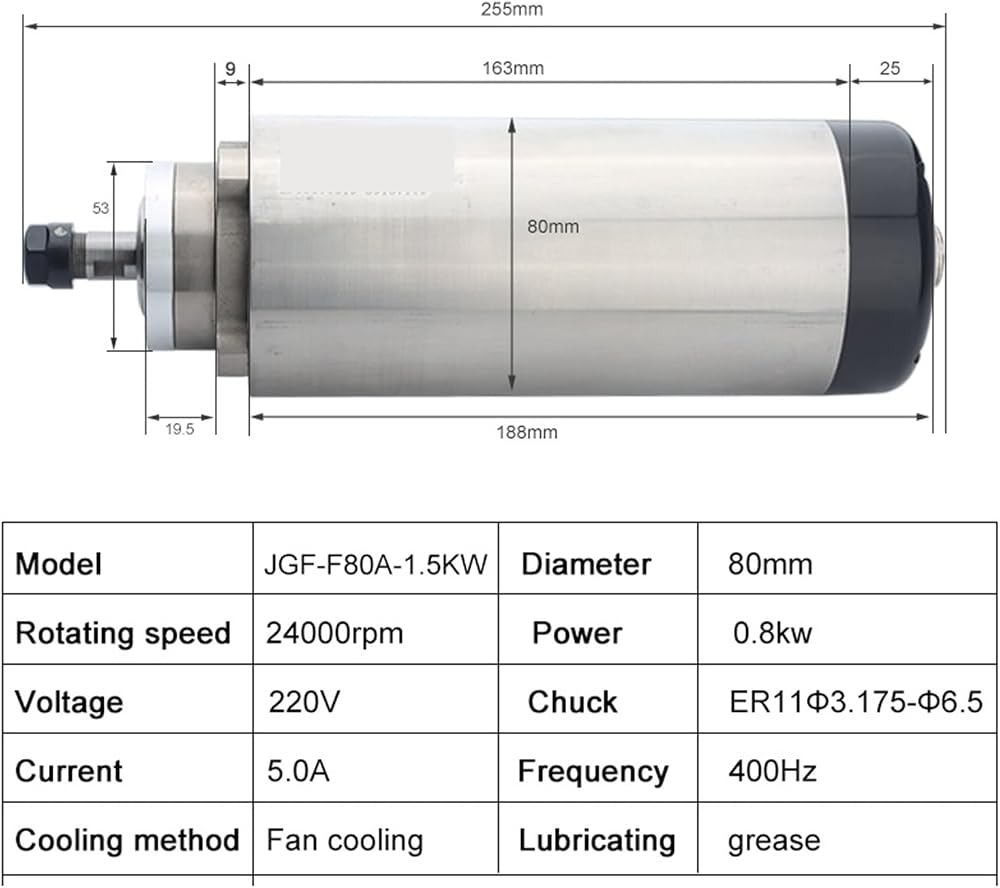

Diameter(mm):80mm
4 contact bearings
Chuck: ER11
Fixture diameter: 7mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 4mm)
