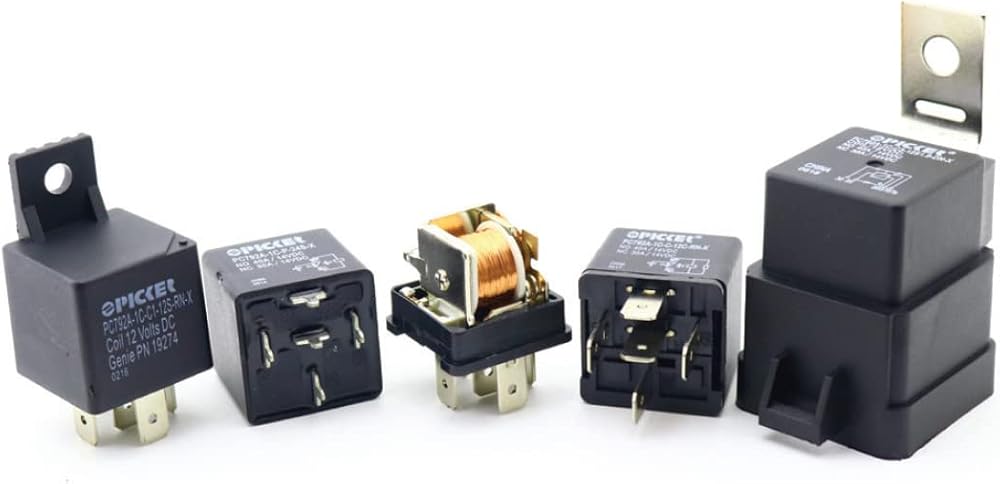

Picker Components PC785-1C-12S-R-X Micro ISO 280 Automotive Relay
A compact, fully sealed relay built for harsh automotive, marine, off-road and industrial environments. Its SPDT silver-tin-oxide contacts switch 35 A (NO) / 25 A (NC) continuously, while the integrated 680 Ω suppression resistor protects ECUs and microcontrollers from coil fly-back. Standard ISO 280 blade terminals make it a direct drop-in for Bosch, TE and Omron micro relays. High-Current Contacts: 35 A NO / 25 A NC continuous (40 A surge) @14 V DC 12 V Coil + 680 Ω Resistor: reduces EMI, no external diode needed Sealed to IP67: resists water, dust, vibration; operates from –40 °C to +125 °C Micro ISO 280 Footprint: 5-pin 2.8 mm blades fit standard relay sockets & panels RoHS & Lead-Free: UL-recognized, environmentally compliant Contact FormSPDT (Form C) Continuous Current35 A NO / 25 A NC @14 V DC Coil Voltage (nominal)12 V DC Coil Resistance109 Ω + 680 Ω suppression resistor Max Switching Voltage75 V DC Operating Temp.–40 °C … +125 °C Enclosure RatingIP67, fully sealed TerminalsISO 280, 5 × 2.8 mm blades Weight≈ 21 g ComplianceRoHS, lead-free
