Slotting Cutter Arbors

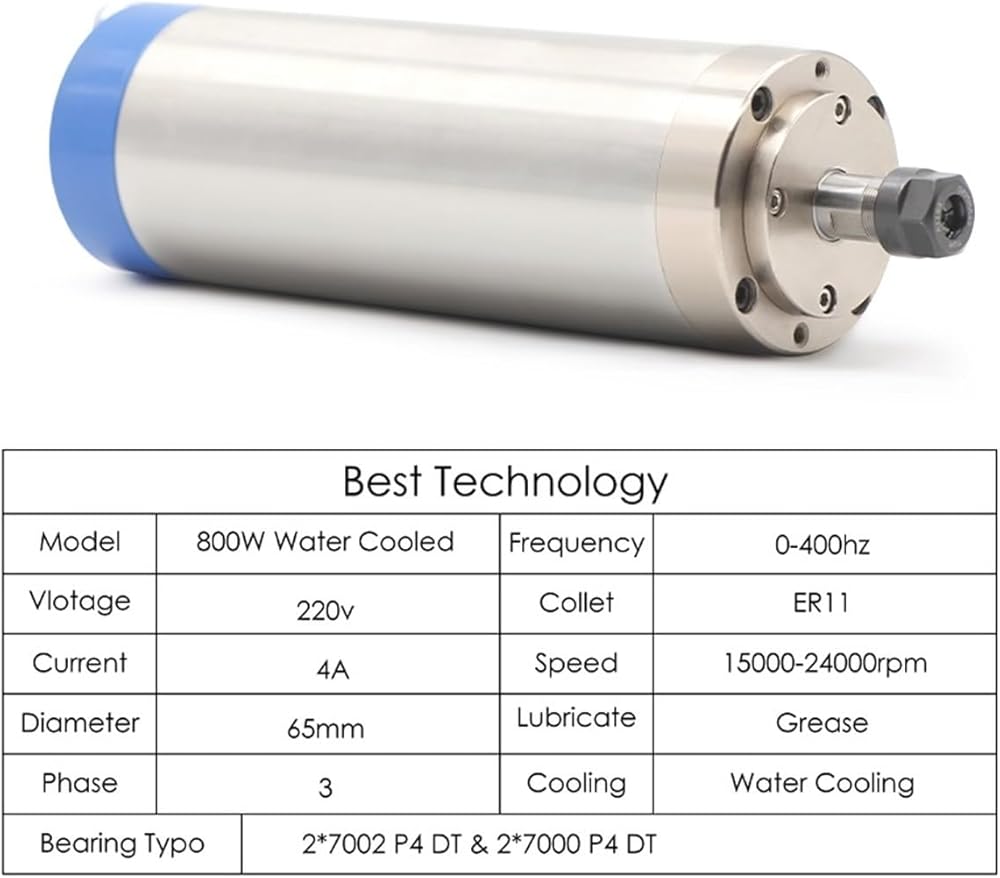

Basic parameters

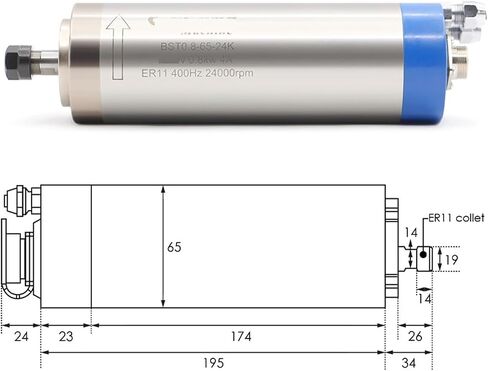

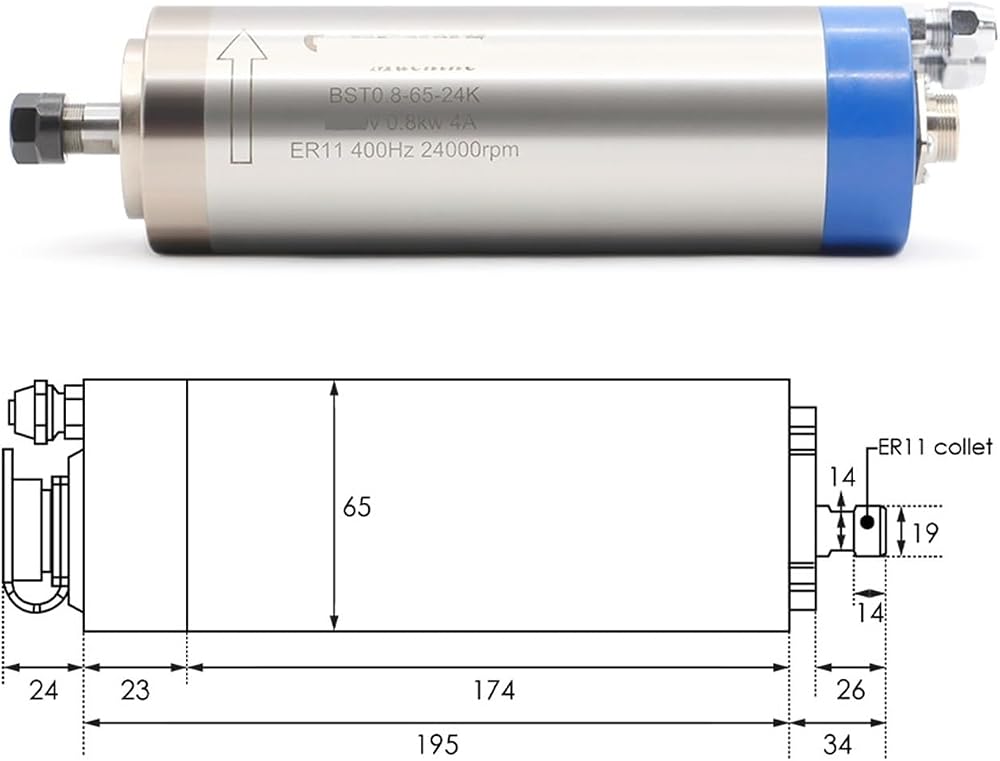

Size 65x195mm (body diameter 65mm; length: 195mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling
Power: 0.8kw (1HP=0.735kw)
Voltage: 220vAC (If you need 110v/380v spindle, please leave us a message, thank you)
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout deviation: 0.01mm
4 fully sealed P4 angular contact ball bearings
Bearing type: 2×7002C P4 DT&2 7000C P4 DT
Water-cooled ER11 chuck block
