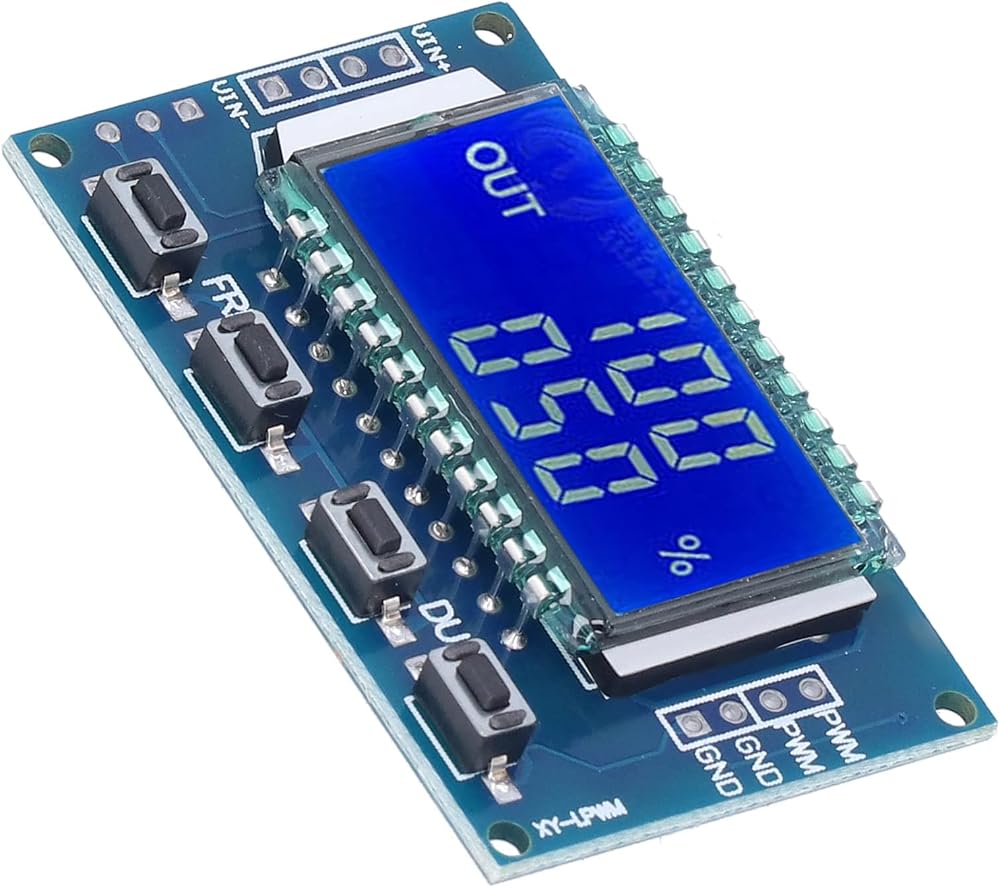

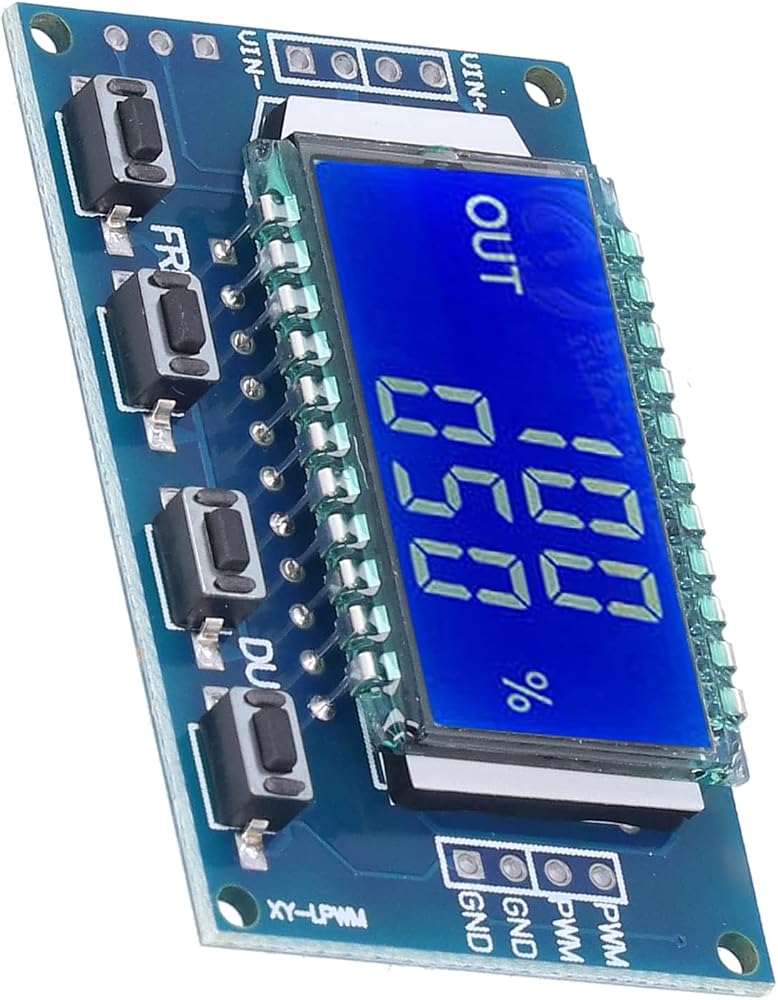

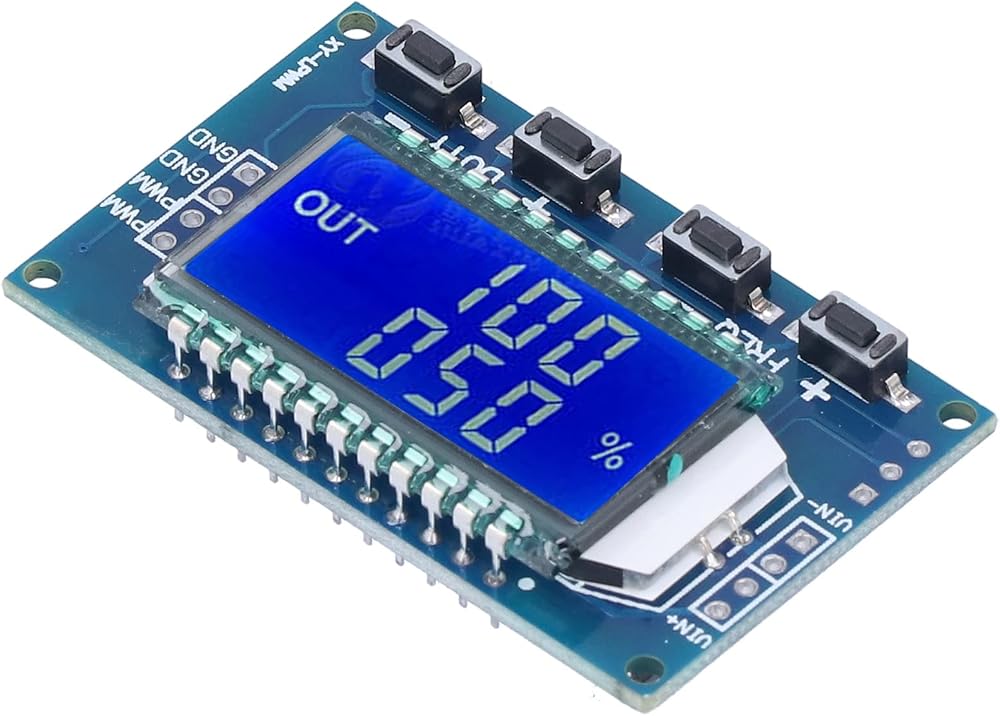

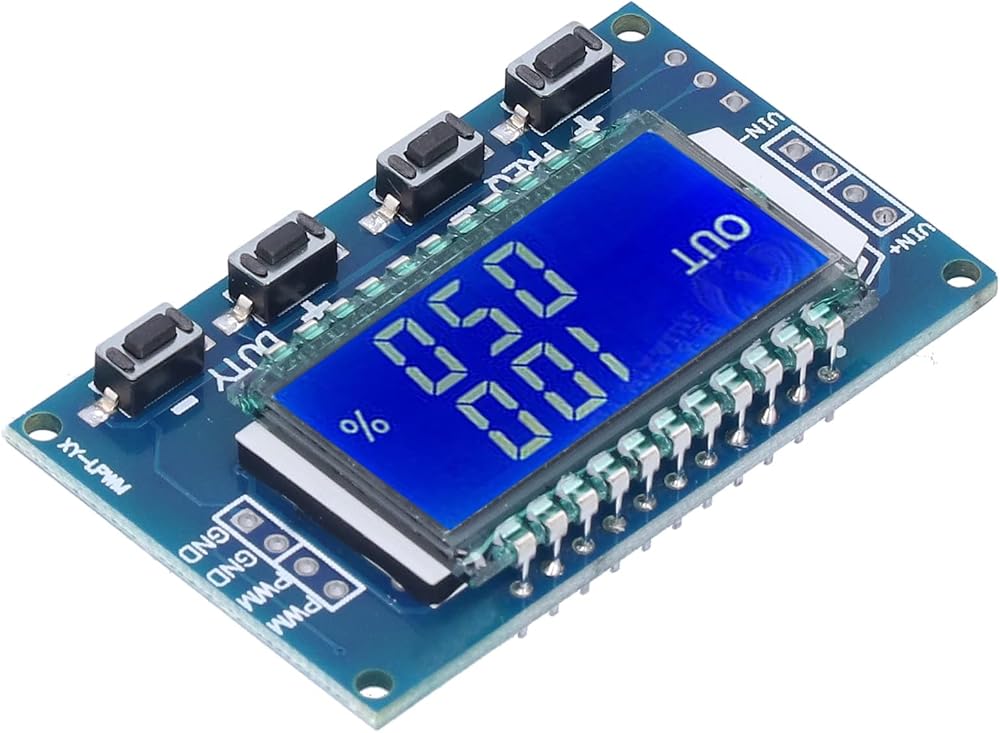

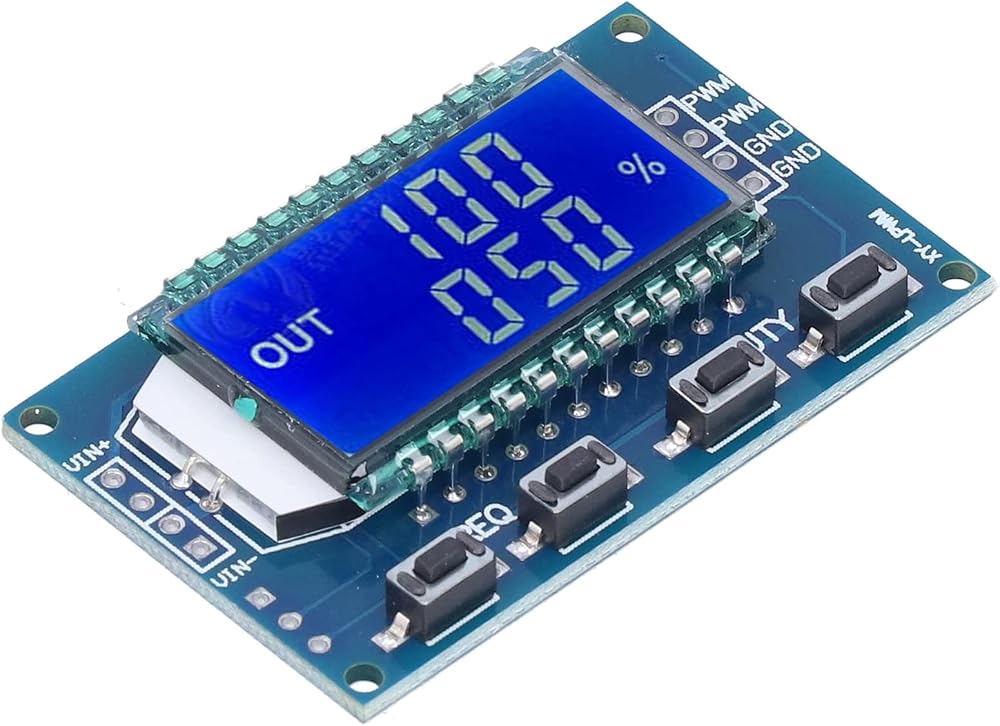

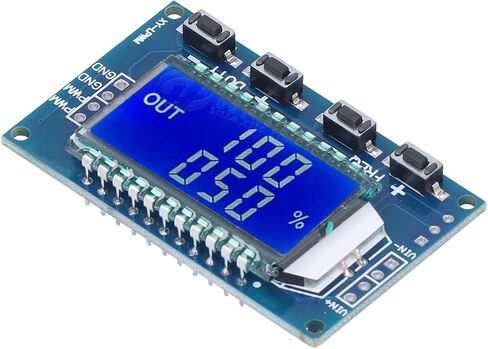

[VERSATILE SIGNAL GENERATOR] This Signal Generator Module is designed for experimental development and motor control applications. It generates precise square wave signals ideal for controlling motor drivers and other circuits. Its adjustable PWM pulses make it for MCU use PWM dimming and speed regulation.
[ADJUSTABLE PWM PULSES] The module allows you to generate adjustable pulses with a wide frequency range and . You can set the frequency and duty cycle separately making it highly flexible for various applications. The frequency ranges from 1Hz to 150KHz with four automatic switching ranges for precise control.

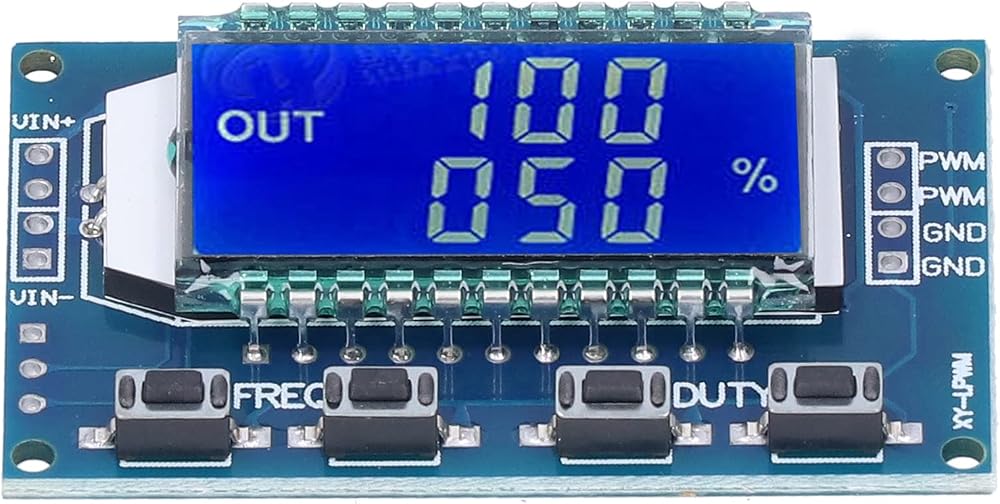

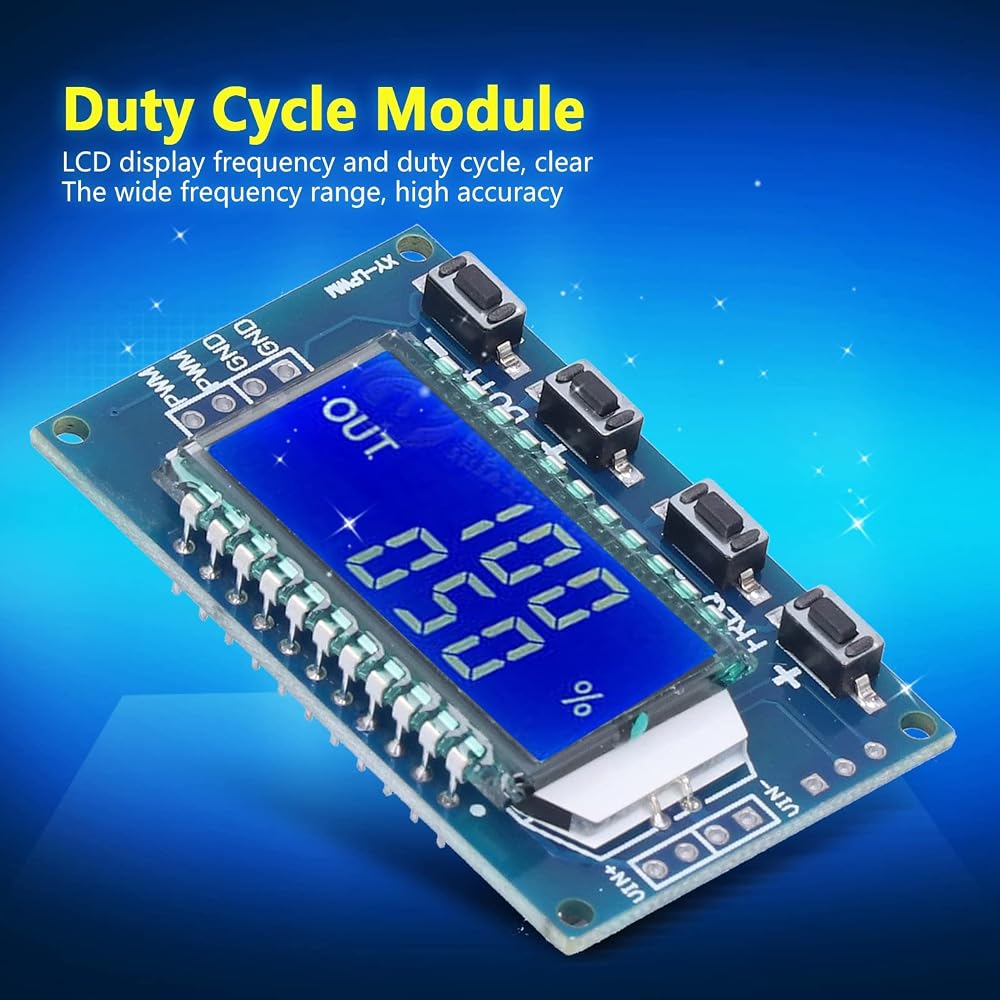

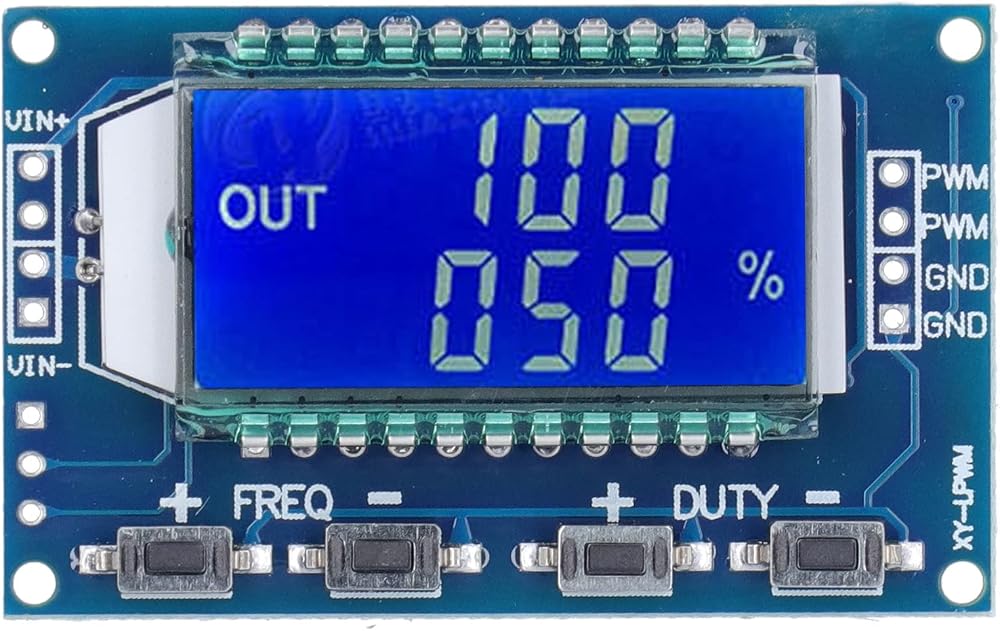

[USER FRIENDLY DESIGN] Featuring an easy to operate interface this module includes an LCD display that clearly shows frequency and duty cycle settings. All parameters are saved after power off ensuring convenience and reliability. The module also supports serial port communication for seamless integration with other devices.
[HIGH PRECISION OUTPUT] With a frequency accuracy of about 2% in each range this module delivers reliable performance. The output amplitude matches the supply voltage and the load capacity signal output current ranges from 5 to 30ma. It operates in temperatures from 20 to +70 ℃ ensuring durability in various environments.
[FOUR FREQUENCY RANGES] The module offers four distinct frequency ranges for automatic switching: 1Hz to 999Hz 1.00Khz to 9.99Khz 10.0KHz to 99.9KHz and 1KHz to 150KHz. This versatility allows you to handle a wide array of tasks from low to applications with ease and precision.

Spec:
Item Type: Signal Generator Module
Material: Plastic
Frequency range is divided into four, automatic switching:
1.XXX (without decimal point): the smallest unit is 1Hz, in the range 1Hz ~ 999Hz;
2.X.XX (one hundred decimal point) is minimum unit 0.01Khz, ranging 1.00Khz ~ 9.99Khz;
3.XX.X (ten in decimal): minimum unit is 0.1kHz; range 10.0KHz ~ 99.9KHz
4.X.X.X (decimal in ten and one
