1. Good machining makes it less rough and noisy than other gears, making it roll smoothly.
2. Small size, light weight, easy to carry, easy to install, with good performance.
3. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that need to be driven by steering.
Specification:

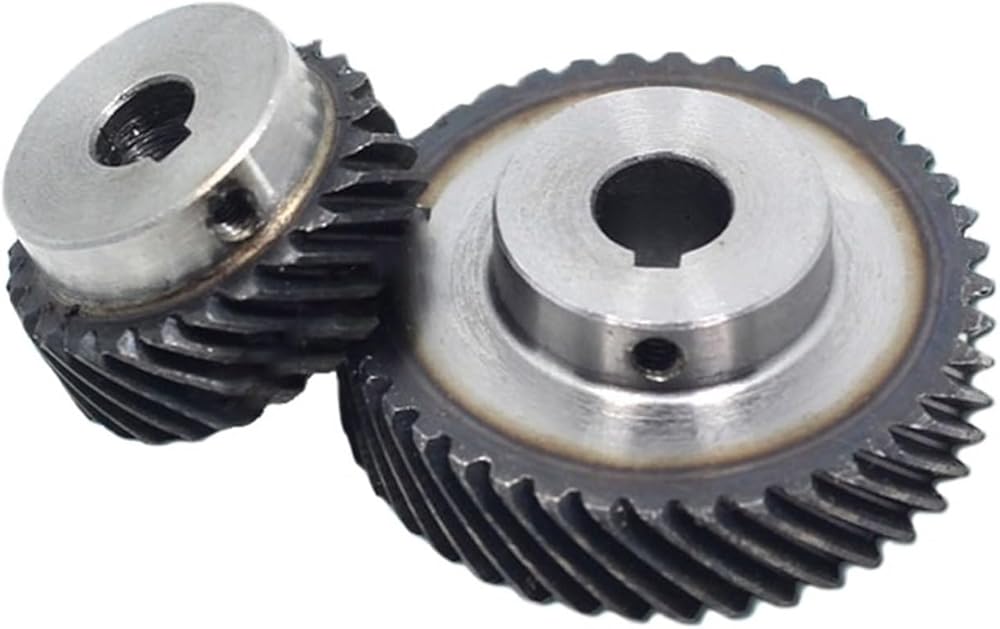

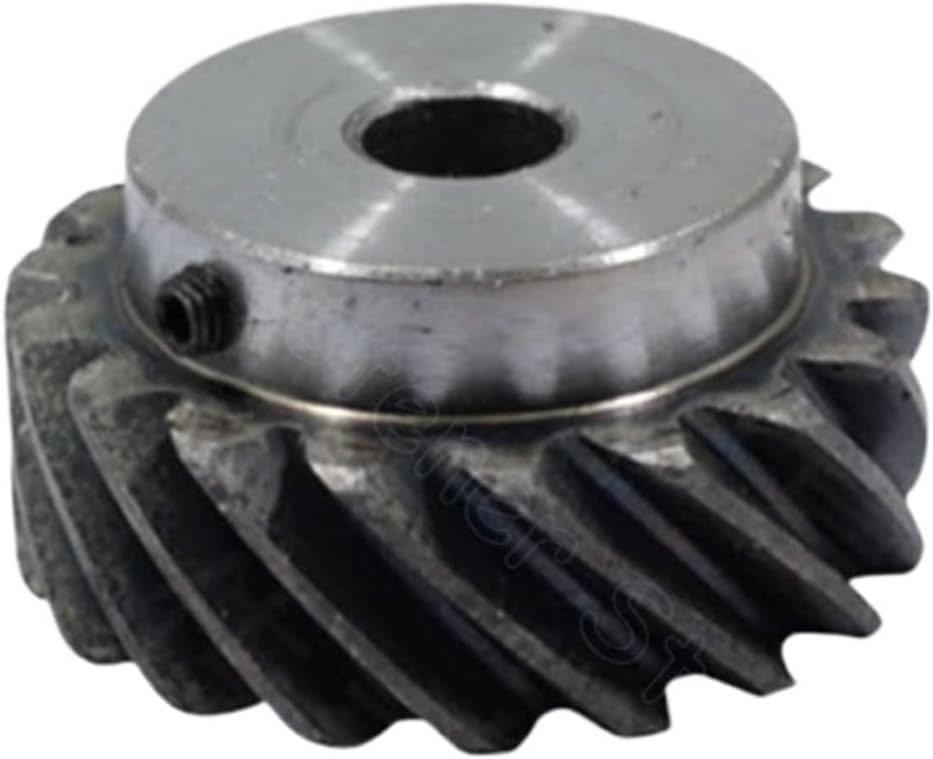

Name: 2M 45 Degree Left-handed Helical Gear
Material: 45# Steel
Model Number: 2M
Tooth Profile: Helical Gear
Direction: Left Hand
Pressure Angle: 20°
Helix Angle: 45°
Teeth Number: 10Teeth
Bore: 10/12mm (keyway 4mm) 14/15/17mm(keyway 5mm) 19mm (keyway 6mm) (Keyway Hole)
Features:
1.High torque and low noise. Torque is 3 times higher than bevel gear.
2.Strong and durable, strong wear resistance.
