مميزات خاصة

1. Low friction, low operating noise, long service life, no stick-slip effect, and low heat generation.
2. Easy to install, maintenance-free, low starting torque, and accurate positioning.
3. Widely used in automated machinery such as lathes, machine tools, large transmission equipment, etc.
1. Low noise, high precision, high temperature resistance, smooth details
2. The slider slides smoothly and has high operating stability
3. Screw fixation, strong stability, the optical axis and the aluminum bracket are fixed with screws stably and tightly

وصف

1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning

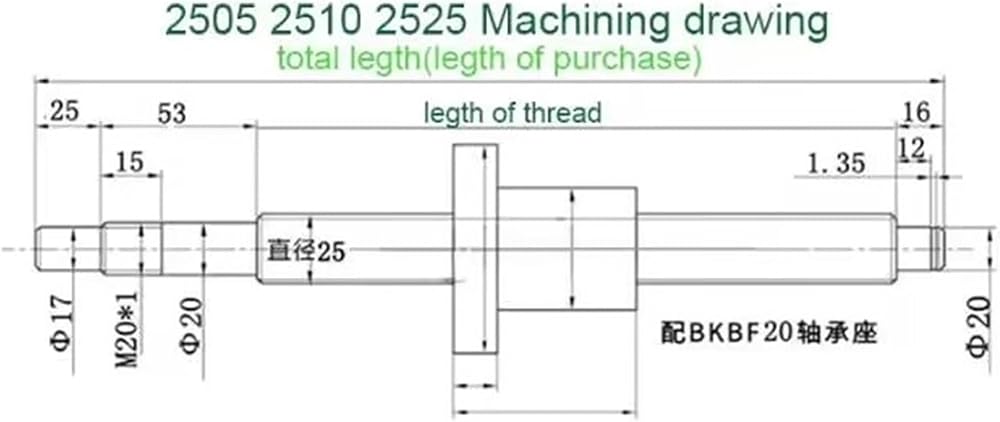

Specifications:
Model: SFU2510
Guide rail width or diameter: 25mm
Ball screw accuracy: C7
Material: S55C

Description:

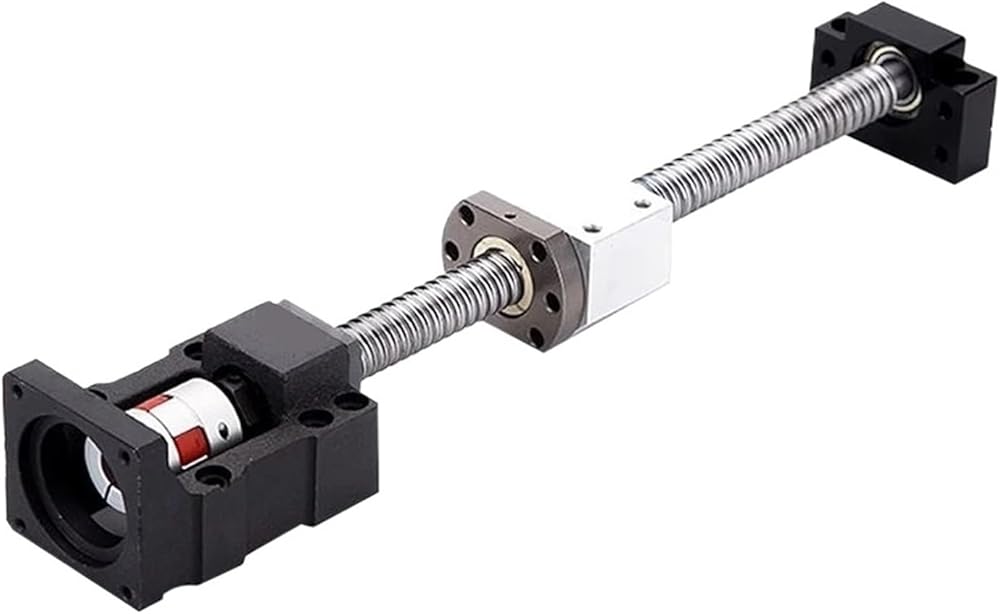

Complete Kit: Motor Bracket and Accessories, comes with motor bracket and basic accessories, ready to integrate into your system.
Precision: C7 ball screw, C7 ball screw precision can provide accurate and reliable motion control for your project.
Guide Width/Diameter Options: 12mm/16mm/20mm/25mm/32mm, provide a variety of guide widths to meet different 3D printer parts requirements.
Material: S55C, made of S55C material, ensure durability and lifespan for rigorous applications.

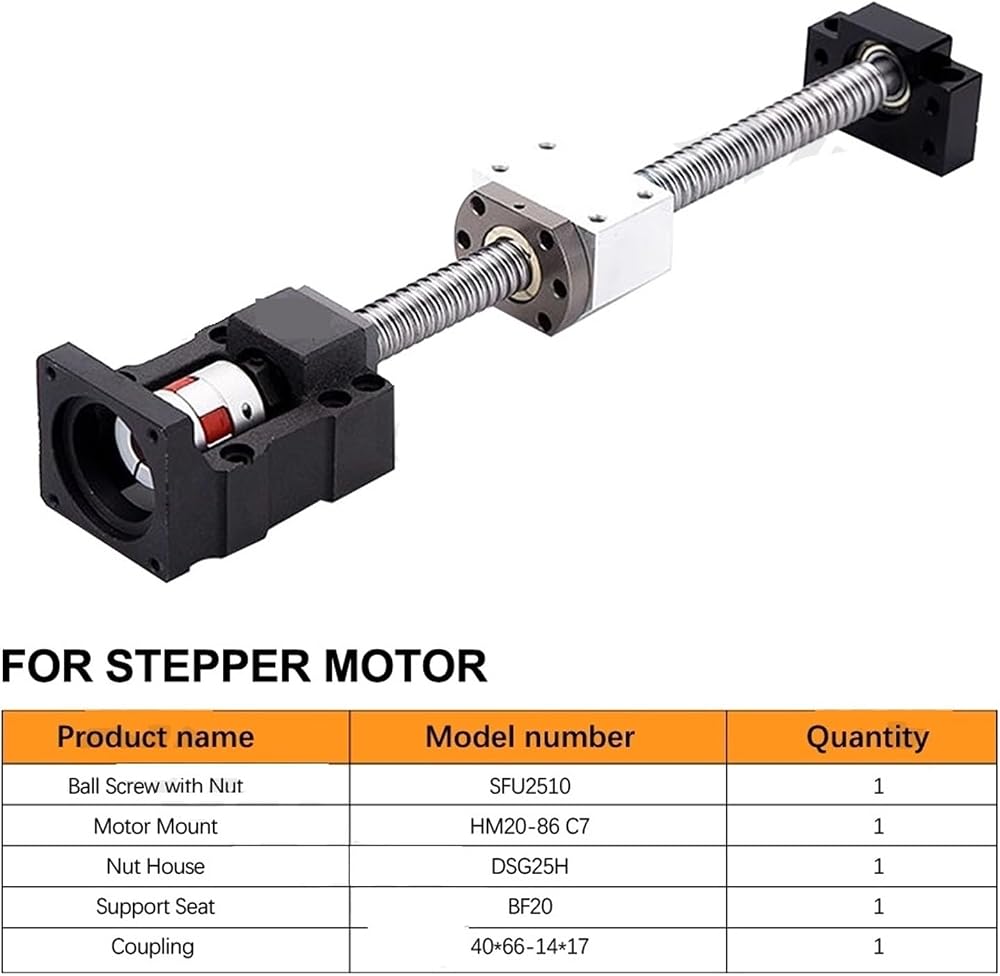

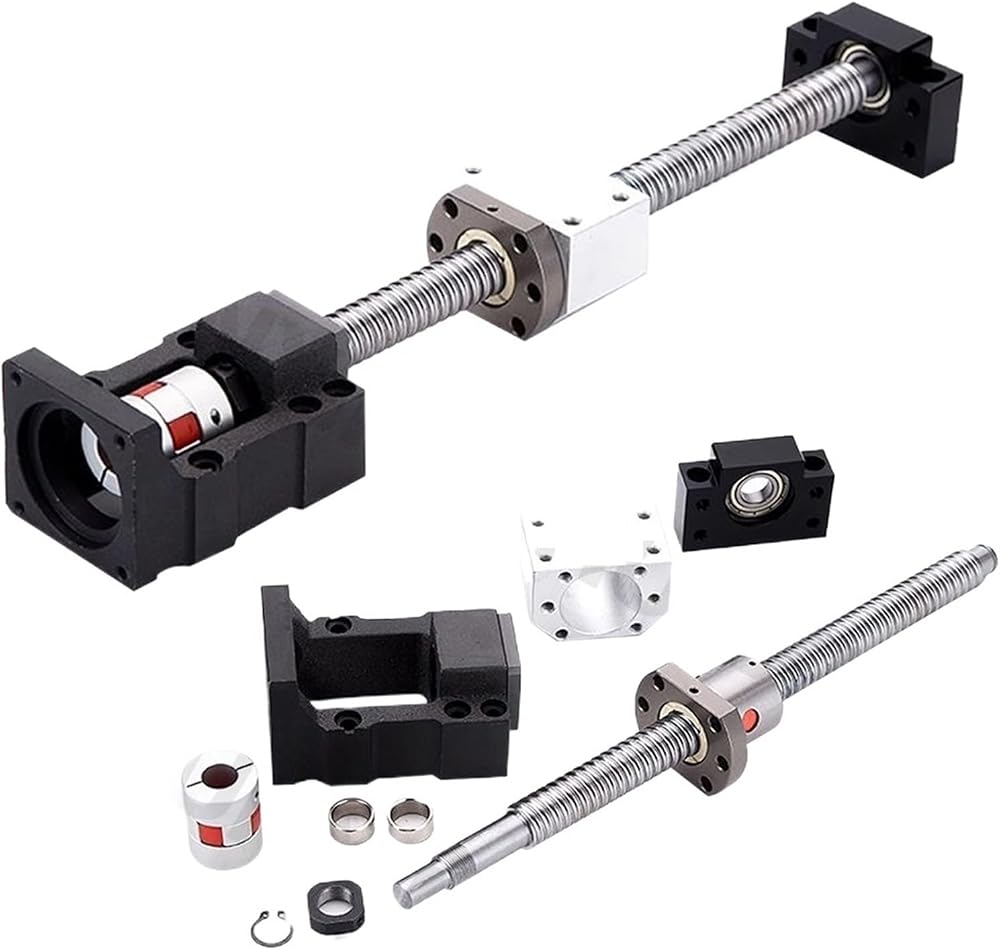

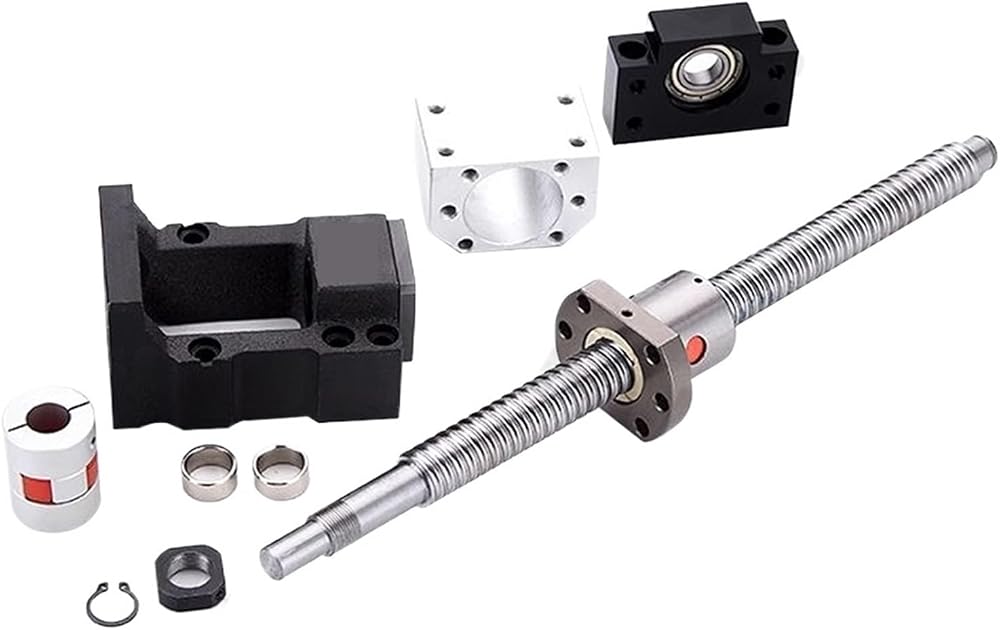

Product list:
1PCS SFU2510 ball screw with nut
1PCS HM20-86 motor seat
1PCS DSG25 nut seat
1PCS BF20 support seat
1PCS coupling D40*65-14*17
1PCS locking nut M20*1
