[BASIC SPECIFICATIONS] This single chip microcomputer supports adjustable pulse, frequency, and duty cycle for versatile use.

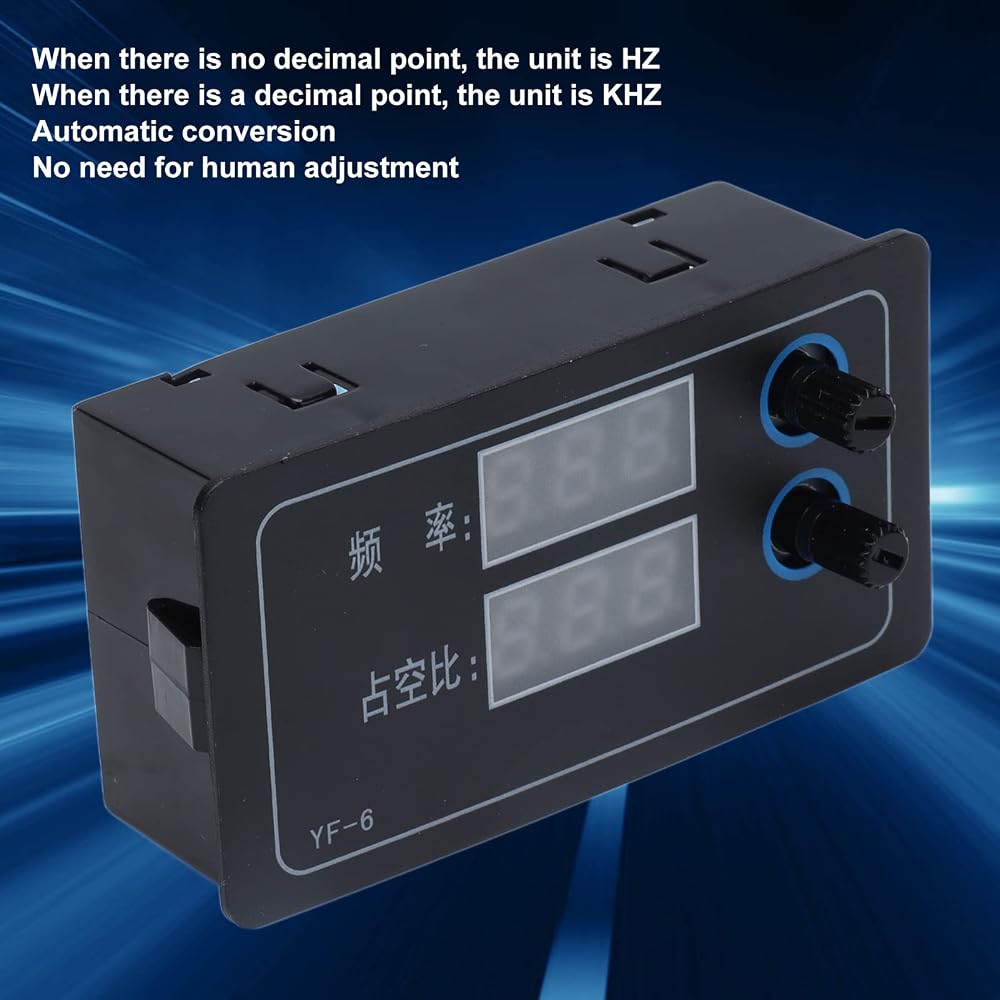

[AUTOMATIC CONVERSION] The unit automatically switches between HZ and KHZ for user convenience, no manual adjustment needed.
[SIGNAL GENERATOR] Provides PWM, squares wave, and rectangular wave signals for experimental development purposes.
[LED DIGITAL DISPLAY] Features an intuitive LED display for clear and easy-to-read readings of generated signals.
[APPLICATION FIELD] Ideal for squares wave signal generation in motor drivers and as an adjustable pulse generator for MCUs.

Spec:

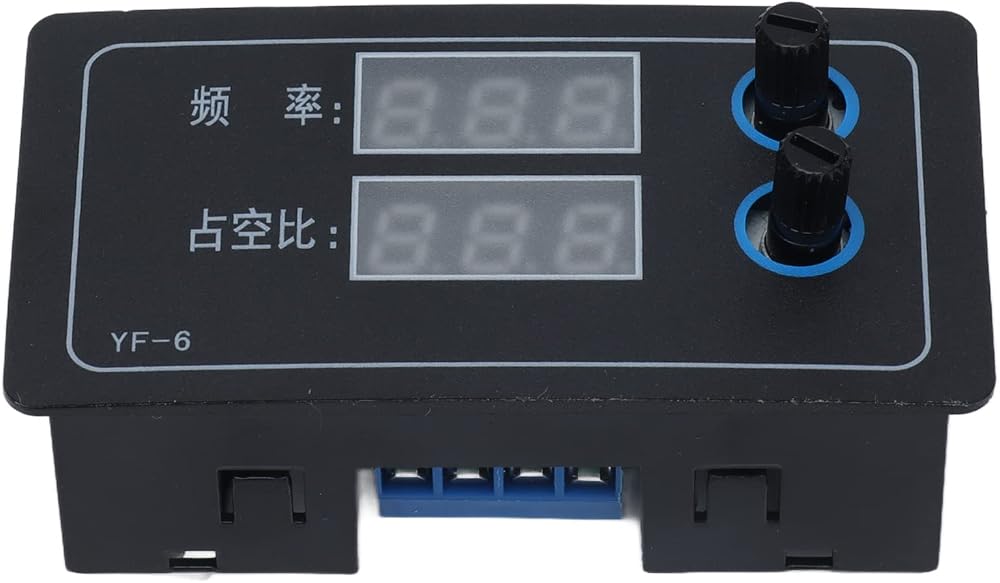

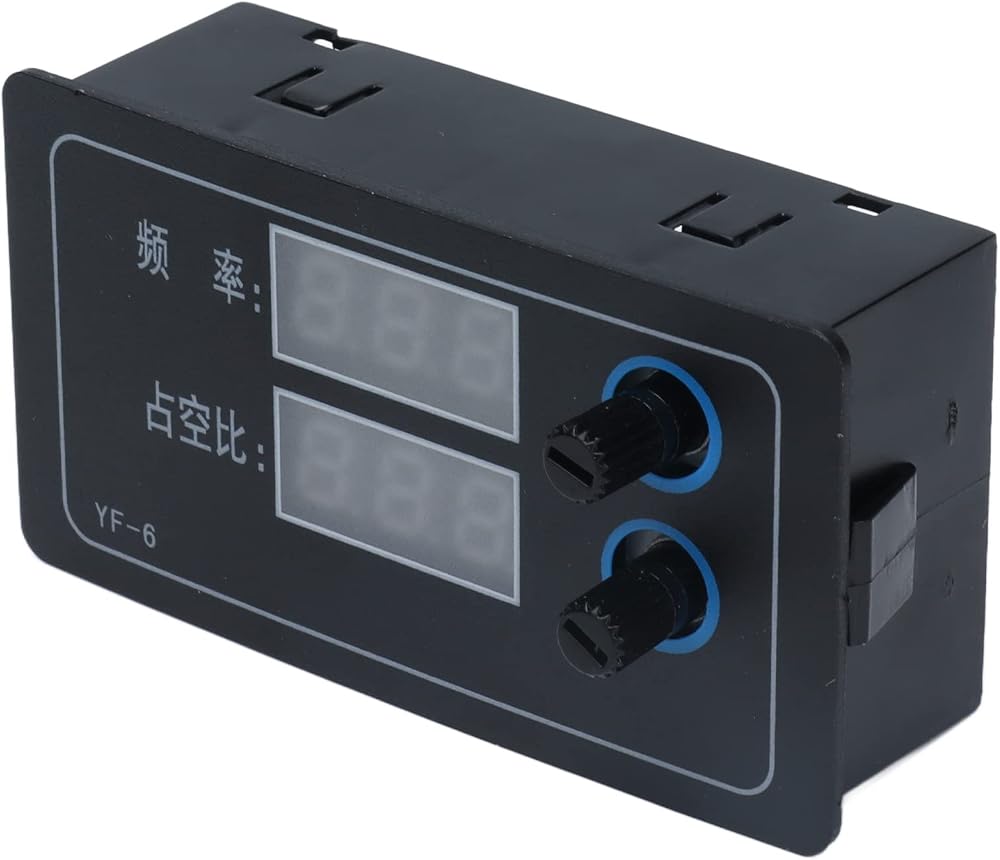

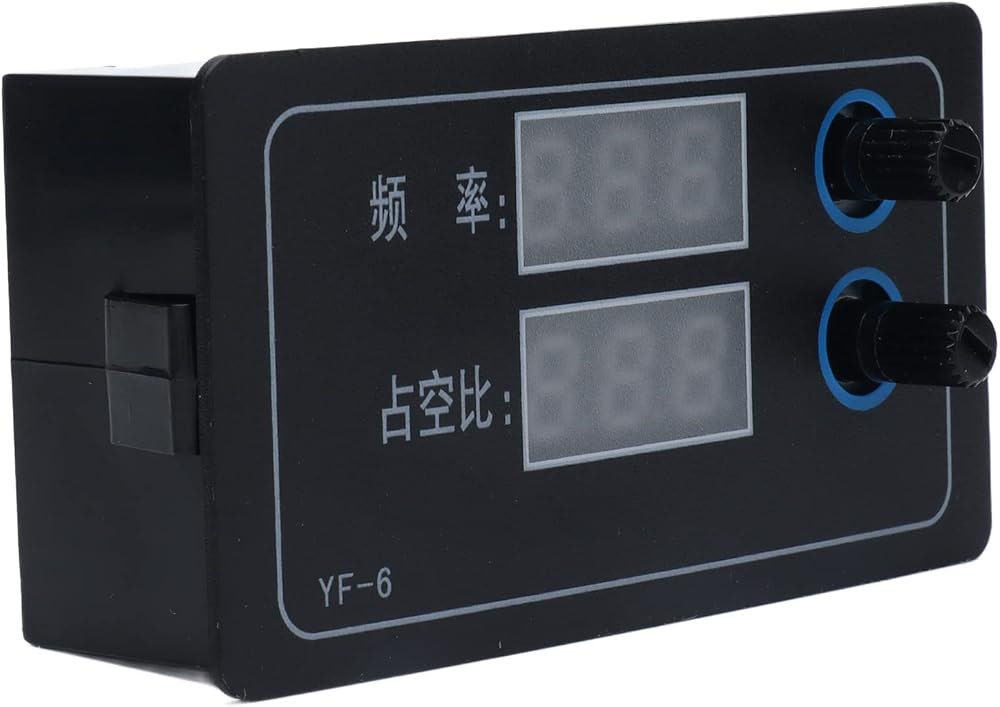

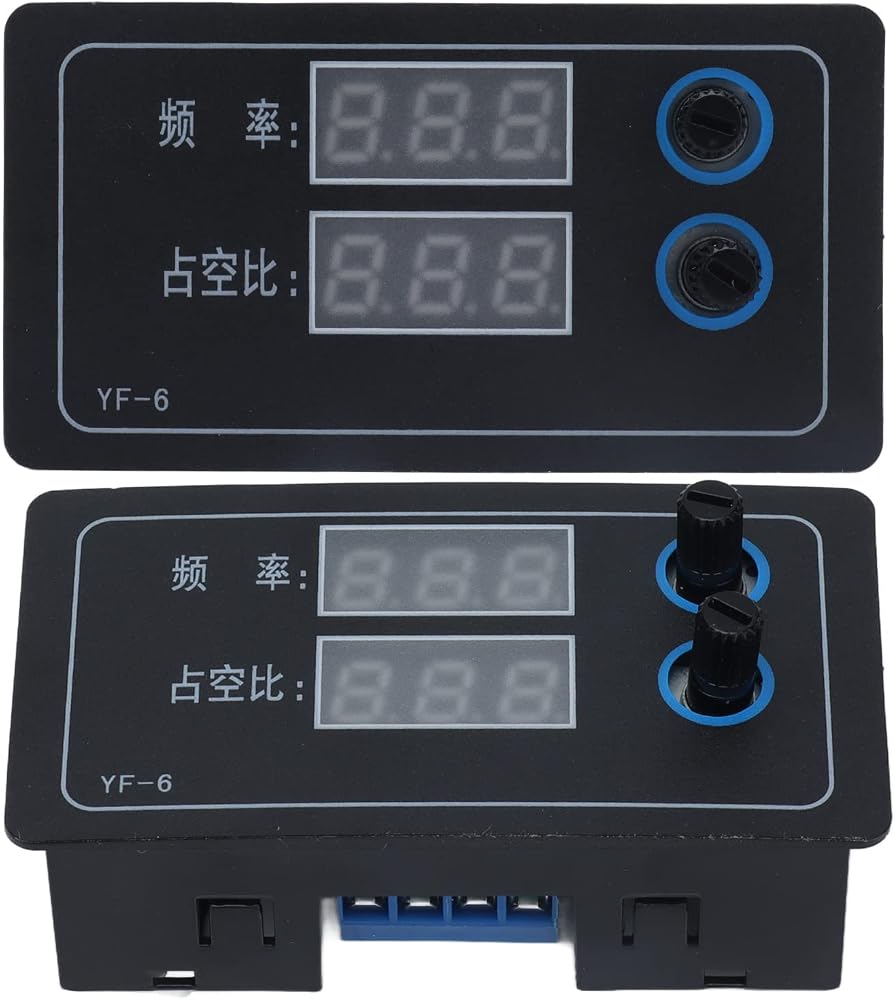

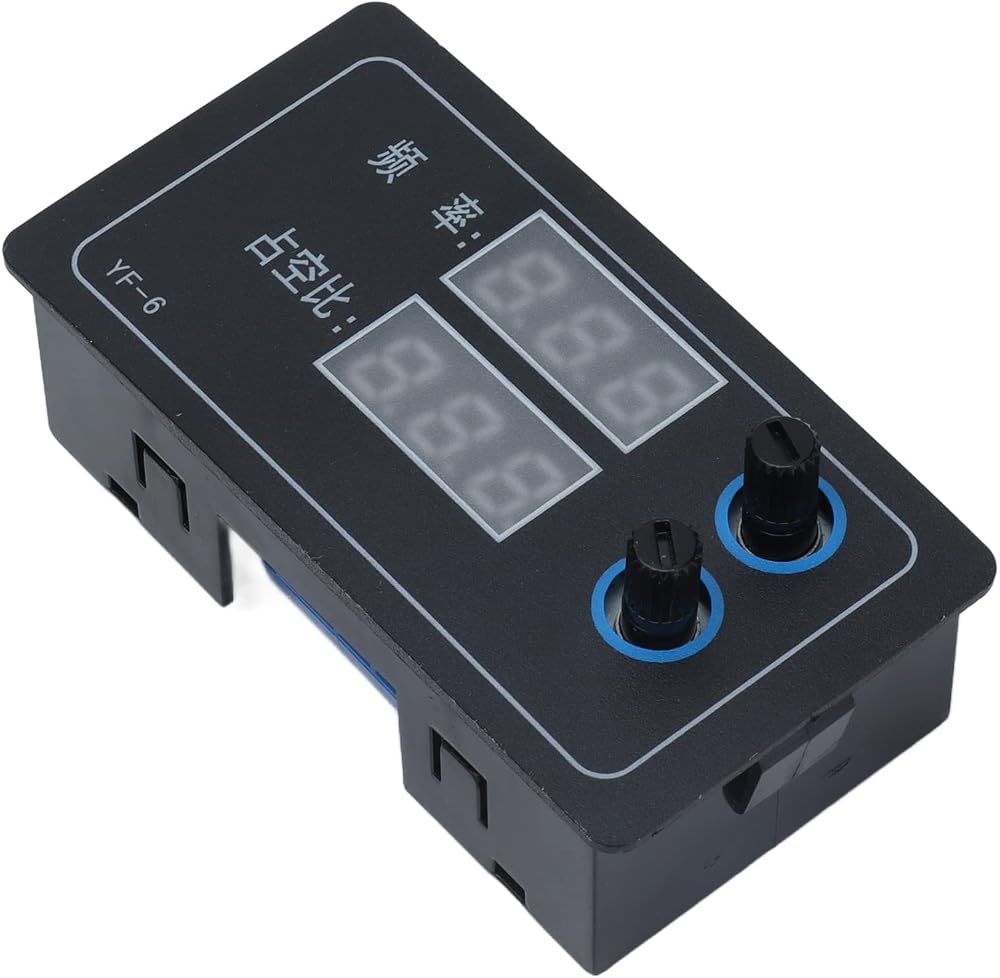

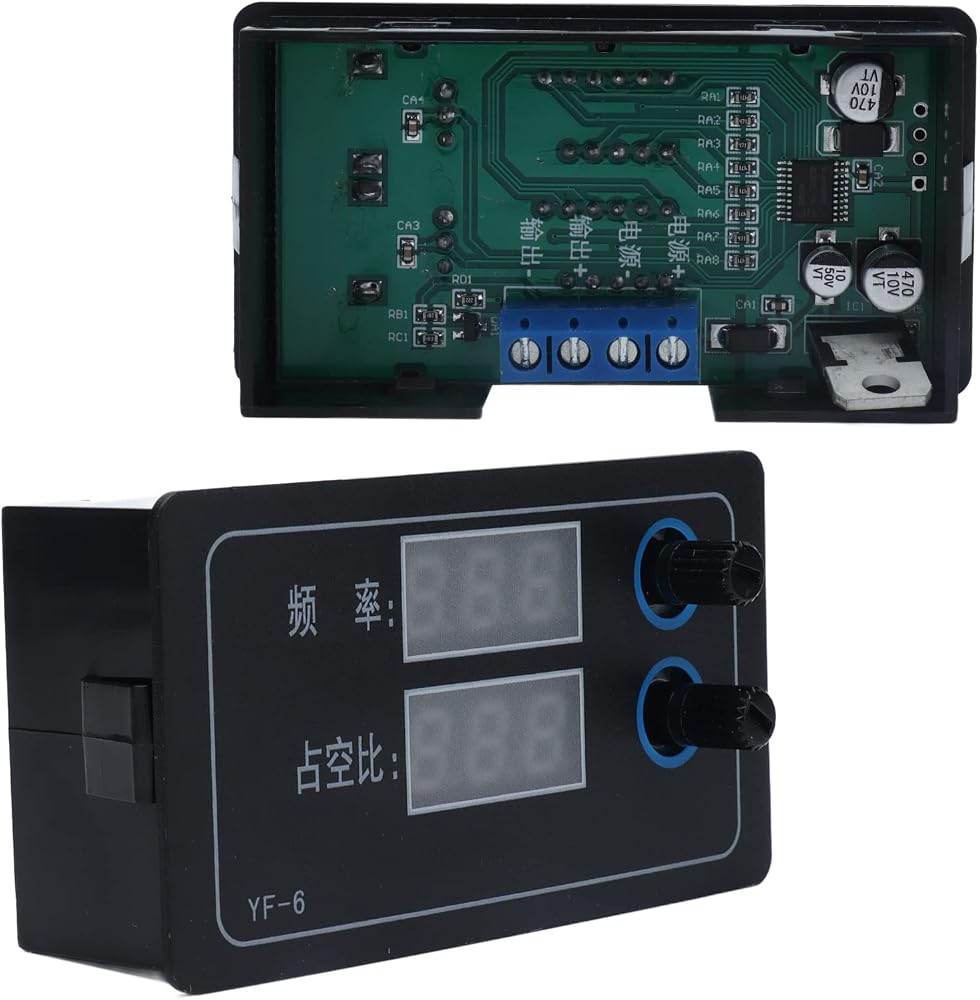

Item Type: Duty Cycle Signal Generator
Model: YF-6

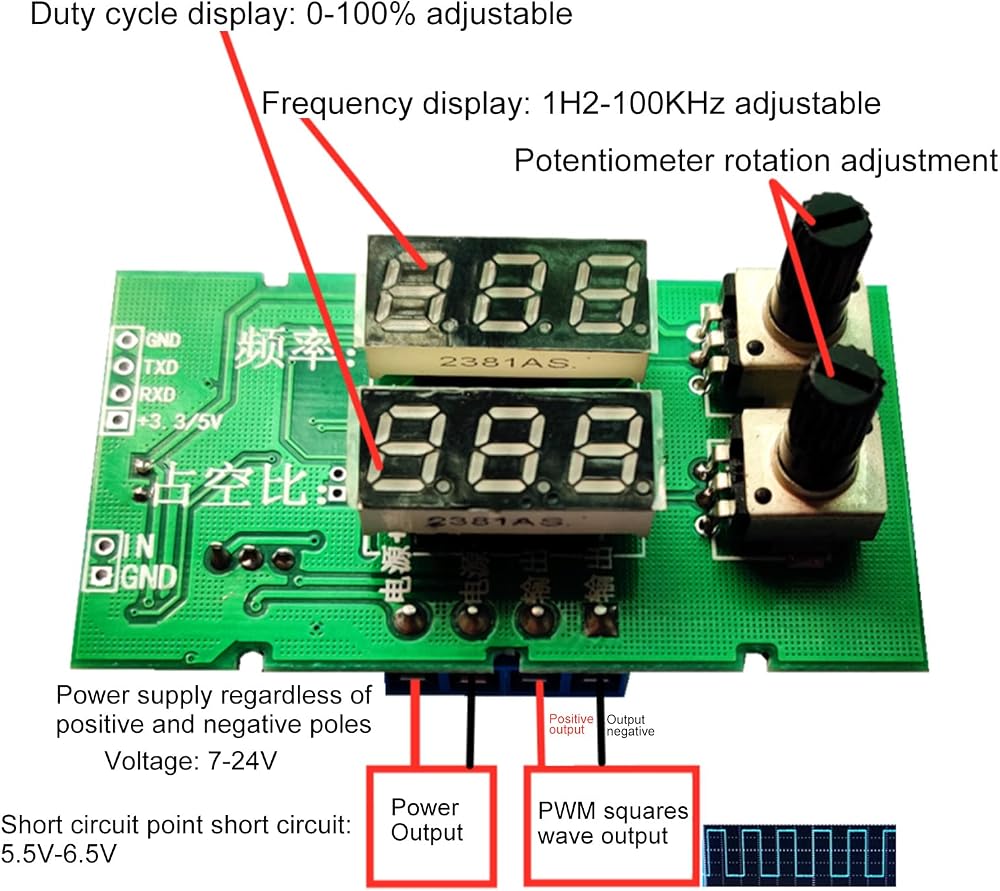

Frequency Range: 1HZ~100KHZ Adjustable, Through the Potentiometer Knob
Duty Cycle Range: 0~100% Adjustable, Adjusted by Potentiometer Knob
Power Supply: DC 7V~24V Universal
PWM Width = Input Voltage
Output PWM Drive Capability: Output is driven by transistor S8050

Package List：
1 x Drive Module
Note：
Note that the input voltage can only be DC 7‑24V, and the power supply is not divided into positive and negative poles. Please avoid working in rain and damp environments.
