1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning
Specifications:
Name: Linear guide rail + ball screw assembly
Model: HR20 + SFU1610
Guide rail width or diameter: 20mm / 16mm
Material: steel, bearing steel
Scope of application: machine tools, machining centers, automated machinery, etc.

Description:
Long service life and high precision, the sliders are all steel guard frames to prevent the beads from falling off or getting stuck, the guide rail grooves are high precision and long service life. High positioning accuracy, low friction, less slipping. Strong rigidity, wear resistance, high load-bearing capacity, sturdy and durable, high speed and quiet, with good lubricity, can meet the corresponding operating environment.

Packing list:
2pcs HR20 linear guide + any length
4pcs HGW20CC slider

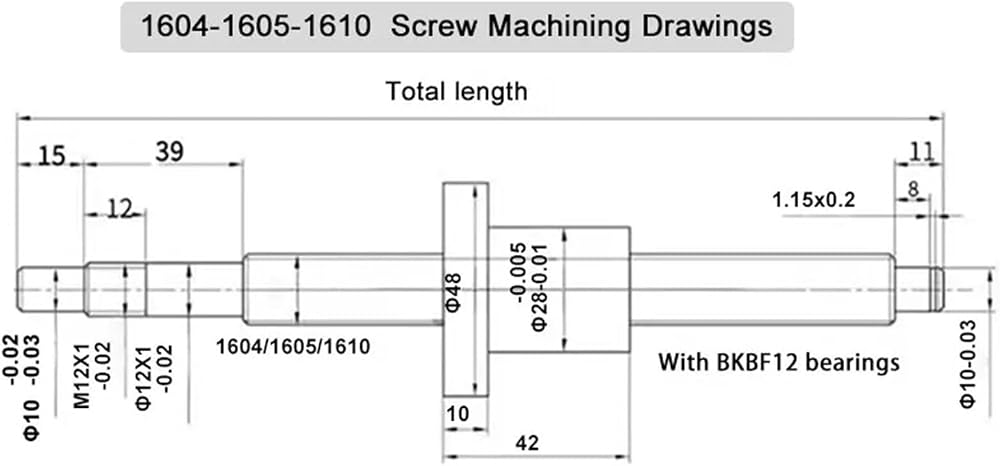

1pcs SFU1610 ball screw with ball nut and end processing + any length

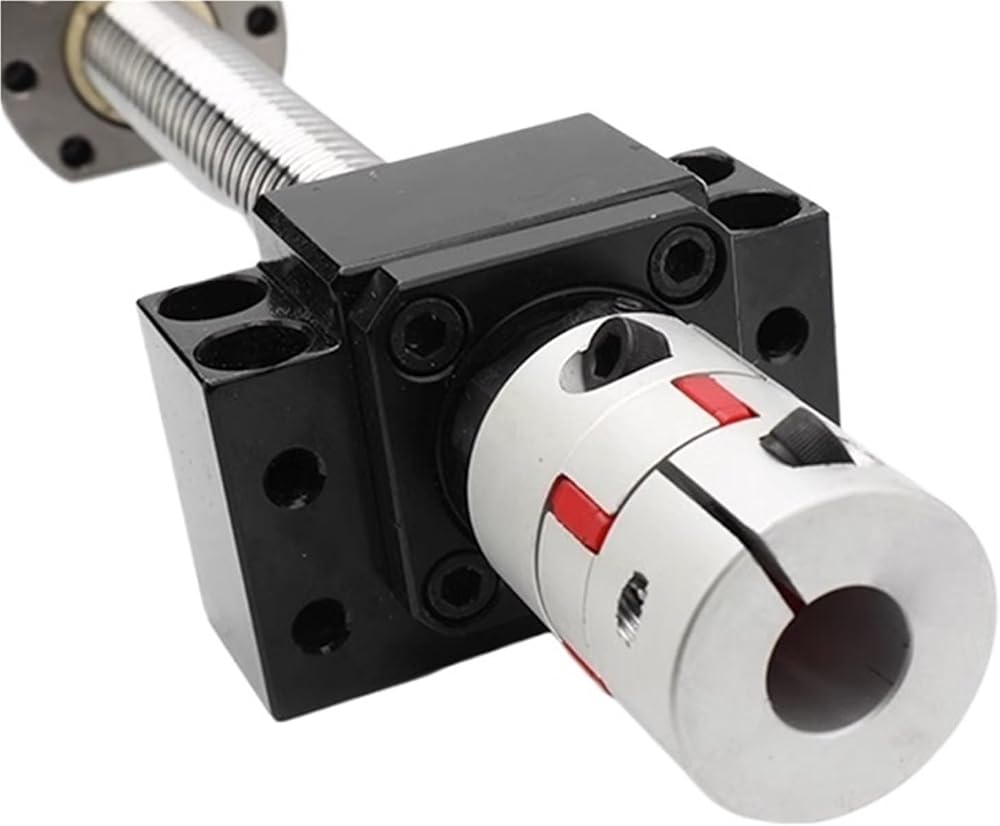

1set BKBF12 end support

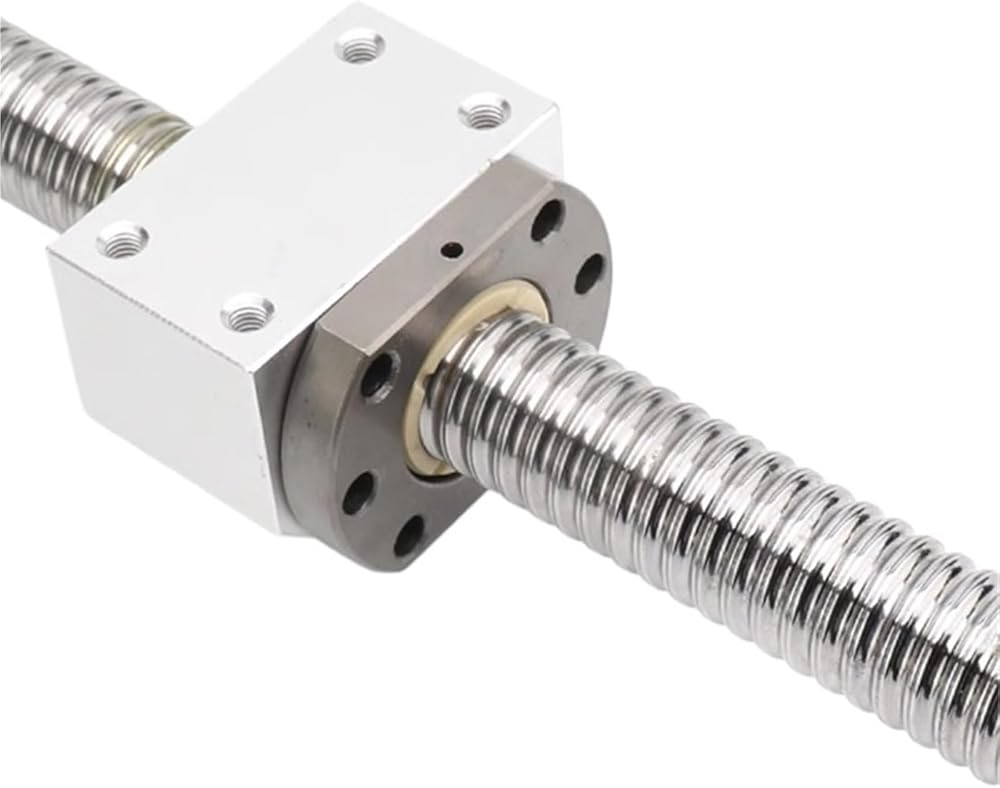

1pcs DSG16H nut housing
1pcs XB25*30-8*10mm coupling
