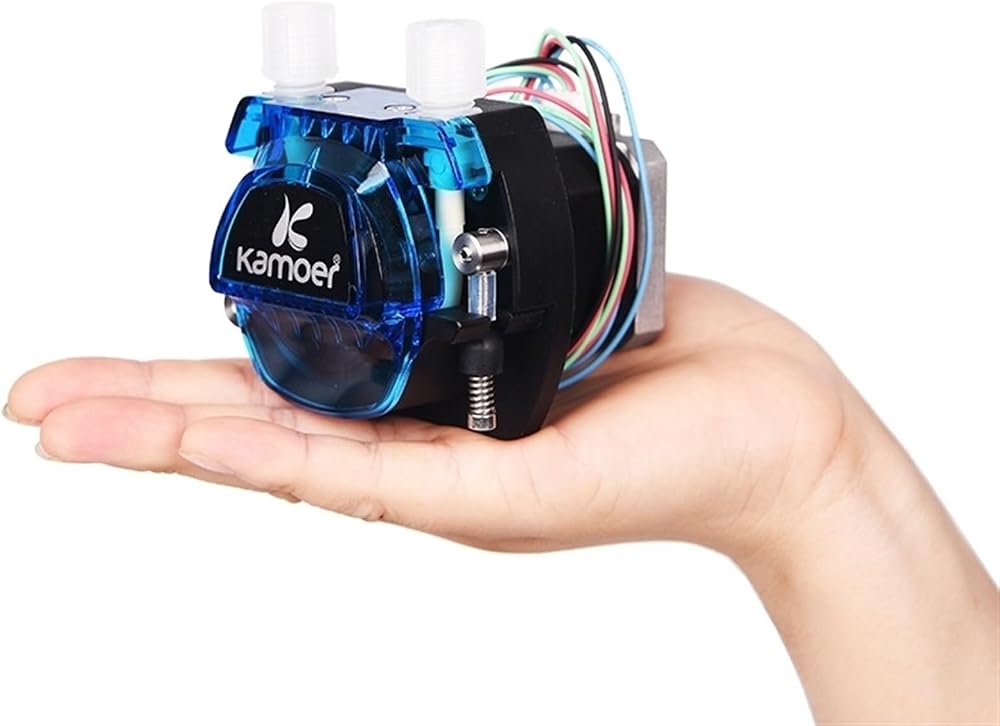

420ml/min KCM 12V/24V Stepper Motor Mini Peristaltic Water Pump
Product Features
Good looking appearance
Stepping motor, long life
Higher precision, small pulse
Simple structure, high reliability
Easy to replace the pump tube
Suitable for conveying viscous and non-viscous liquids
STEPPER MOTOR DESIGN PATENT STABLE OPERATION
THREADED JOINT INDUSTRIAL RAW MATERIALS PROTECTIVE COVER
Basic Parameters
Voltage: 12 V/24 V
Motor: Stepper Motor
Flow rate: 3 rotors: 44~420 ml/min; 6 rotors: 38~190ml/min
Power: 36 W
Temperature: 0~40
Self-Priming: > 2 m
Weight: 455 g
Feedback from our customers
Various Applications
# Medical experiment # Filling-packing # Science laboratory # Food and Beverage
Packing List
1 × Pump (KCM 12 V/24 V);
1 × Tube (BPT / Silicone)
More Details
Easy Maintenance
Imported BPT pump tube, longer life
Adjustable Number of Rotors
Left: 3 rotors; Right: 6 rotors
Tube Description
-BPT: 1000 H
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and to ultraviolet radiation, so it helps protect sensitive liquids.
Working temperature: -51~132
-Silicone: 200 H
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., Chemical resistance; Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion
(10%) Liquid.
Working temperature: -60~200
Tube Model
Different Pump Tube Specifications Flow ml/min
Material
Silicone
BPT
BPT
BPT
BPT
Code
S40
B14
B19
B16
B25
ID*OD
4.0×7.2
1.6×4.8
2.4×5.6
3.2×6.4
4.8×8.0
Flow
Rate
24V
3 rotors
310
38
90
160
420
6 rotors
160
28
60
100
165
12V
