Couplings
Model
D(mm)
L(mm)
D1-D2
(mm)
M L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
Screw fasten

(n.m)
LDG1-B-D26L26
26
26
4-12
M3
11.8
2.4
4.3
/ 2.1
LDG1-B-D32L30
32
30
5-14
M3
13.4
3.2
4.2
/ 2.1
LDG1-B-D34L33
34
33
6-16
M4
14.9
3.2
5.2
/ 4.9

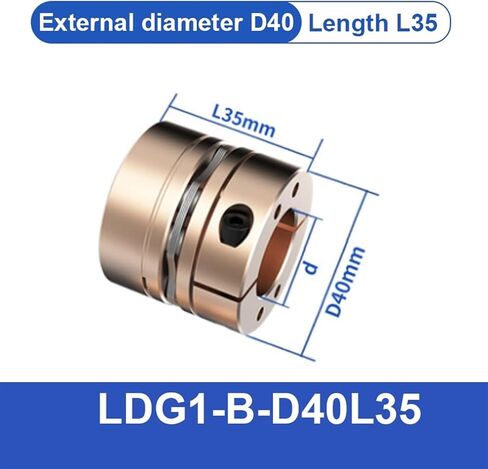

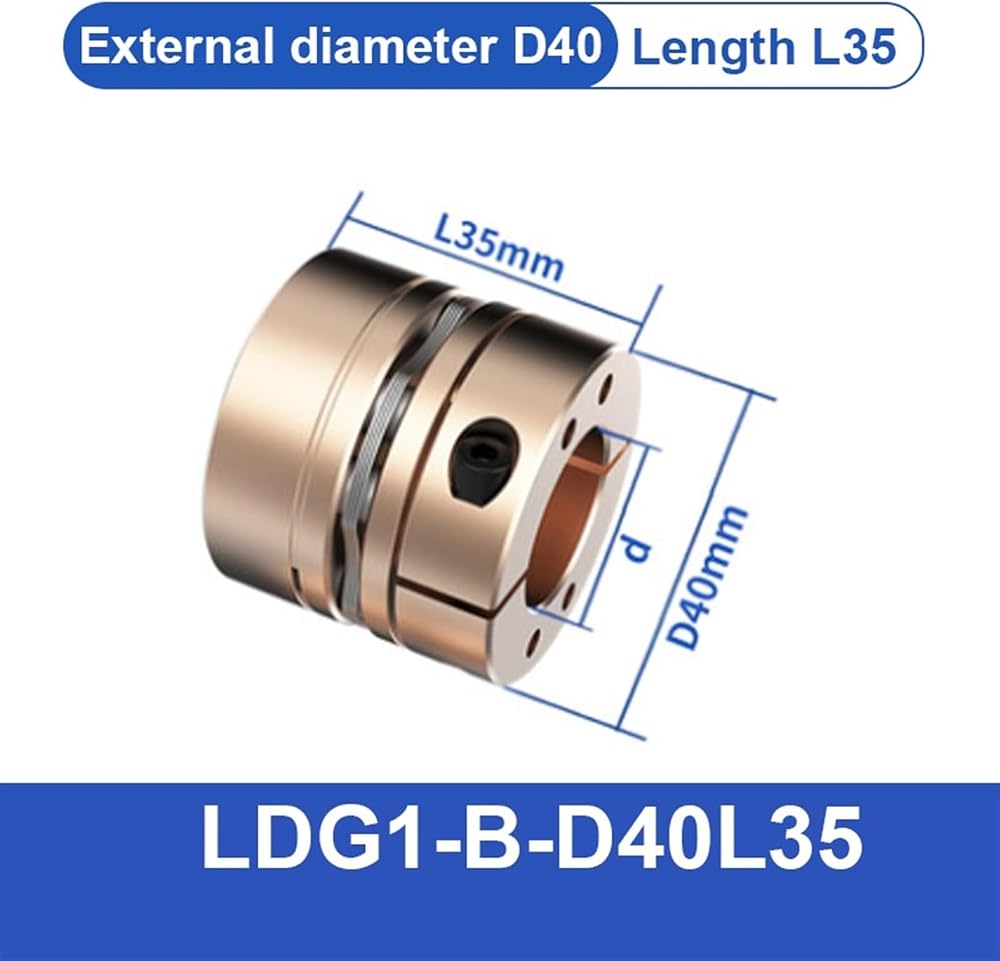

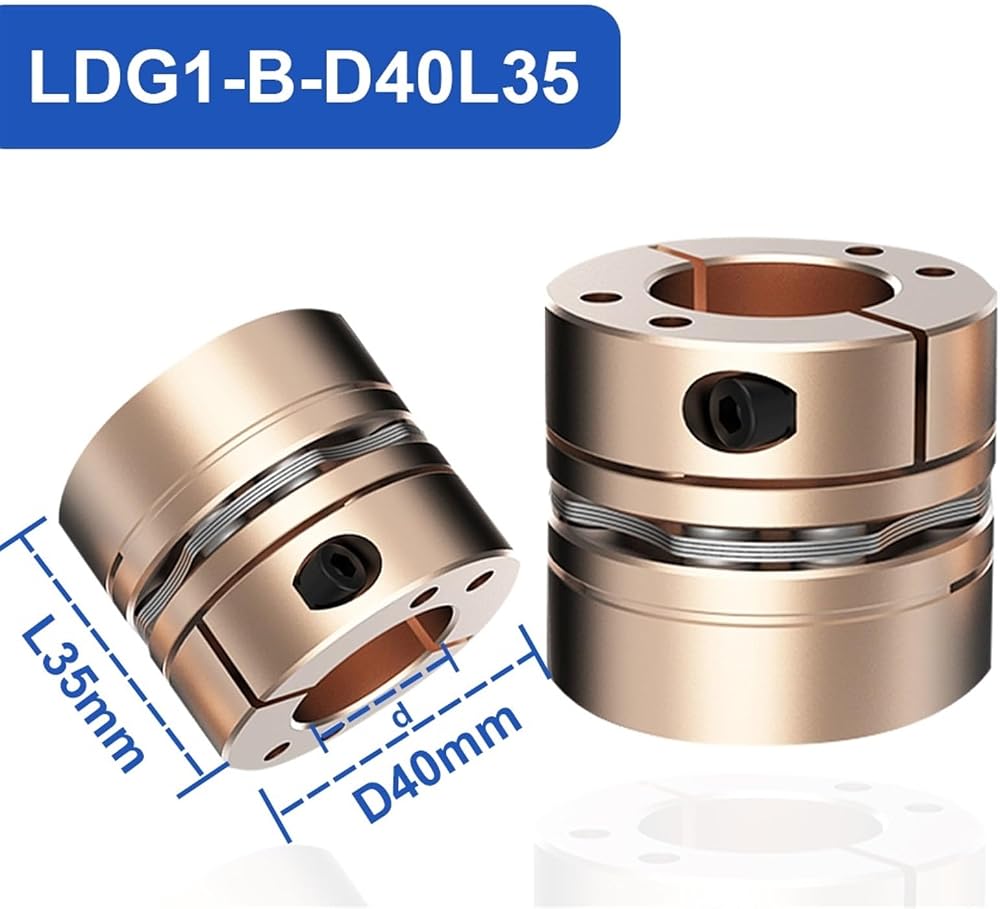

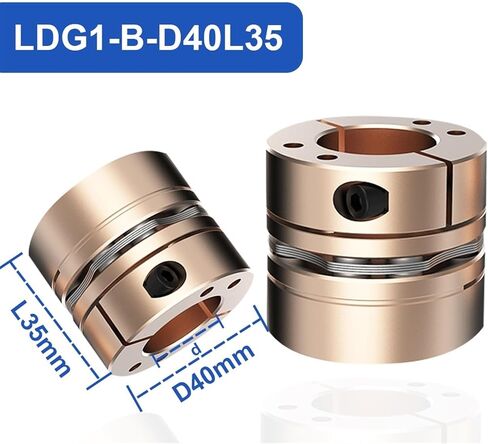

LDG1-B-D40L35
40
35
8-22
M4
15.9
3.2
5.2
/ 4.9
LDG1-B-D45L40
45
40
10-24
M5
18
4 6.4
/ 10
LDG1-B-D50L44
50
44
12-26
M5
20
4 6.15
/ 10
LDG1-B-D56L49
56
49
14-30
M6
22
5 7 / 17
LDG1-B-D65L58
65
58
16-35
M8
26.5
5 9 / 44
LDG1-B-D87L68
87
68
20-45
M10
30.75
6.5
10.75
/ 90
Model
Rated
(n.m)
Maximum
(n.m)
Maximum speed
(rpm)
Moment of inertia
(kg.m2)
Permissible parallel
misallgnment
(mm)
Permissible angular
misallgnment
(degree)
Weight
(g)
LDG1-B-D26L26
2.1
3.5
10000
3*10-6
0.1
1 47
LDG1-B-D32L30
3.6
6 10000
9*10-5
0.1
1 75
LDG1-B-D34L33
9 15
10000
3*10-5
0.1
1 91
LDG1-B-D40L35
13.2
22
10000
3.8*10-5
0.1
1 129
LDG1-B-D45L40
15
25
10000
3*10-5
0.1
1 182
LDG1-B-D50L44
27
45
10000
5.8*10-5
0.1
1 243
LDG1-B-D56L49
28.8
48
8000
1.4*10-4
0.1
1 336
LDG1-B-D65L58
46.6
78
6000
5.7*10-4
0.1
1 529
LDG1-B-D87L68
177
295
5000
8.7*10-3
0.1
1 1101
