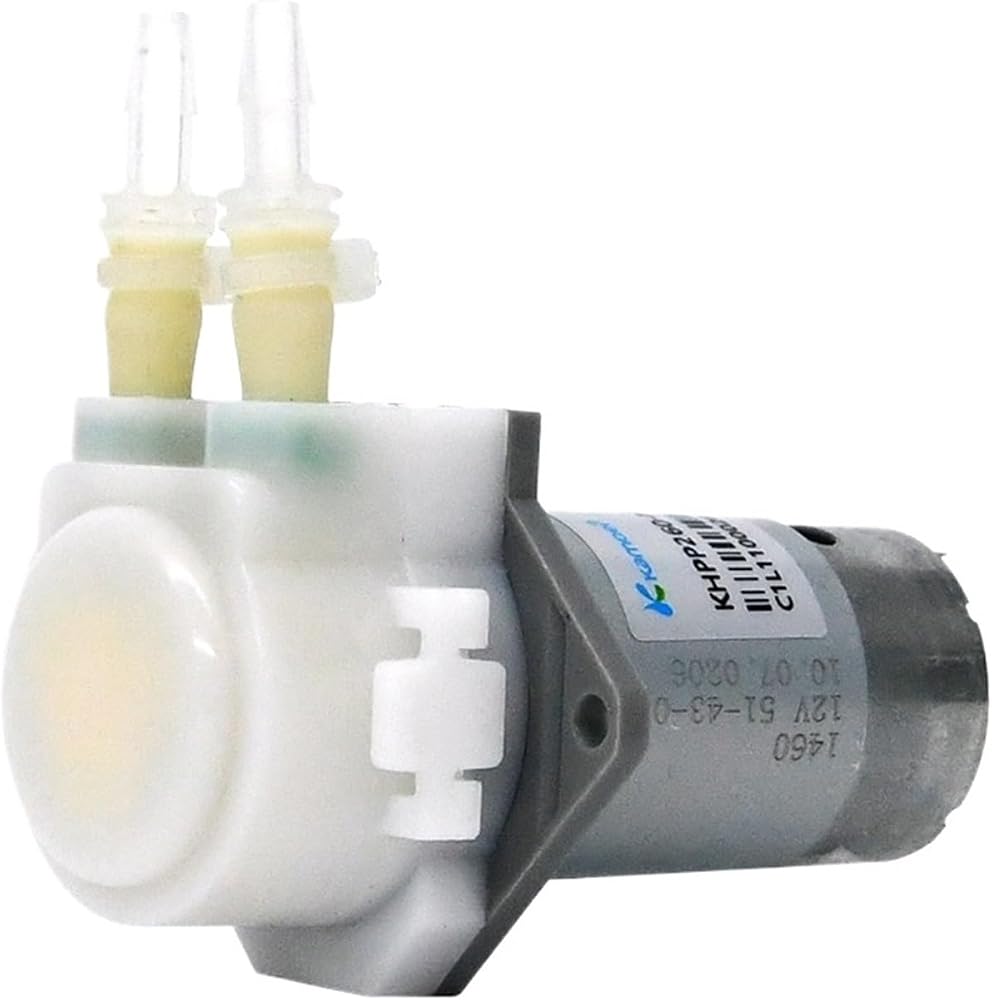

Khpp260 / 50 dosing pump
Peristaltic pump (liquid transfer pump with gear)
Reducer
high stability
Cost effective
Basic parameters
KHPP260
Voltage: 12V, 0.6A; 24V,0.3a
Motor: brush motor
Life: 500 hours ( laboratory data)
Prex pipe: p22-4 * 6mm (inner diameter * outer diameter) = 240ml / min
Pipe life: 500h
KHPP50
Motor: brush motor
Life: 800H ( laboratory data)
Prex pipe: B-2 * 4mm (inner diameter * outer diameter) = 70ml / min
Pipe life: 1000h
Vascular application
Commercial sweeper
Protein purification
Online water quality monitoring
Beverage machine
Stable and powerful
260 ml/min

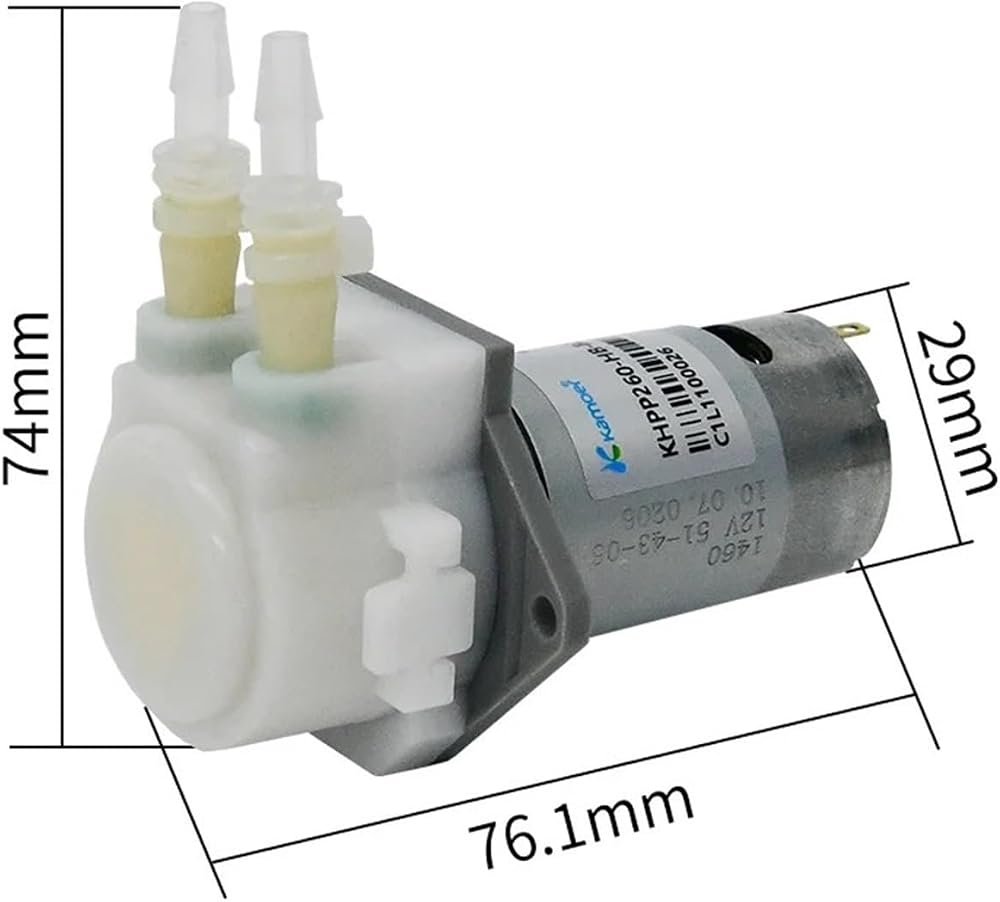

Length: only 76.1mm

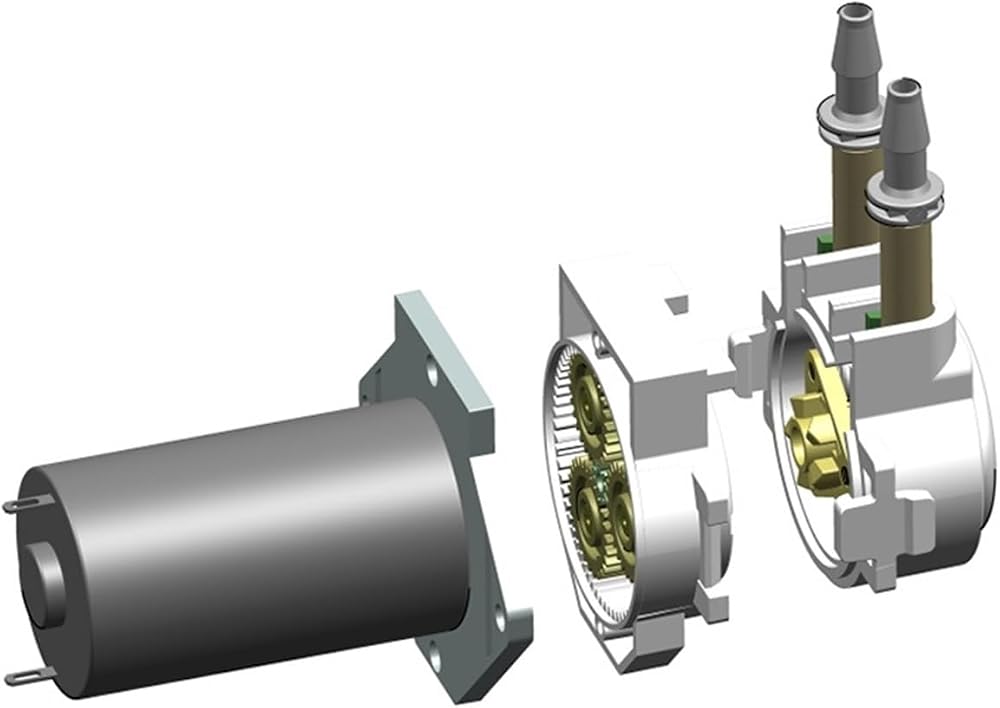

Reducer
Accurate throughput
Not easy to slide
high stability

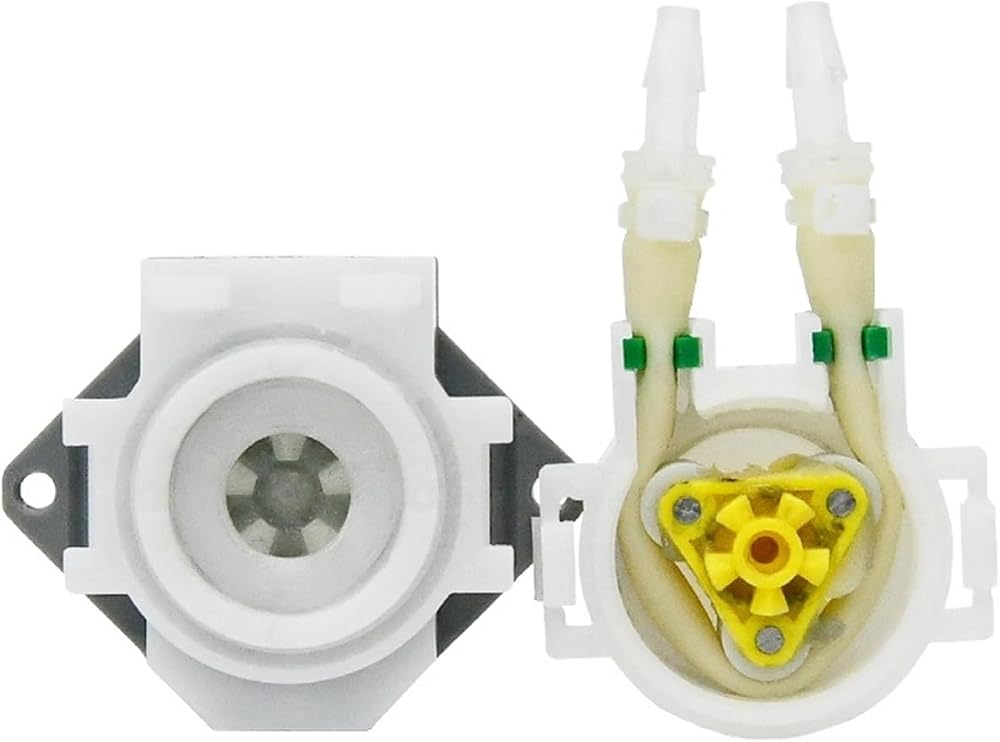

Snap in structure
The liquid only contacts the pump pipe.
high power motor
Red is "+"
Intermittent operation is not supported

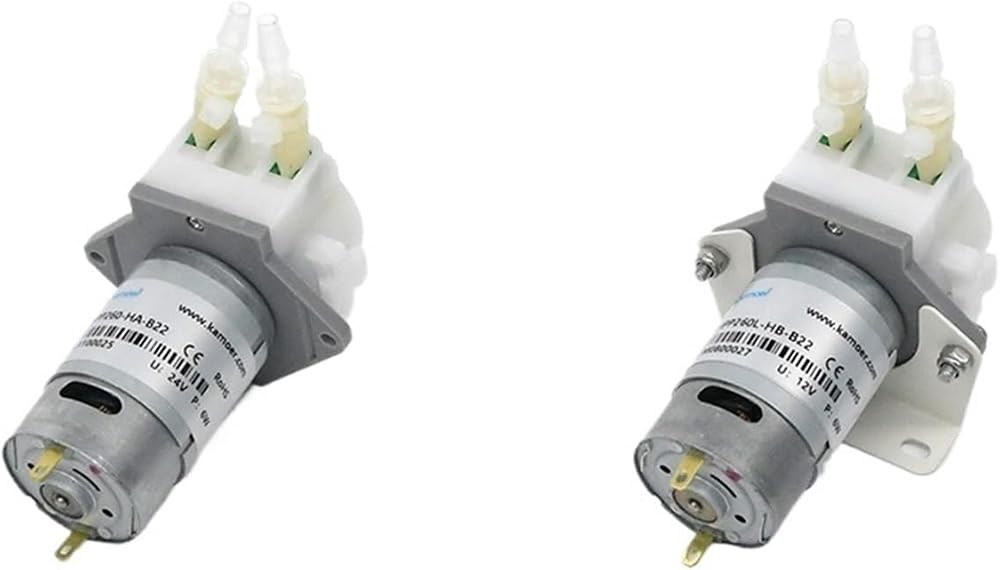

(2) installation type
L plate on the left
The right side is the right side plate

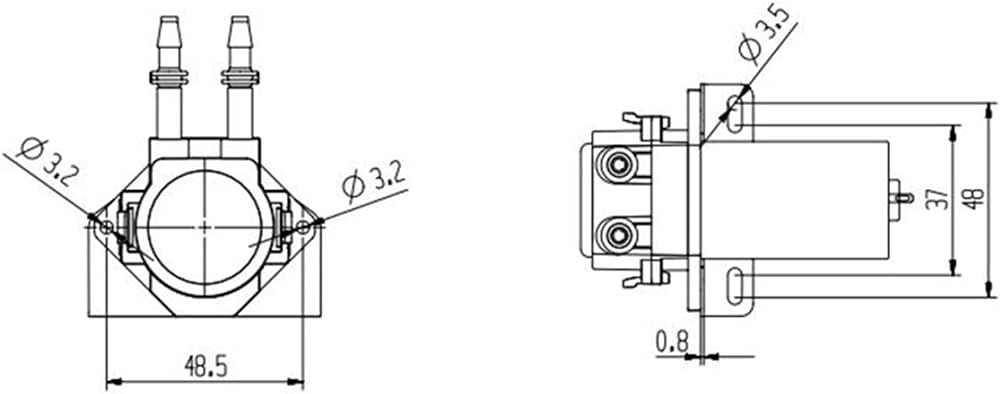

Dimensions
Straight plate
Dimensions
L plate
Prex silicone hose
Acid and alkaline resistance
Anti-Corrosion
