Current Sensors
Introduction:

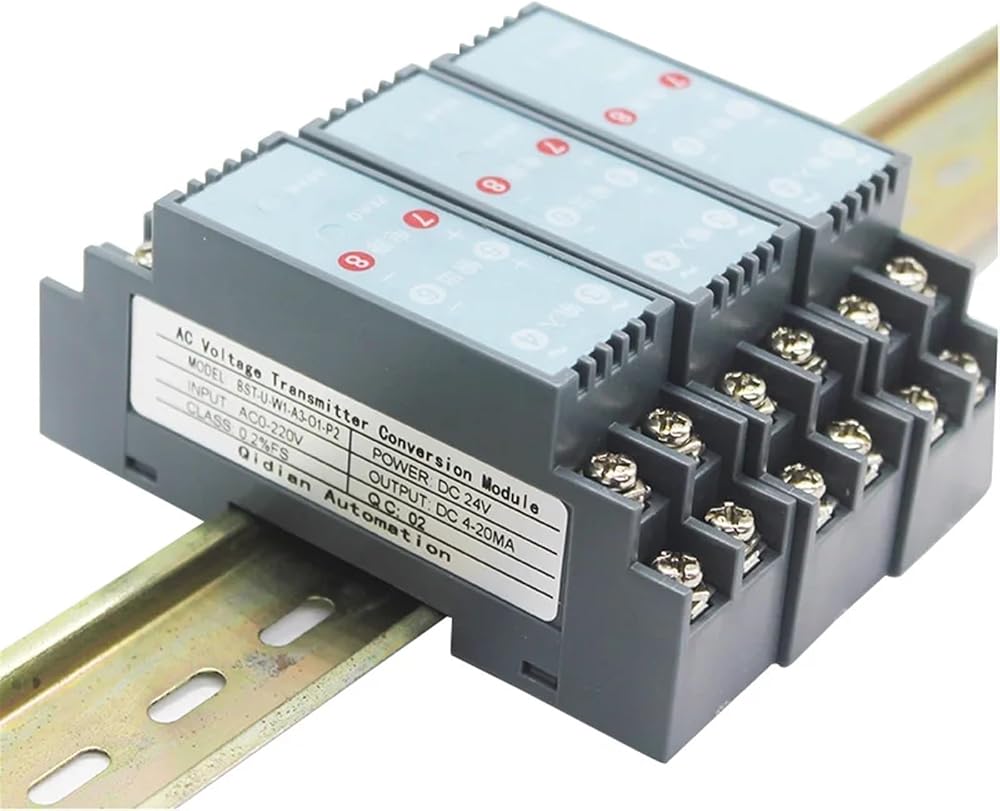

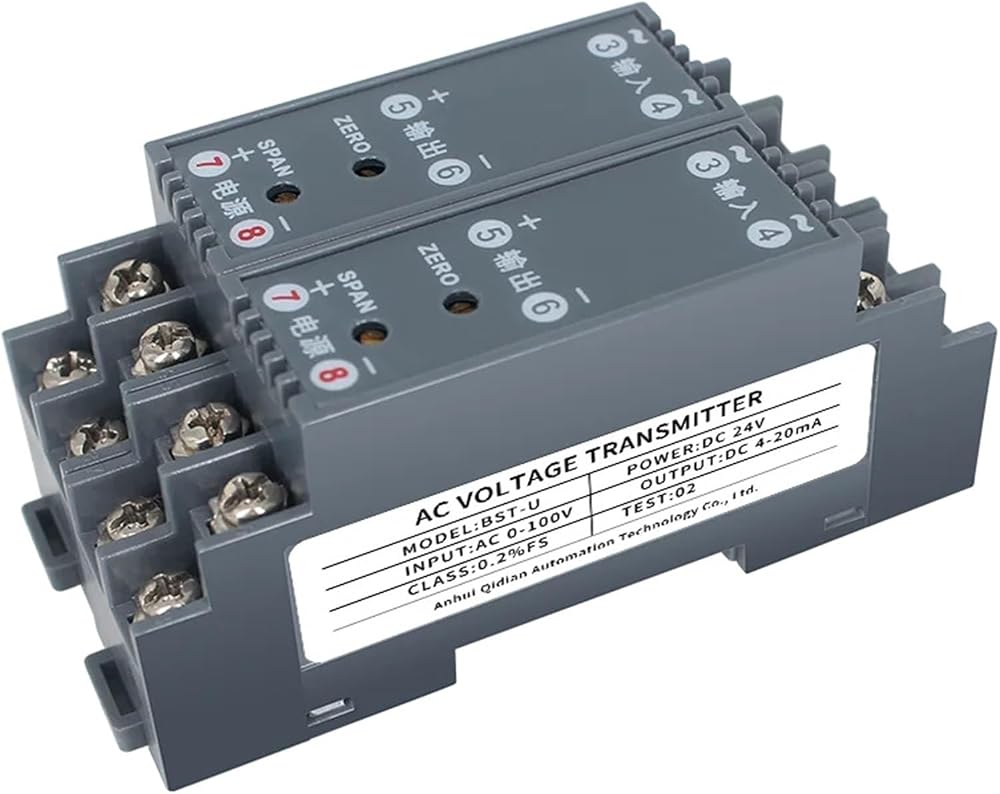

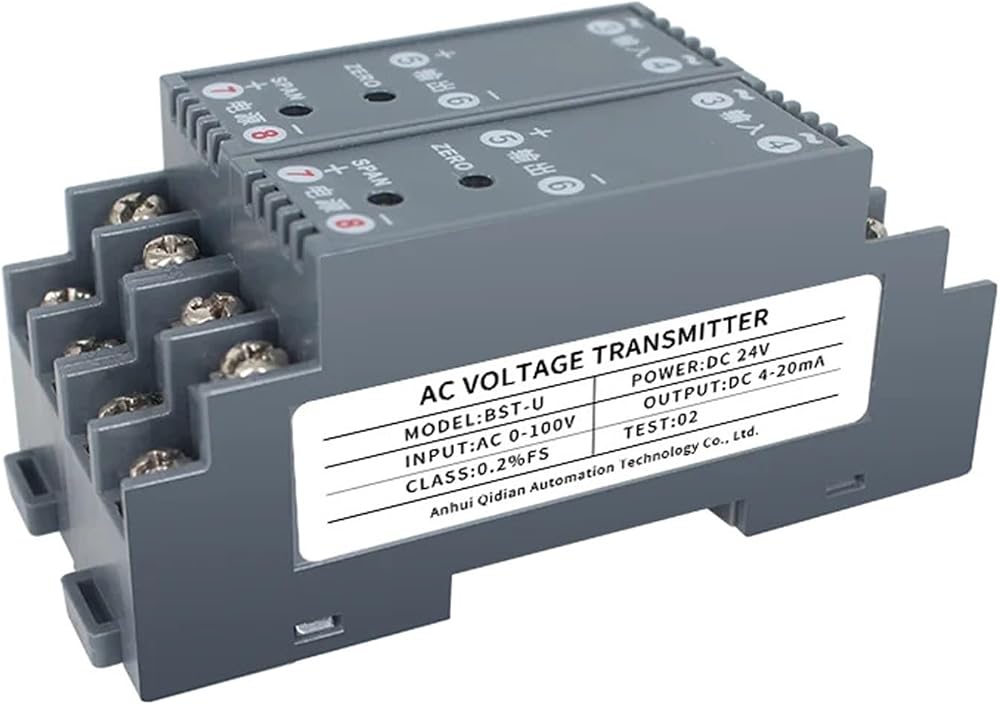

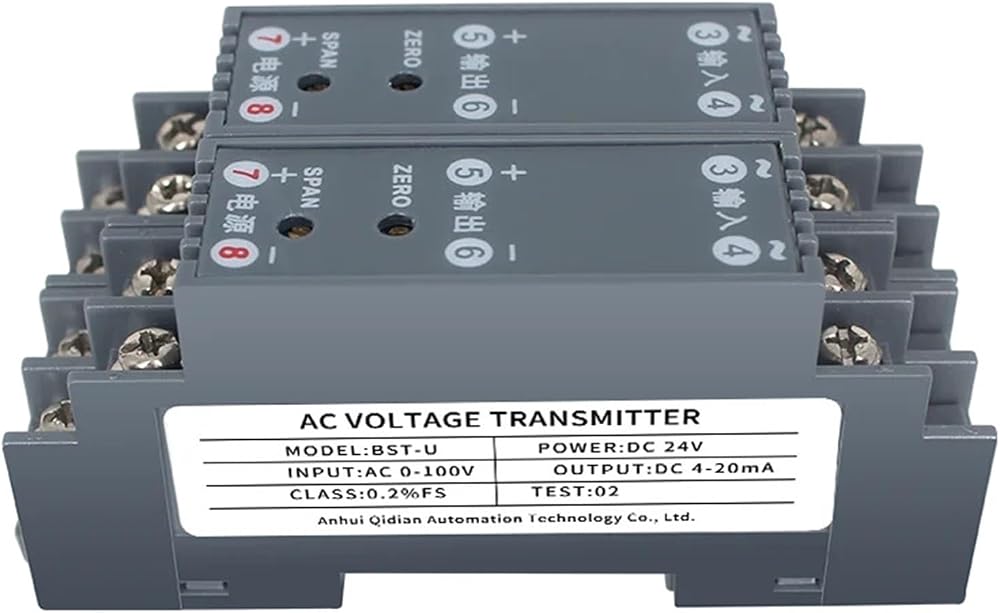

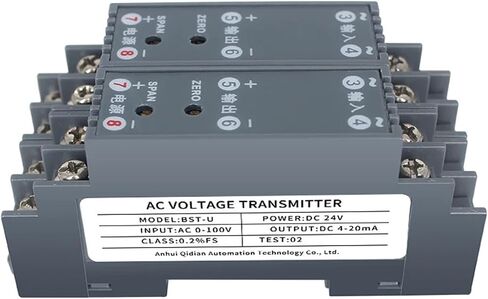

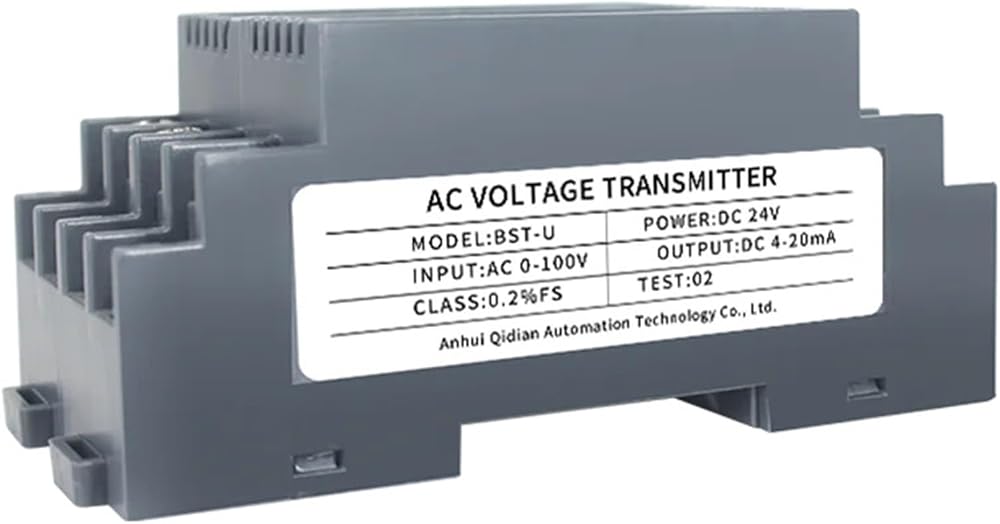

. BST-U AC voltage transducer, it converts AC voltage signals from AC into standard process signals.
. Thisvoltage transduceris used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.
.The input,output and power supply are isolated from each other.
.Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.
FEATURES:
High Integration
Small Volume, easy installation
High accuracy, good linearity
Standard 35mm DIN Rail Installtion or screw
Strong anti-interference
Product Display
==========
Hign-concerned Chemical : None
Dimensions : 108*47*25.4
Operating Temperature : -20~+60
Supply Voltage : DC24V,DC12V
Accuracy Class : 0.2%FS
Model Number : BST-U
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Channel : 1 In 1 Out
Input Signal : AC 0-1000V
Output Signal : 4-20mA,0-20mA,0-10V ,0-5V,1-5V
Feature1 : AC Voltage Transducer Sensor
Feature2 : Voltage Signal Converter Sensor
Feature3 : AC Transducer Voltage Sensor
Feature4 : AC Voltage Transmitter
Feature5 : AC Voltage Converter Sensor
