مميزات خاصة

High-efficiency transmission: all through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
Compact structure: space-saving design reduces the size of the reducer; suitable for narrow installation environments
Flexible transmission ratios: wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
Stable operation and low noise: low continuous vibration; reduced impact; low noise
High load and long service life: long service life; reduce maintenance cost

وصف

Input Speed : Max speed 3000rpm
Output Torque : Max load 100N.m
Model Number : PXK80-stage3
Gearing Arrangement : Planetary
Backlash : no more than 35arcmin

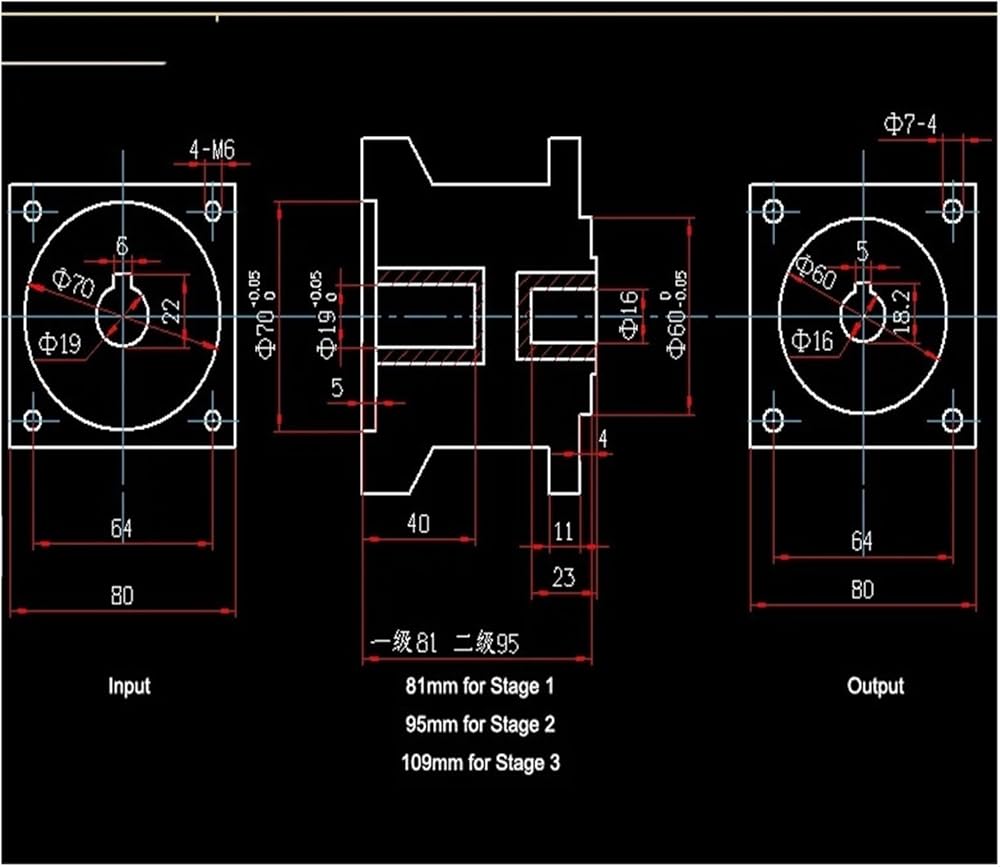

Gearbox Length : 109mm
