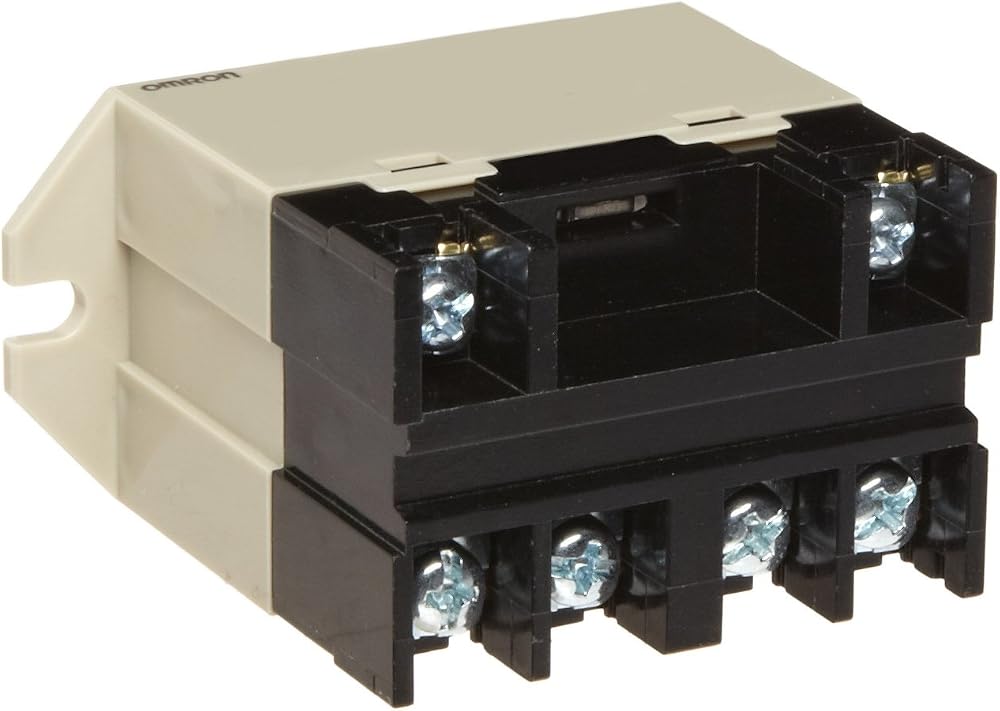

This Omron G7L-2A-BUBJ-CB DC12 general purpose relay has a test button, Class B rated insulation material, screw terminal connections, upper bracket mounting, and is suitable for use in high-capacity voltage applications. This relay has double-pole, single-throw (DPST), normally open (NO) contacts, a load current rating of 158 mA, and a load voltage rating of 12 VDC. This relay has a test button for checking the status of operation and Underwriters Laboratories (UL) Class B rated insulation material for flame resistance. This general purpose relay is designed to mount to an upper bracket in an equipment rack and is suitable for high-capacity voltage applications such as fluid pump controls in the water and chemical processing industries.
SpecificationsContact formDPST-NOLoad current rating158 mALoad voltage rating12 VDCDielectric strength4,000 VACOperating temperature-20 to +85 degrees CEnclosure dimensions*49 x 34.5 x 52.5 mm (H x W x D)Standards metUL (Underwriters Laboratories)
CSA (Canadian Standards Association)
RoHS (Restriction of Hazardous Substances)
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Relay switches (also called an electrical relay or an electrical relay switch) use a small amount of power to control a larger source of power connected to electrical devices such as car motors, computers, and lighting installations. A basic relay switch has a control circuit with an electromagnetic coil and a load circuit with contacts and a lever. When current flows into the relay switch, it moves through the coil and a magnetic field is created, which causes the lever in the load circuit to move between contacts, either turning the device on or off. In a normally open (NO) relay switch, when power is supplied to the relay, the load circuit is closed and the power source connected to the relay is turned on. In a normally closed (NC) relay switch, when power is supplied to the relay, the load circuit is open and the power source connected to the relay is turned off. In other types of relay switches, non-moving parts such as transistors or semiconductors can be used as the control circuit to operate the switching mechanism. Relay switches can be controlled with an external switch, such as a light switch, or they can be connected to an automatically switched power source, such as a car ignition. One relay can operate multiple switches, and multiple relays can be operated with a single switch, with each relay operating independently from the other relays in the system.
