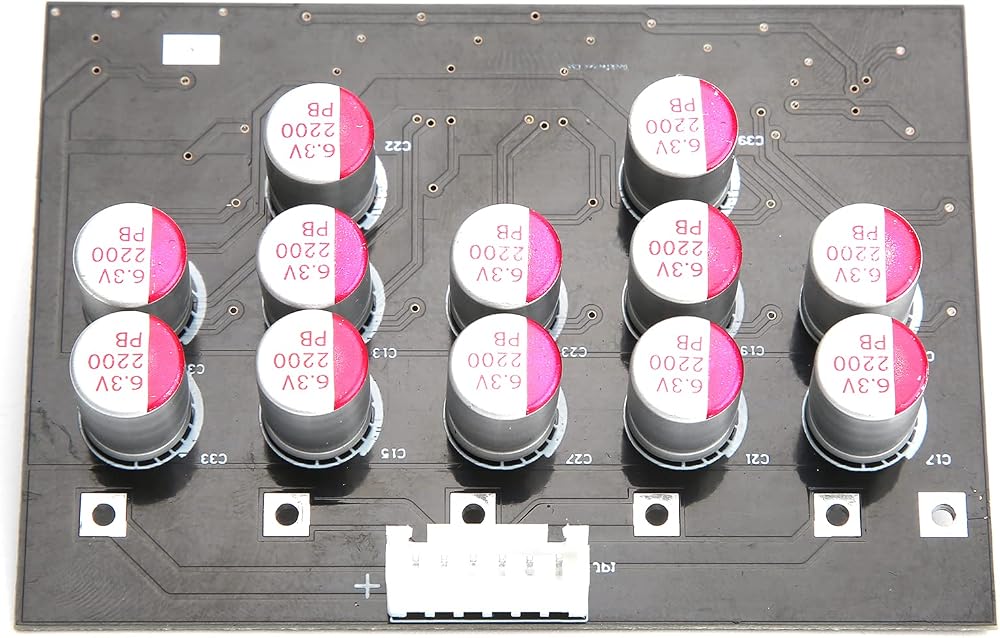

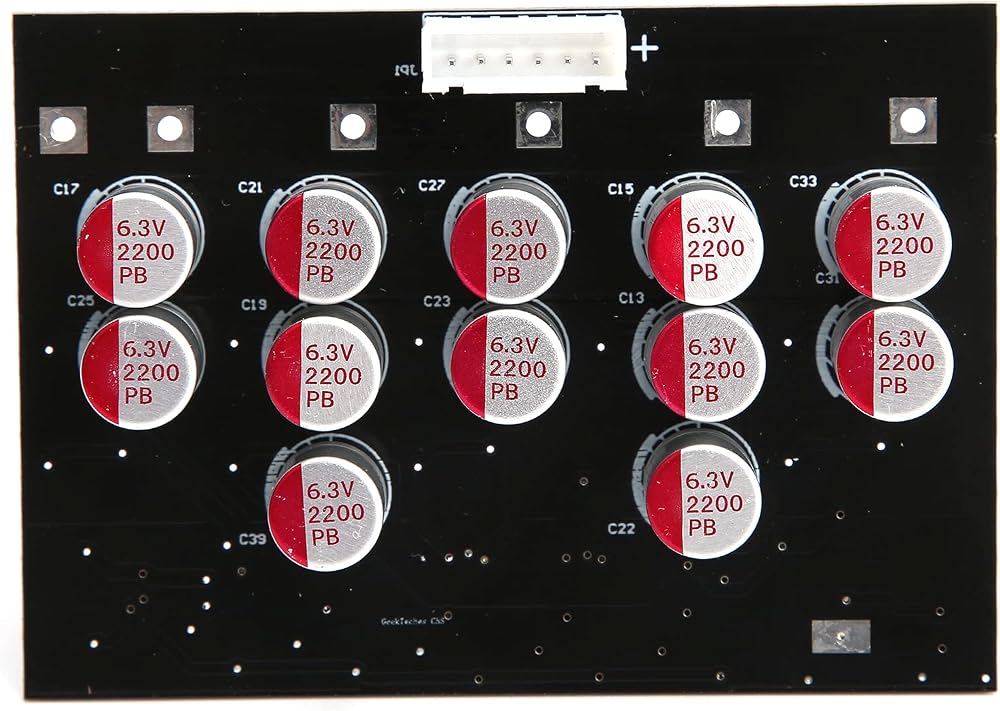

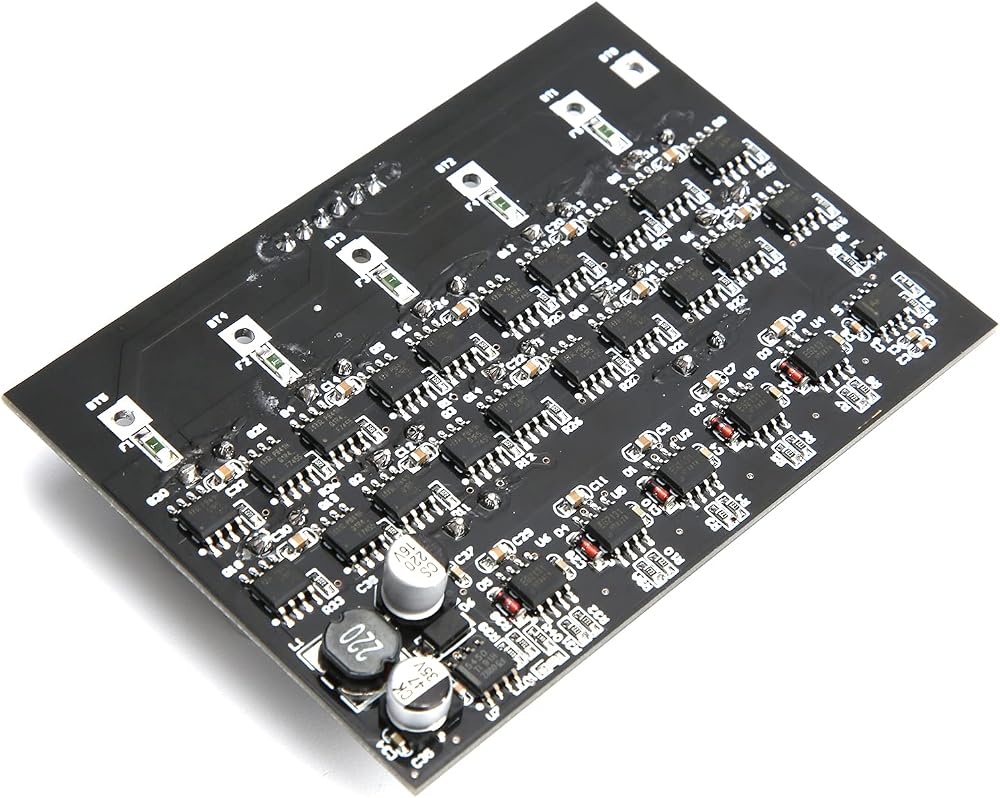

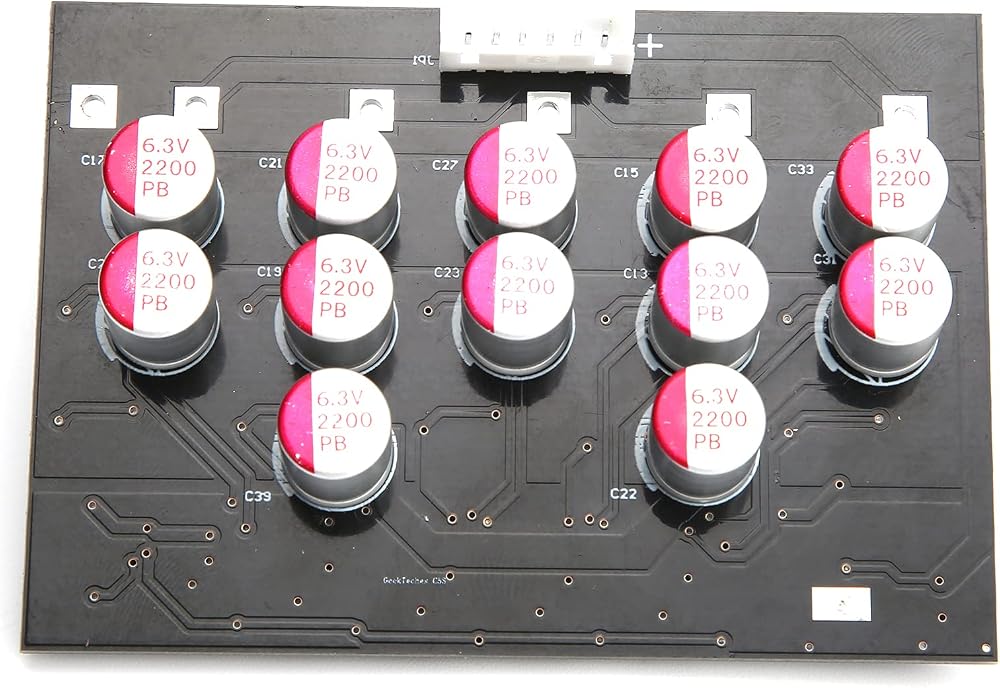

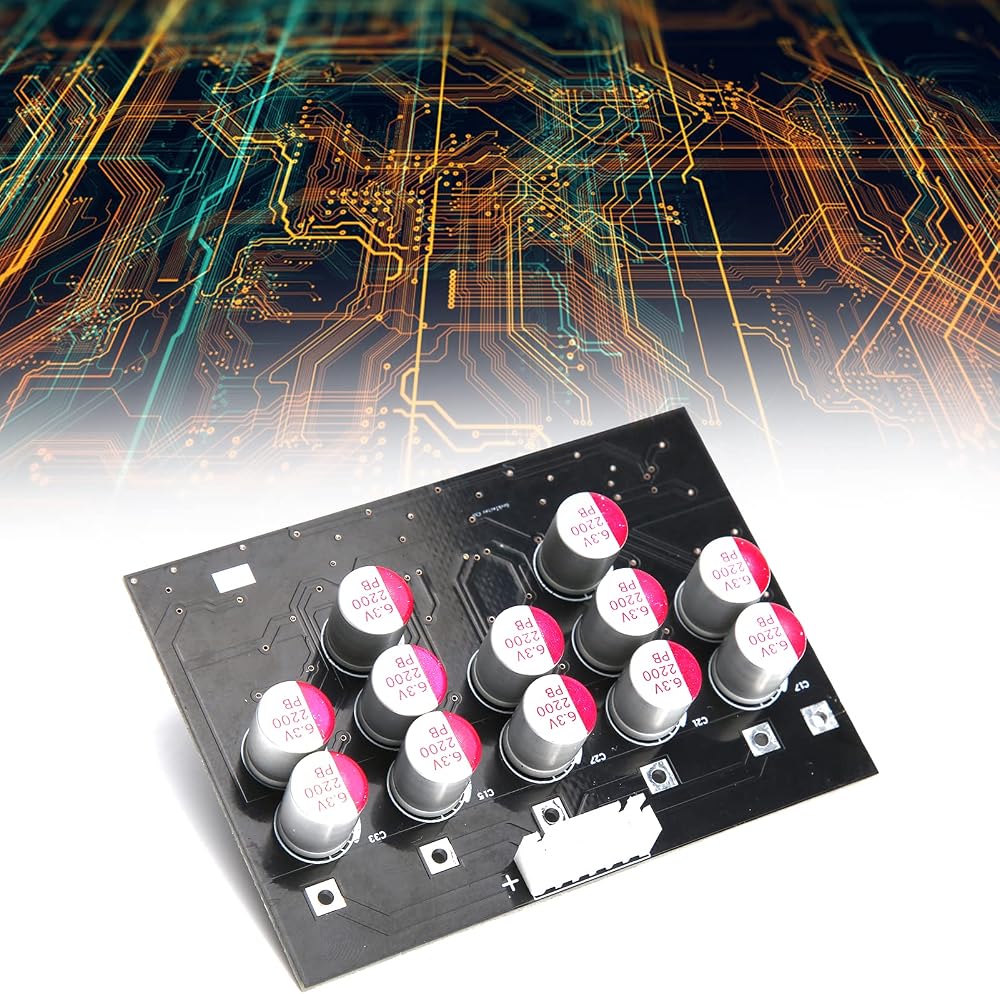

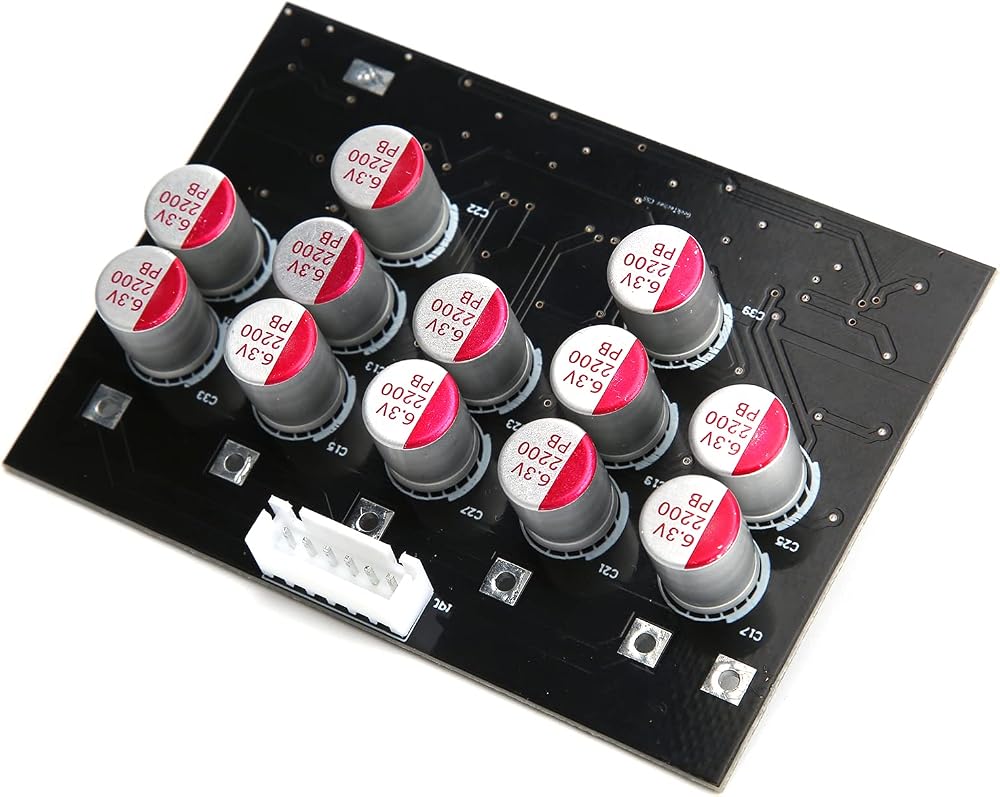

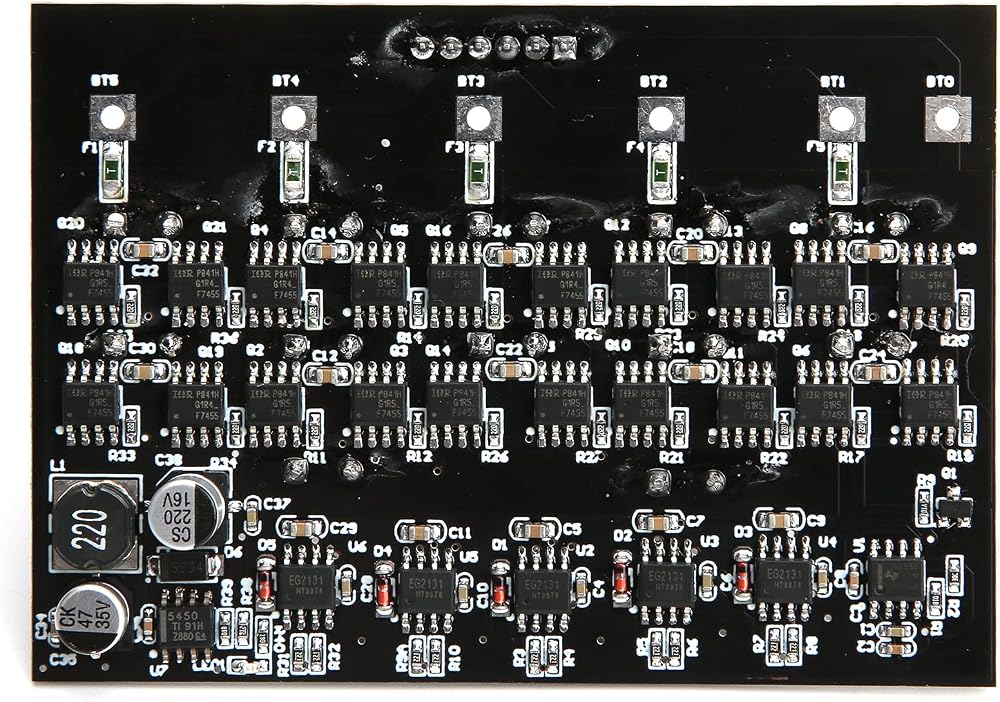

Active Equalizer Lithium Battery Energy Transfer Board Capacitor 5mv Accuracy 5a Balancer GT‑5

Sorry, this product is not available
Brand
Mavaol

Special Features

  • Automatically stop when the voltage is lower than 3V with low‑voltage sleep protection function, and the standby power consumption is less than 0.1mA
  • The more balanced the battery, the smaller the current. When sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv, come with manual sleep switch
  • Intelligent battery voltage balance system can keep the battery in a state and extend battery life. The battery can be connected in series to automatically maintain the balance of the battery for a long time
  • The battery support two‑way compensation, come with small size and good performance

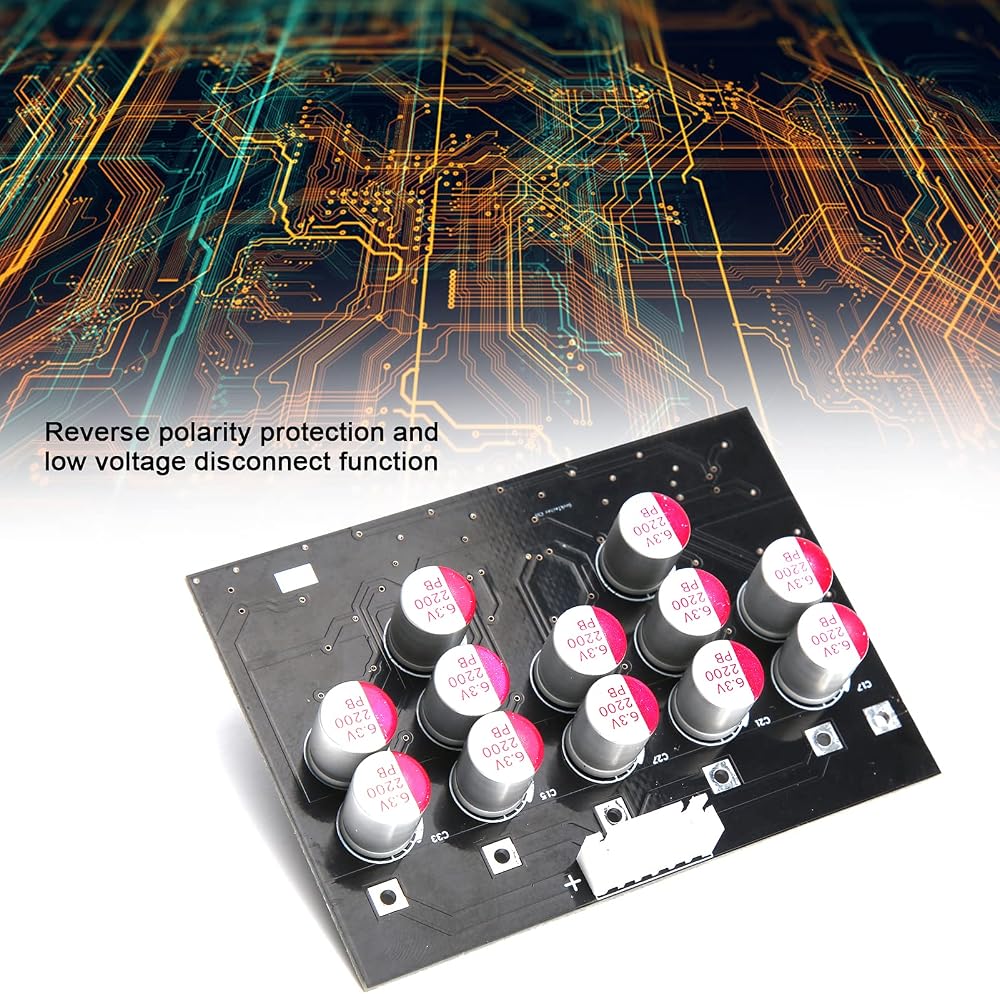

  • Lithium battery equalizer has reverse polarity protection and low voltage disconnect function

Description

Item Type: Active Equalizer
Material: PCB
Model: GT-5
Uses: Used for ternary lithium, lithium iron , lithium Ti
The Parameters of Lithium Ti Balance Board:
Balanced Starting Voltage: 2.0V-2.8V
Balance Accuracy: 5mv
Balance Termination Voltage: 1.9V (into the under-voltage sleep state)
5s-Lto the full state of quiescent current (2.8V x 5cell) 14V 12mA
Maximum Balance Current: Grouping error 0.1v1a; 0.5v3.5a; 1.0v5.5a (30cm 18awg test cable)
Working Environment Temperature: 0-60℃
Ternary Lithium Battery/Lithium Iron Parameters:
Balanced Starting Voltage: 3.0V-4.2V
Balance Termination Voltage: 2.9v (into the under-voltage sleep state)
Balance Accuracy: 5mv
Sleep Current: 1mA
5S quiescent current in full state (4.2V x 5 cell) 21V 15mA
Maximum Balance Current: Grouping error 0.1v1a; 0.5v3.5a; 1.0v5.5a (30CM 18awg test cable)
Working Environment Temperature: 0-60℃

Package List：

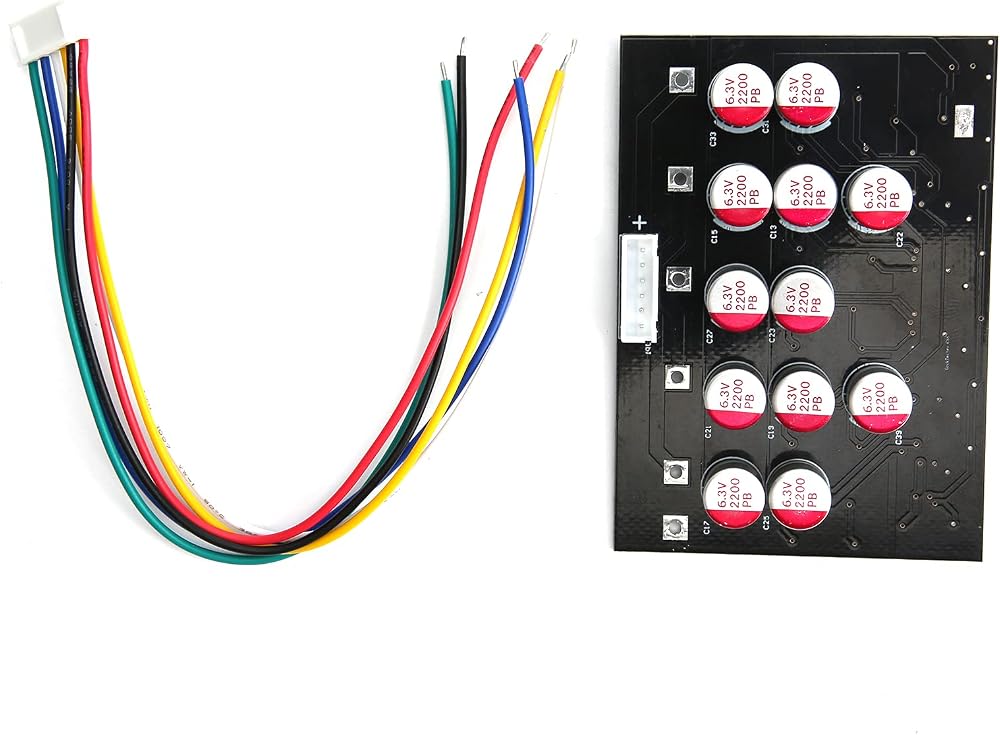

1 x Battery Equalizer
1 x Connection Line
1 x User Manual

Note:
1. It is forbidden to bump the battery with of sharpness parts.
2. Clean the working environment to avoid of sharpness parts.
3. It is forbidden to pierce the battery with nails and other of sharpness objects. Prevent the battery from being transported or stored together with metal objects, such as collars and hairpins.
