Zonon 4 Pcs 4 Hole 90 Degree Wing Shape Fittings, Left & Right Installation Wing Shape Ninety Degree Fitting Bracket for Use with 1/2" Bolts 1-5/8" Series Channels

SAR 115
Brand
Zonon
Category
Brackets
Weight
1.4 kg
– 1 +

Special Features

  • Complete 4-piece Set: package includes 4 wing-shaped brackets (2 left/2 right configuration) with pre-drilled 14mm (9/16") slots, providing everything needed for 90° structural connections; Suitable for professional construction and DIY projects alike

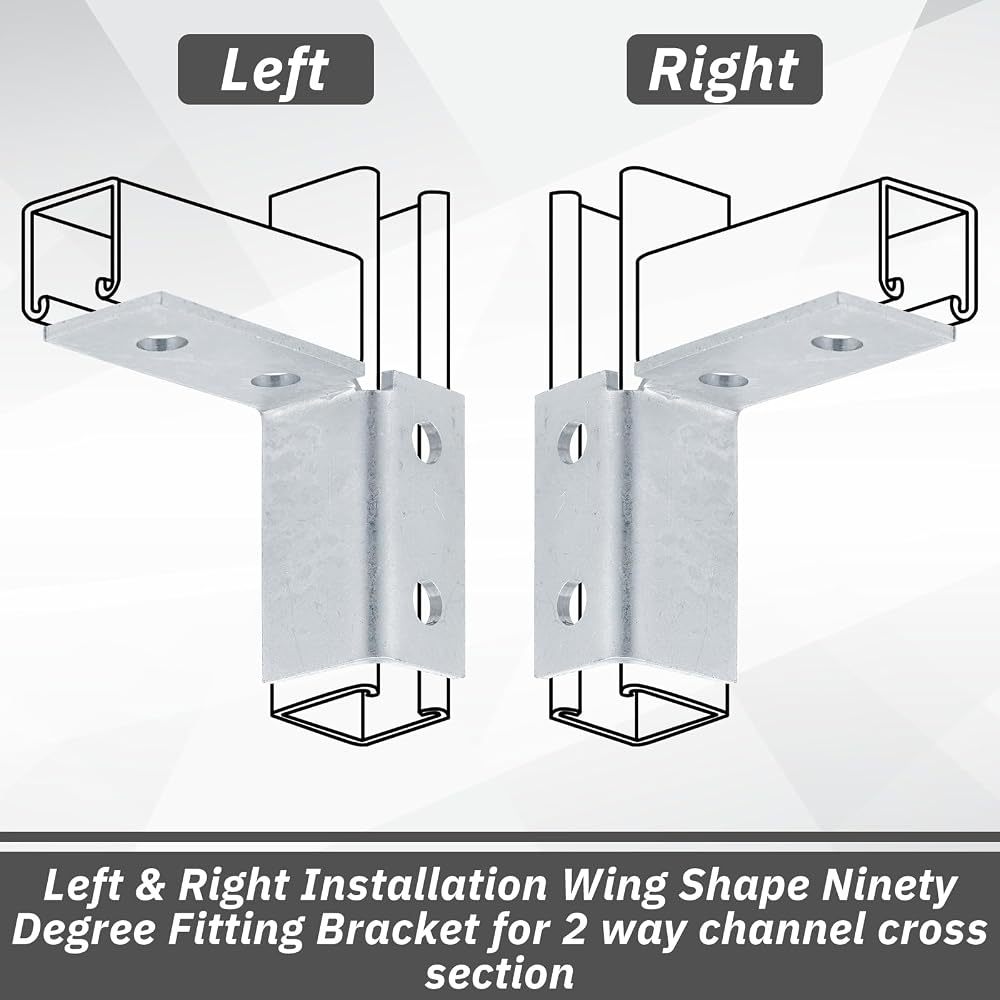

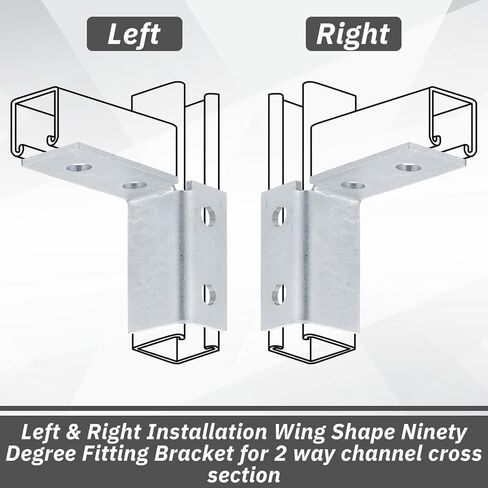

  • Product Specifications: each fitting has 4 φ14mm (9/16”) slotted holes, compatible with all 1-5/8 inch channels, steel thickness is 4.5mm, width is 40mm, height is 90mm, 4-hole wing-shaped 90-degree mounting bracket, suitable for 2-way channel cross-section

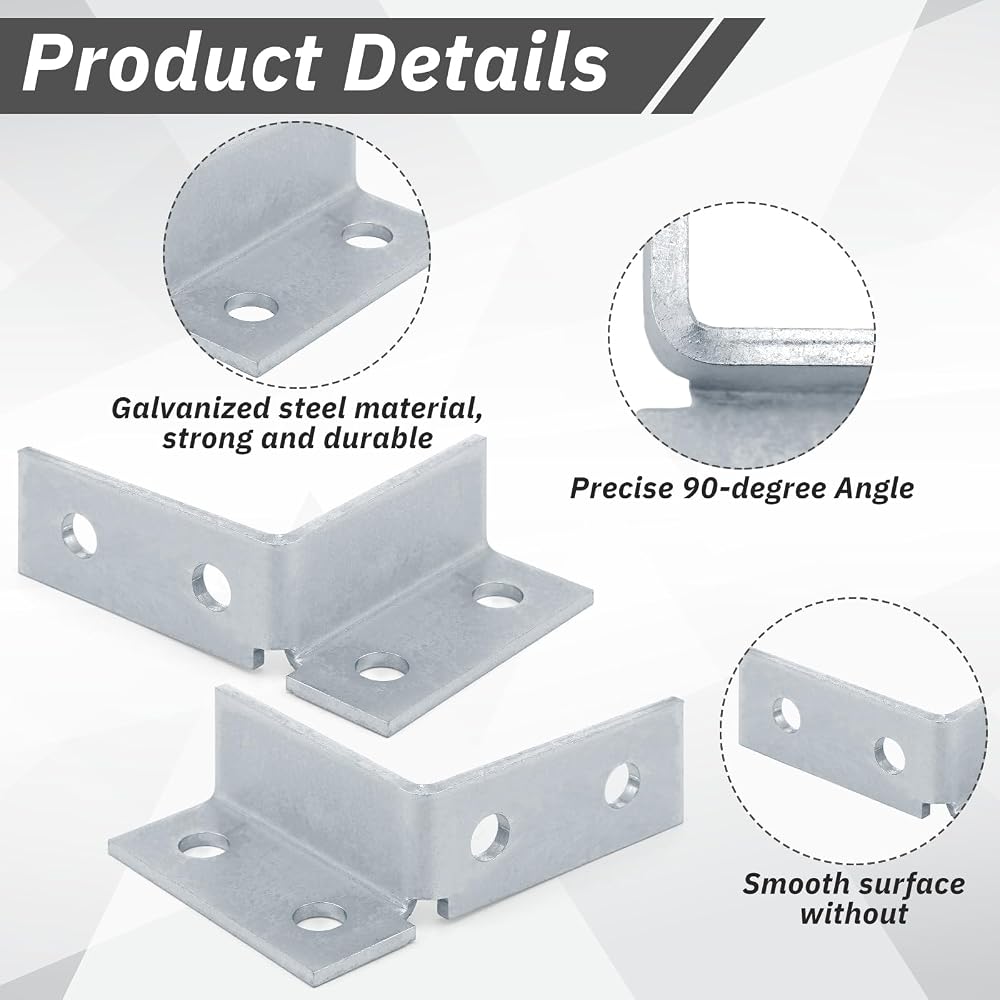

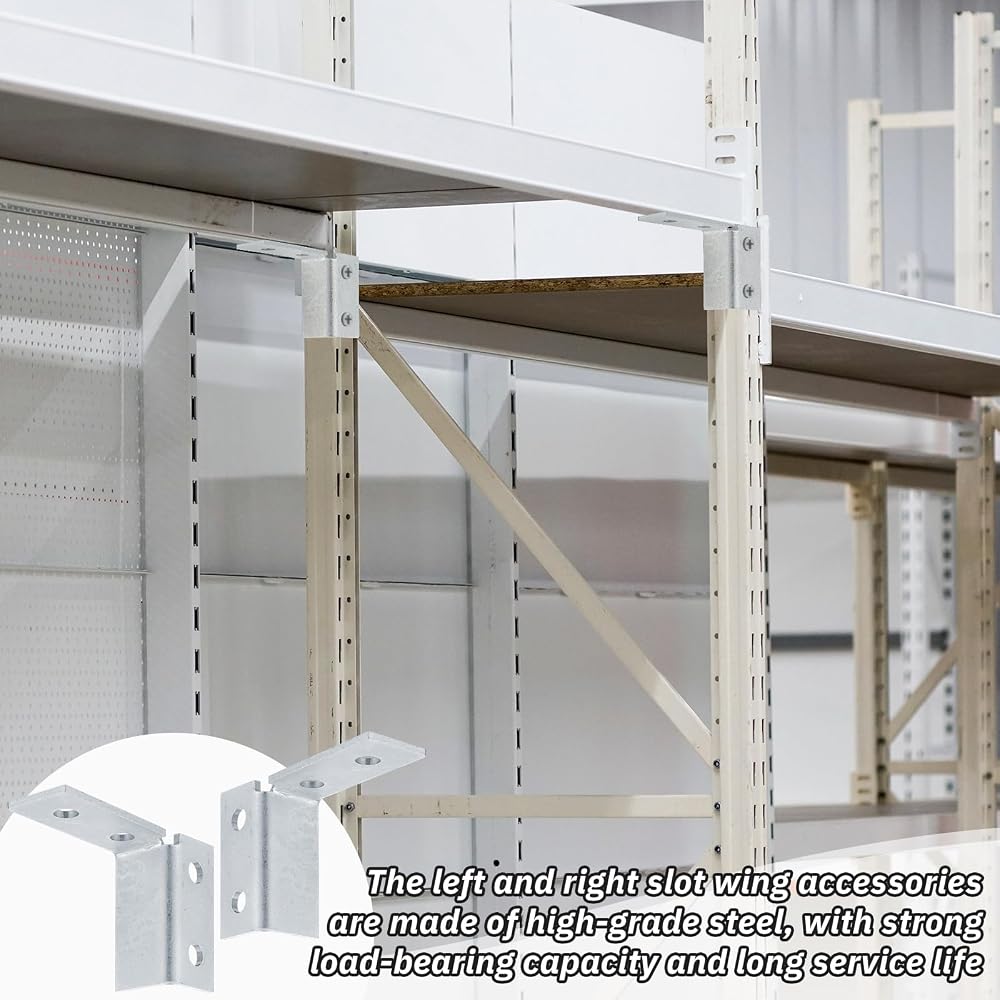

  • Material: this 4-hole left and right slot wing accessory is made of high-grade carbon steel, and the surface of the bracket is galvanized, which is not easy to deform, acid and alkali resistant, strong load-bearing capacity, and has a long durability and service life
  • Easy Installation: this 90 degree 4-hole left and right slot wing fitting has 4 9/16" (14mm) diameter holes to accept 1/2" bolts, ensuring a snug fit in the strut slot; Sophisticated engineering ensures seamless integration, providing maximum stability and strength in any construction setting

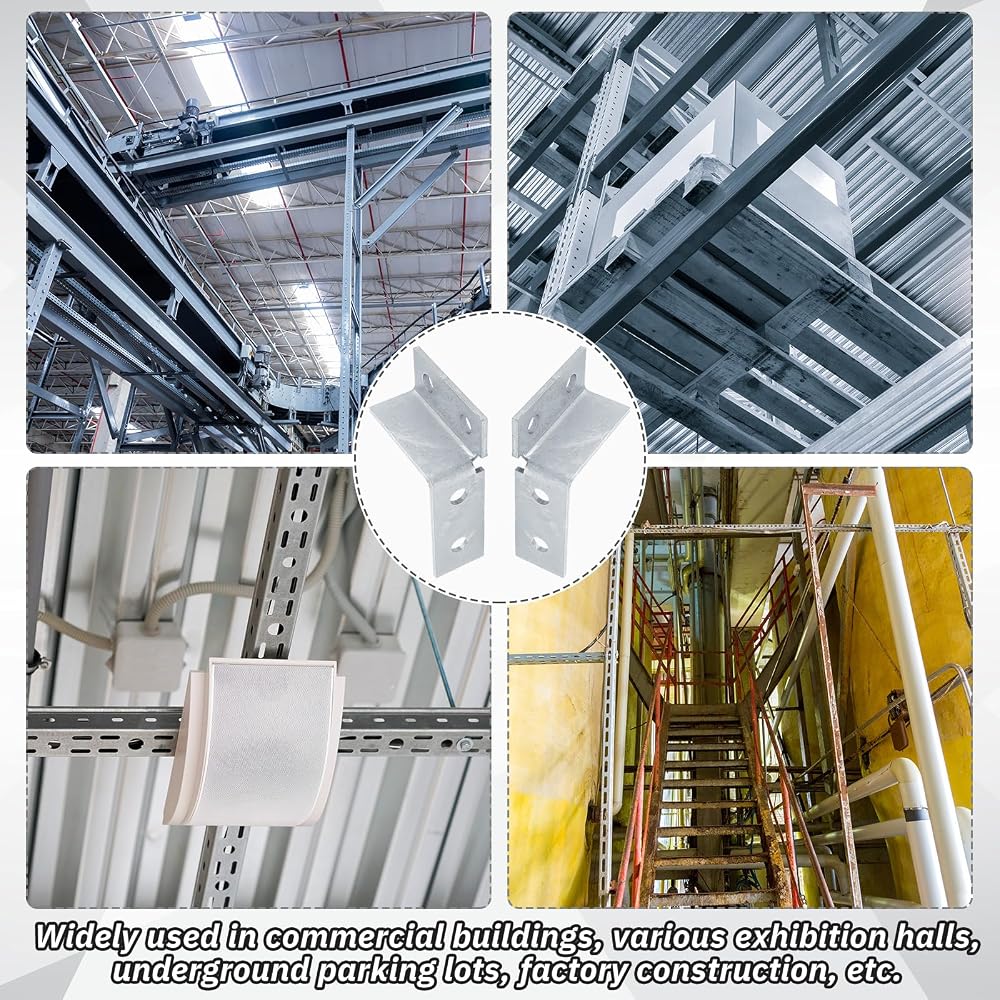

  • Multi-industry Application: widely applied in commercial buildings, urban underground pipe corridors, subways, various exhibition halls, underground parking lots, bus stations, railway stations, airports and other projects; It is also effective for residential decoration and factory construction

Description

Features:

The robust 4-hole design delivers exceptional load-bearing capacity for various applications - from angle bracing to complete structural metal frameworks. Suitable for high-stress environments, including seismic zones.

Pre-aligned slotted holes simplify assembly while allowing minor adjustments during installation. Compatible with standard strut channel tools for efficient deployment in construction or mechanical projects.

Specifications:
Material: carbon steel with zinc plating
Color: metallic silver

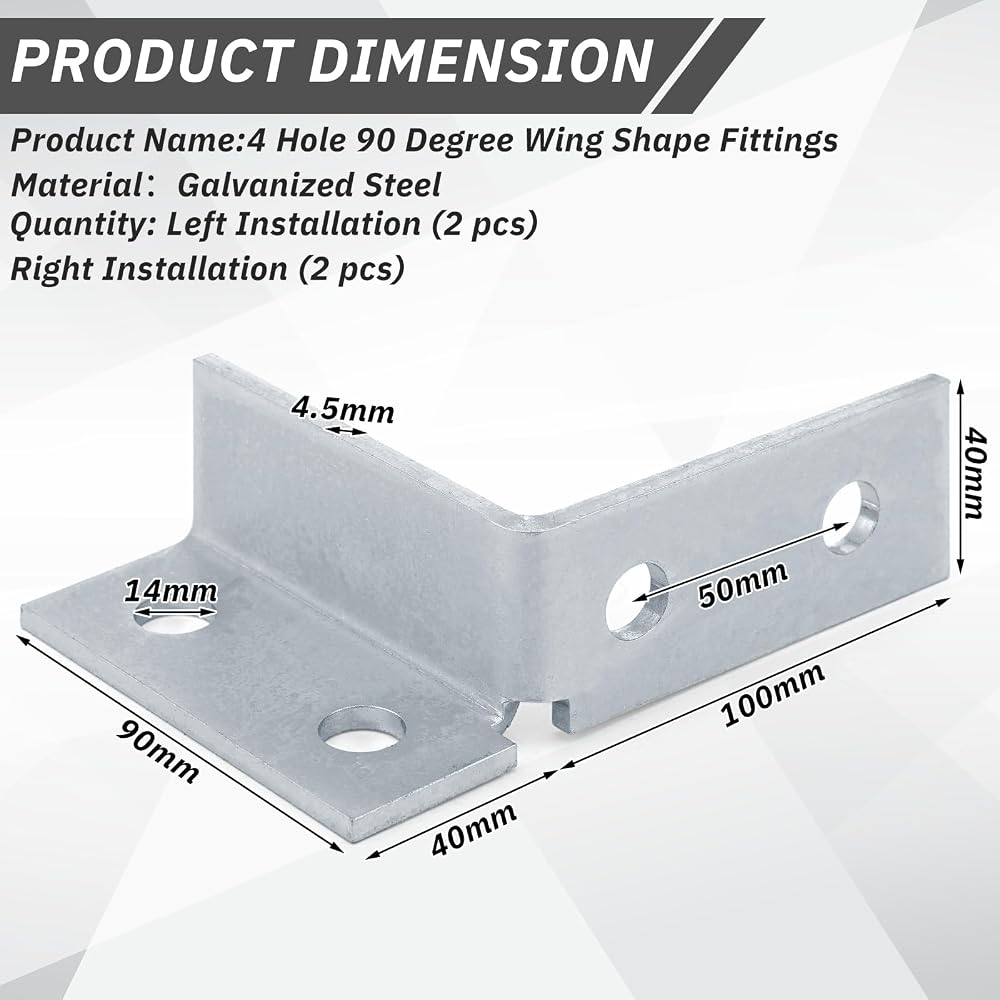

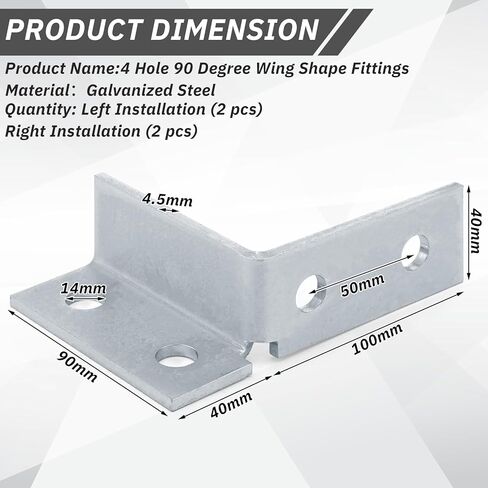

Size:
Width (W): 40mm (1.58")
Height (H): 90mm (3.54")
Thickness: 4.5mm (0.18")
Hole Size: 14mm (9/16") slotted

Package includes:

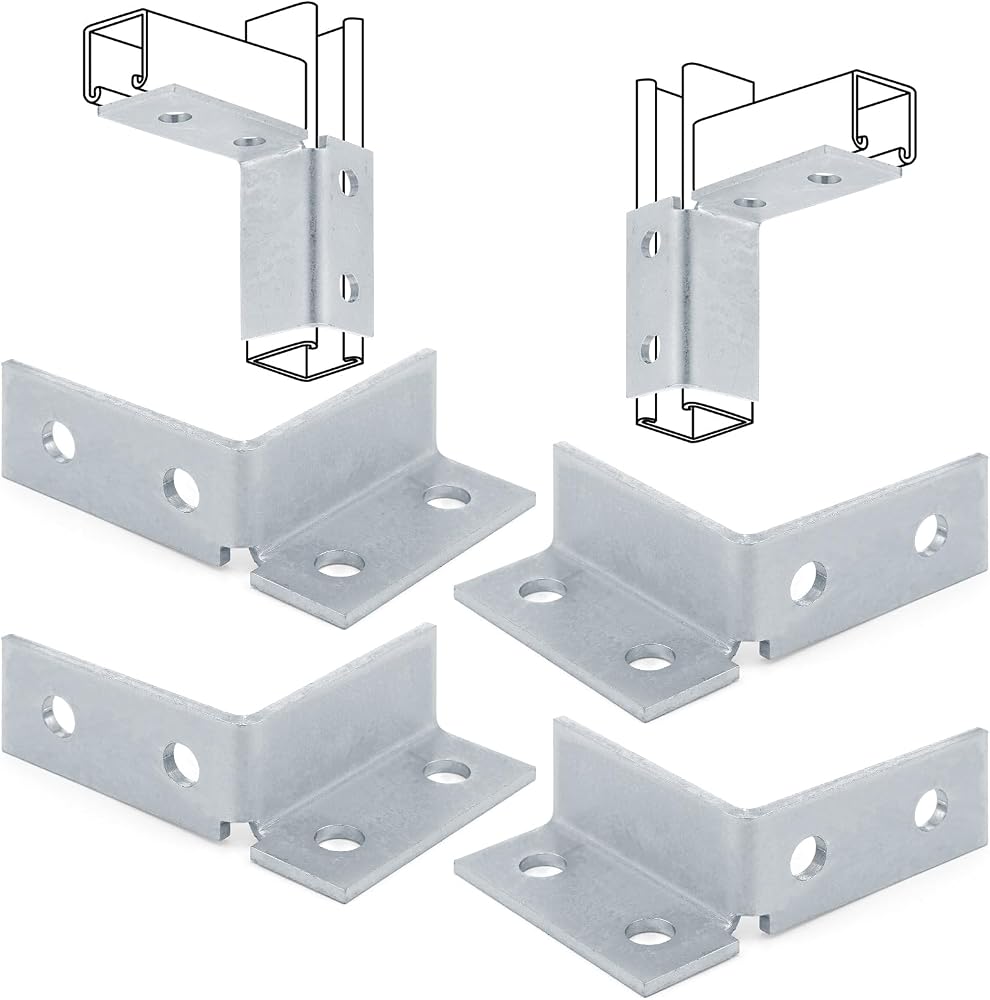

4 x Wing-shaped brackets (2 left + 2 right installation)

Notes:
Manual measurement, please allow slight errors on size.
The color may exist a slight difference due to different screen displays.
