مميزات خاصة

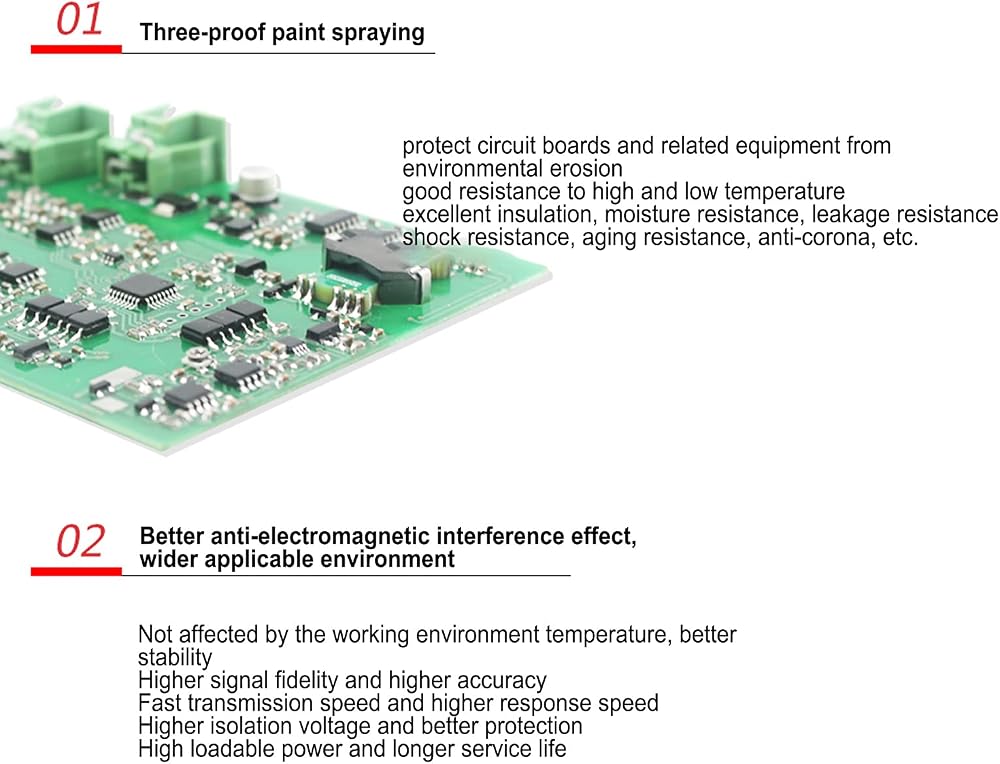

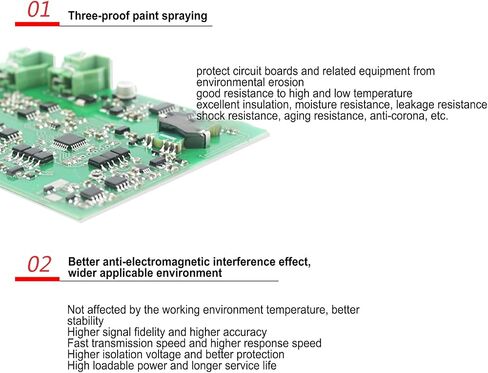

Come with three‑proof paint spraying is used to protect circuit boards and related equipment from environmental erosion. Has good to high and low temperature, excellent insulation, , leakage , shock , , anti‑corona, etc.

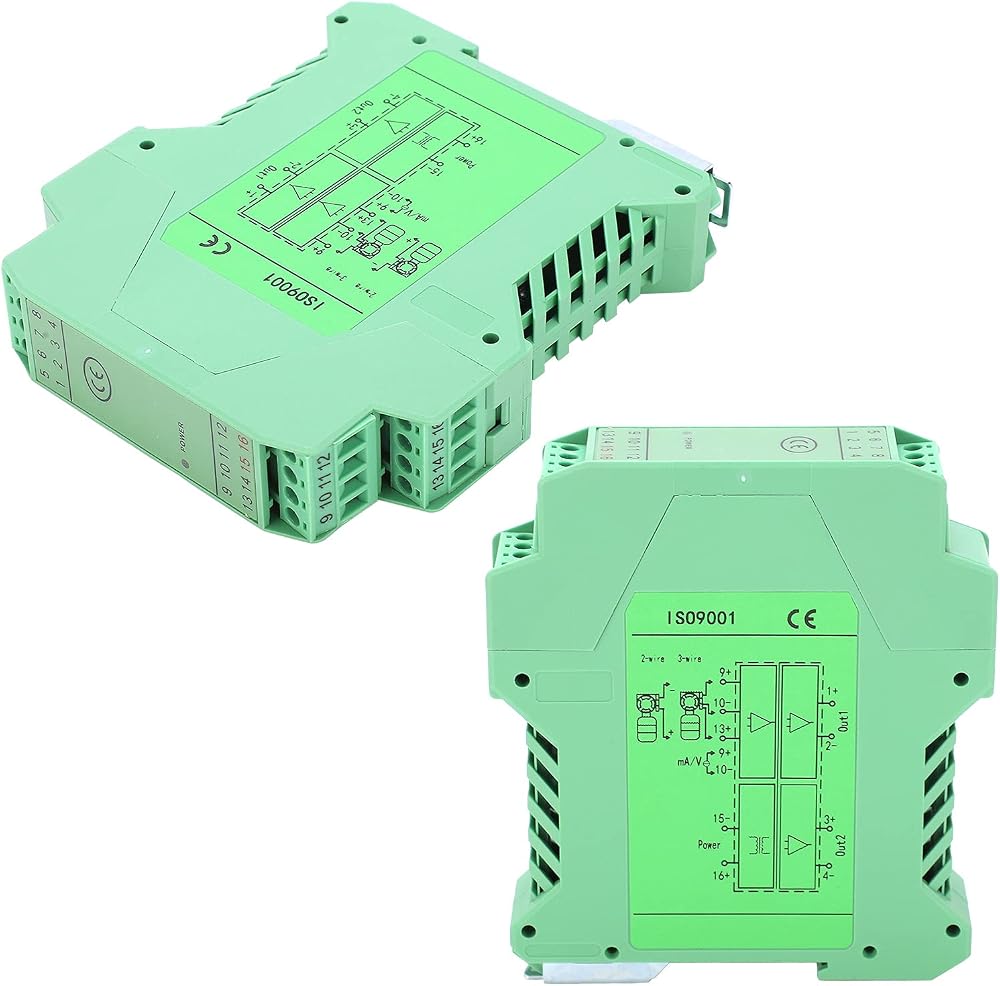

DC signal isolator allow 35mm standard rail installation, possess strong versatility
Provide input/output/power supply/shell isolation, so that have strong anti‑interference ability and high reliability
The product provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, two‑wire system, three‑wire system transmitter universal
Internal use of good‑efficiency magnetic isolation technology, the input, output, and power supply are isolated from each other, with , high linearity, low temperature drift, etc.

وصف

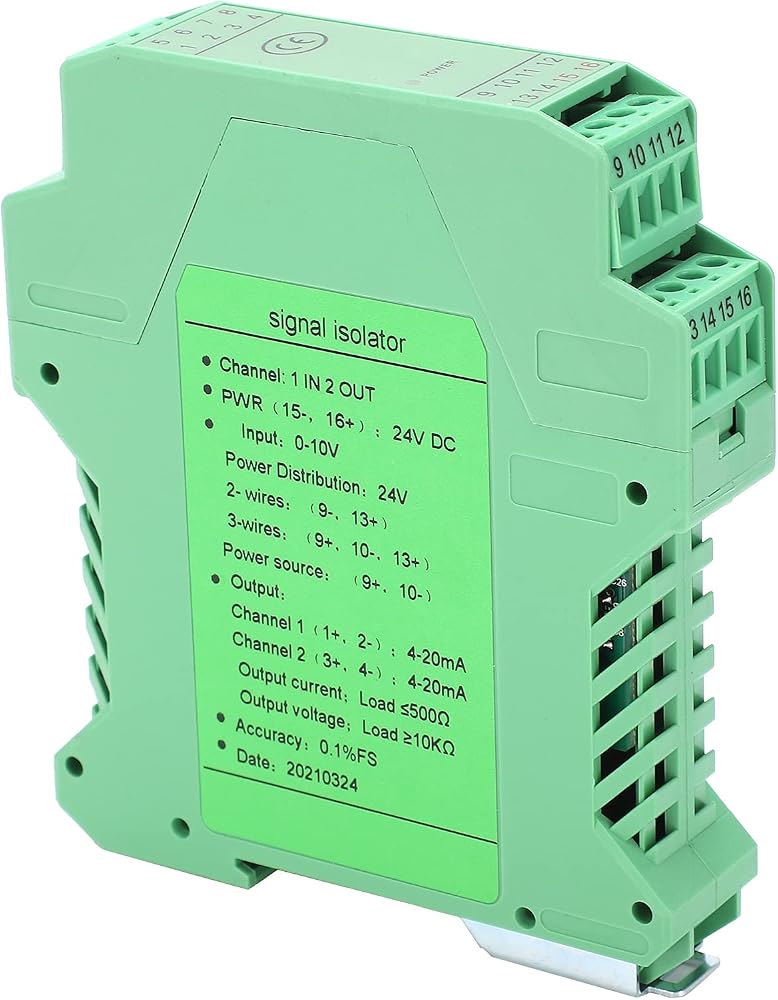

Item Type: DC Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
Distribution Voltage: DC24V

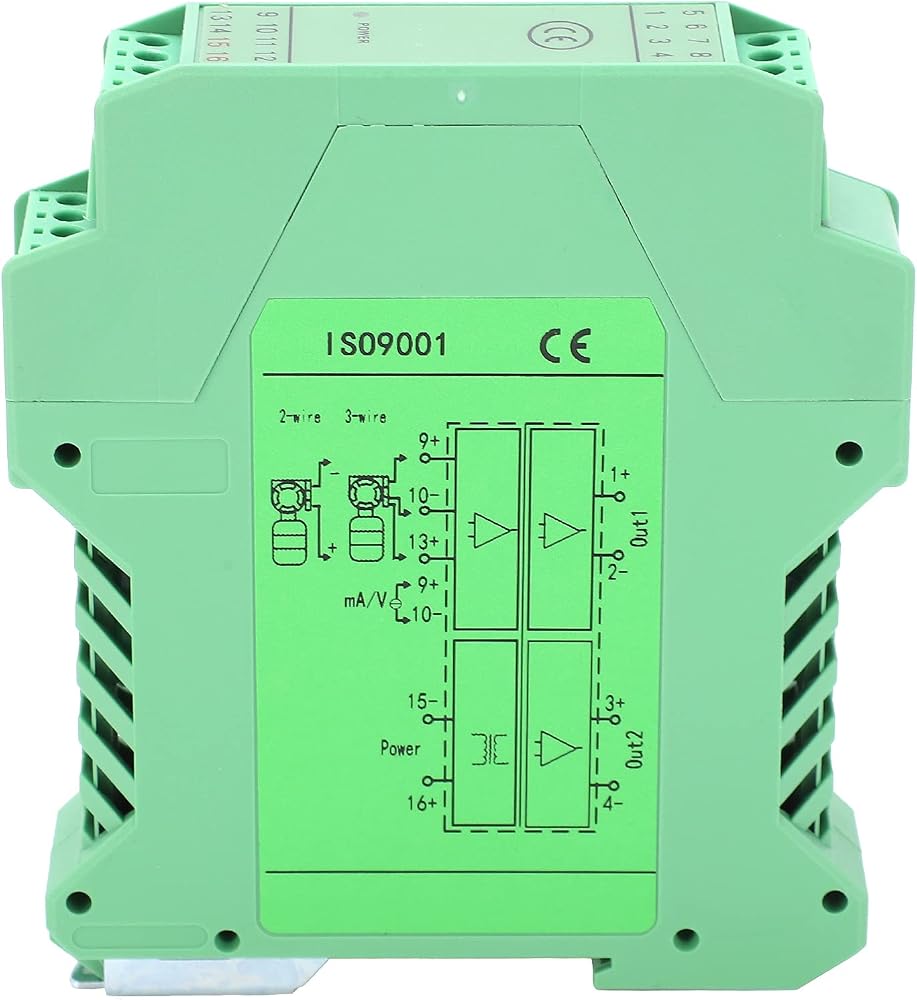

2-Wire System: (9-, 13+)
3-Wire System: (9+, 10-, 13+)
Power Supply: (9+,10-)
Output:
Channel 1 (1+, 2-): 4-20mA
Channel 2 (3+,4-): 4-20mA
Output Current: Load500Ω
Output Voltage: Load10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20~+55℃
Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: Two-wire, three-wire transmitter, current source

Package List：
1 x DC Signal Isolator
Note:
1. The installation location must not have strong vibration, and the intensity of electromagnetic interference from the signal terminal, power terminal and space exceeding the third type of industrial field electromagnetic interference in the IEC61000‑4 series.
2. There must be no harmful substances that cause severe to metal and plastic parts in the use environment.
