Cross Roller Guides
Manufacturing Process: Rolled Thread e
Material: Carbon Steel

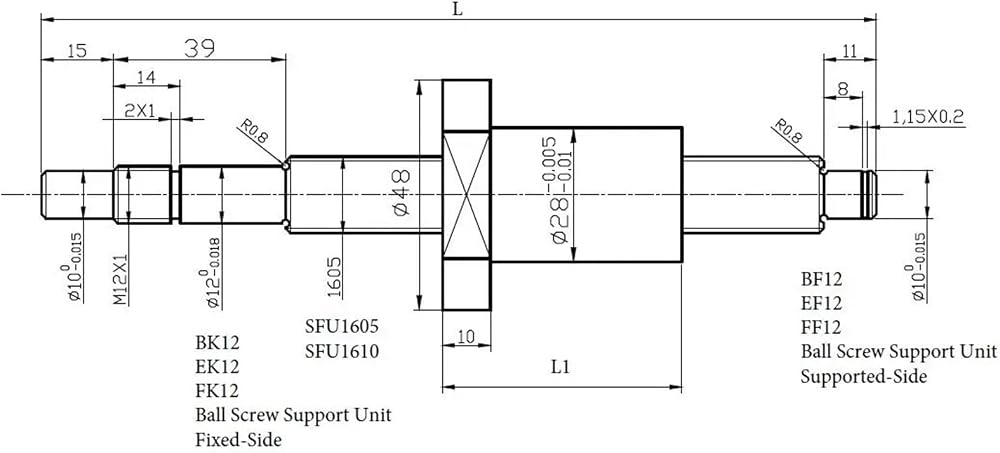

Model: SFU1605
Diameter: 16mm
Pitch: 5mm
Length: 300mm / 350mm / 400mm / 450mm / 500mm / 550mm / 600mm / 650mm / 1000mm / 1050mm / 1200mm / 1500mm
(is the overall length, Including end machining part)
Color: Silver
machinery, etc.

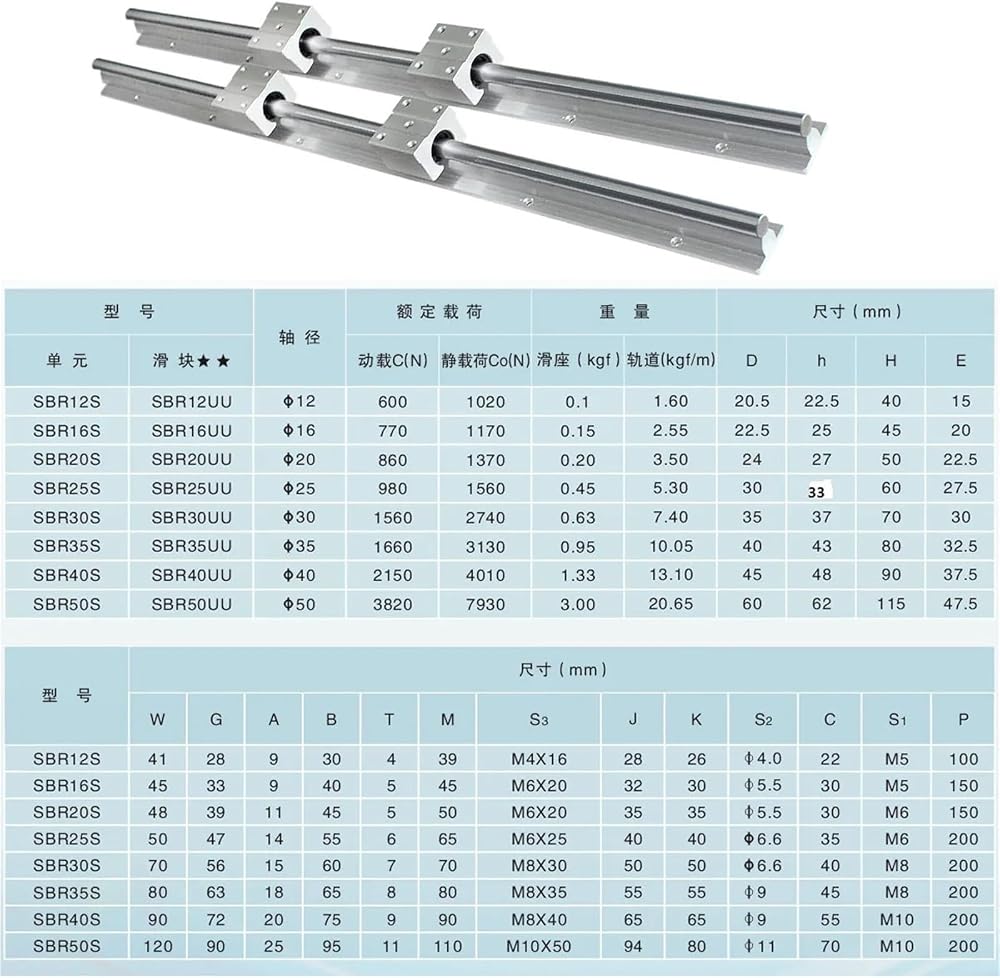

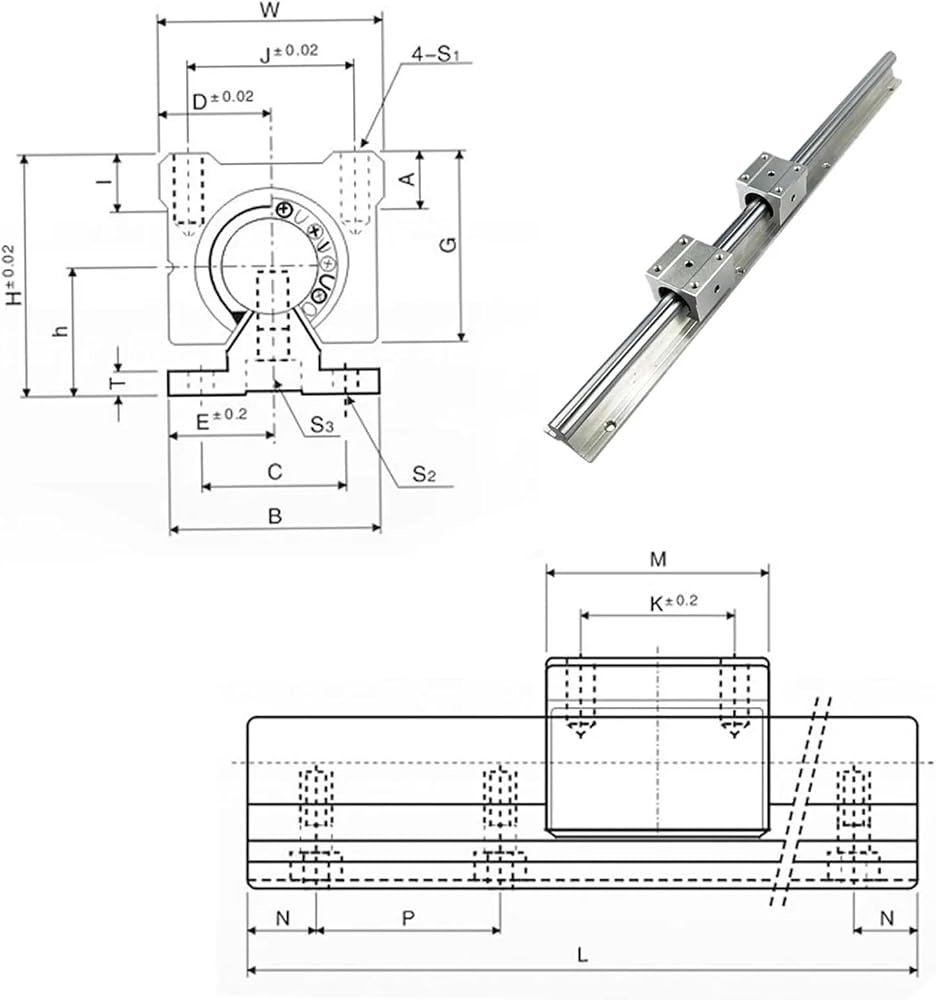

Model: SBR16
Diameter: 16mm
Length: 300mm / 400mm / 500mm / 600mm / 1000mm /1200mm / 1500mm
Color: Silver

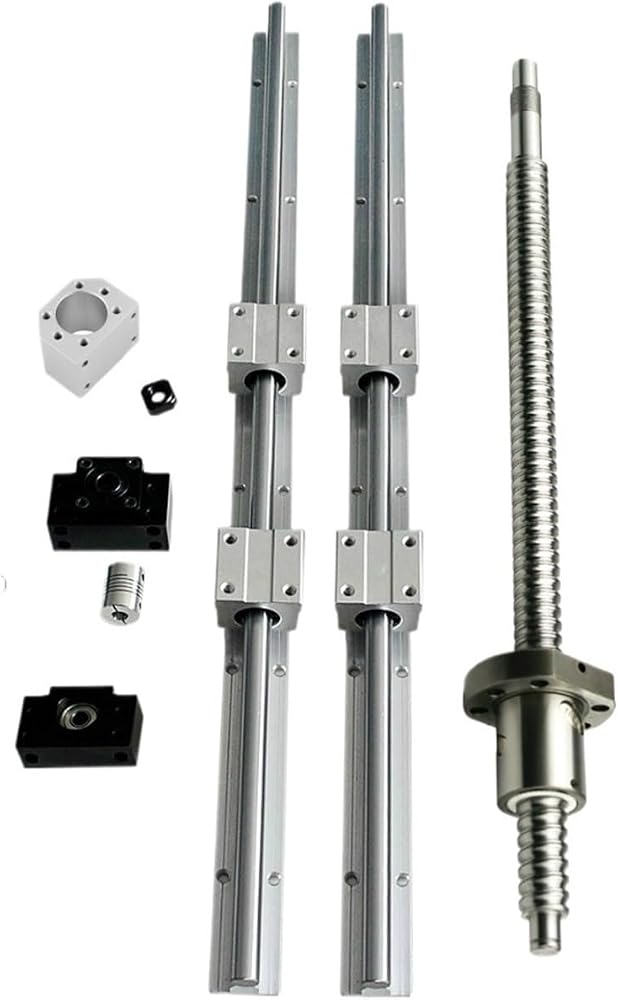

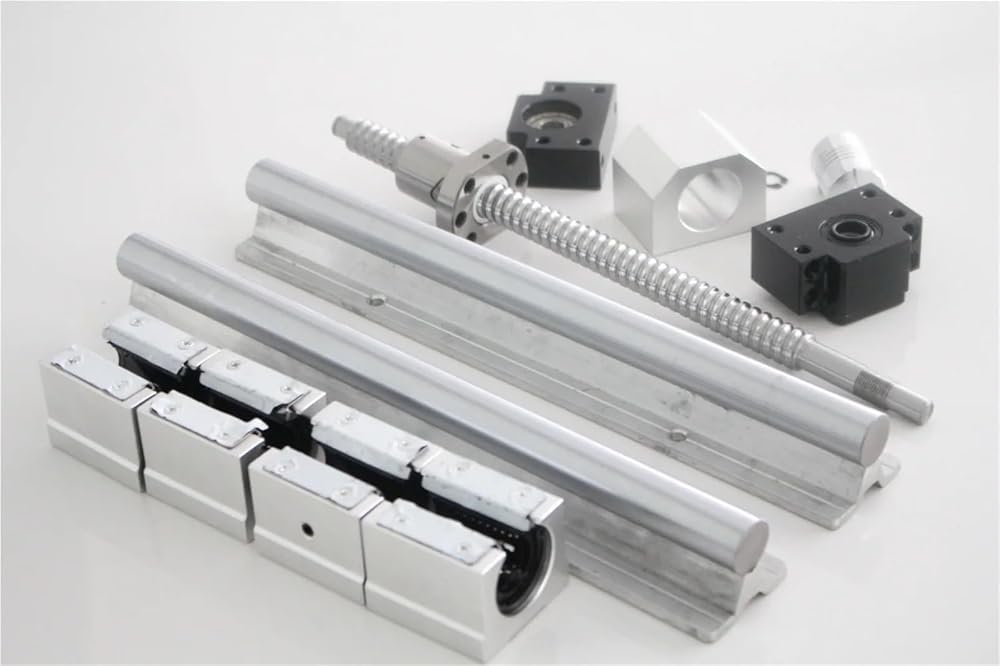

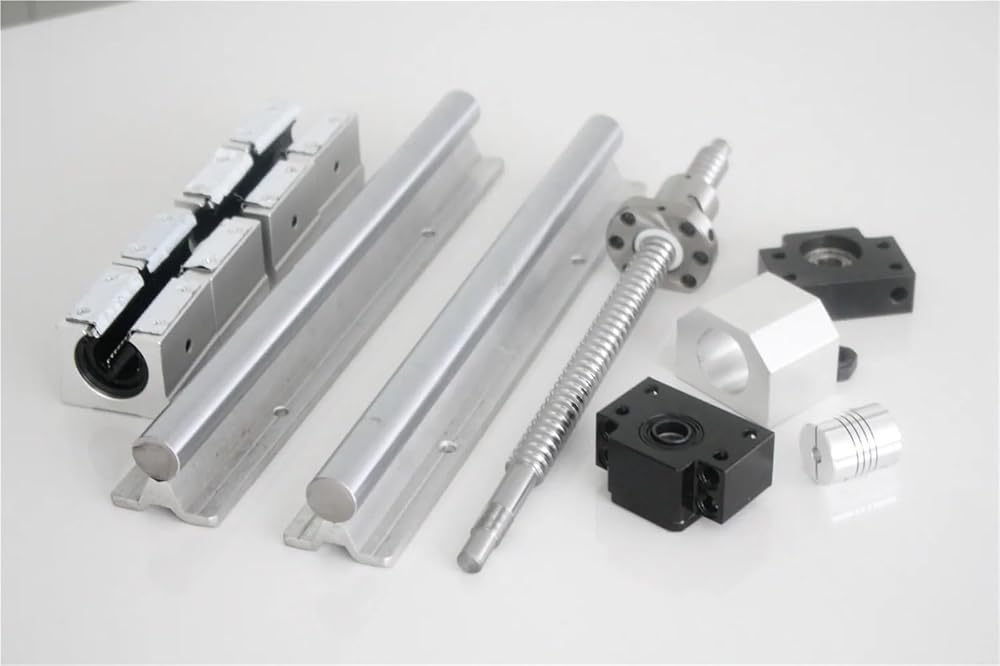

Package Included:
2x SBR16 Fully Supported Linear Rail
4x SBr16UU Bearing Block
1x SFU1605 Ball screw with Ending Machined
1x 6.35mmx10mm D25L30 Coupling
1set BK12 BF12 End Supprot
1 x DSG16H Nut Housing
Model Number : SBR16 linear rail +SFU1605 Ball screw
Guide Width or Diameter : 16MM
