مميزات خاصة

High accuracy: with high measurement accuracy.
Compact size: Small size makes it easy to install in restricted spaces.
Durability: Long service life, adaptable to harsh working environments.
Real-time measurement: able to measure torque changes in real time under dynamic conditions.
Widely used: widely used in automotive, aerospace, industrial automation, robotics and other fields.

وصف

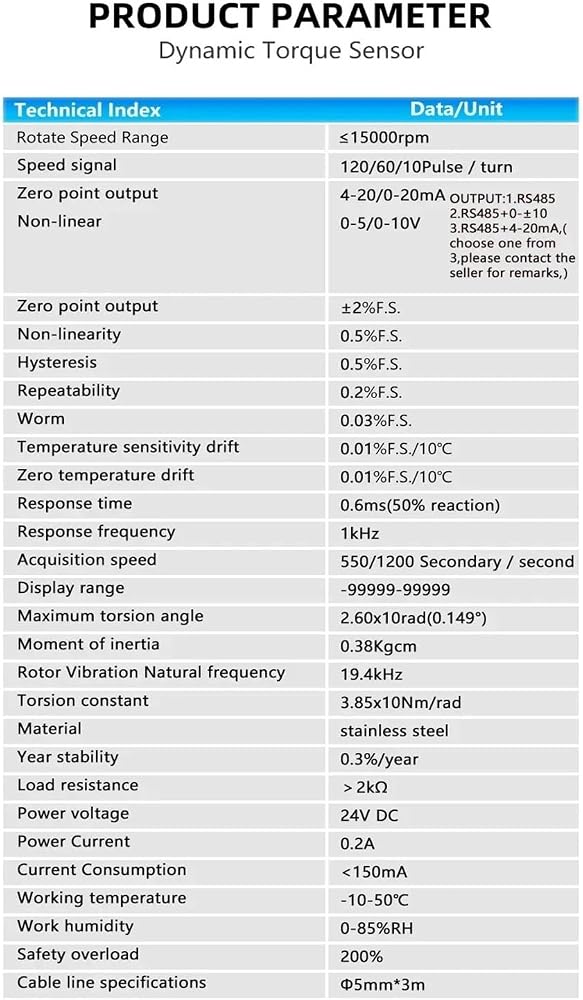

Capacity ±10000N.m
Display Range -99999-99999
Speed Capacity 15000rpm
Maximum torsion angle 2.60*10rad(0.149°)
Speed Signal 120/60/10/rpm, 4-20mA, 0-20mA, 0-5V, 0-10V
Moment of inertia 0.38kgcm
Non-Linearity 0.5%F.S.
Natural frequency of rotor vibration 19.4kHz
Hysteresis 0.5%F.S.
Torsion constant 3.85x10N.m/rad
Repeatability 0.2%F.S.
Stability per year 0.3%/year
Creep(30min) 0.03%F.S/30min
Material Stainless Steel
Zero Balance ±2%F.S.
Working voltage DC 24V 0.2A
Temp Effect on Zero 0.01%F.S./10
Safe Overload 200%
Response Frequency 1kHz
Response time 0.6ms(50%)
Cable Specifications 5*3m
Acquisition Speed 550/1200/m
OperatingTemp Range -10-500-85%RH
Load resistance 2k
