Specification:

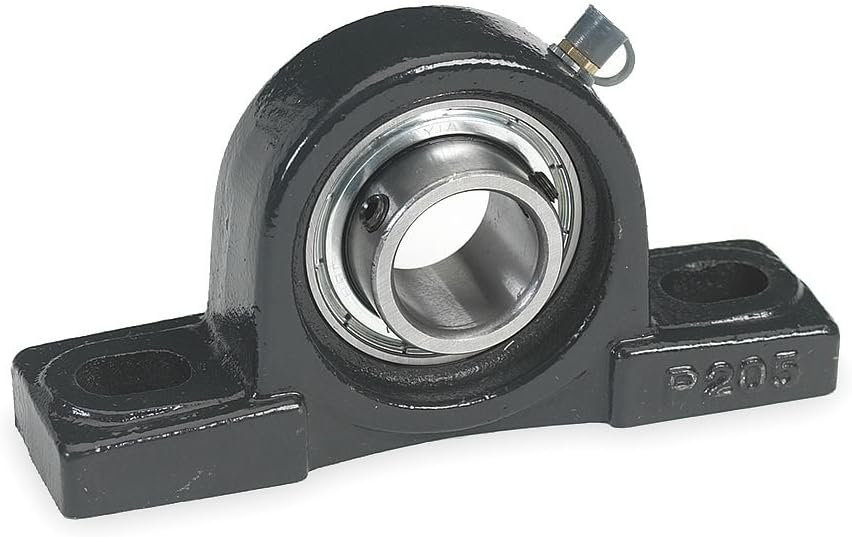

Item: Pillow Block Bearing
Mounted Bearing Item: Pillow Block Bearing
Bearing Insert Type: Ball
Bore Dia.: 3/4"
Bolt Hole Center-to-Center: 3-3/4"
Mounting Surface to Shaft Center: 1-5/16"
Bearing Housing Material Type: Cast Iron
Shaft Locking Type: Set Screw
Bearing Insert Material: 52100 Chrome Steel
Series: Light Duty
Number of Bolts: 2
Bolt Size: 7/16"
Overall Height: 2-31/64"
Overall Width: 1-1/2"
Overall Length: 5
Bearing Lubrication: Chevron SRI-2 or NLGI #2 Equivalent
Dynamic Load Capacity: 2876 lb.
Static Load Capacity: 1493 lb.
Temp. Range: -20 Degrees to 200 Degrees F
Finish: Painted
Includes: (2) Set Screws, Oiler Cap
