Package detail: BK BF
Specifications:

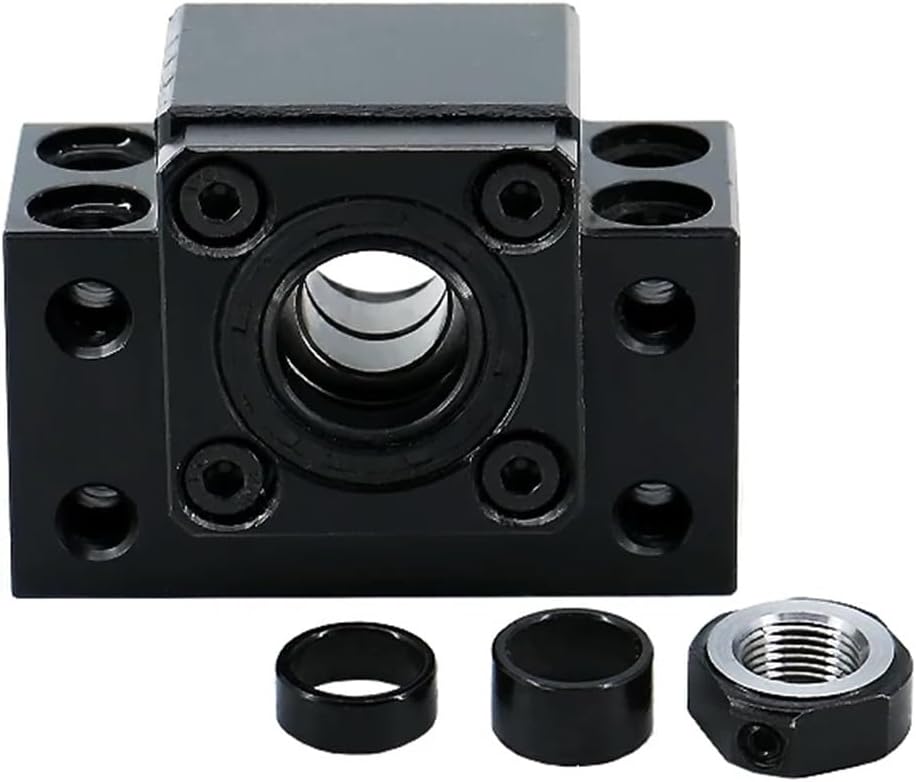

Product name: BK+BF Ball Screw End Support
Model:BKBF17/20/25
Color: Balck
Material: Carbon steel
Mounting method of ball screw support:
(1) fixed to the threaded rod on the fixed side.

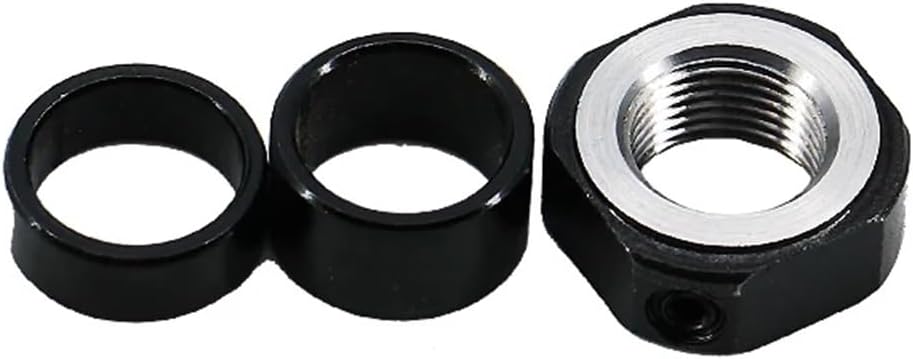

(2) the fixed side inserted, tightening the lock nut, fixed with the cushion block and the inner six angle bolts.

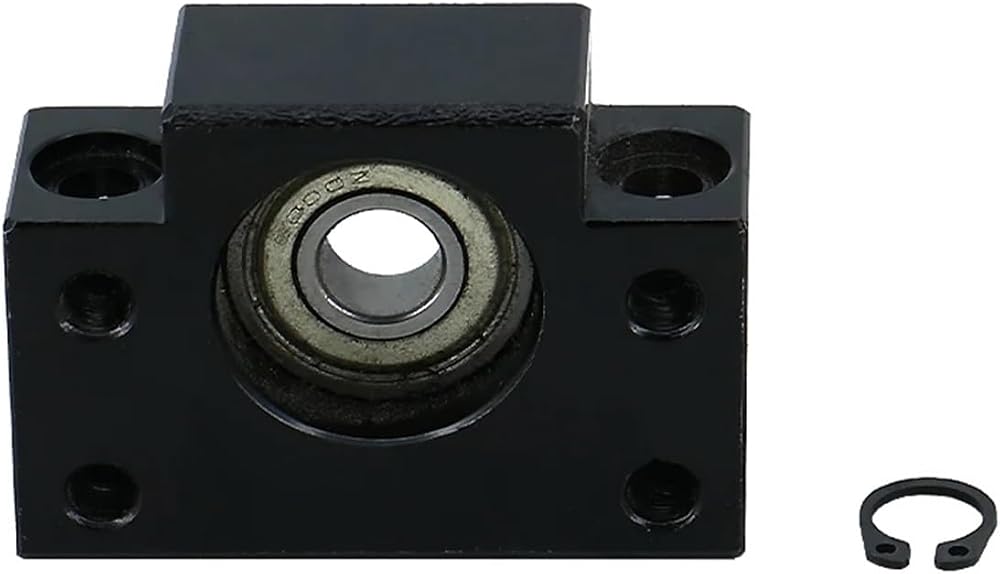

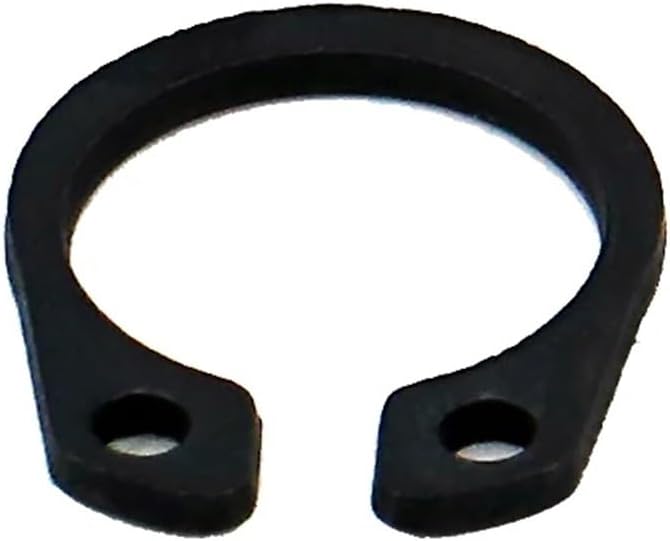

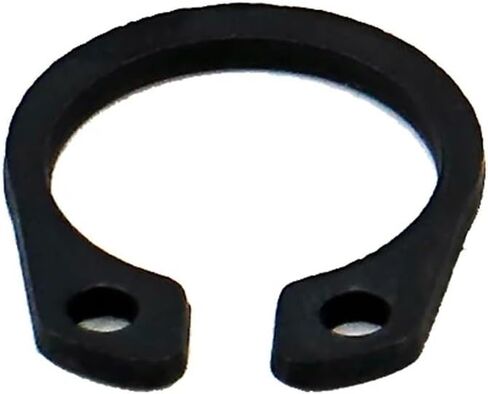

(3) the supporting side bearing is fixed on the threaded rod shaft with a stop ring and is loaded into the bearing block.
Material : Bearing Steel
Model Number : BK17 BK20 BK25 BF17 BF20 BF25
BKBF17 : Suit for Dia 20mm Ballscrew
BKBF20 : Suit for Dia 25mm Ballscrew
BKBF25 : Suit for Dia 32mm Ballscrew
