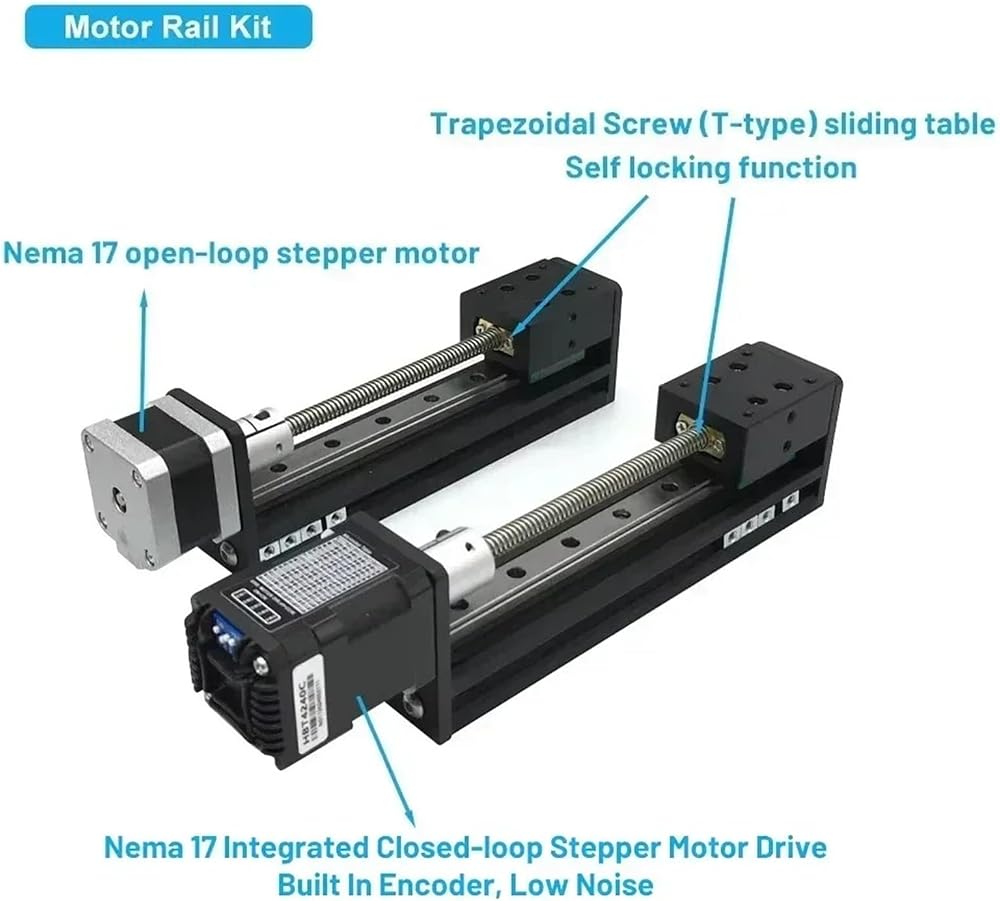

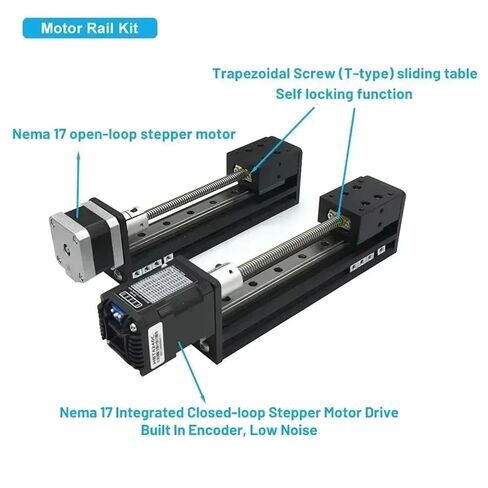

Cross Roller Guides
If you choose Single slide table1* Sliding Table
1* Coupling
if you choose 0.28/0.42/0.56/0.7Nm Motor and Slide table
1* Sliding Table
1* Coupling
1* 42mm open-loop stepper motor
if you choose 0.4/0.6Nm slide motor
1* Sliding Table
1* Coupling
1* 17 Integrated Closed-loop Stepper Motor Drive

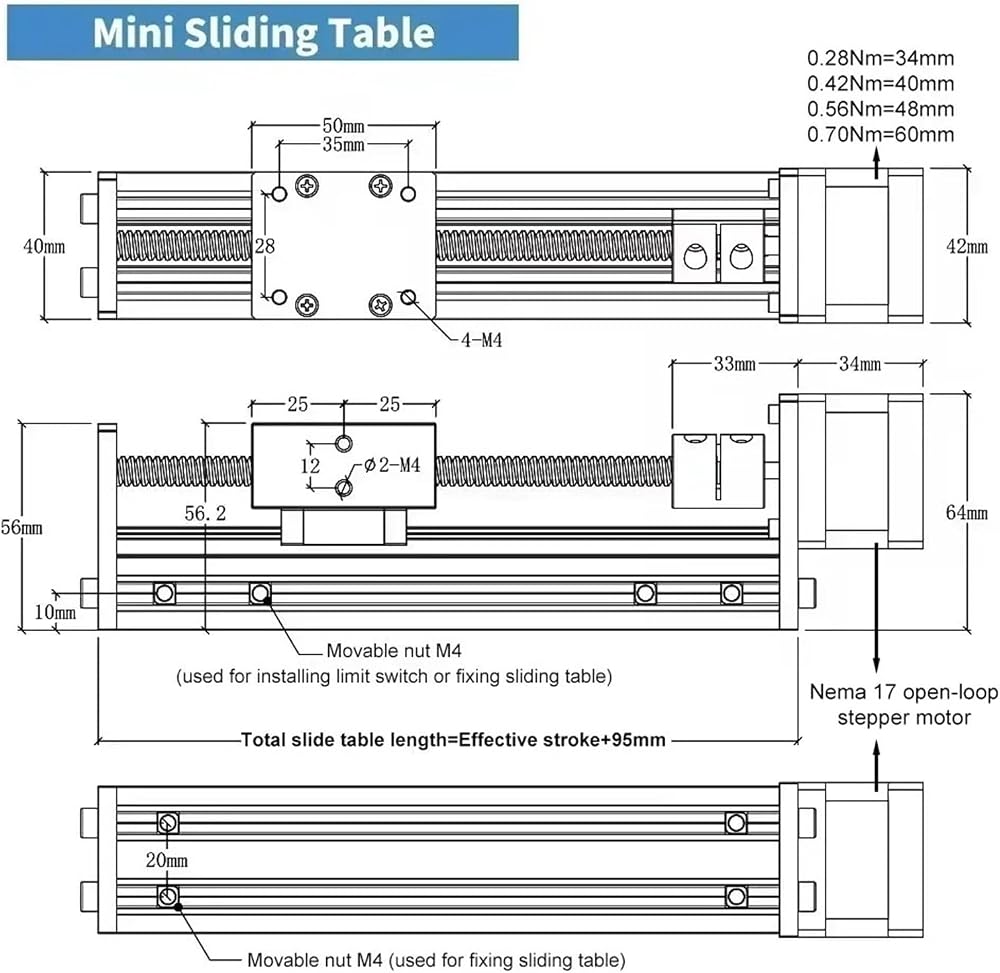

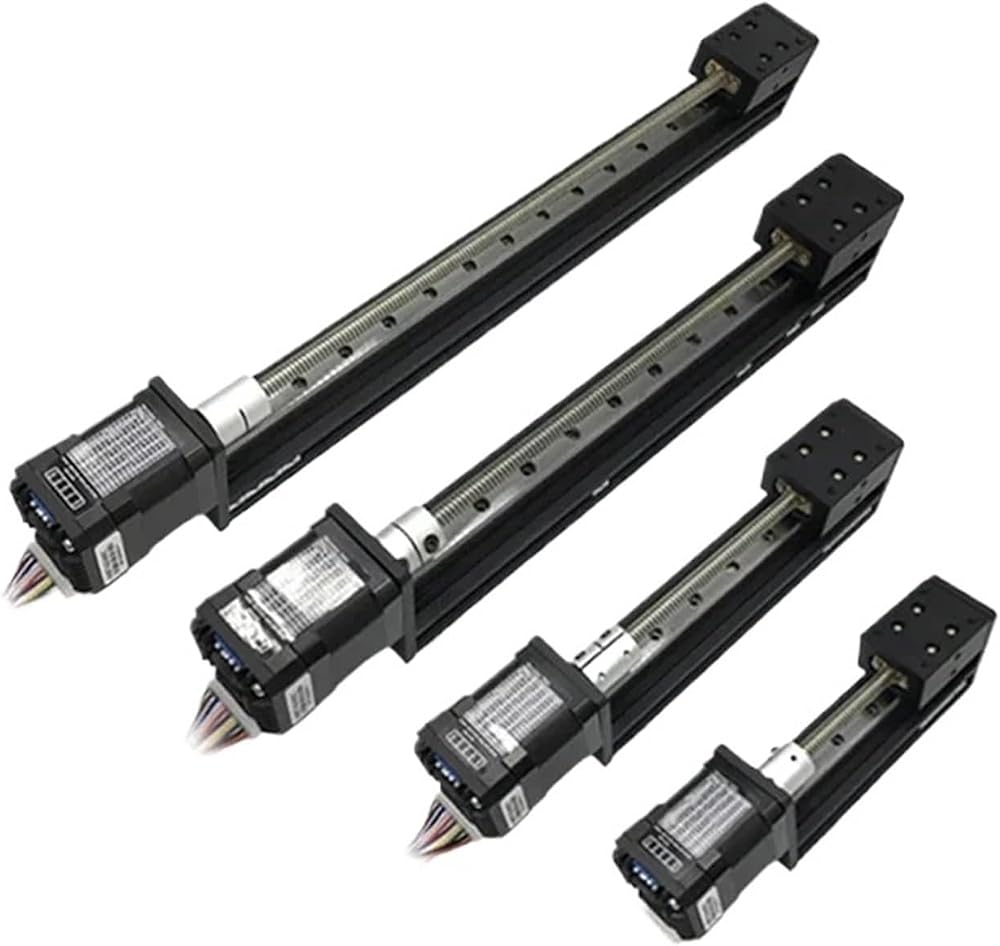

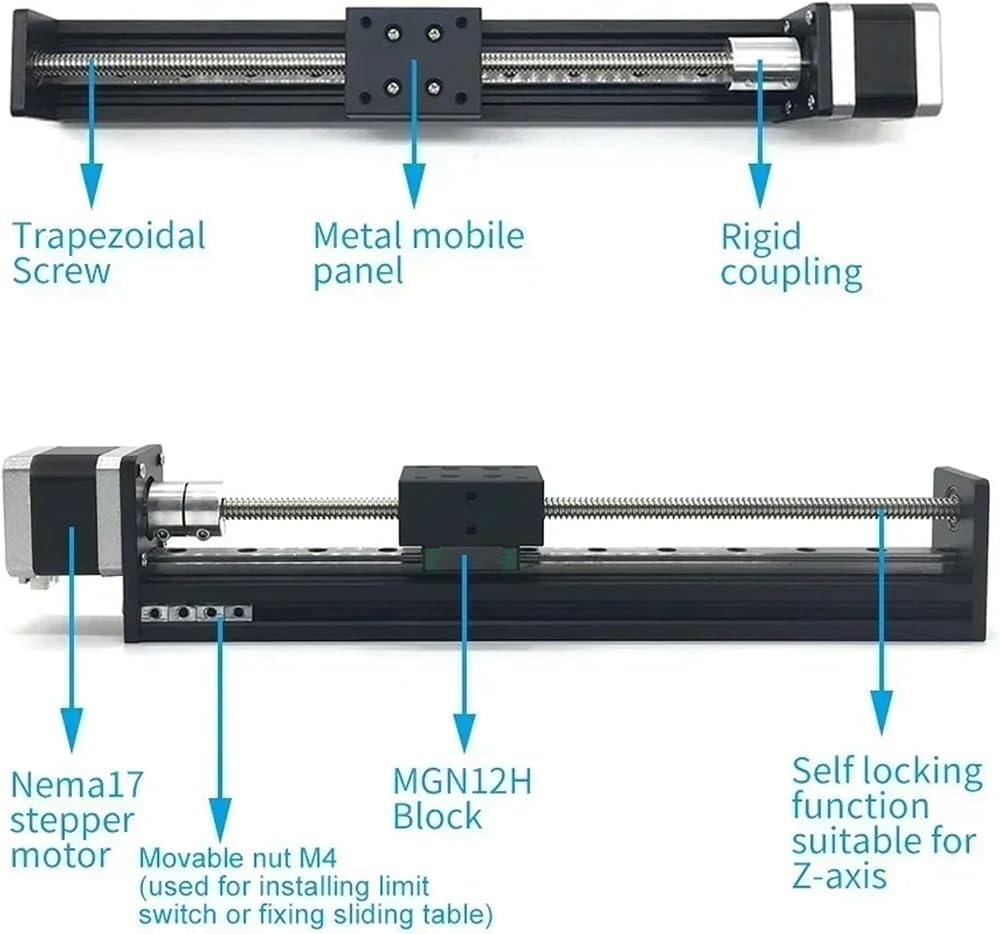

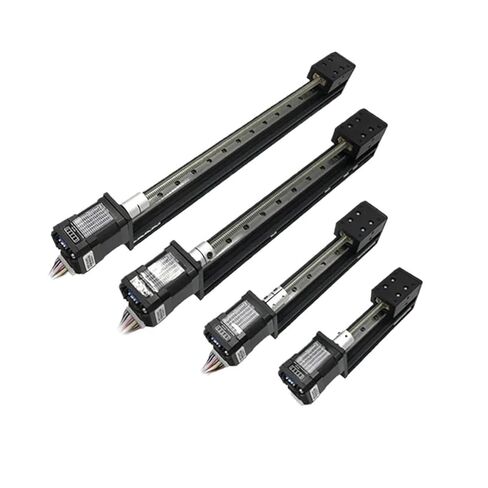

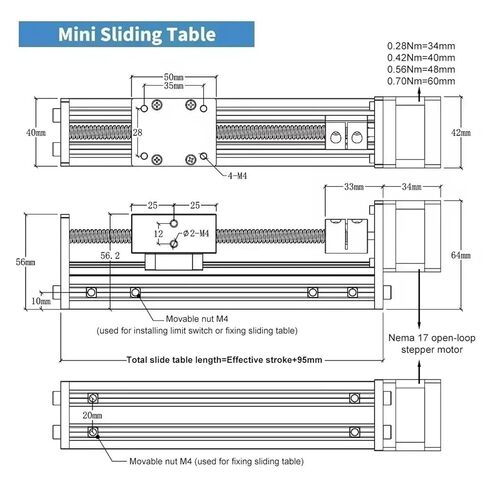

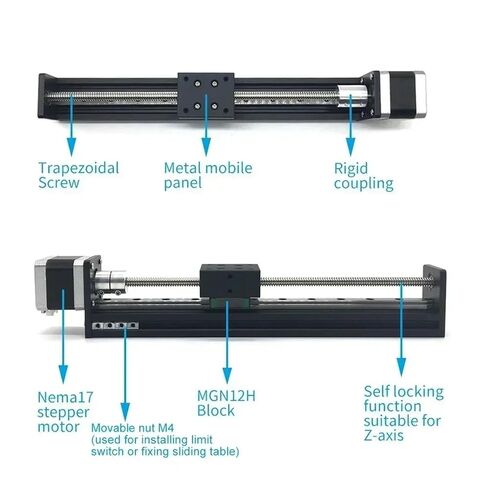

Slide Table Parameter:
Model: XT08
Effective stroke/ travel: 50-300mm
Actual effective stroke: Effective stroke+10mm
Total slide table length: Effective stroke+95mm
Horizontal load: 10KG (Max)
Vertical load: 5KG (Max)
Mobile panel size: 50*40mm
Mobile panel material: Metal
Pitch: 4mm (The motor rotates once, and the moving panel moves 4mm)
Repeat positioning accuracy: 0.03mm
Maximum speed: 80mm/s
Block: MGN12H
Lead screw diameter: 8mm Trapezoidal Screw
Screw Precision: C7

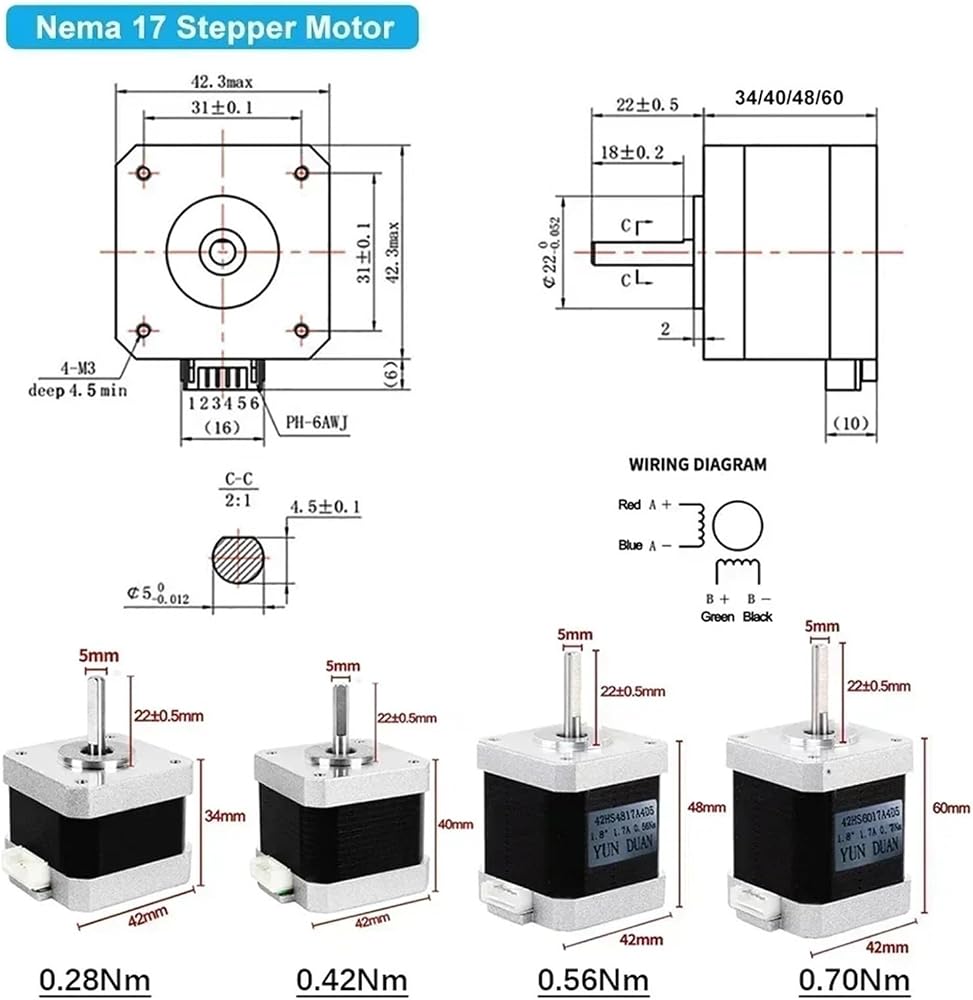

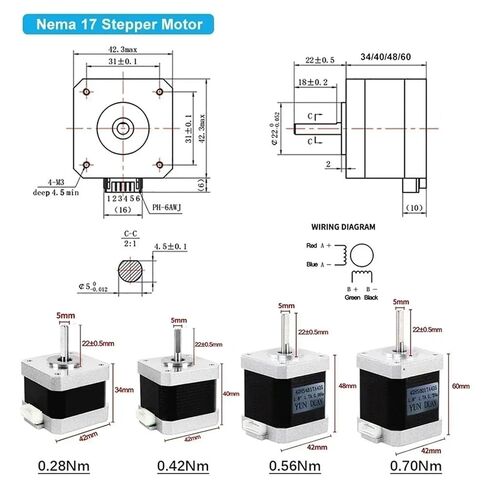

17 Open-loop motorParameter:
Model: 17 (42*42mm flange)
Shaft diameter: 5mm
Holding torque: 0.28Nm(34mm Body)/ 0.42Nm(40mm Body)/ 0.56Nm(48mm Body)/ 0.70Nm(60mm Body)
Type: Hybrid stepper motor
Phase: 2-phase
Certification: CCC,CE, ISO
Step angle: 1.8 degree
Rated Current:
0.28Nm Motor: 1.2A
0.42Nm Motor: 1.5A
0.56Nm Motor: 1.7A
0.7Nm Motor: 1.7A

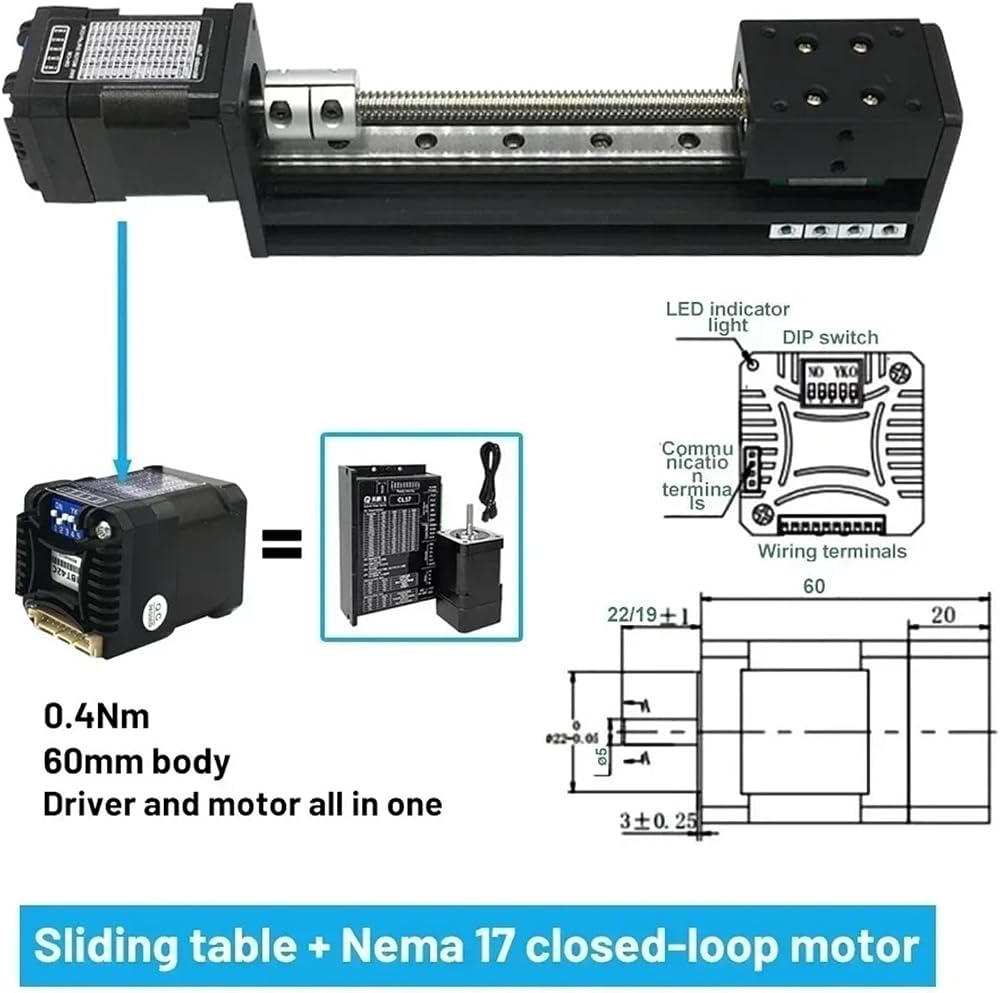

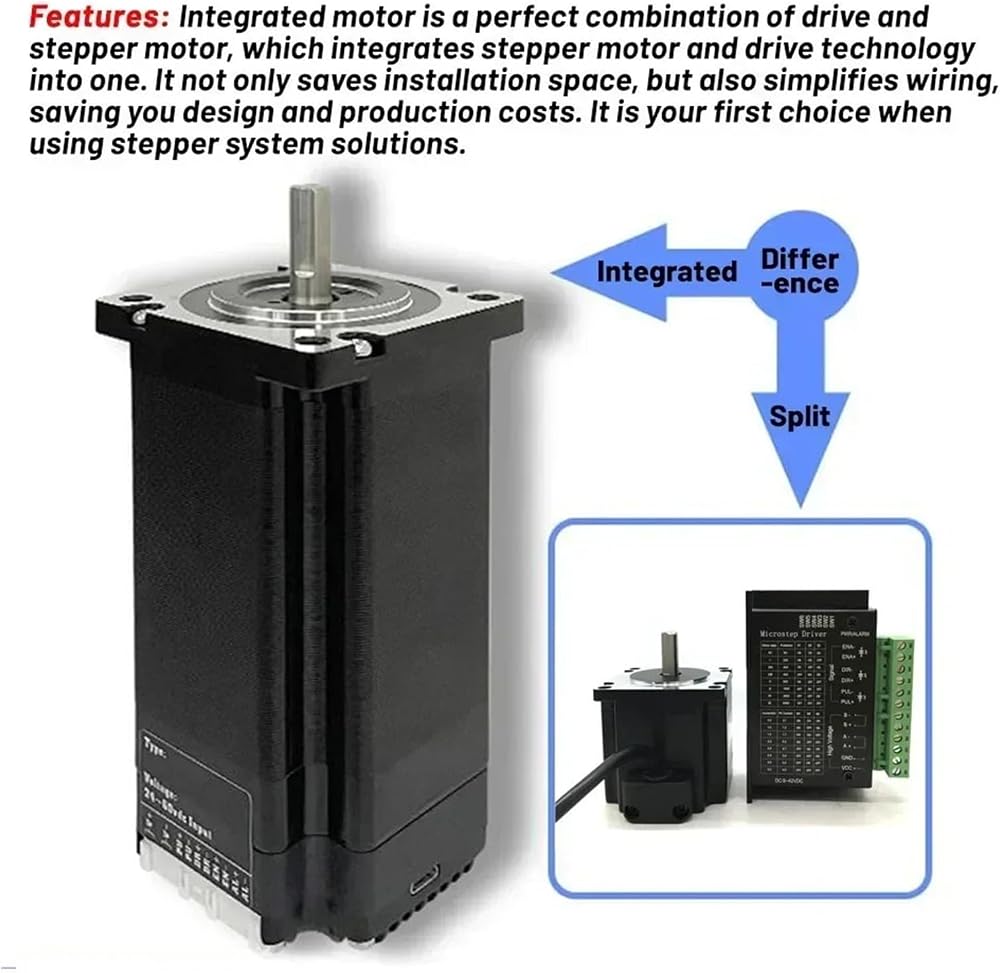

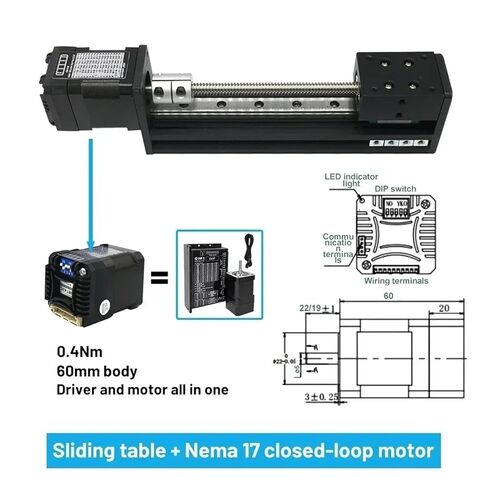

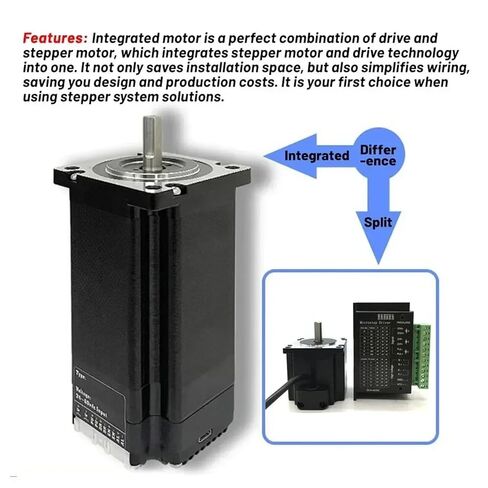

17 Integrated Closed-loop Stepper Motor Drive Parameter:
Type: DC 2 phase(2PH) Stepper Motor Driver kit
Rated torque: 0.4Nm/ 0.6Nm
Flange Size: 17 42mm
Shaft diameter: 5mm
Shaft Length: 22mm (0.4Nm Motor); 21mm (0.6Nm Motor)
Body Length: 60mm
Input voltage: 24VDC~48VDC
Output current: 1.5A (0.4Nm Motor); 2.5A (0.6Nm Motor)
Moment Of inertia: 57g.cm² (0.4Nm Motor); 116g.cm² (0.6Nm Motor)
Phase Resistance:0.43 (0.4Nm Motor); 1.3 (0.6Nm Motor)
Encoder specification: 1000 line Encoder
Working environment temperature:-5 ~45
Model Number : XT08
Guide Width or Diameter : 8mm
Horizontal load : 10KG (Max)
Vertical load : 5KG(Max)
Mobi
