Current Clamps
1 * DC 500A Shunt

9-in-1 measurement function: One interface displays 9 measurement parameters simultaneously, including voltage (0-200V), current (0-500A can be set from the menu), power (0-20000W), impedance (0-1000), internal resistance (0-999m), capacity (0-1000AH), SOC, energy consumption (0-9999kWh) and running time (0-999h)

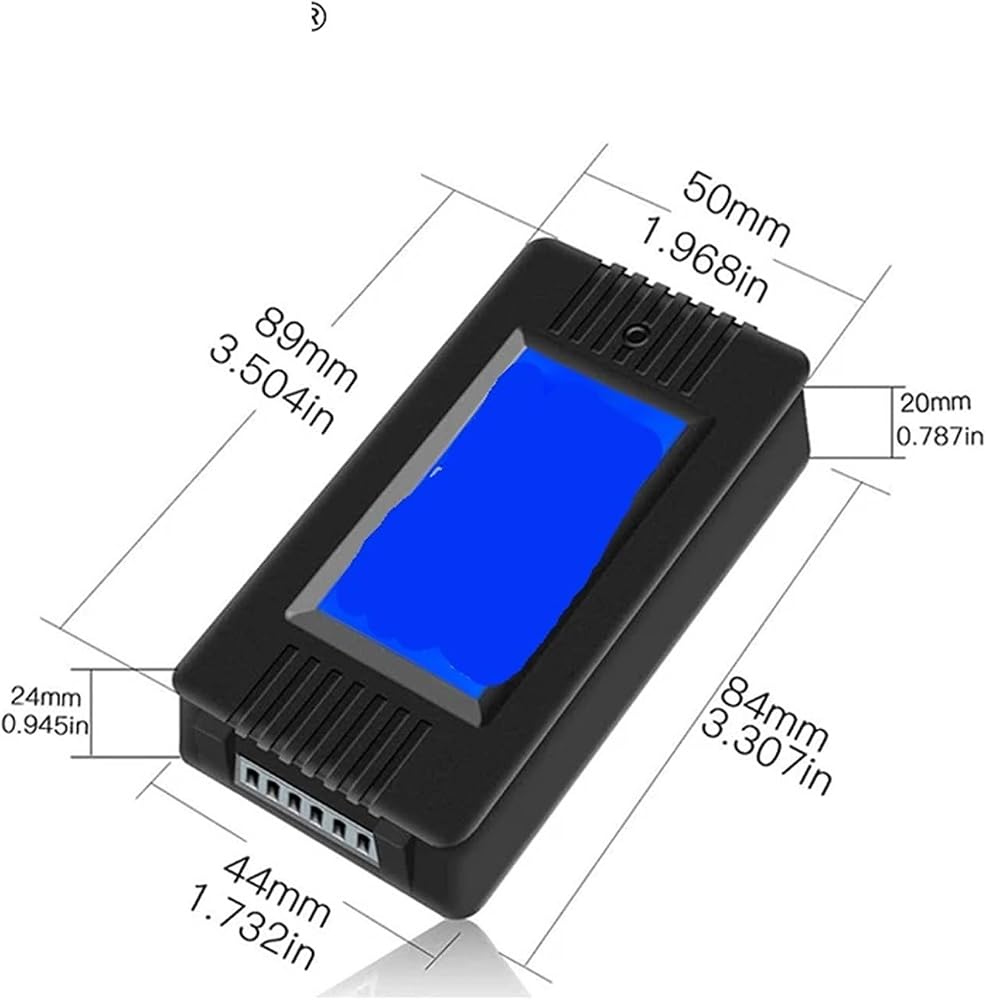

Size: With 500A shunt

Voltage
Measuring range: 0-200V
Minimum resolution: 0.01V
Start test voltage: 0.05V
Accuracy: 1%

Measuring range: 0-500A.
Minimum resolution: 1mA
Start test current: 20mA

Measuring range: 0-60000W
Minimum resolution: 0.01W
Startup test power: 0.2W
Accuracy: 1%
Impedance: Impedance = Voltage / Current
Measuring range: 0-1000

Range: 0-999 hours (no load, no time)
Display: 0:00:00-999:59

Working temperature: -40°C~+60°C
Supply voltage: DC
Display Type: Numbers only
