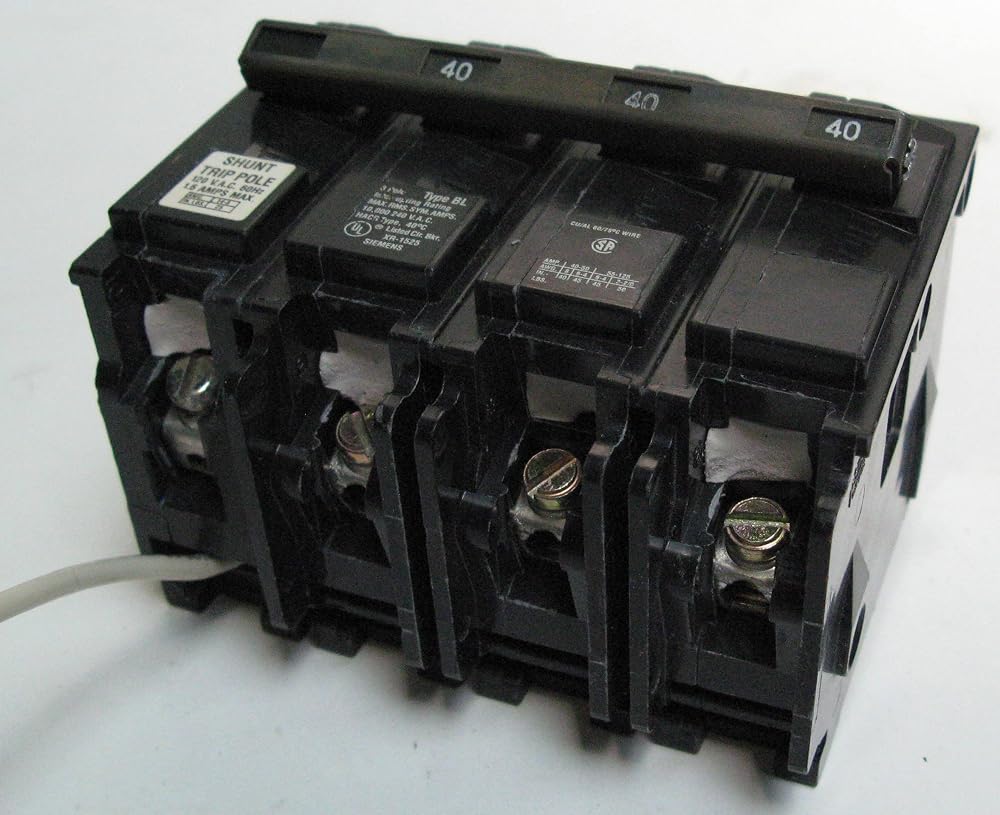

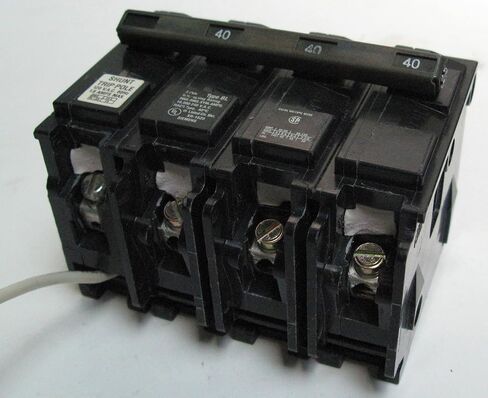

Bolt On Circuit Breaker, 40 Amps, Number of Poles 3, Circuit Breaker Type Shunt Trip, AC Voltage Rating 240VAC, DC Voltage Rating Not Rated, For Use With Siemens Panelboards, Series B, Terminal Connection Lug, Max. AIR Rating 10 kA, Frame Size BL, Min. Wire Size 8 AWG, Max. Wire Size 6 AWG (Cu), 4 AWG (Al), Length 3.56 In., Width 3.00 In., Depth 3.00 In., Standards UL, HACR Rated
Specification
Item: Bolt On Circuit Breaker
Max. Wire Size: 6 AWG (Cu), 4 AWG (Al)

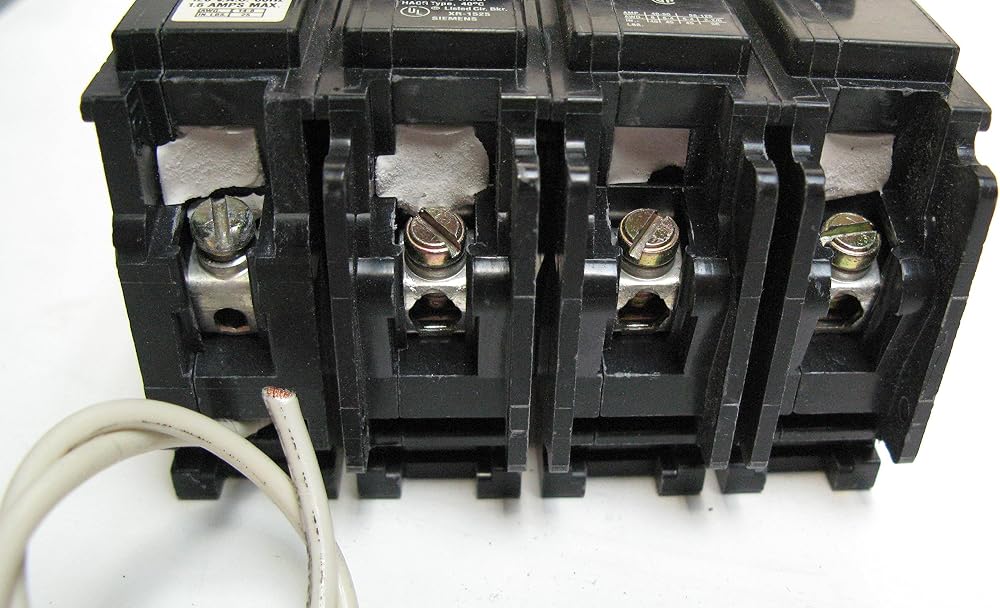

Terminal Connection: Lug

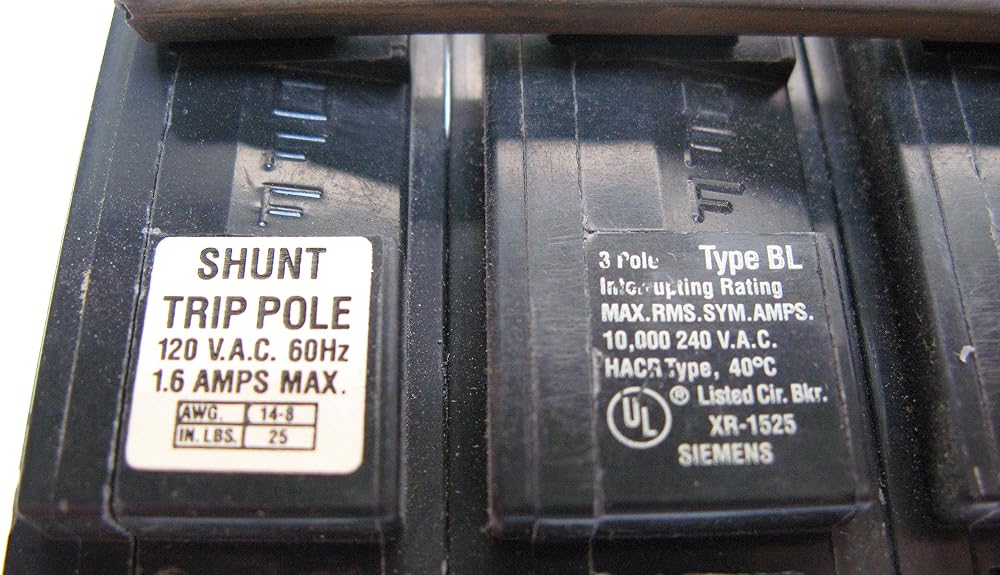

Circuit Breaker Type: Shunt Trip

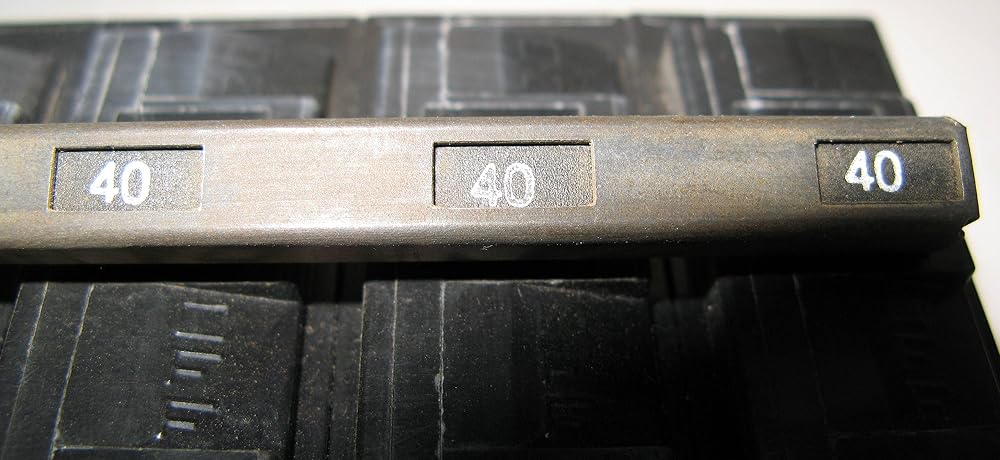

Amps: 40
DC Voltage Rating: Not Rated
For Use With: Siemens Panelboards
Series: B
Depth: 3.00"
Standards: UL, HACR Rated
Max. AIR Rating: 10 kA
Mounting: Bolt on
AC Voltage Rating: 240VAC
Number of Poles: 3
Width: 3.00"
Frame Size: BL
Length: 3.56"
Min. Wire Size: 8 AWG
