Current Probes

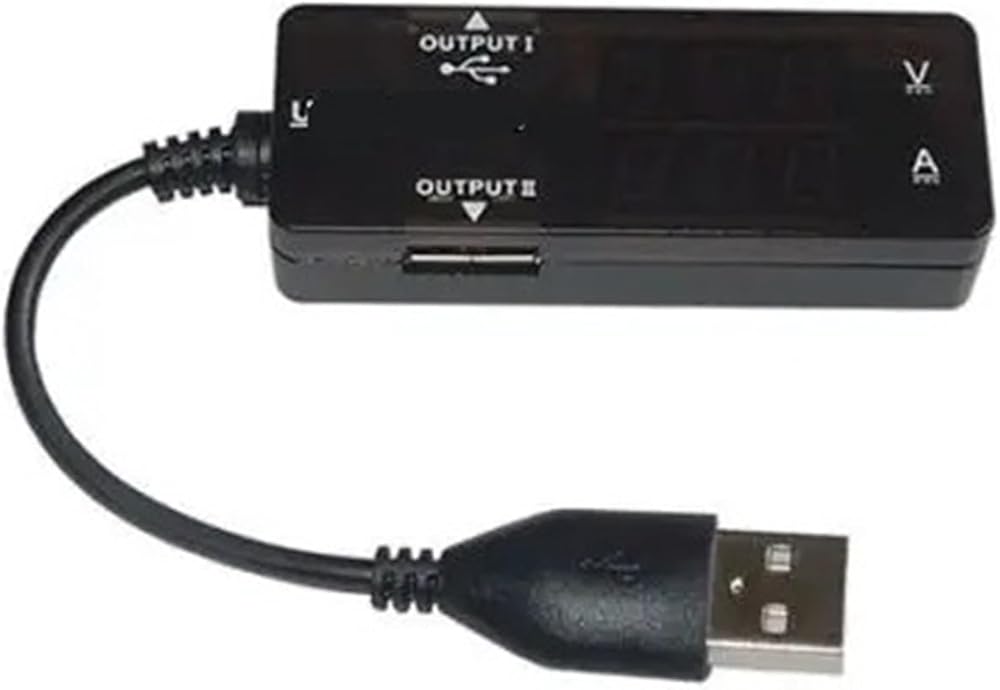

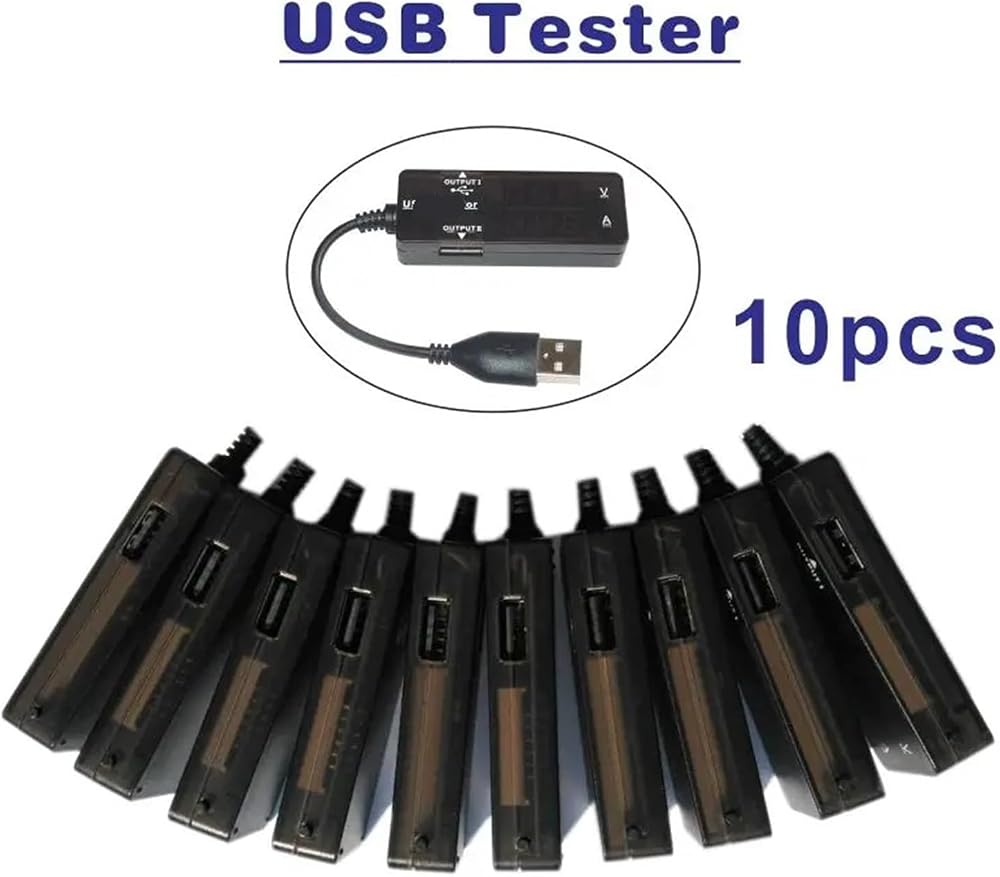

U indicator digital voltmeter ammeter voltage ammeter U detector power meter U charger DC voltage ampere panel meter 10 pieces

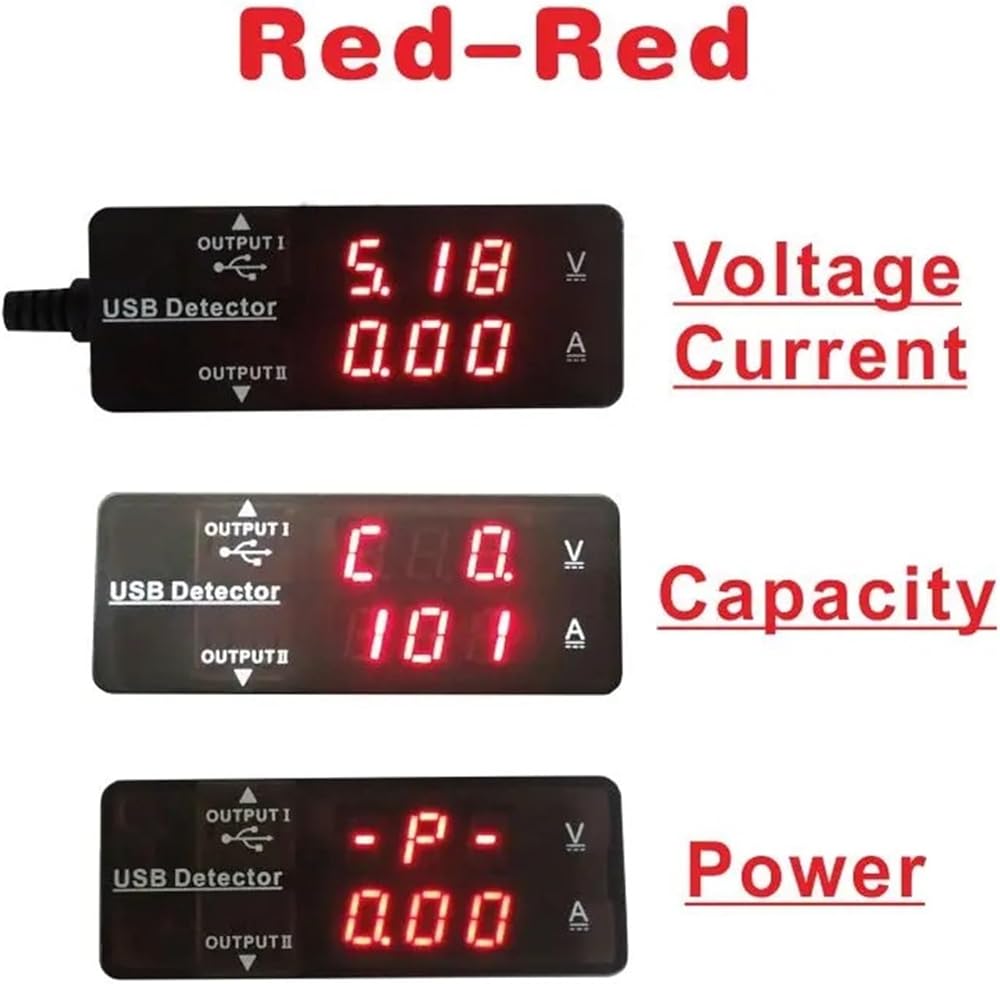

1. This instrument can test real-time voltage, current, power, and cumulative charging or discharging capacity. It does not have the function of boosting voltage, current, or discharging device.
2. The size of the charging or discharging current is determined by the USB device to be charged by the charger.
3. As the charging time increases, the charging current gradually decreases, which is normal.
4. When testing the capacity of the power meter, only the sum of the outputs of the two U ports is calculated, excluding the front-end equipment and the conversion efficiency of the back-end equipment;
Please bypass if you need ultra-high capacity accuracy.

Supply voltage, test voltage: DC 3.20~30.0V
Test current: 0~3A (maximum 10A, if it exceeds 3A, it will not work continuously)
Display: 0.28 inch LED
Dimensions: 69 x 26 x 19 mm
U extension cable: about 120mm
Measurement rate: 500mS/time
Accuracy: 1% (±2 digits)

Low supply voltage: +3.2V
Maximum supply voltage: +30V
Operating temperature: -10℃～+65℃
Working humidity: 10～80% (non-condensing)
Working pressure: 80～106kPa
Sunlight exposure: No direct exposure

Single input, dual output
Output 1 (two functions)

Output 2:

Dimensions: 69x26x19mm
Working temperature: -10~50 degrees
Power supply voltage: DC3.2-30V
Accuracy grade: 0.1% +/- 2 digits
Model: YB26VA
