Transformers

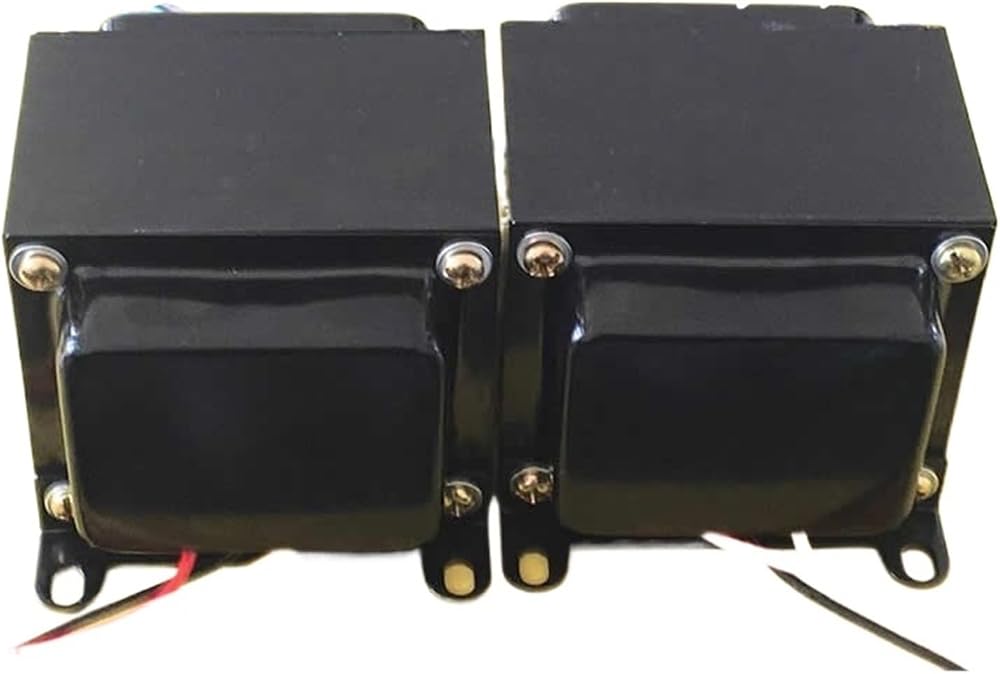

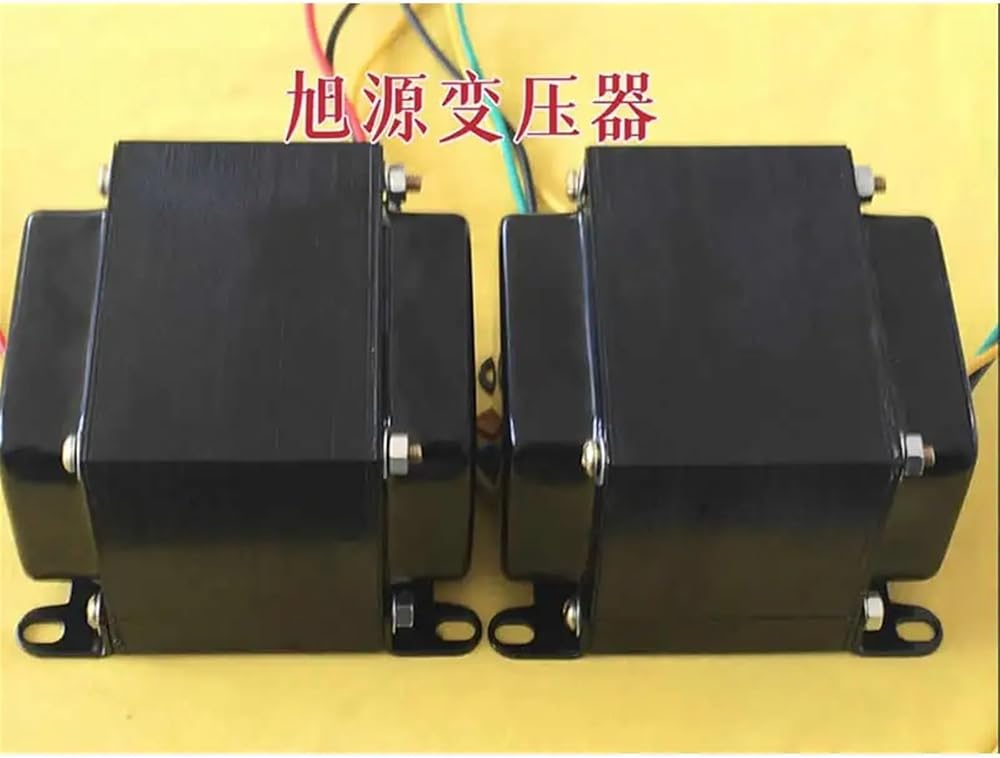

Transformer 20W 5K single-ended output amplifier transformer 76X50
Iron core 76 pieces stack thickness 50
Primary impedance 5K(B-G-P)G super linear connection
DC resistance 366 ohms
Secondary 0--4---8
Inductance 36 H
Single 1.9 kg
Volume length 77mm width 86mm height 66mm
Mounting hole length 65 mm width 80mm
