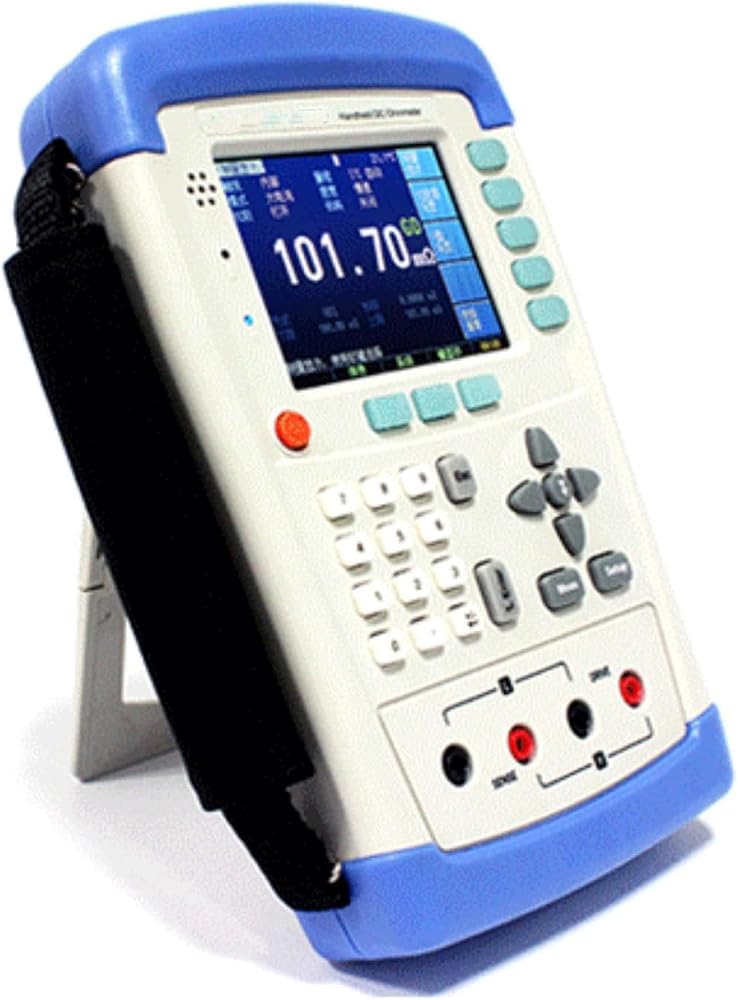

DC Low Resistance Tester Milliohm Meter Tester with Measurement Range 10μΩ～20MΩ Accuracy 0.05% Temperature Compensation Accuracy 0.2°C Test Range 0～80°C Data Retention Function
Handheld DC low resistance tester is a high-precision, wide-range, high-performance 32-bit ARM microprocessor control of fully automatic real-time detection of miniature handheld instruments, in any occasion for a long time to achieve the passive components for accurate and convenient measurement. The instrument can test the resistance of 10μΩ～20MΩ, displaying 20000 digits. Its unique current test mode can be adapted to the different requirements of the test.
Equipped with Mini-USB communication interface for remote control and data acquisition and analysis. 3.5 ‘HD lcd large screen display, large font display is more convenient for you to read the data, built-in high-capacity lithium battery can be a long time standby is more convenient for you to carry out mobile measurement for a long time. Handheld low resistance tester can measure a variety of high, medium and low value resistors; instrument built-in temperature compensation module, temperature compensation for temperature-sensitive devices.
Handheld low resistance tester can be convenient to measure a variety of switch contact resistance; connector plug resistance; relay wire wrapping and touch resistance; transformers, inductors, motors, deflection coil winding resistance; wire resistance; car, boat, aircraft metal riveting resistance ‘printed circuit board lines and holeing resistance, and so on.
Benchtop DC Resistance Tester Micro Ohm Meter with Measurement Range 0.001mΩ~2.2000MΩ Bad Contact Detection Function Temperature Compensation Function Compatible with SCPI Instruction Set
SAR 5,420
Transformer Winding Resistance Tester Winding DC Resistance Tester with Maximum Output Currents 20A Measuring Range 0.001Ω to 20KΩ Resolution 0.1μ Ω Programmable Switch Power Supply Technology
SAR 9,850
Digital Transformer Winding DC Resistance Tester with High-Speed Micro Controller Output Current Automatic,10A,5A,1A,300mA,100mA,<5mA Stable Instrument Measurement Dat
SAR 5,383
10A Transformer DC Resistance Tester with Accuracy 0.2% Resolution 0.1 μ Ω for Installation,Overhaul,on-Load Tap-Changer Replacement,handover Testing and Preventive Testing in The Power Sector
SAR 5,383
