Cross Roller Guides

وصف

Cross Roller Guides
Package Included:
1 X Sliding Table(Not included Motor)
1 X Free Coupling(8mm-8mm)
Table Features :

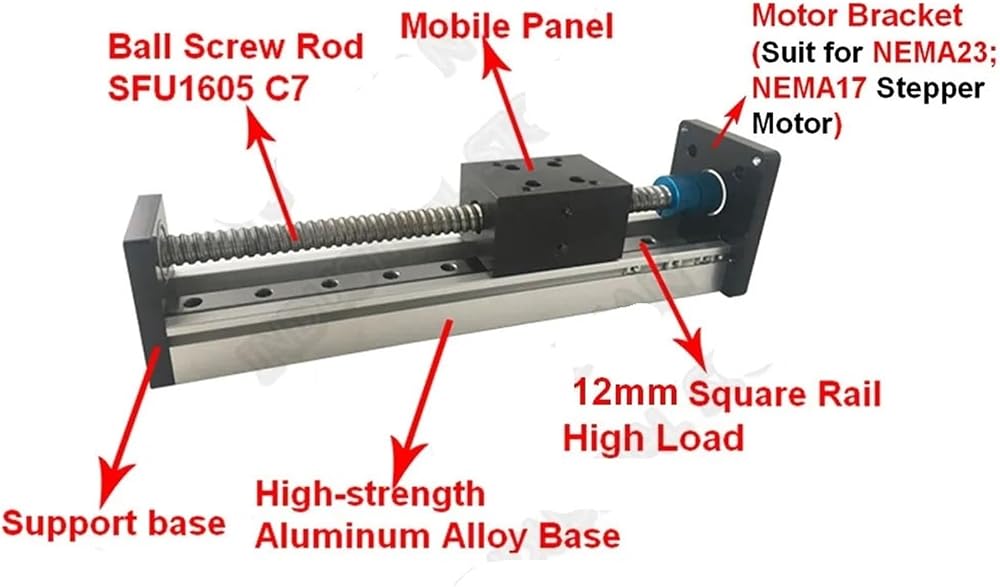

Model:DXG6042-1605

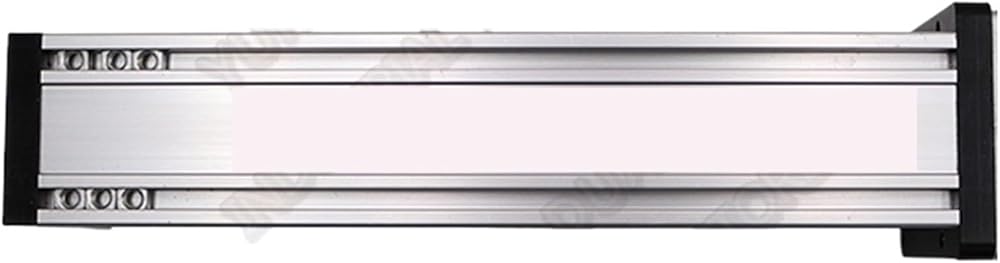

Slide Material: Industrial Aluminum Profile
Stroke:100-700MM (Effective Stroke)
Motor: Not included
Vertical load: 30KG(Max)
Mobile panel size:60mm X 42mm
Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 100mm/s
Rail width:12MM
Block:MGN12H
Screw Precision:C7
Screw Model:SFU1605(Diameter 16mm, lead 5mm , ball screw can be replaced by 1204/1610 C7 level,If you need to replace, please leave us a message when placing an order.)
Model Number : DXG6042-1605-100
Guide Width or Diameter : 12mm
