Cross Roller Guides

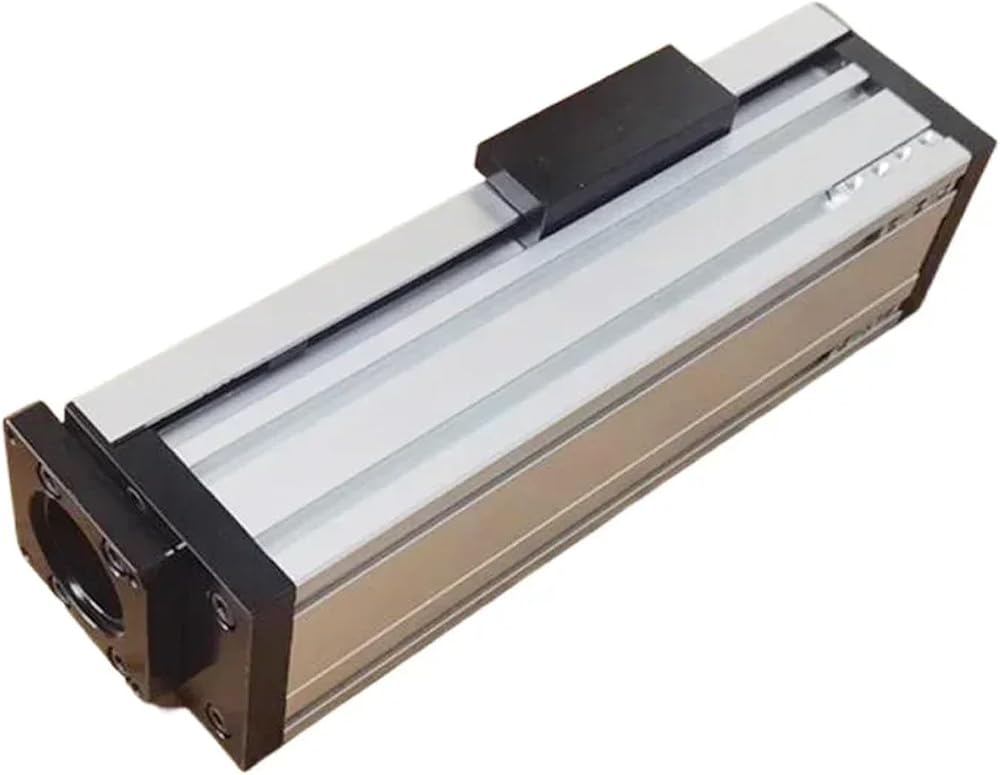

Model: QMF70
Module width: 70mm
Module material:Industrial Aluminum Profile
Effective Stroke: 100MM-1000MM
Guide:1*HGR15 (15mm width)
Block/ slider:1*HGH15CA
Ball screw material:Bearing Steel
Mobile table size: 70mm*90mm
MAX. Horizontal load: 50KG
MAX. Vertical load:25KG

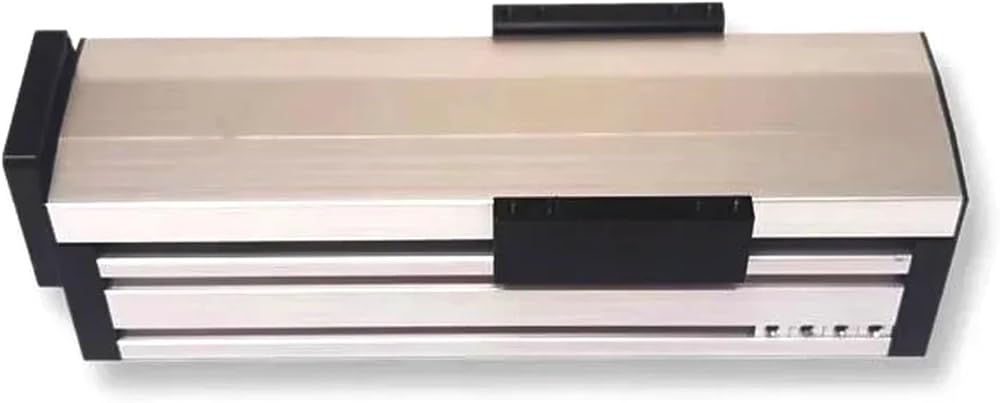

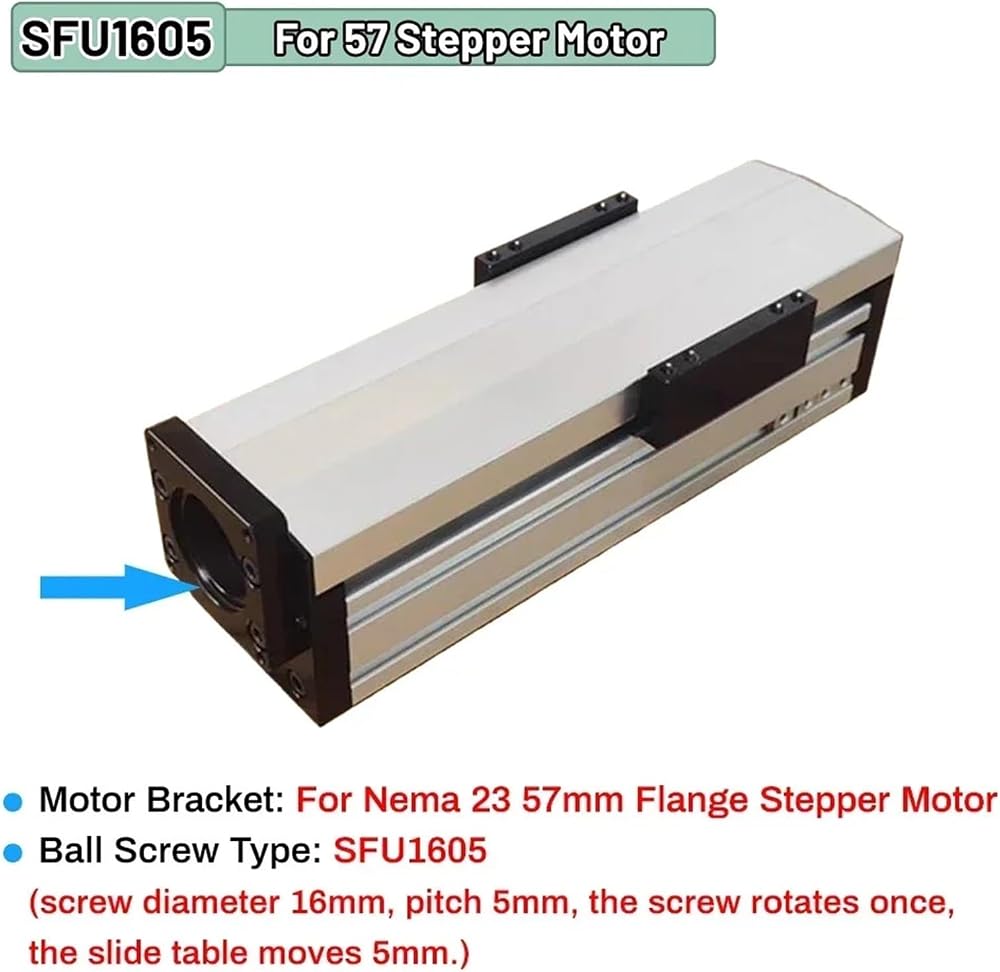

Motor bracket: Nema23 57mm stepper motor Or 60mm servo motor

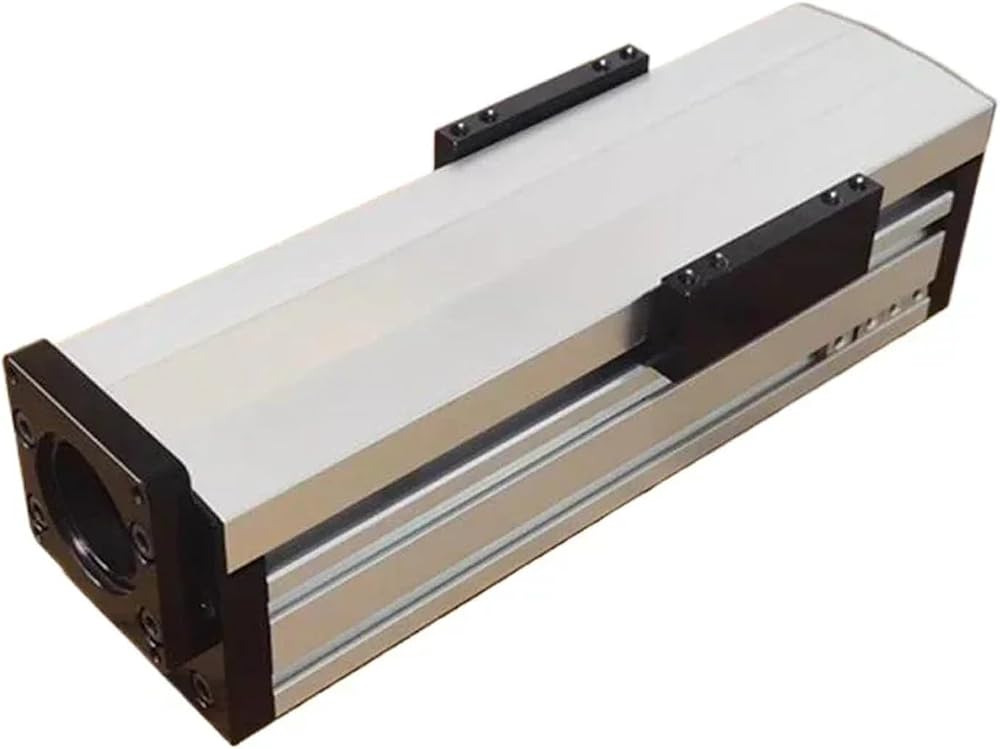

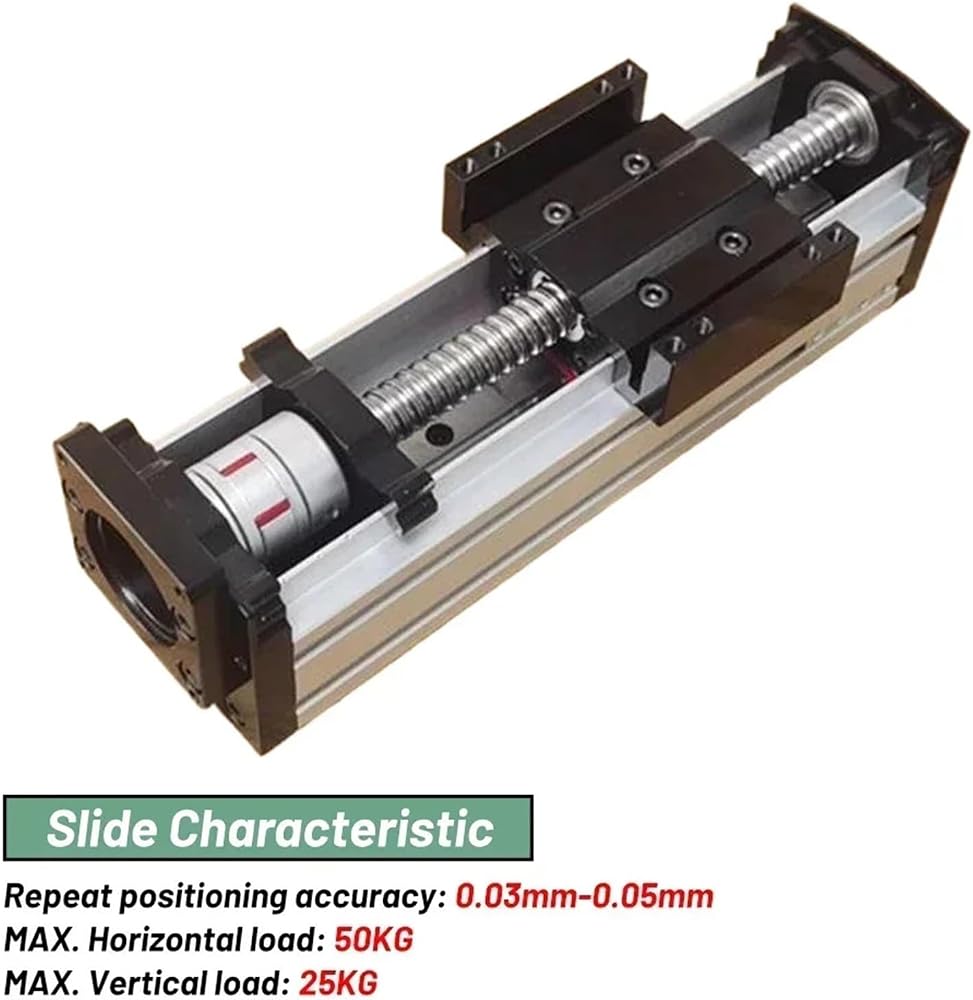

Repeat positioning accuracy: 0.03mm-0.05mm
Ball screw accuracy:C7
Ball screw material: Bearing Steel
Ball screw type: SFU1605/SFU1610Tips:
SFU1605 means screw diameter 16mm, pitch 5mm, the screw rotates once, the slide table moves 5mm.
SFU1610means screw diameter 16mm, pitch 10mm, the screw rotates once, the slide table moves 10mm
Model Number : QMF70
Guide Width or Diameter : 15mm
Effective Stroke : 100MM-1000MM
Module width : 70mm
Mobile table size : 70mm*90mm
horizontal load : 50kg
vertical load : 25kg

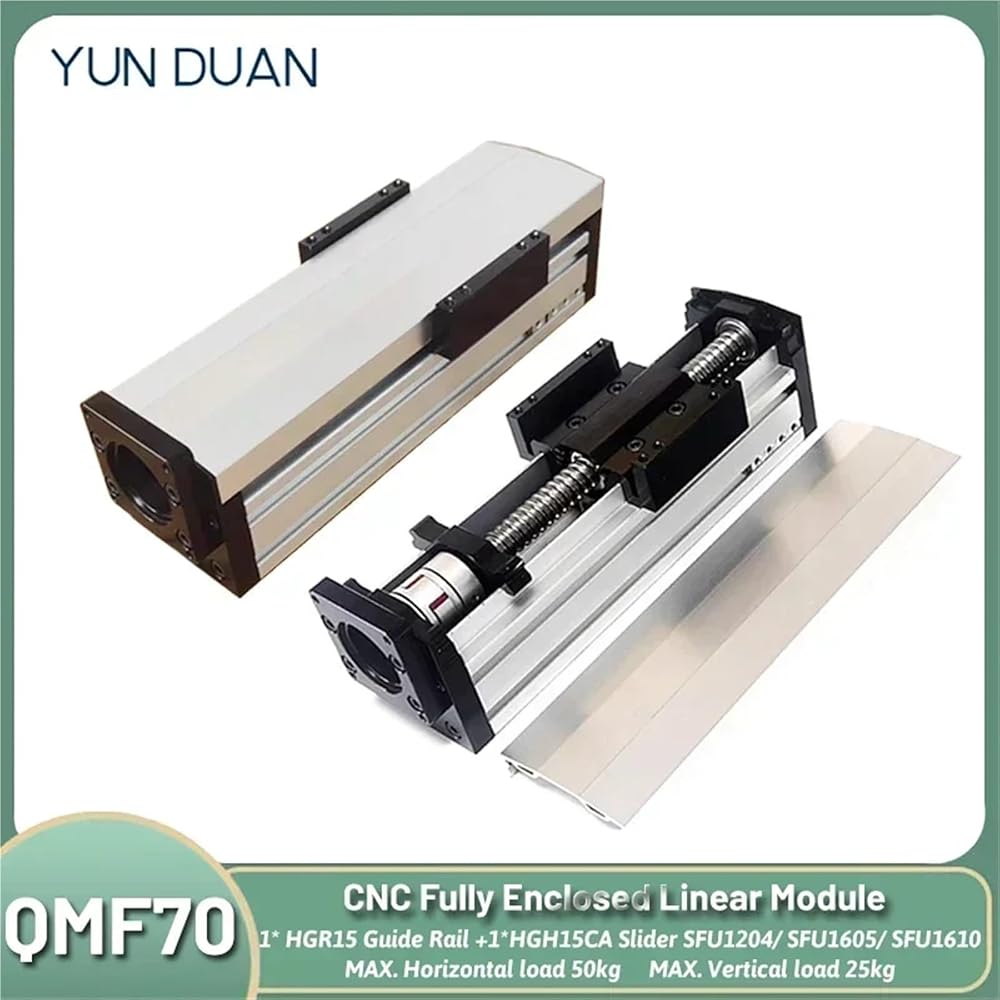

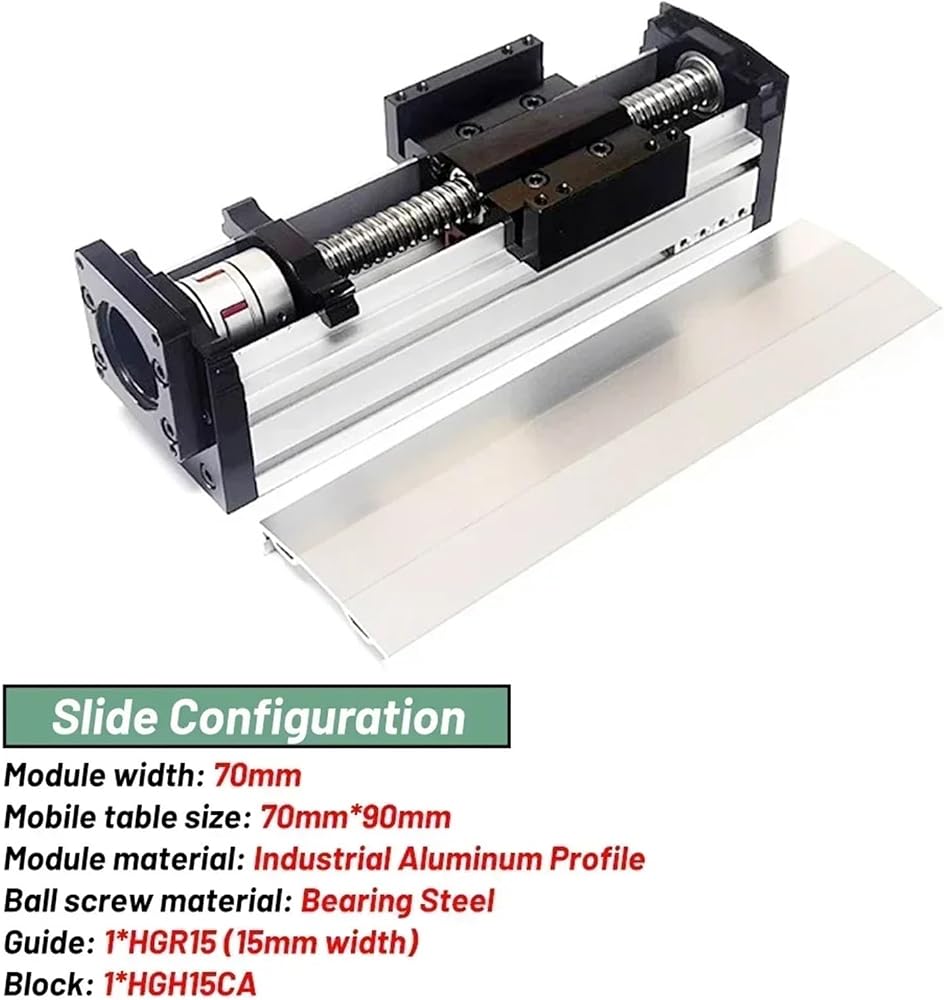

Guide : 1*HGR15 (15mm width)
Block : 1*HGH15CA
Repeat positioning accuracy : 0.03mm-0.05
Ballscrew type : SFU1605/SFU1610
