Isolation

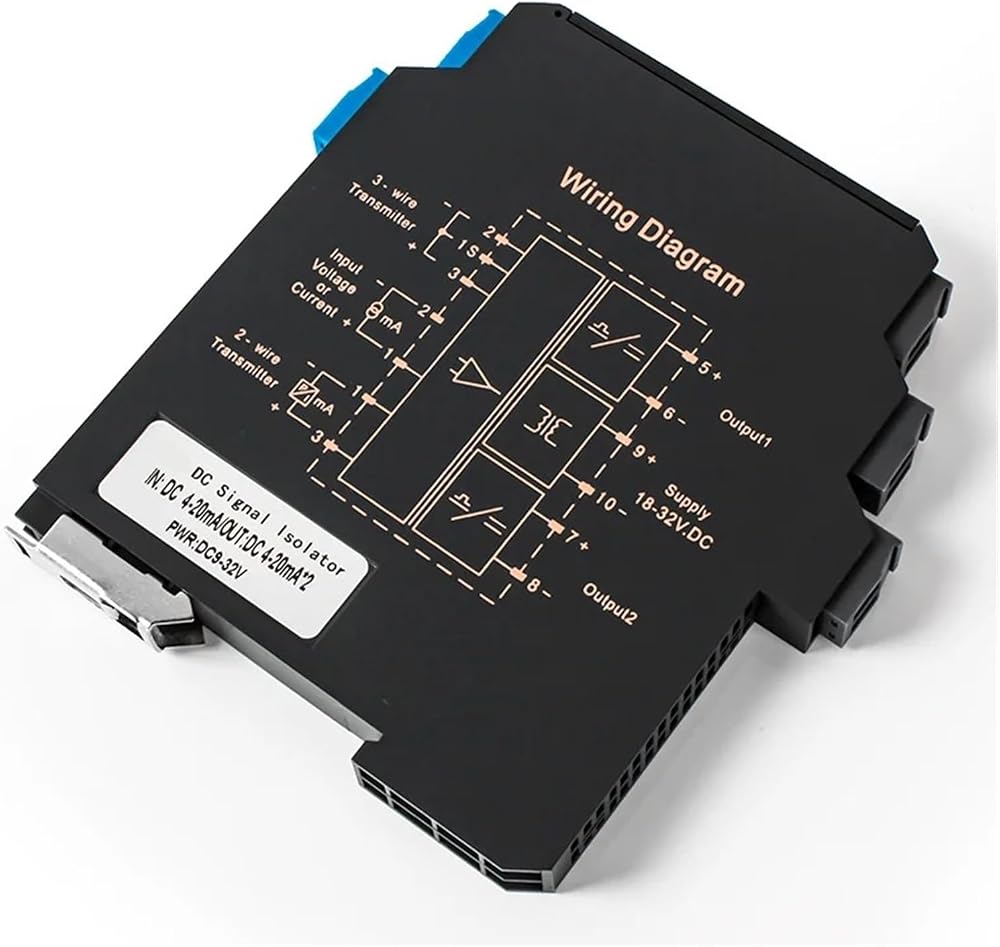

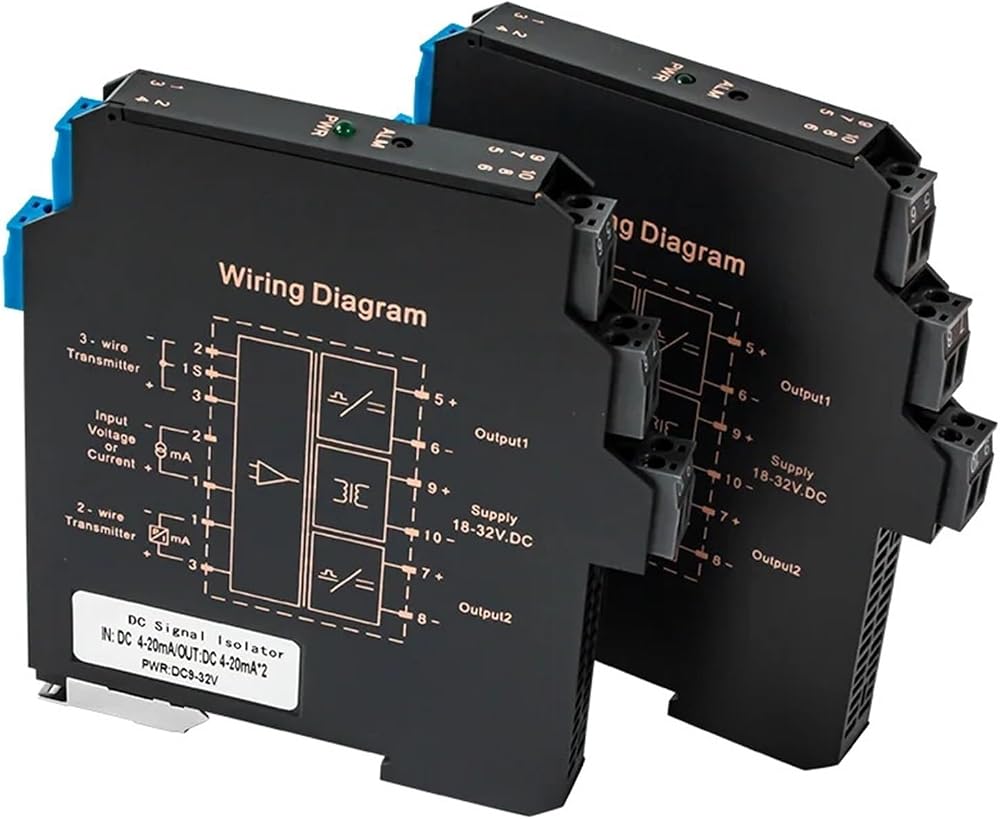

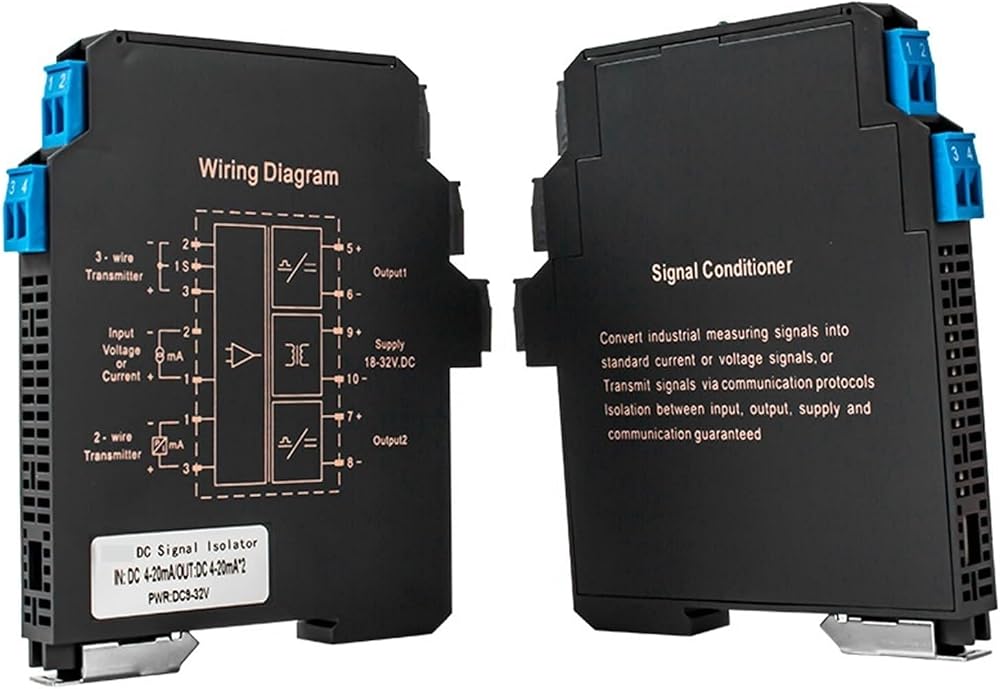

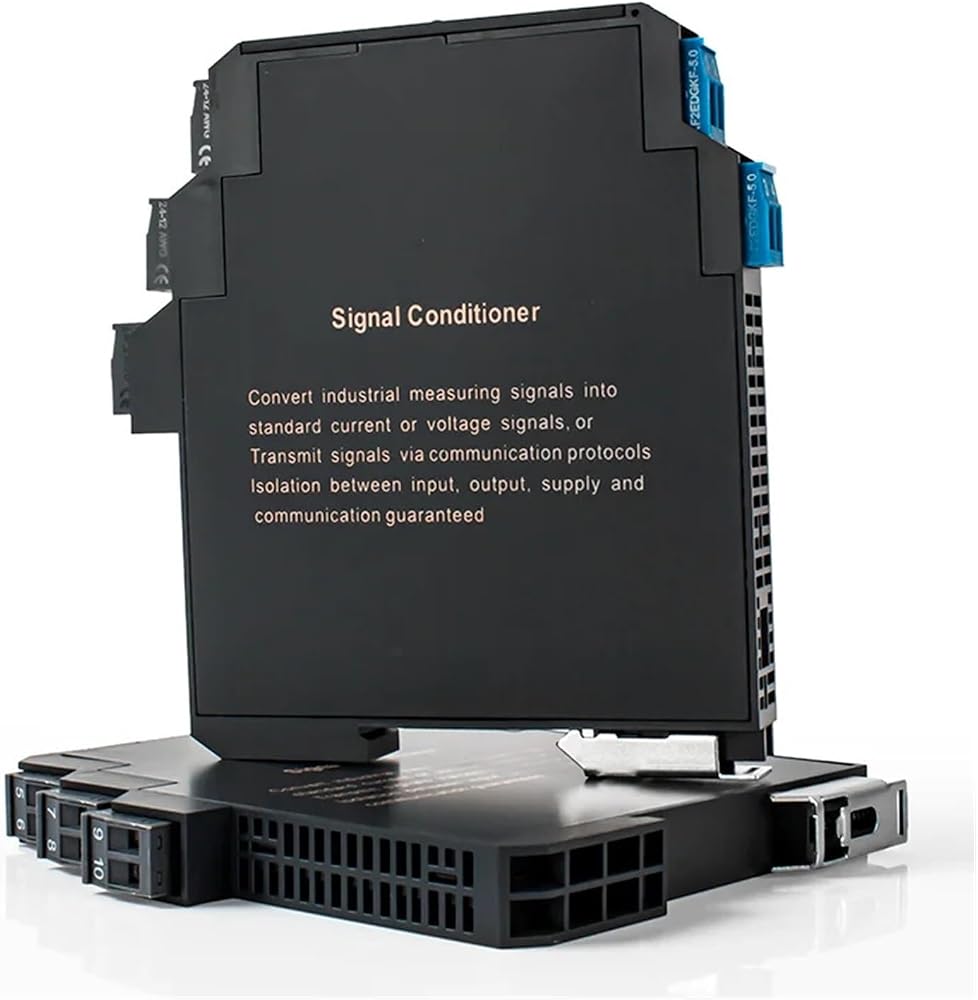

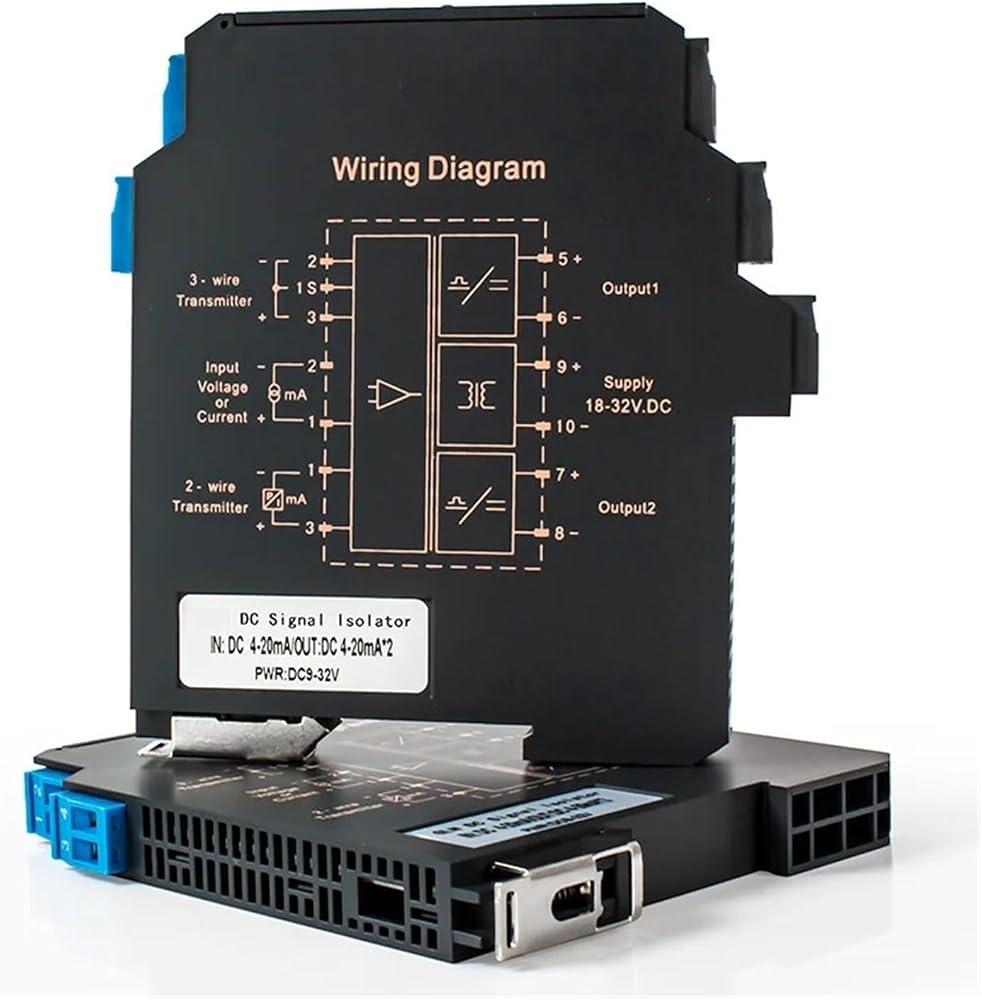

35mm DIN rail 4-20mA to 0-10V 2 in 2 out analog signal isolator 0-10V to 0-10V DC24V power supply signal isolator signal transmitter
Size: 114.5*100*12.5mm
Working temperature: -20~+55
Power supply voltage: 24V
Accuracy level: 0.1%
Input signal: 4-20mA; 0-20mA; 0-5V; 0-10V
Output voltage: 0-20mADC, 4-20mADC
Input load: Current type: 100; Voltage type: 300K
Operating temperature range: -20~+55
Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V
Insulation resistance: greater than 100MΩ at DC500V
Accuracy: DC24V, ±0.1%
Compressive strength: AC2KVrms/min
