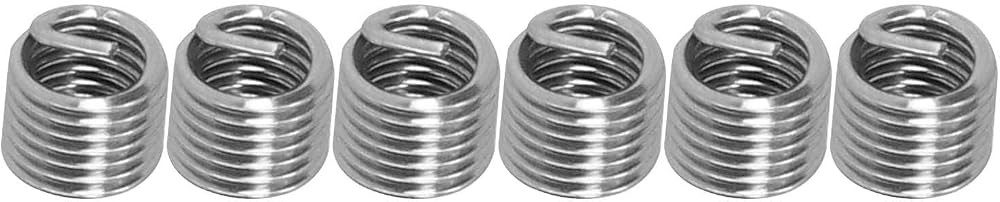

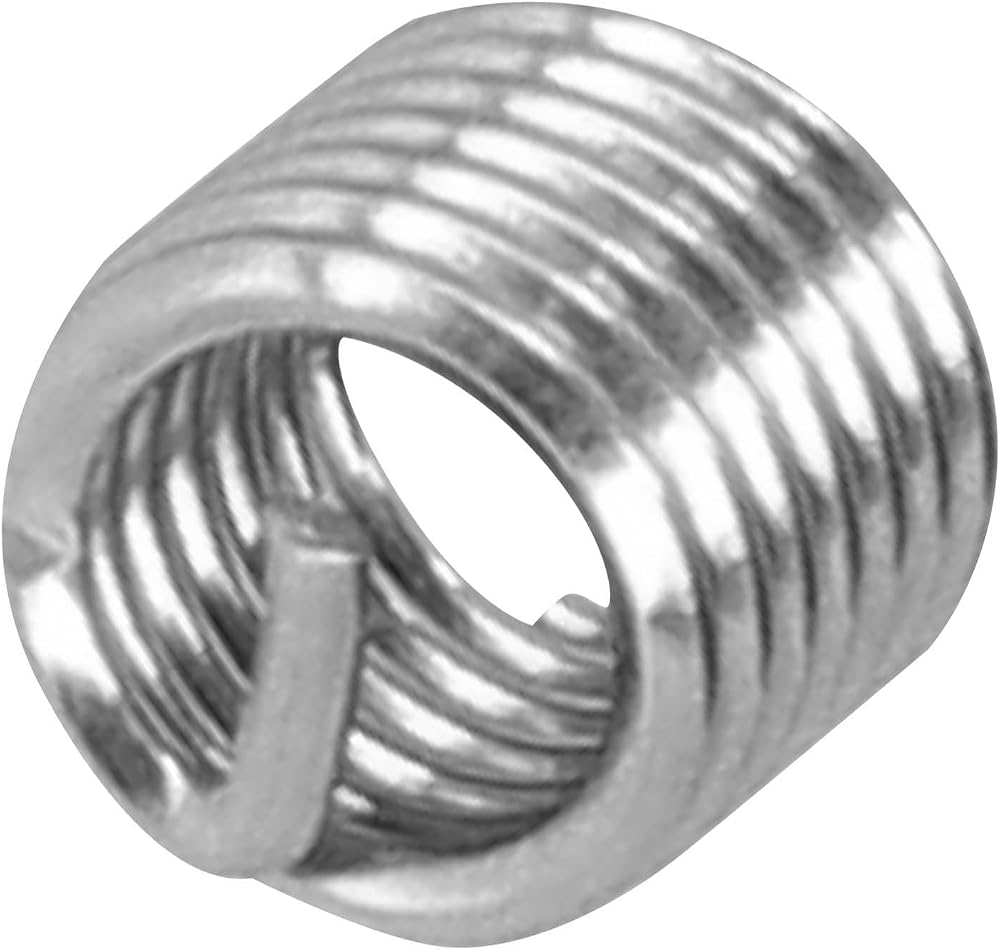

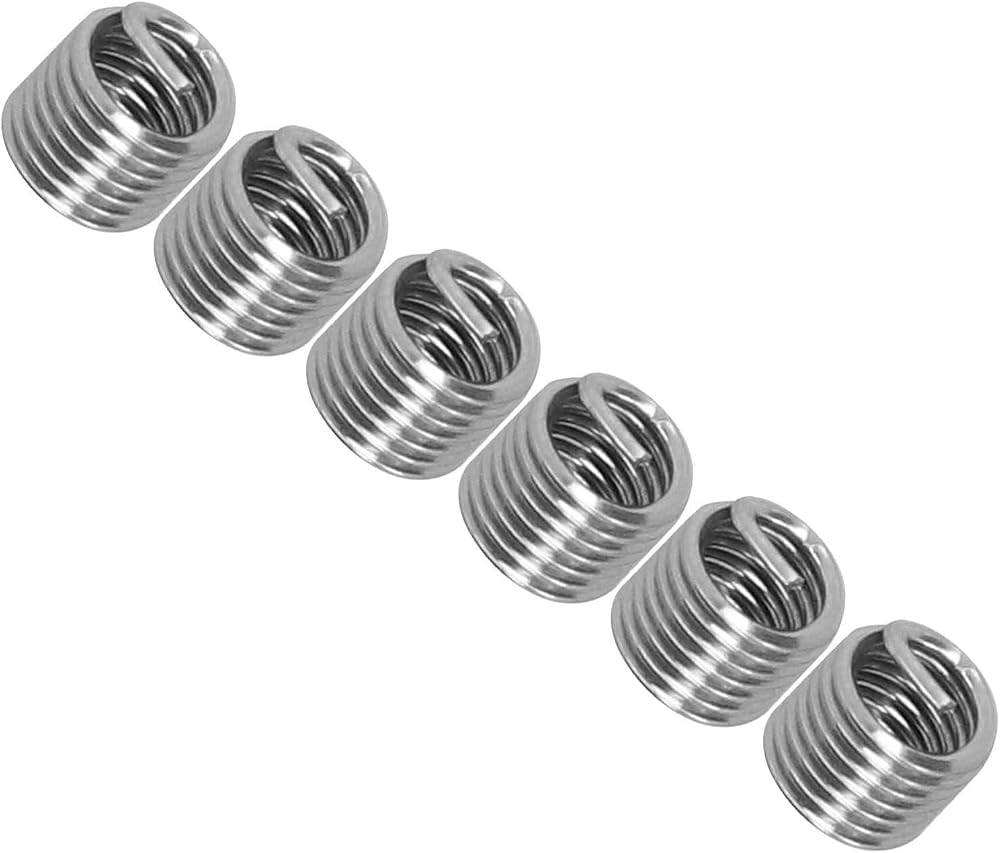

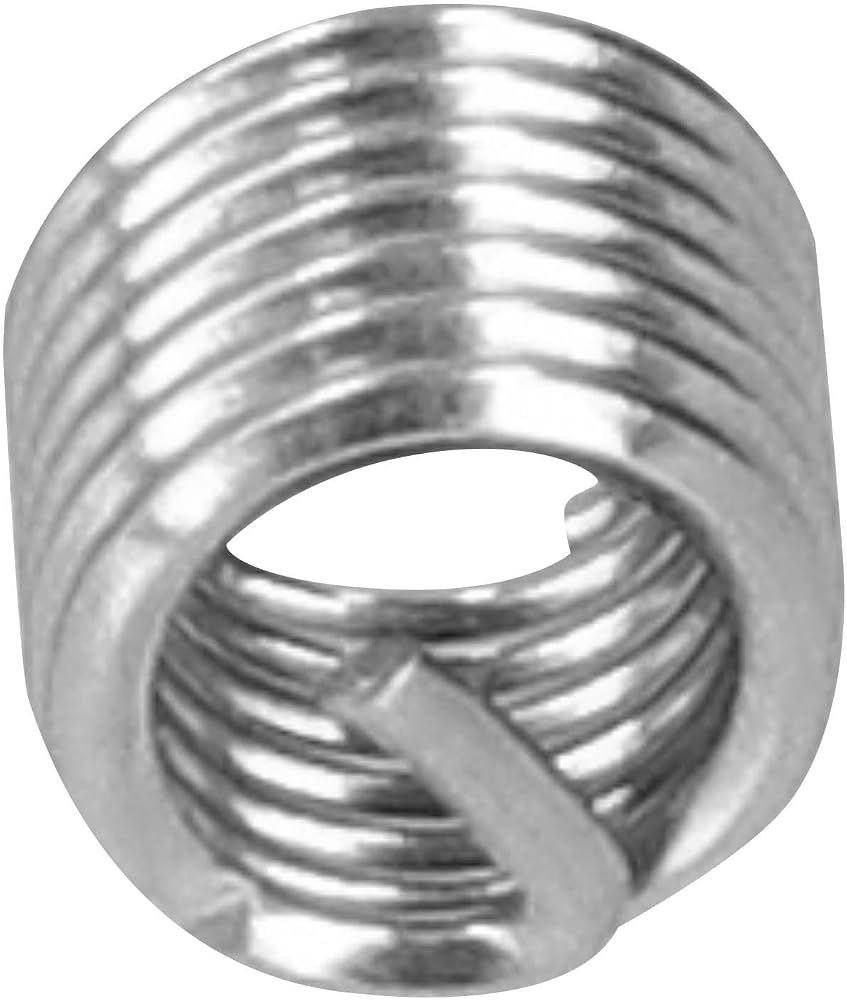

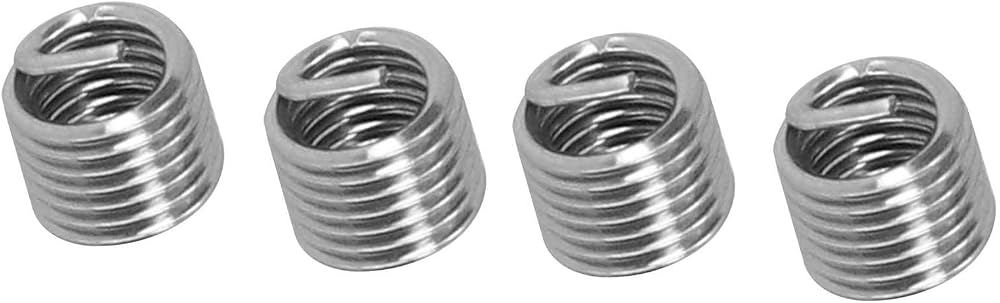

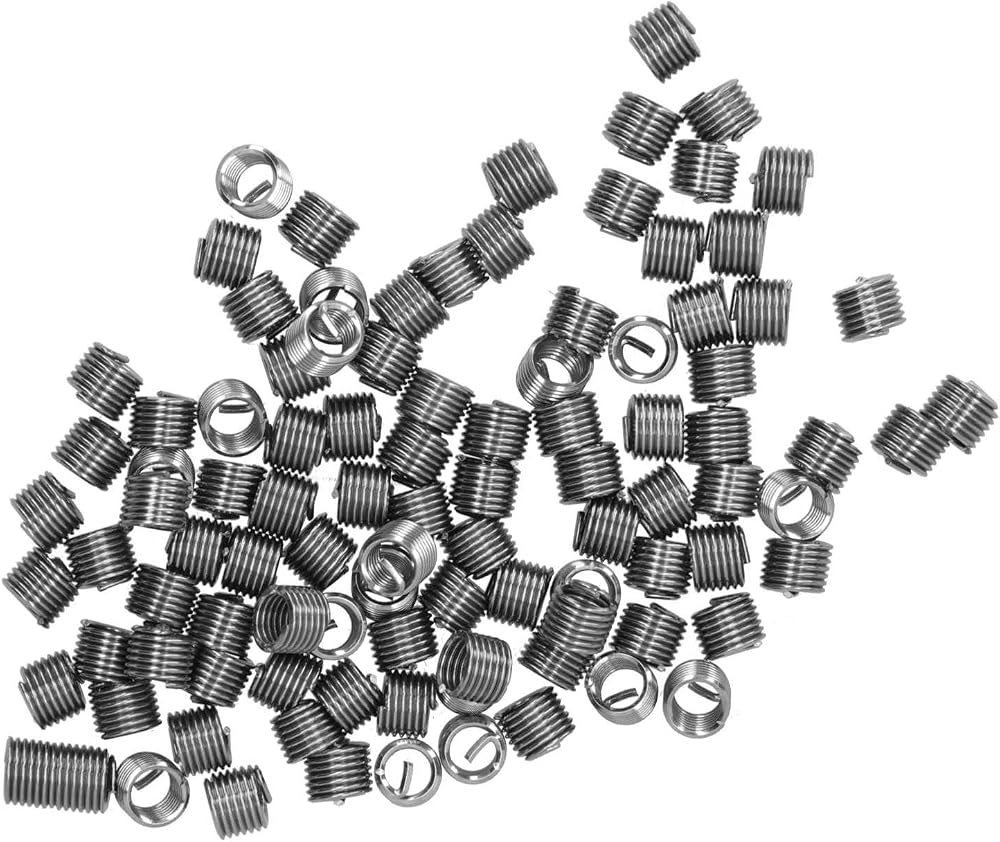

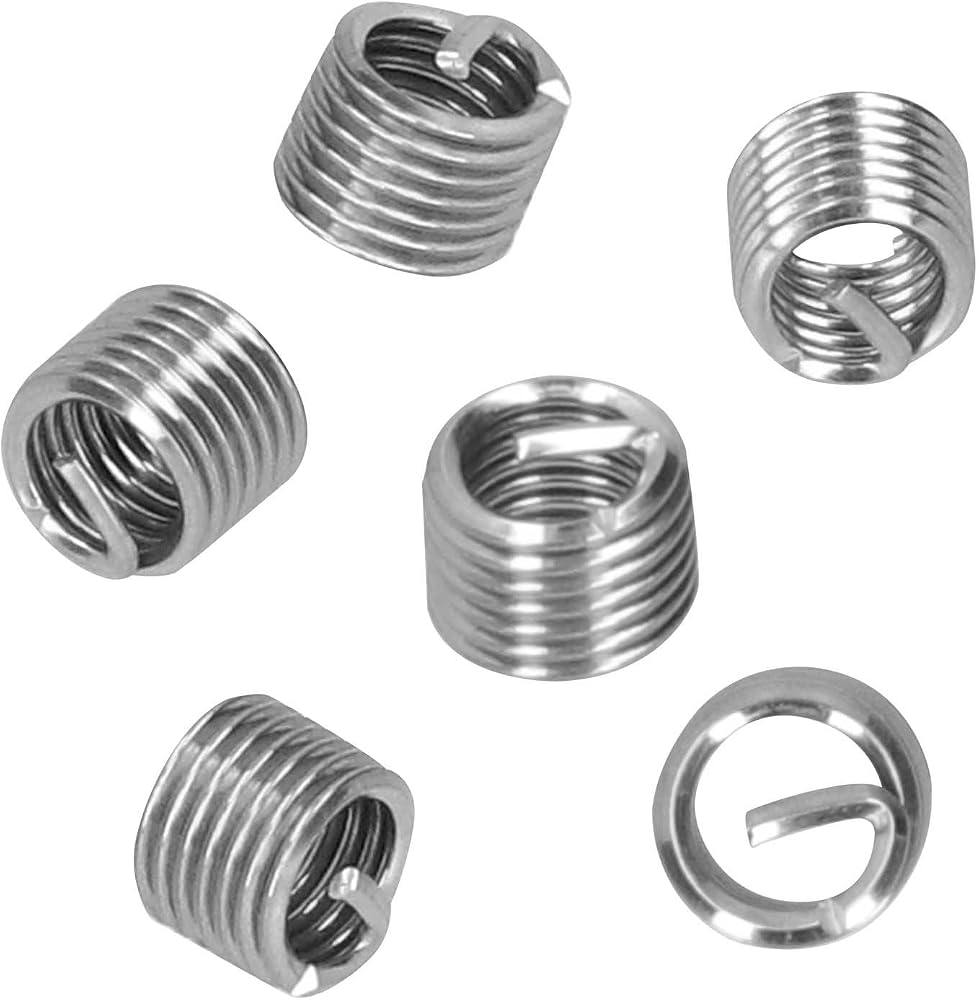

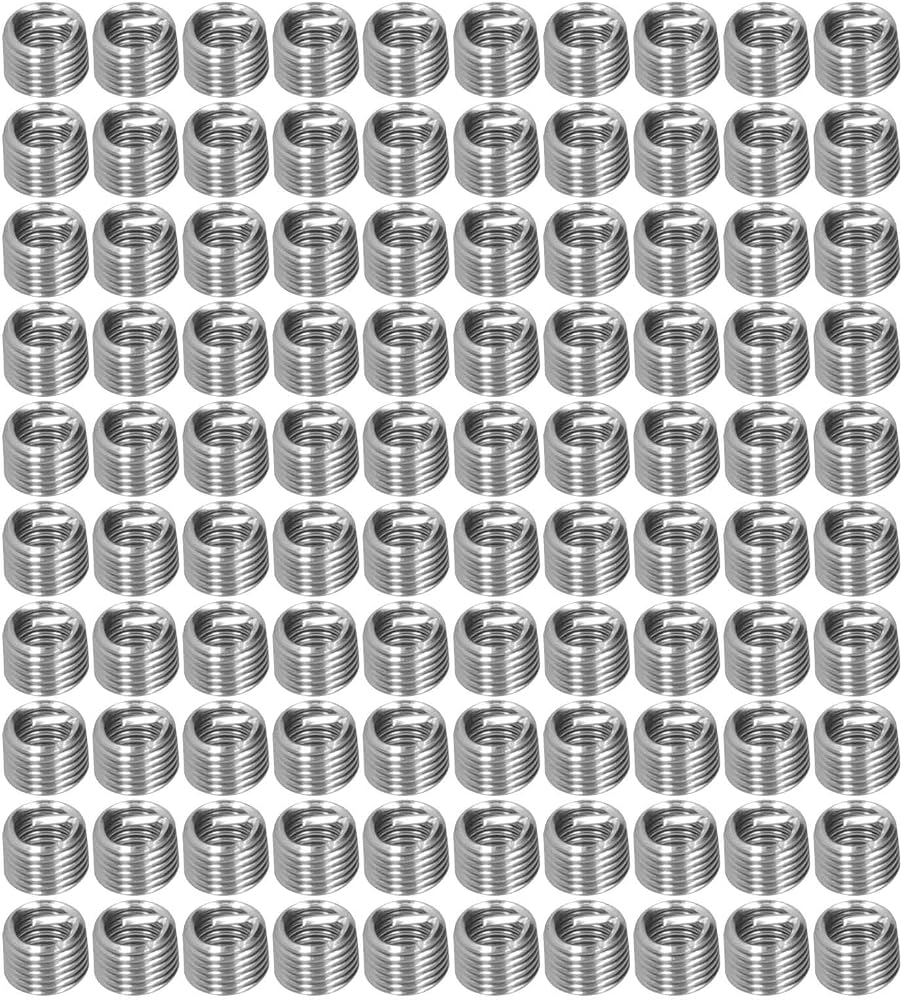

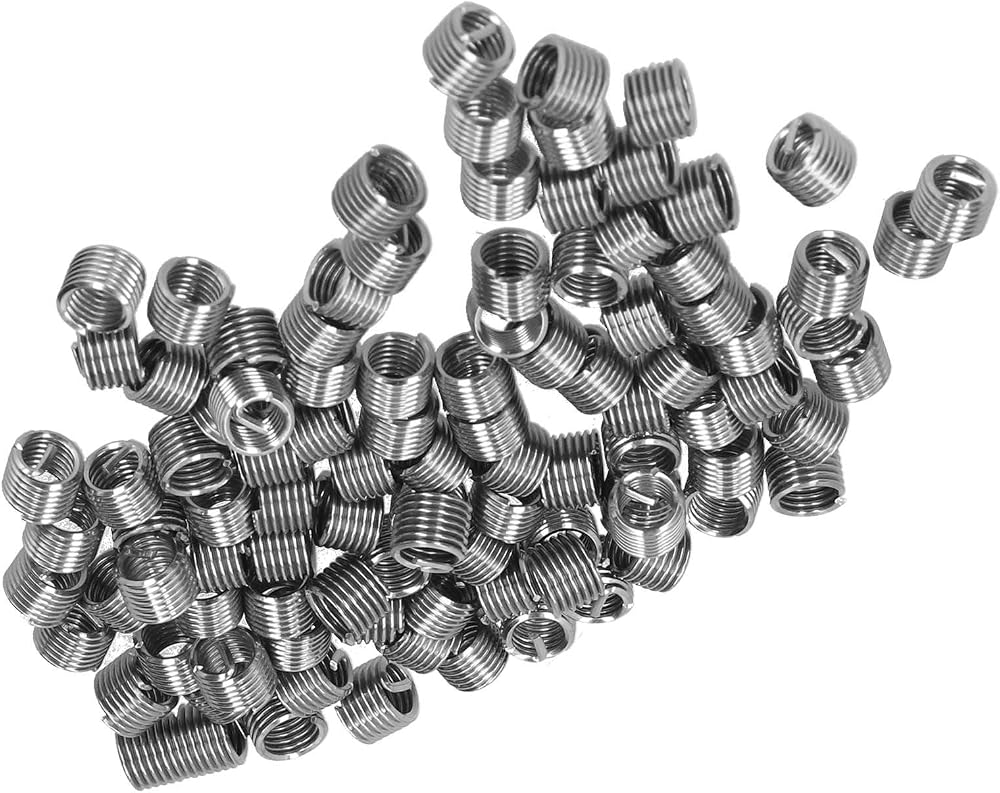

1. The product can form a high‑strength, wear‑resistant, high‑accuracy standard female thread if you fit the wire screw set in the screw hole of the workpiece of aluminum alloy and other materials
2. You can repaire the threaded hole in a cost‑effective manner. When a thread error occurs or a damaged female threaded hole is repaired, threaded insert is a repair method
3. These steel wire inserts can be used to convert between metric and inch thread holes, which is convenient and fast
4. A new type of female threaded fasteners. Adopt high‑strength, high‑accuracy diamond‑shaped cross‑section steel wire. Also called threaded sheaths, stainless steel threaded sleeves, wire sleeves
5. Works for improving thread strength and wear significantly when used on low‑strength engineering materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastics, etc.

Spec:
Item Type: Thread Inserts
Material: SUS304
Model: M6x1
Thread Specification: M6x1 (mm)
Outside Diameter Before Installation: Approx. 7.5 ~ 7.9mm / 0.3 ~ 0.3in
Diameter of Drilling Drill Bit for Installation: Approx. 6.3mm / 0.2in1.5D/2D/3D:
Length After Installation: Approx. 9mm / 0.4in
12mm / 0.5in
18mm / 0.7in
Number of Turns Before Installation: 6.9/9.6/14.9
Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.
How to Use:
1. Drilling
Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the
