Solenoid valve
Valves / Solenoid Valves

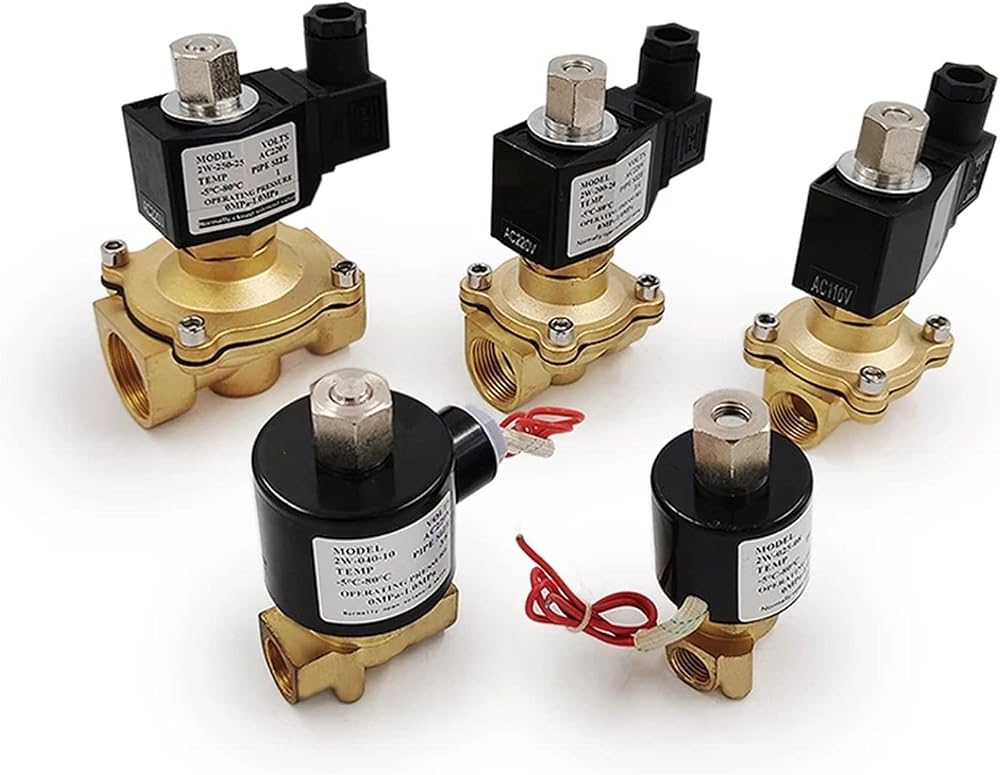

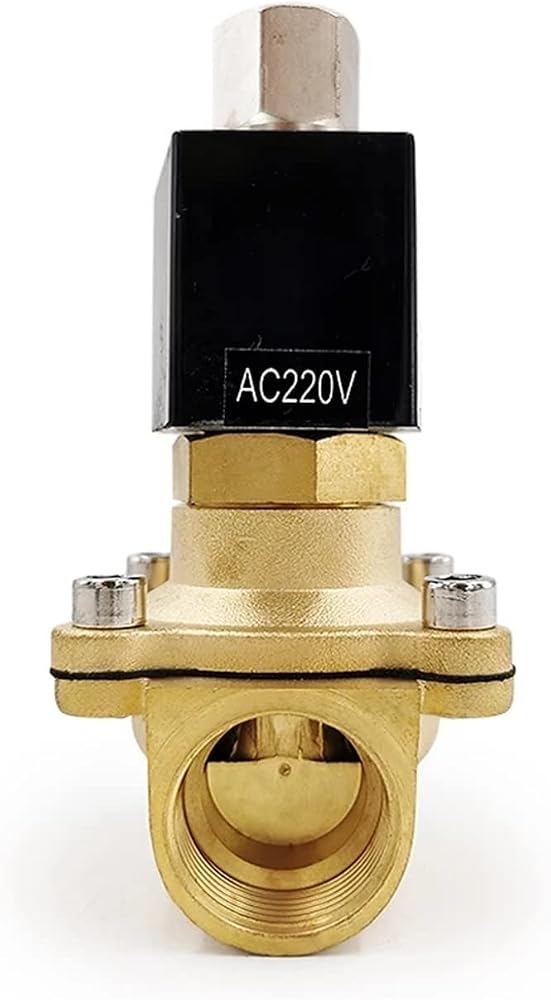

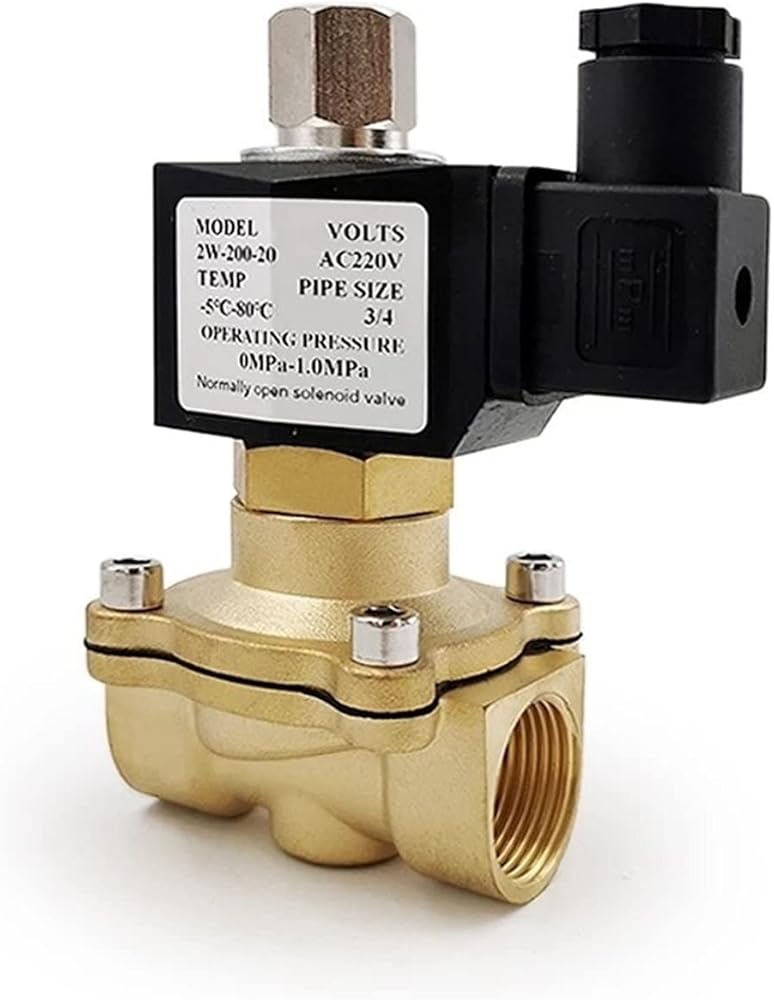

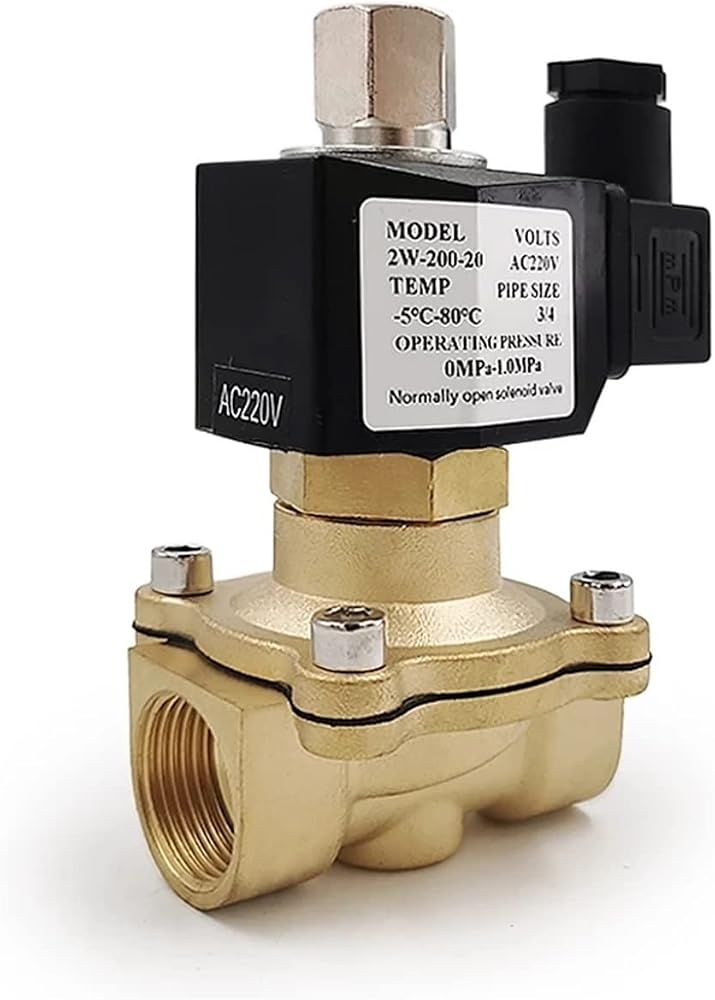

Name: Electric Solenoid Valve
Model: 2W025-08K 2W040-10K 2W160-15K 2W200-20K 2W250-25K
Material: Brass
Voltage: AC220V AC110V DC24V DC12V
Type: Normally Open type
Acting Motion: Direct action
Connecting Format: Inside thread
Pipe Diameter: DN08(1/4" ) DN10 (3/8") DN15(1/2" ) DN20 (3/4") DN25(1").
Nominal Diameter: DN08(2.5MM) DN10(4MM) DN15(16MM) DN20(20MM) DN25(25MM)
Fluid Temperature: -5~80
Work Pressure: 0-10Kg/cm2;
Class: IP6
Oil Seal Material: NBR

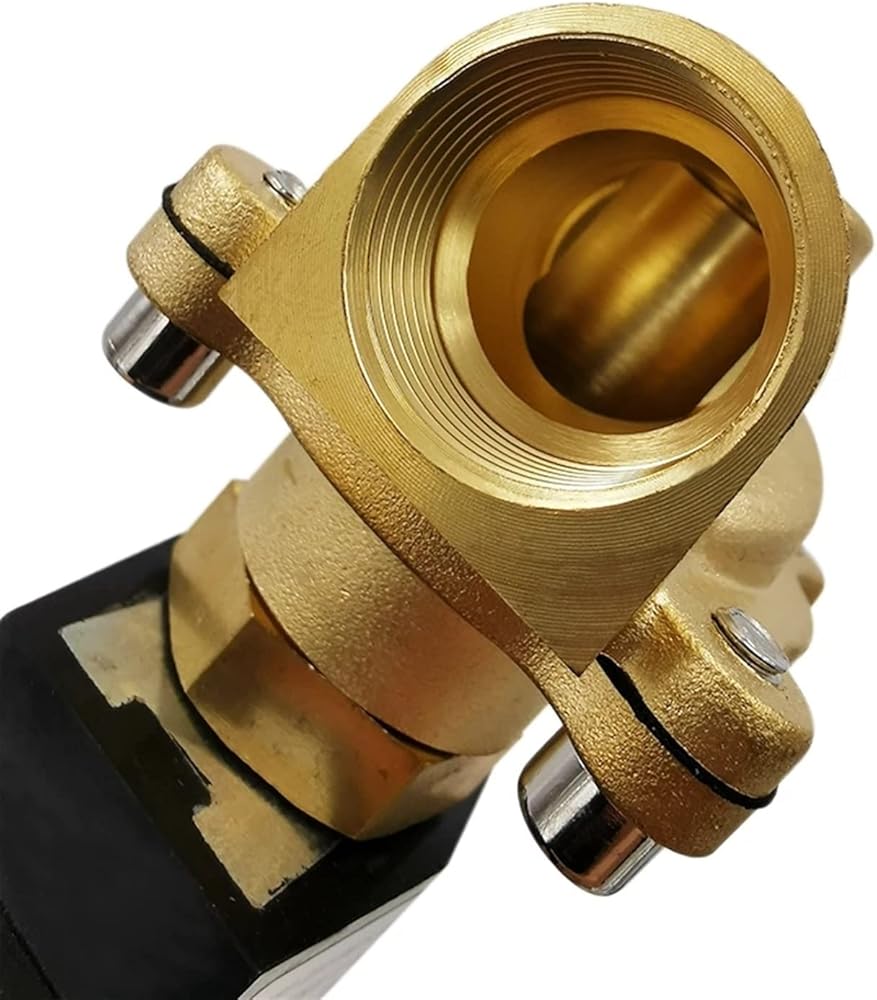

Ports: 1/4" 3/8" 1/2" 3/4" 1" Inlet and Outlet Ports.
Working Medium: Air Water Oil
Package include
1Pc x Solenoid Valve
Notice:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.
