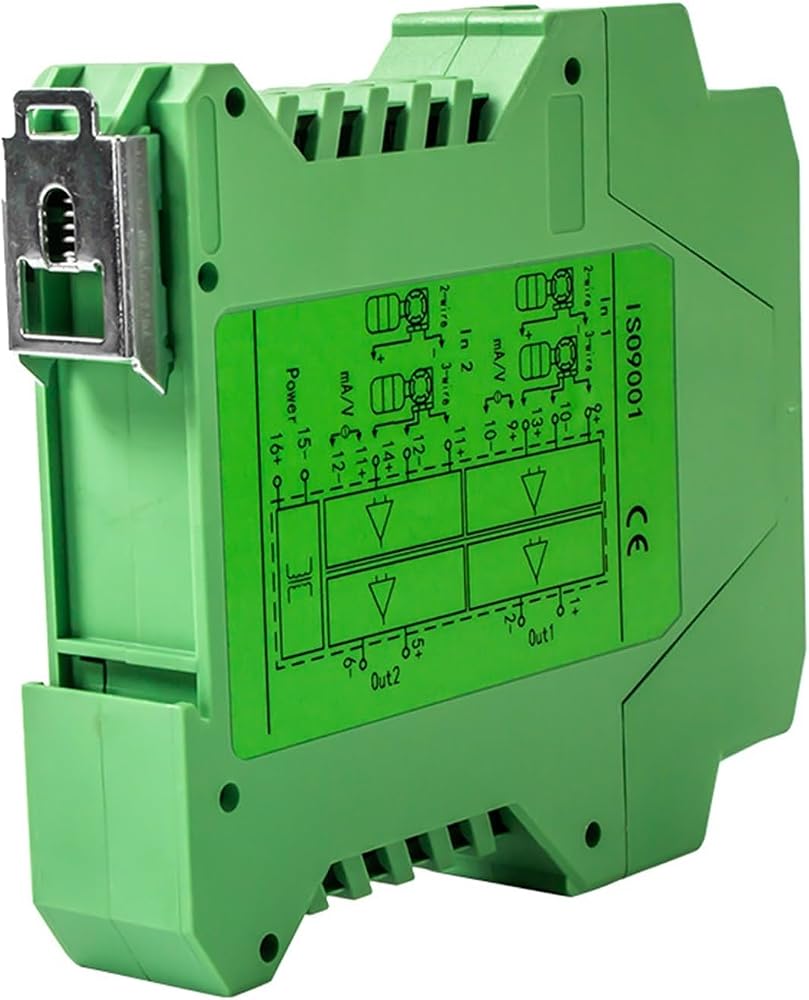

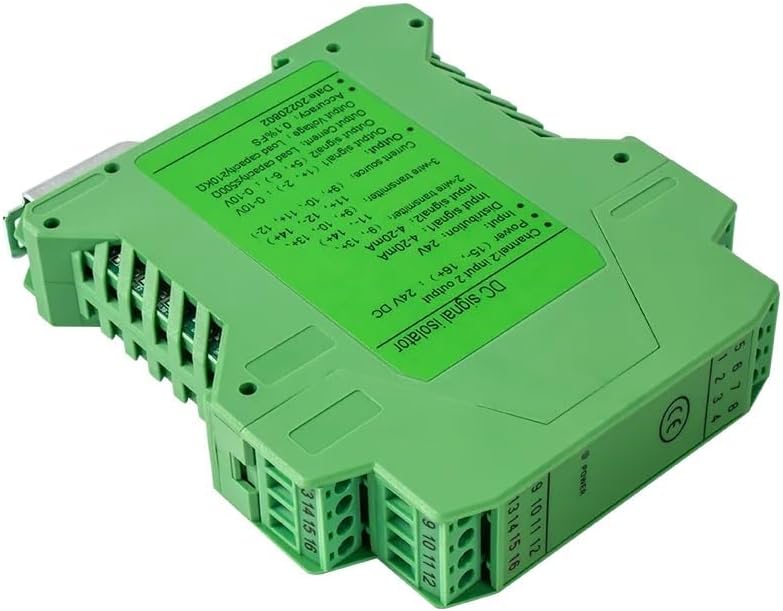

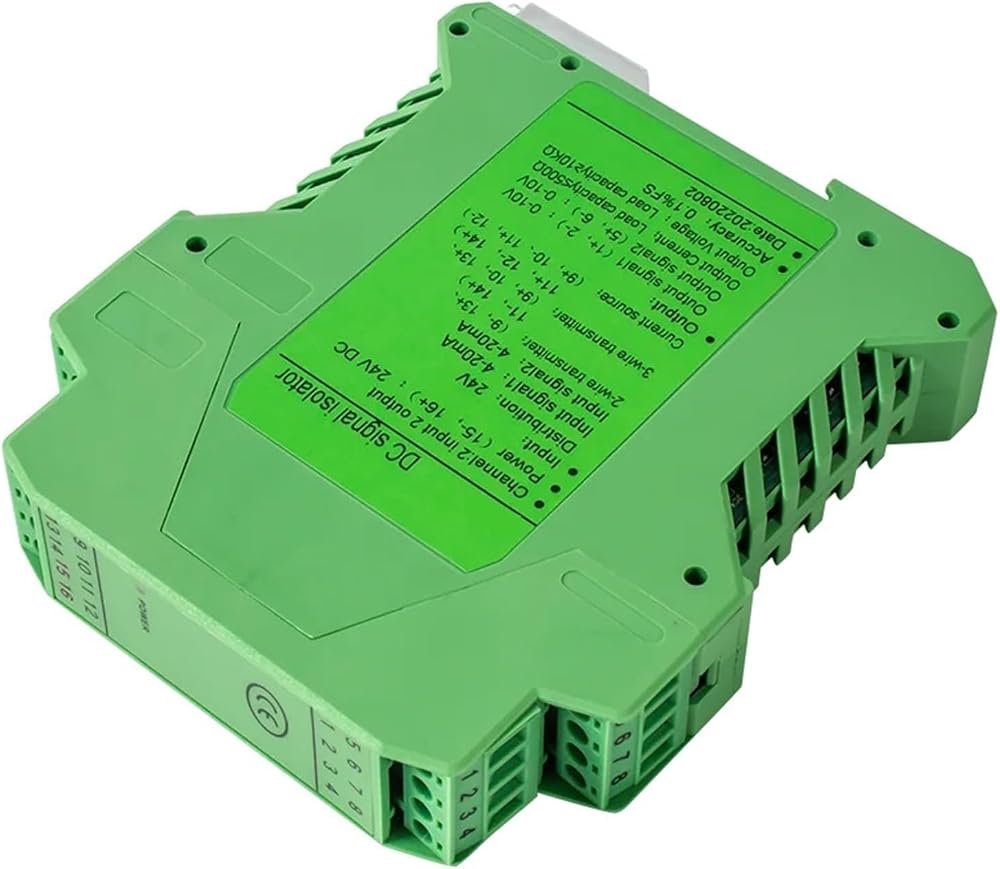

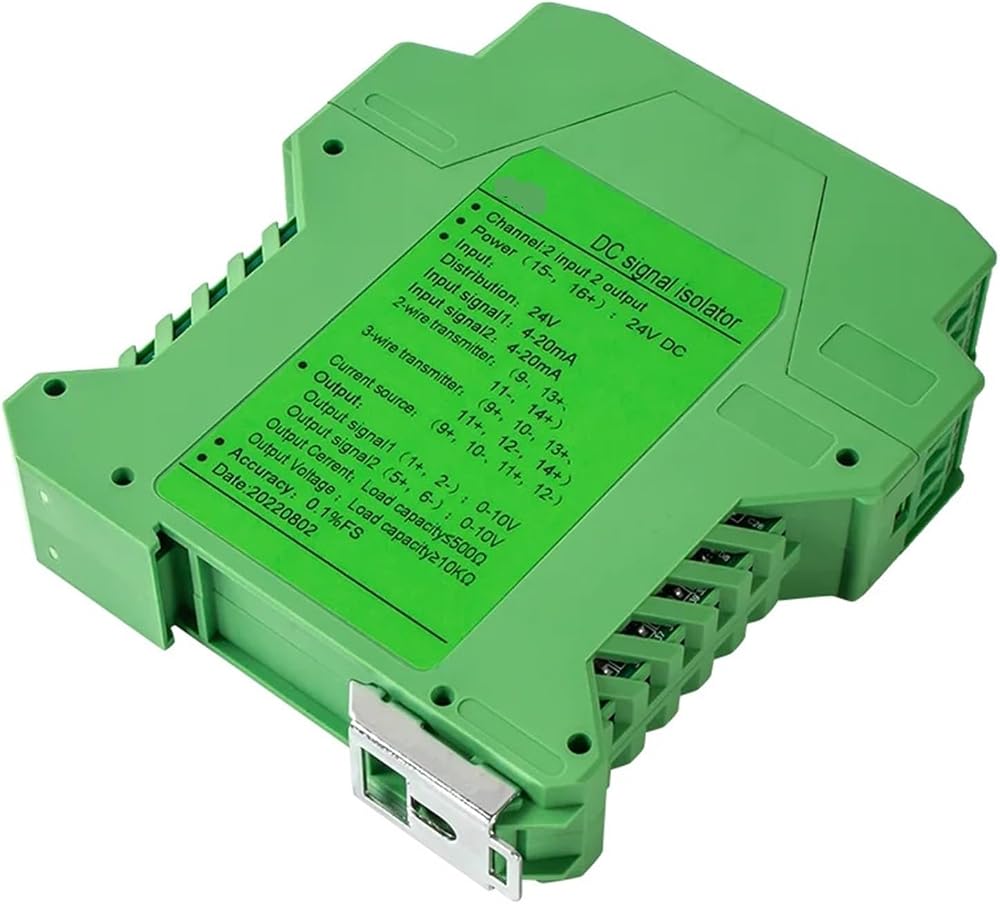

1 in 2 out signal isolator 0-10V 4-20mA to 0-10V 4-20mA 0-5V 1-5V DC analog signal isolator 4-20mA signal isolator
Size: 114.5*100*22.5mm
Working temperature: -20~+55
Power supply voltage: 24V

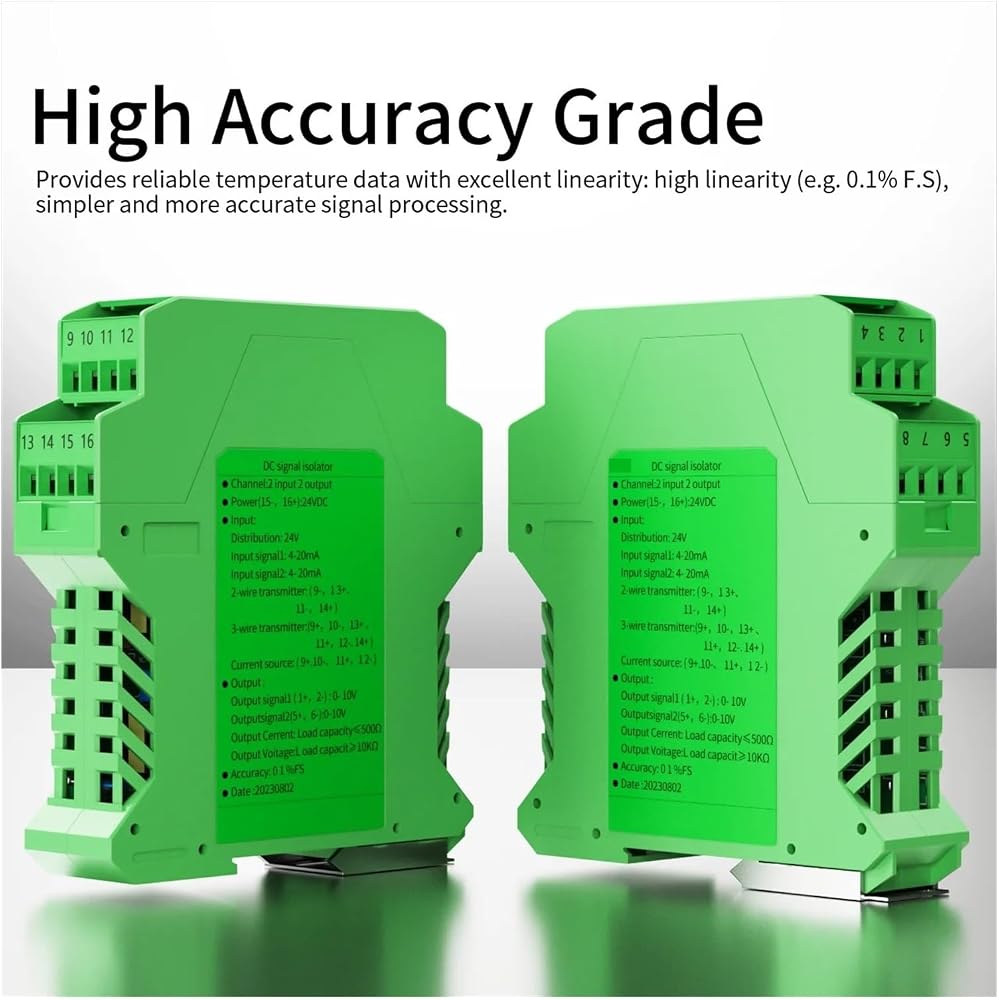

Accuracy level: 0.1%
Input signal: 4-20mA; 0-20mA; 0-5V; 0-10V
Power distribution voltage: 24v
Input impedance: 50
Operating temperature range: -20~+55
Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V
Output load resistance: RL500; RL1K
Current consumption: 70mA; 120mA; 140mA
Temperature drift: 0.005%FS/°C (-20°C~+55°C)
Response time: 10ms (0-90%) (typical)
Dielectric strength: 1500V AC/1min
Insulation resistance: 100MΩ

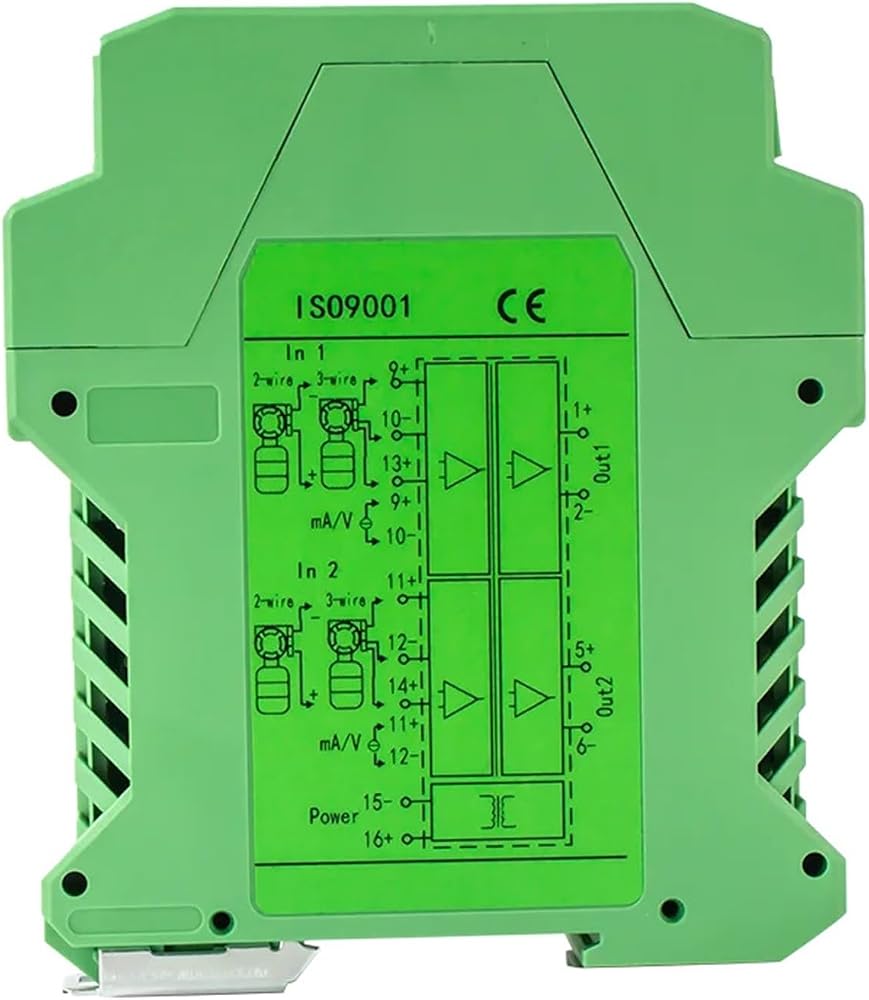

Use field devices: 2-wire, 3-wire transmitters, current sources
Power supply: DC24V, ±10%
