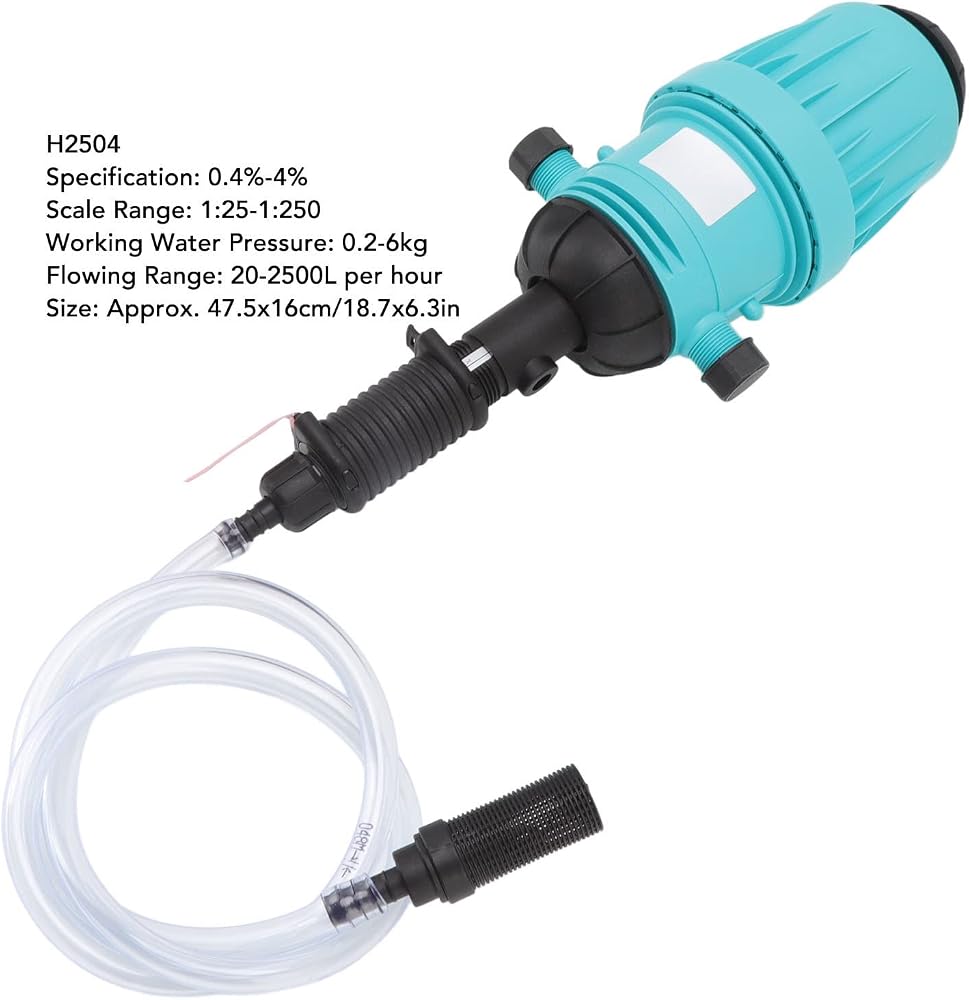

Item Type: Proportional Pump
Material: Plastic
Interface Size: Male Thread G3/4
Water Flowing Temperature: 4-30℃
Note: The accessory color is random

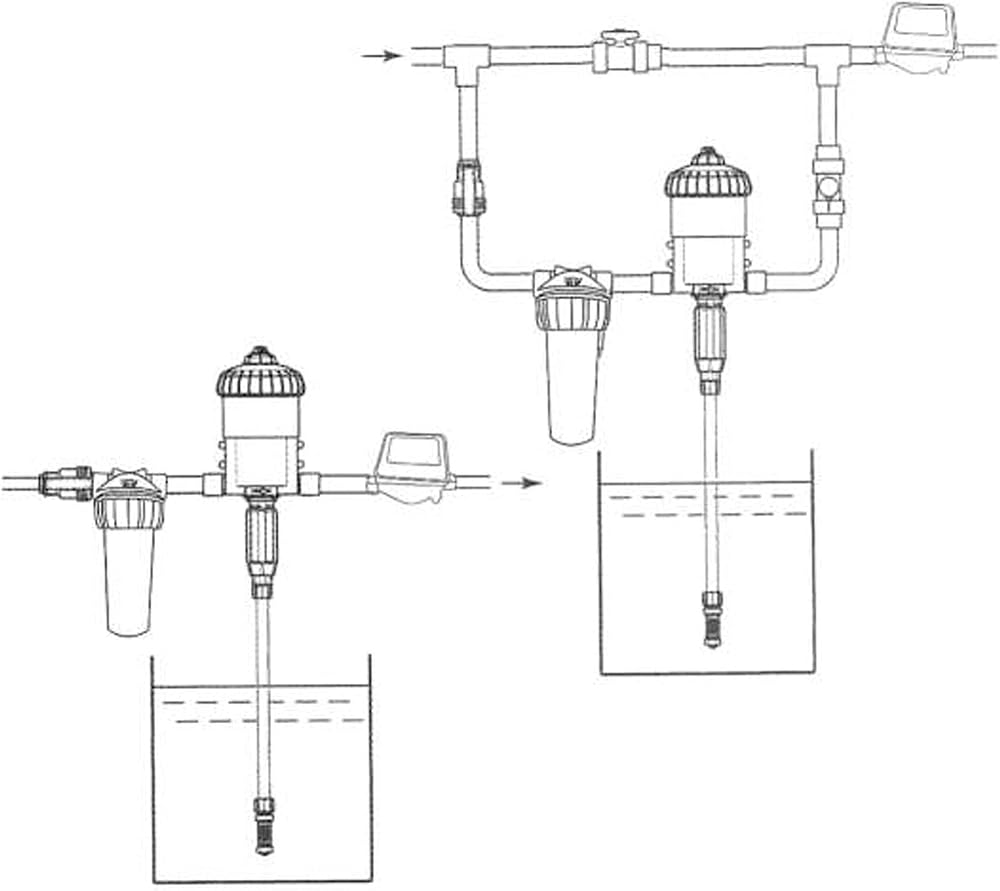

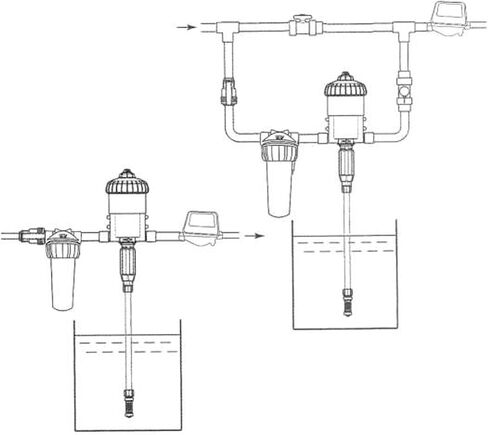

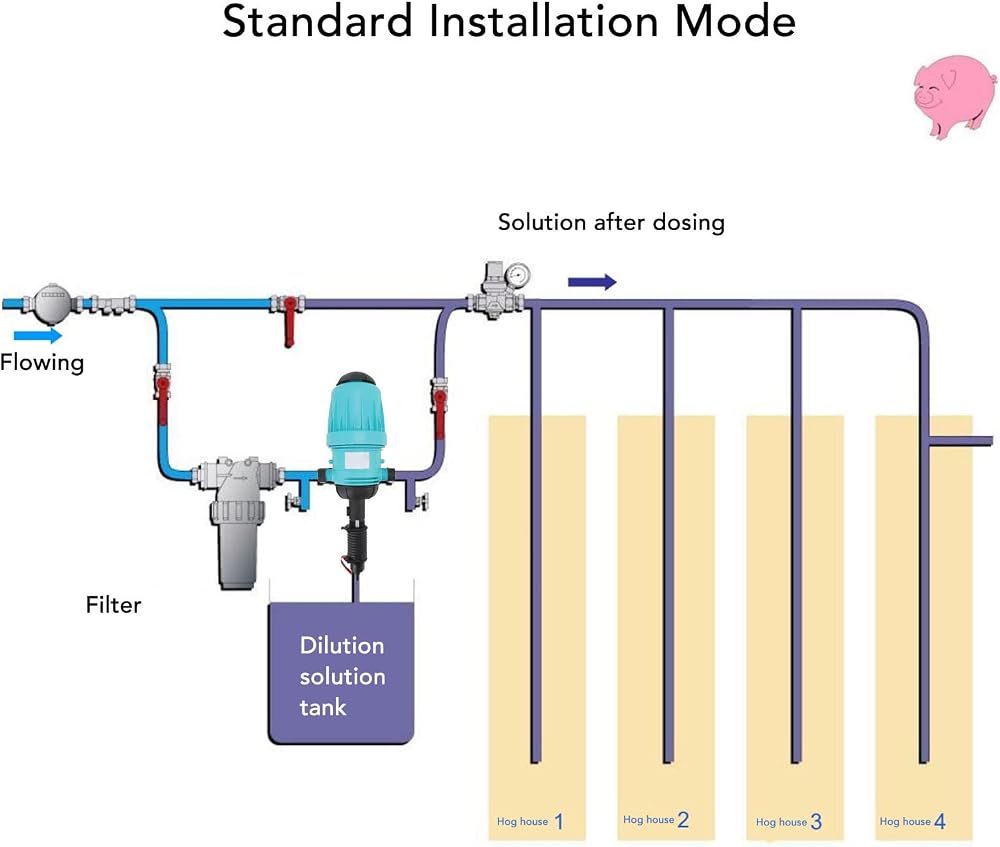

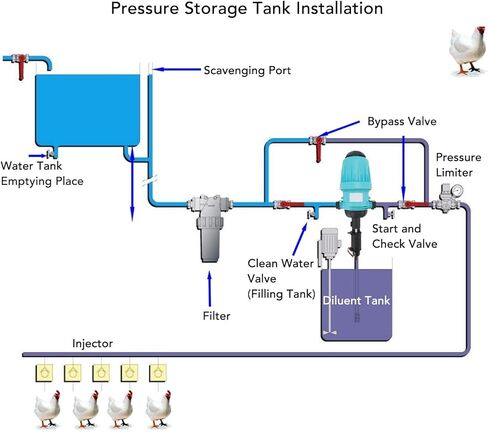

Installation and Fixing:
1. Location Selection: The water inlet and outlet of the proportional pump must be consistent with the water inlet and outlet of the main pipe.
2. The proportional pump must be installed with the proportional pump above and the liquid suction pipe below.

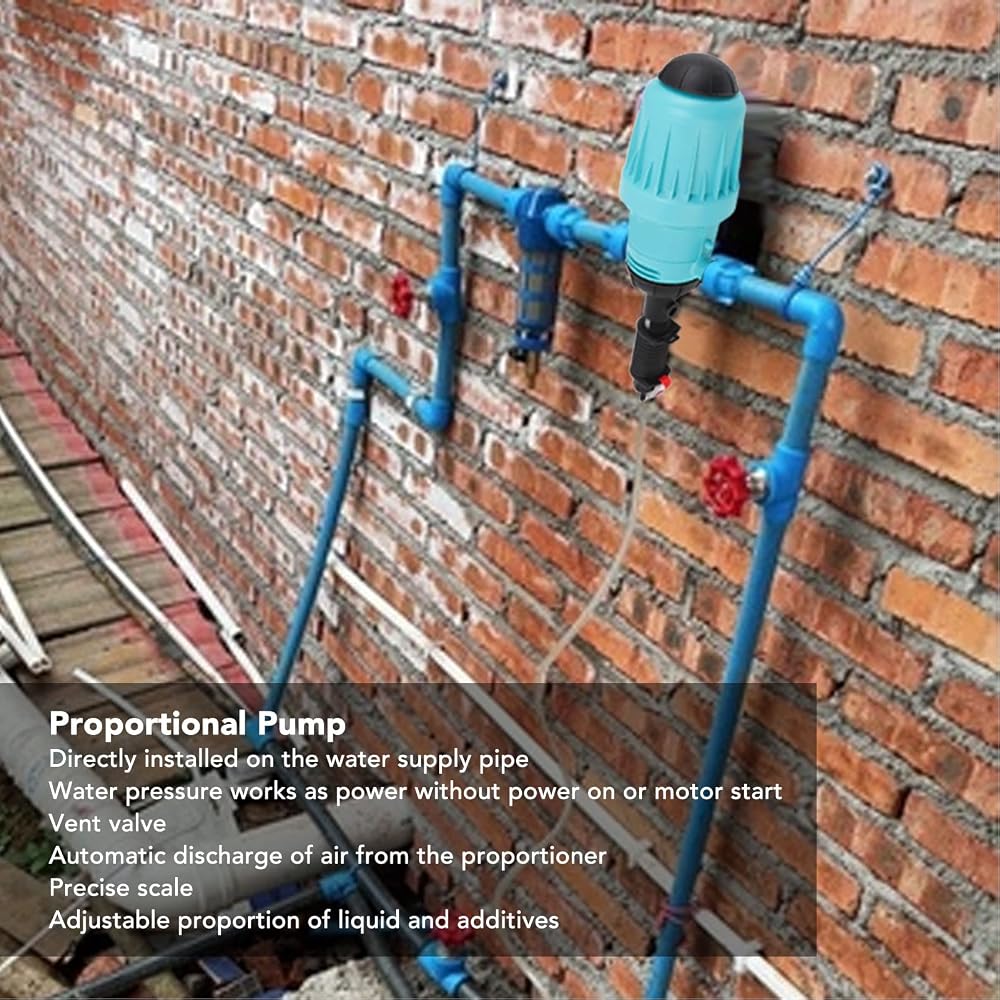

3. Fix the proportional pump to the wall or other facilities.

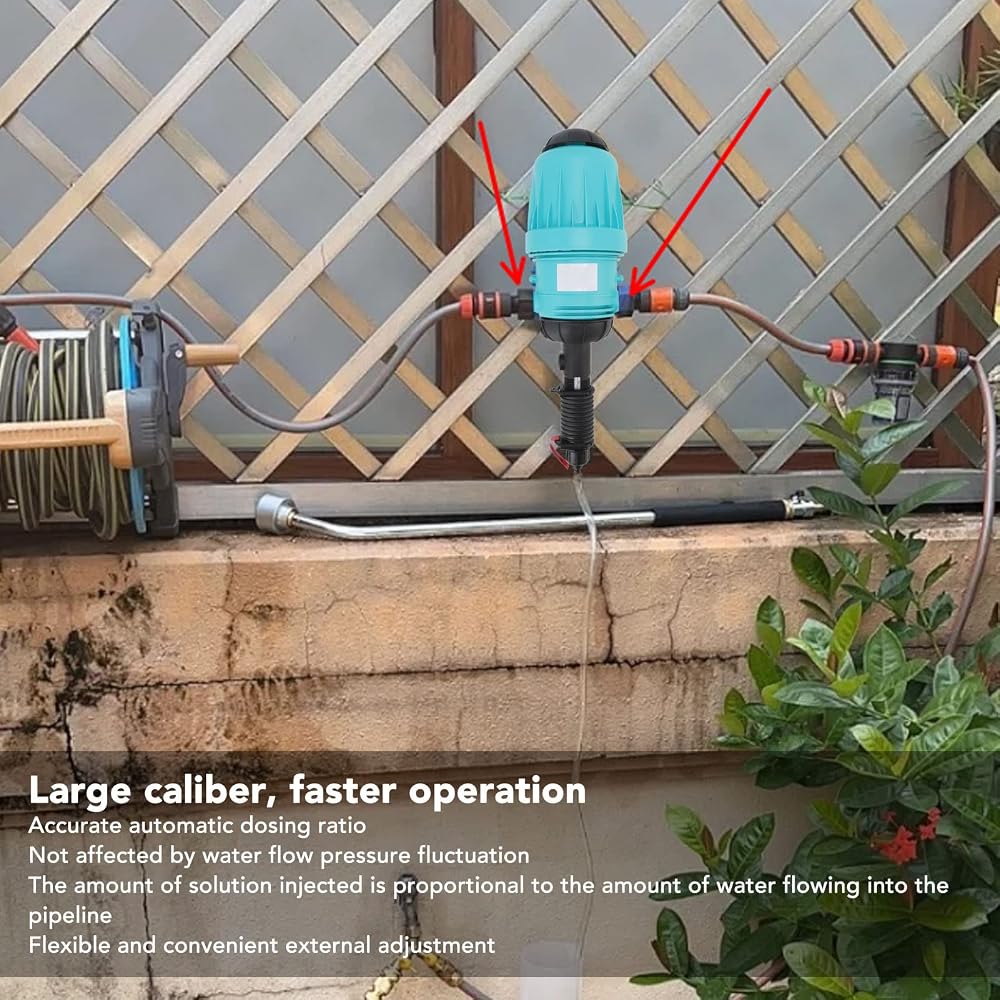

4. Install the water inlet and outlet of the proportional pump according to the water flowing direction to ensure their airtightness.
5. Install 100-120 mesh filter between the water valve and the inlet of the proportional pump.
6. When dosing is required, close the side branch valve of the proportional pump and open the valve on both sides of the proportional pump to feed.

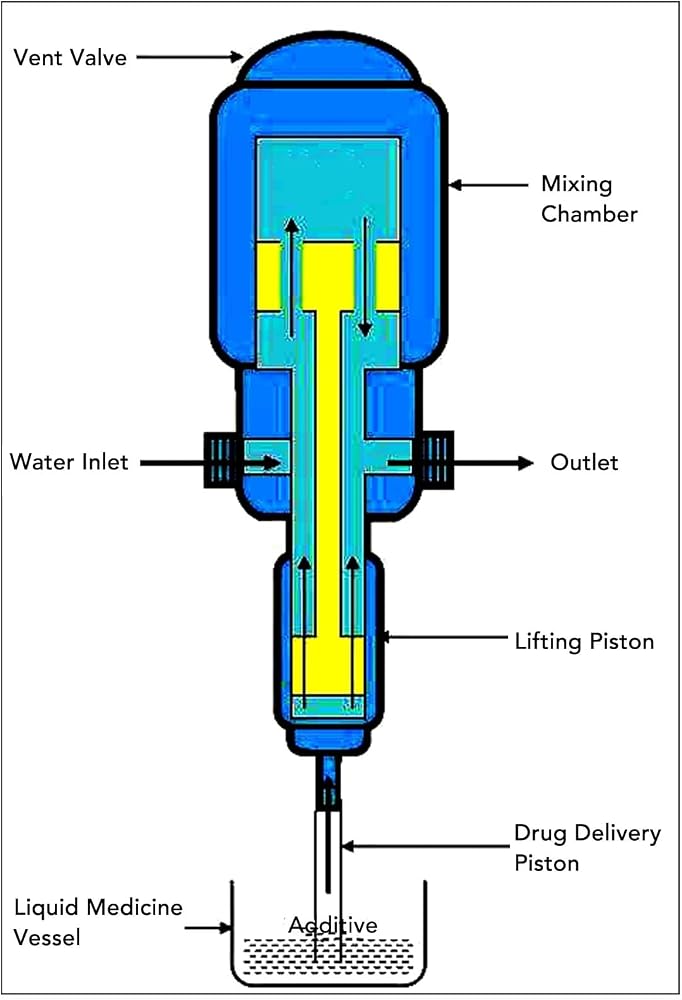

7. When the proportional pump starts to work, a click will be heard. At this time, press the air release valve on the top of the proportional pump, and release it when a small amount of water flows out to ensure the normal operation of the dosing device.

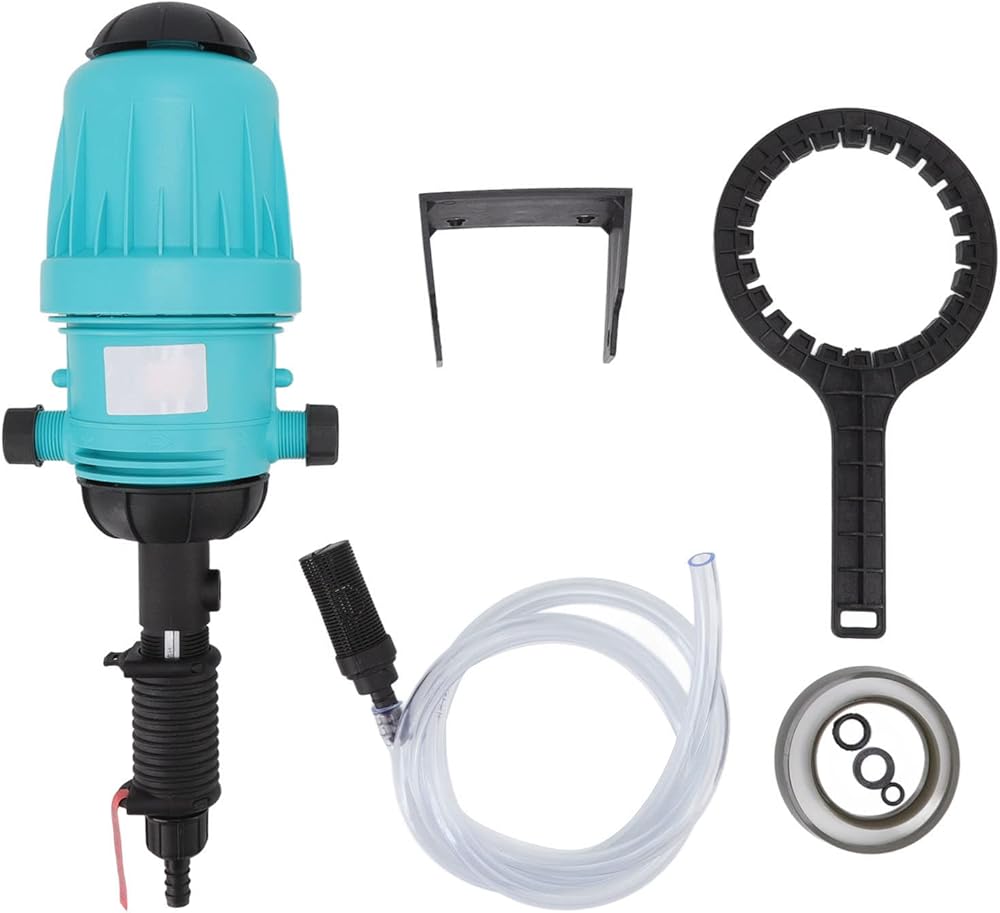

Package List：
1 x Proportional Pump
1 x Drug Suction Pipe With Filter
5 x Gasket
1 x Bracket
1 x Wrench
1 x Manual
