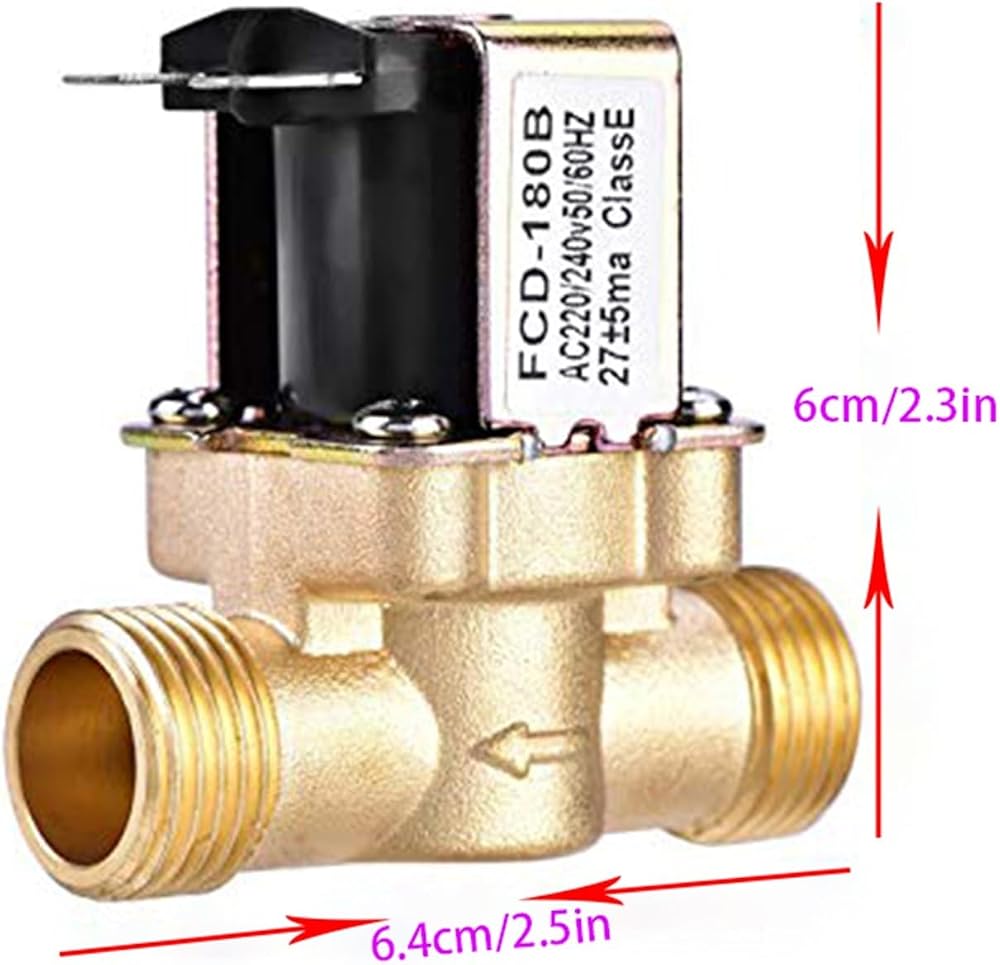

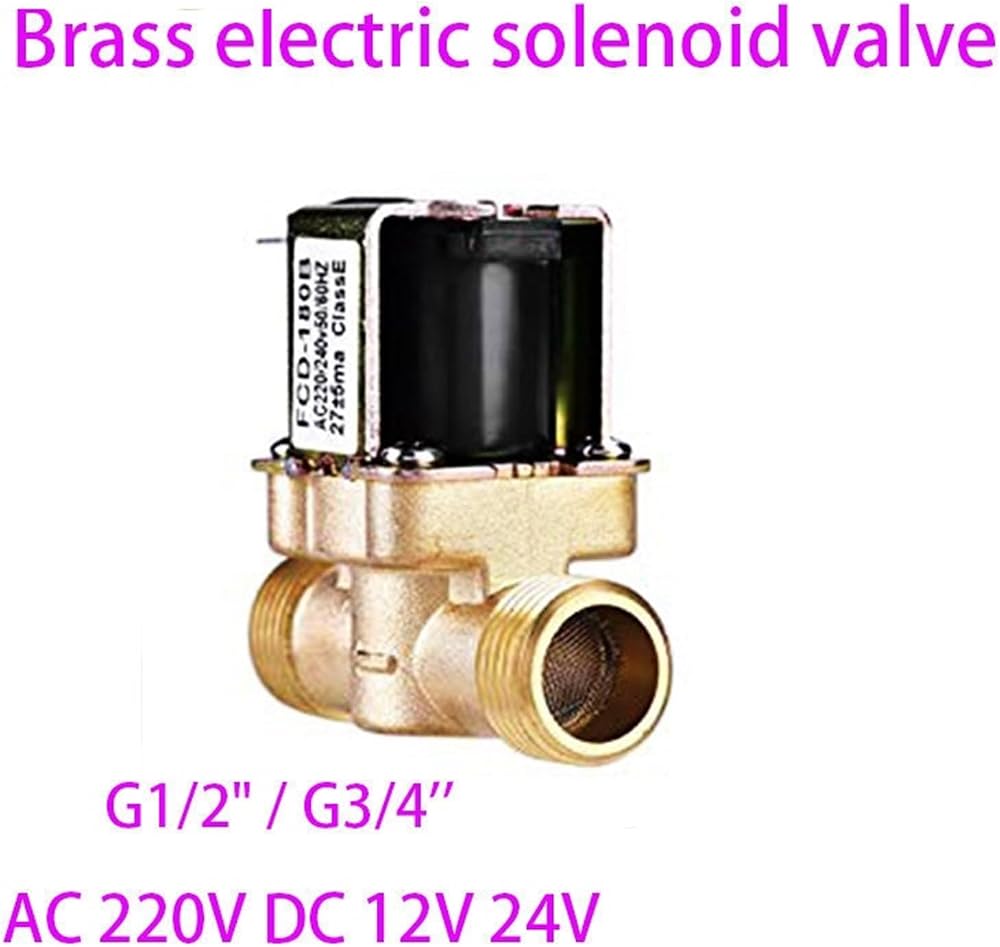

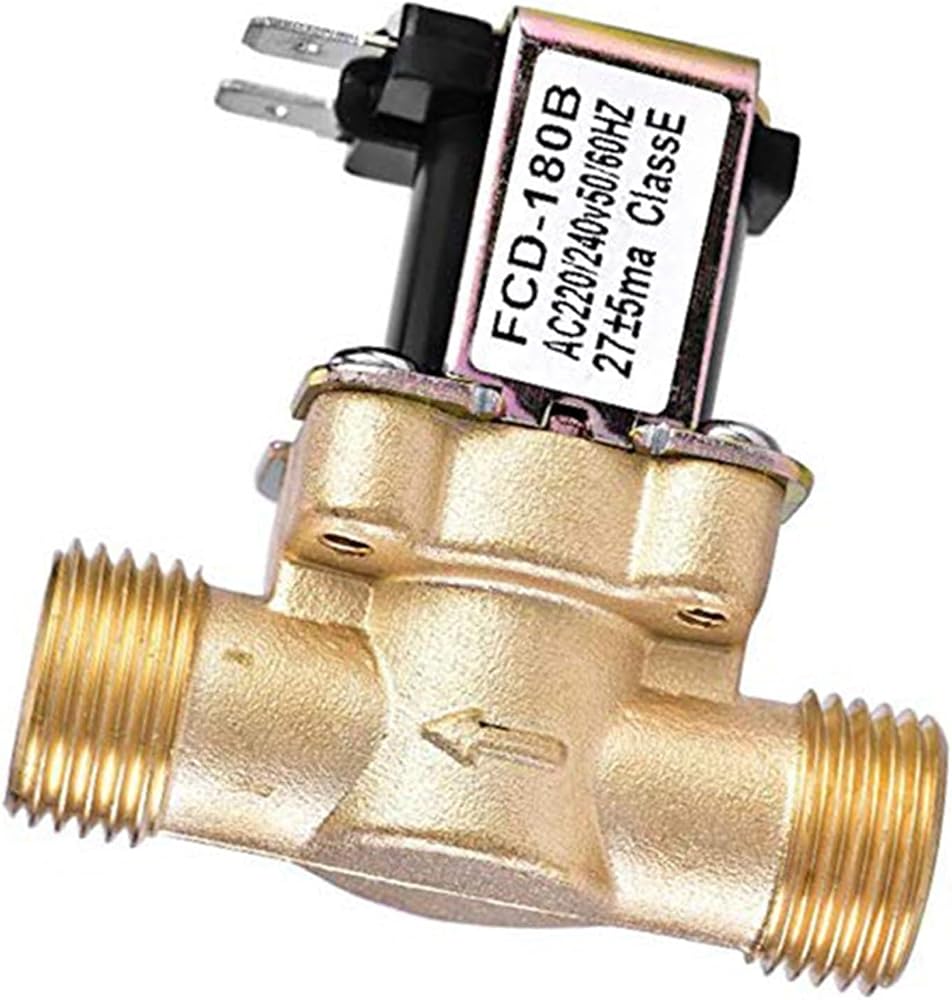

Material: Brass
Voltage: 12V DC / 24V DC / 220V AC
Nominal diameter: G1/2" / G3/4''
Water pressure: 0.02-0.8Mpa
1. Environmental conditions for inlet valve of low pressure solenoid valve
Ambient temperature: 0 to 40 ° C
2. Type and rated technical parameters
Type: guide (one-way) solenoid valve
Rated voltage: 12V
Working mode: short-time quota system (intermittent duty cycle)
Insulation grade: E
Use of fluid: (0-55 ° C) water
Use water pressure: 0.02-0.8Mpa
3.Water flow characteristics
Water pressure (Mpa): 0.02 0.1 0.3 0.8
Flow (L/min): > 5 >11 >18 >32
Nominal diameter: 4 points double thread outlet diameter 13 (mm)
Life: > 100 000 times
Package Included:
1 x Electric Solenoid Valve
