Pumps
Specification:
The peristaltic pump has a three roller structure, with the lower half of the three rollers being gears.
The (large) gears on the three rollers and the small gears on the motor shaft form a reduction ratio,
which is a relatively design. The characteristic of a peristaltic pump is its small flow rate but
strong delivery pressure. When the voltage is DC12V, its outlet pressure is even stronger.
However, a peristaltic pump cannot be as quiet as a diaphragm pump when pumping water,
as it may experience shaking. Therefore, it is recommended to fix the pump before use.

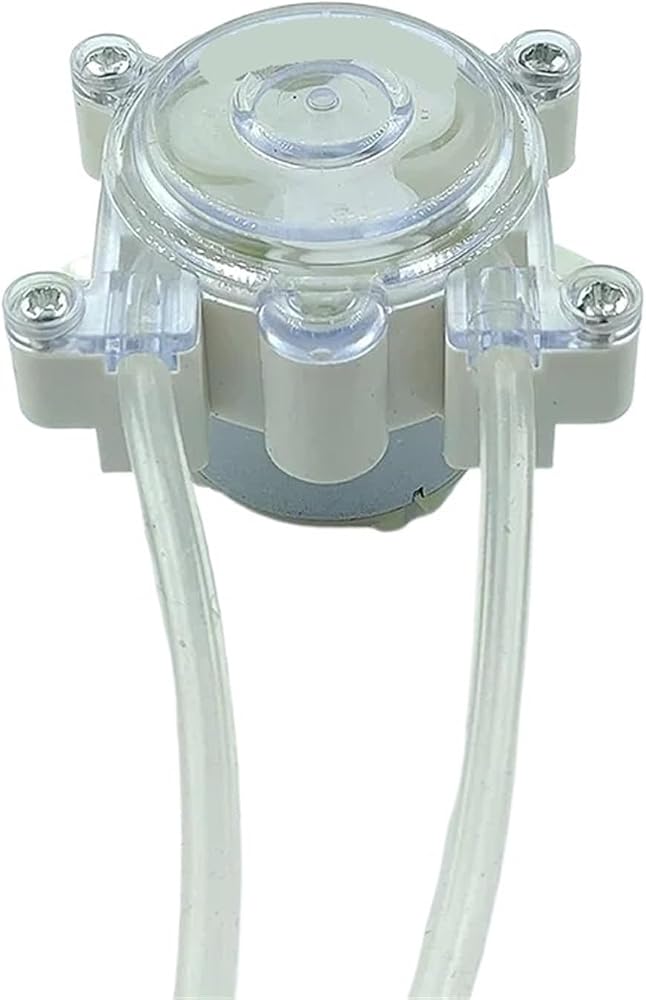

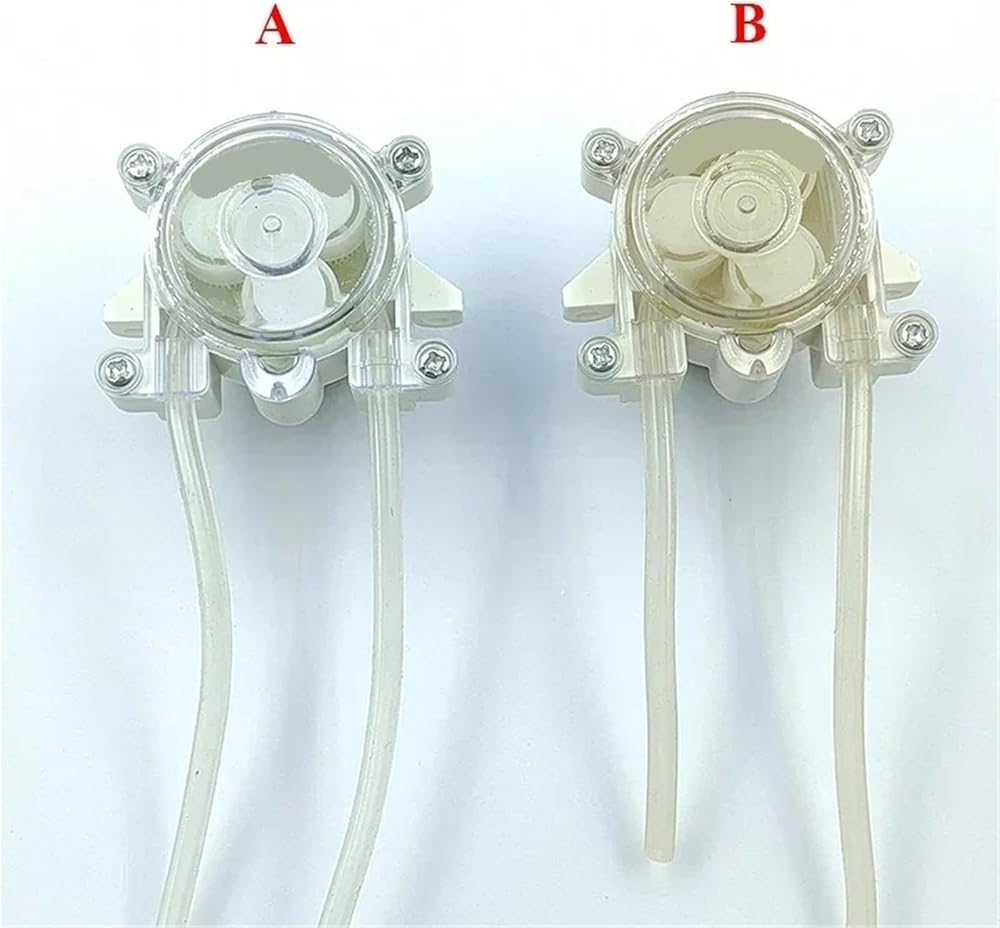

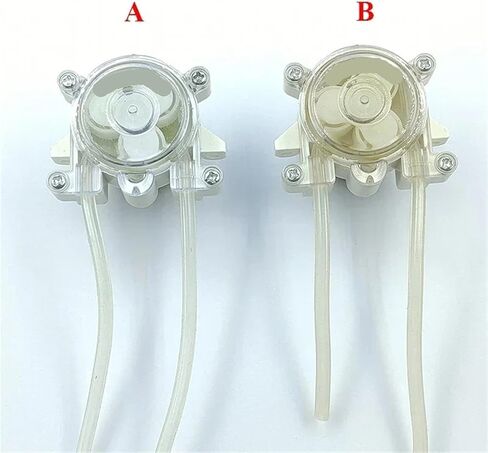

1.Model: Micro 500 Geared Motor Peristaltic Pump
2.Tube size: 2.5mm*4.5mm
3.Suitable voltage: 6V-12V
4.Test data:
Voltage:6V Working current:0.5A
Voltage:12V Working current:0.6A
5.Pump weight: 70g
=========================
Package List:
Mini Pump x 1PC
==========
Hign-concerned Chemical : None
Application : Metering
Structure : Peristaltic Pump
Model Number : Mini 500 Peristaltic Pump
Pressure : Low Pressure
Fuel : Electric
Power (W) : Electric
Use : Peristaltic Pump
Suitable voltage : 6V-12V
