Transformers

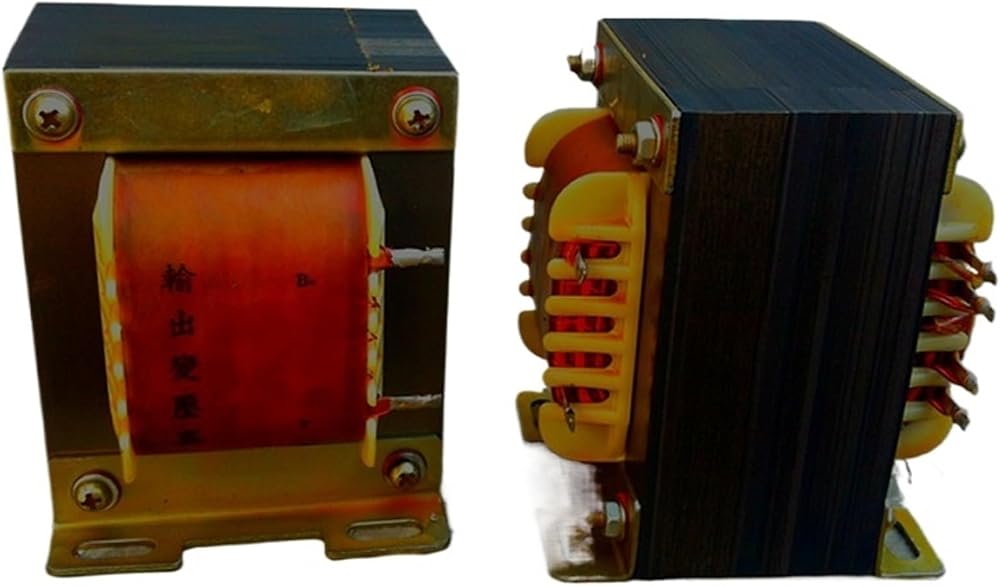

30W fever amplifier high frequency wax output transformer 2.5K-3.5K adjustable produced by Old Buffalo Seiko
The output cow parameters are as follows:
Power:30w
Iron core material: Nippon Steel (Z11 0.35 audio special film
Core size:EI96x50
Frequency response:20HZ-35Khz -3DB
Winding method: 5+4 (special fever winding method>
Impedance: primary 2.5K 2-3.5K adjustable
Secondary 0-4-8
Inductance: TH2811/1KHZ 1V test 70H
Resistance: 190
Output Cow Exact Pairing:
Weight: 6.4kg/pair
